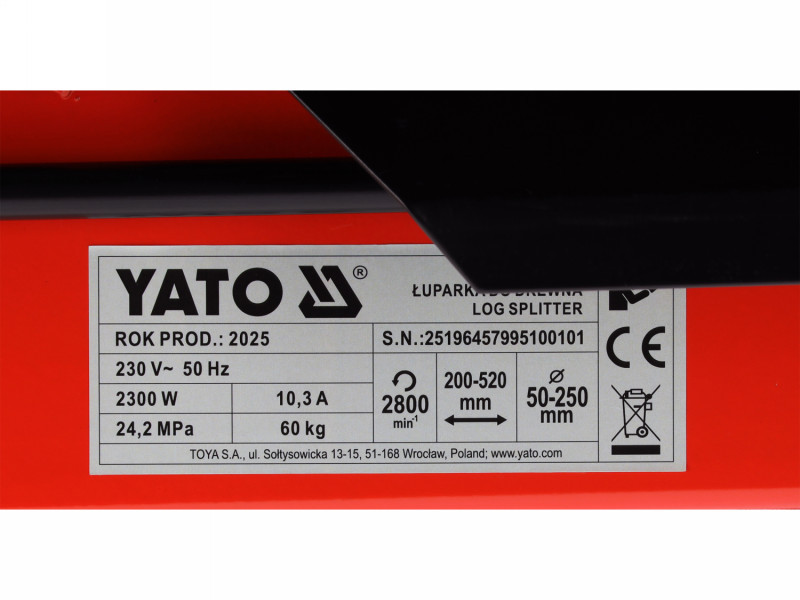

| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 2300 W |
| Force pressure | 7 t |
| Max. pressure | 24.2 MPa |
| Max. rotations | 2800 min⁻¹ |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Log diameter | 50-250 mm |
| Trunk length | 200-520 mm |
| Dimensions | 116x42.5x61 mm |
| Oil tank capacity | 3.5 l |
| Working mode | S6 40% 10 min |
| Nominal current | 10.3 A |
| Acoustic pressure | 75.8 ± 3.0 / 86.8 ± 3.0 dB(A) |
| Acoustic power | 90.5 ± 3.0 / 93.0 ± 3.0 dB(A) |
| Electric insulation class | I |
| Protection grade | IP54 |
| Weight | 60 kg |
| Symbol | YT-79951 |

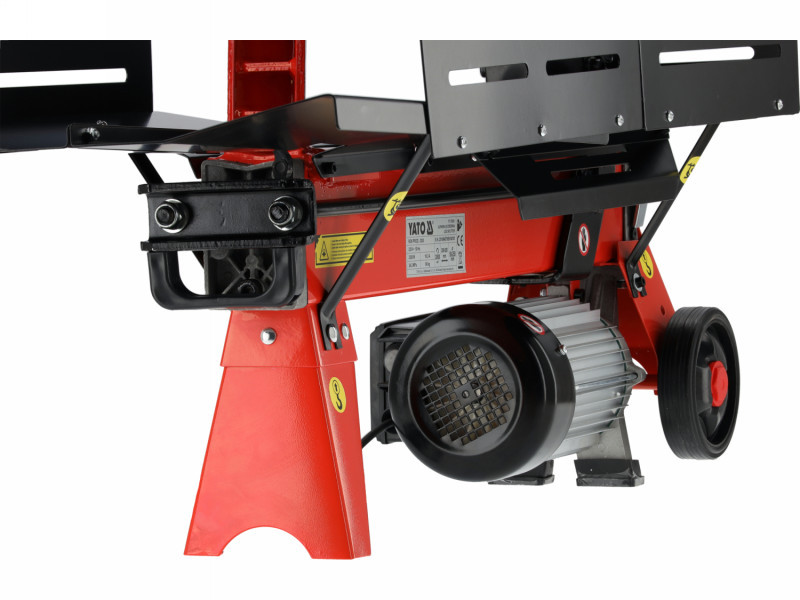

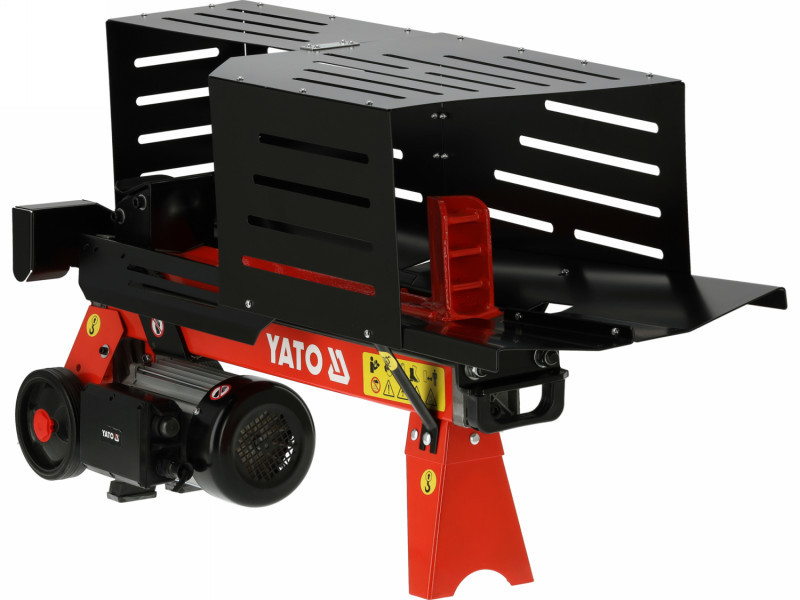

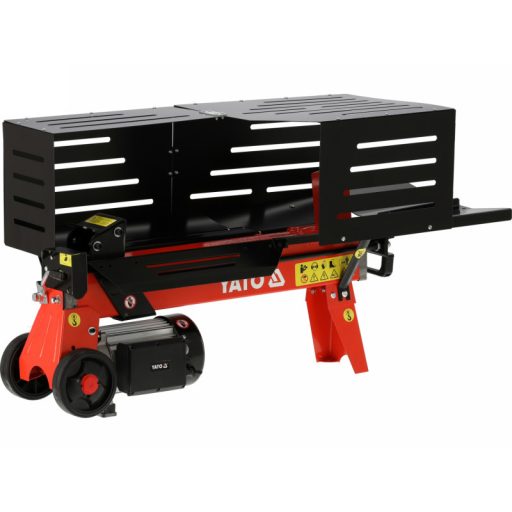

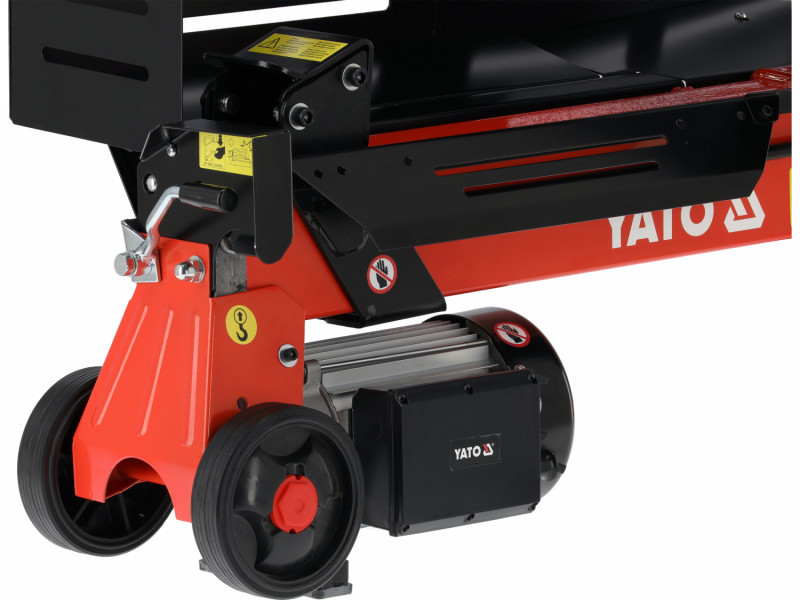

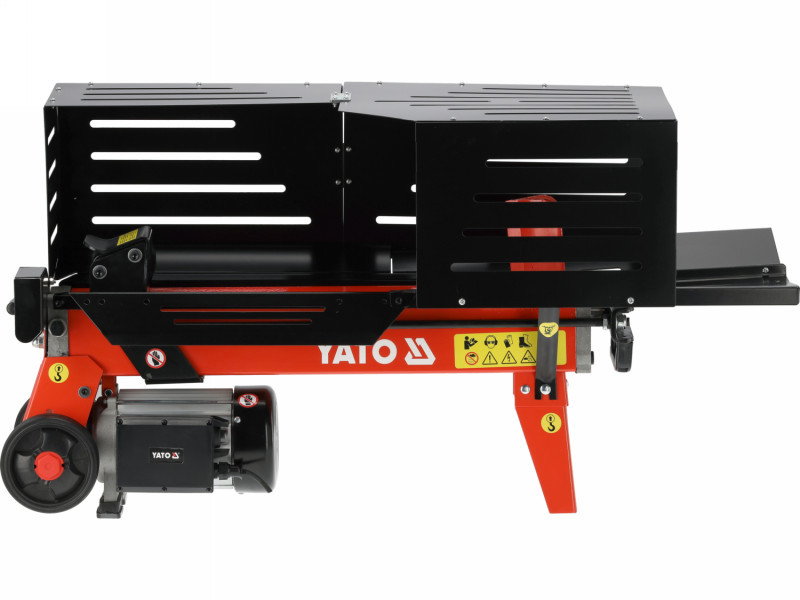

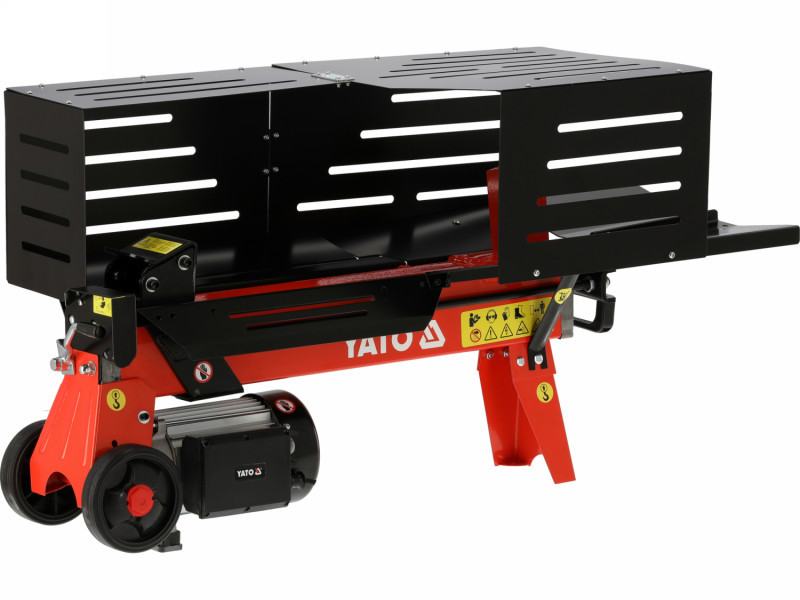

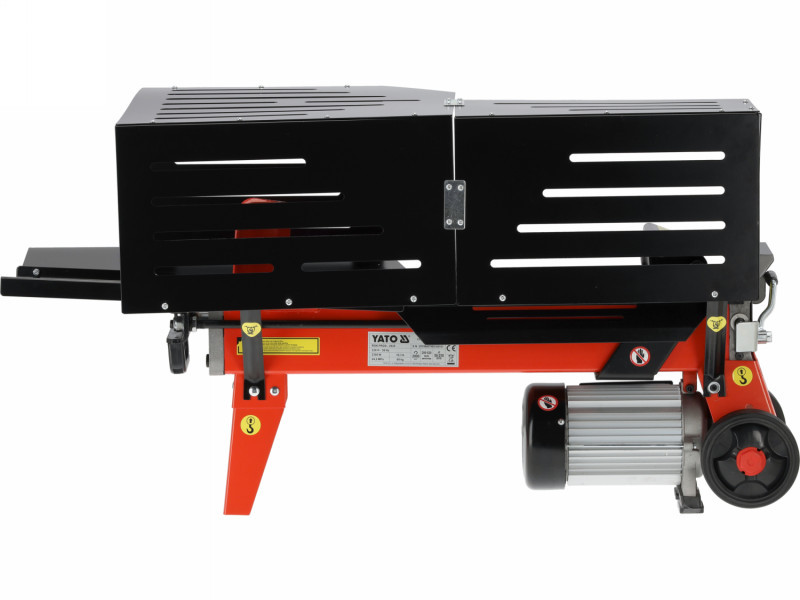

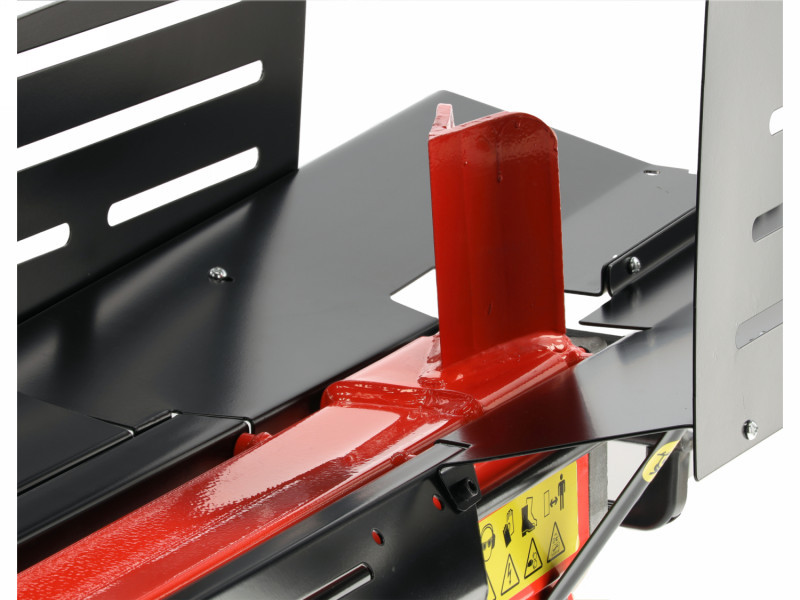

Efficient hydraulic log splitter for preparing firewood equipped with a system generating pressure up to 7 tons. The working pressure of 24.2 MPa allows for effectively splitting harder and thicker logs up to 520 mm in length and 250 mm in diameter. The 230 V electric drive enables use in a garage, workshop, or backyard utility area.
The 2300 W motor operates in S6 40% mode, making the device suitable for longer working cycles. The stable construction with a steel cover and low vibration level improve safety and comfort during firewood preparation for daily use.
Construction and safety:
- splitting force up to 7 tons generated by a cylinder with a diameter of Ø60 mm
- steel protective cage to prevent wood splinters
- stable frame maintaining position during hydraulic pressure
- vibration level < 2.5 m/s² improving work control
- noise level 78.8 dB(A) / 89.8 dB(A) – suitable for home use
- IP54 protection rating – protection against dust and moisture
Working parameters:
- power supply: 230 V ~ 50 Hz
- motor power: 2300 W
- max. speed: 2800 min-1
- hydraulic pressure: 24.2 MPa
- working mode: S6 40% - 10 minutes
- log length: 200-520 mm
- log diameter: 50-250 mm
Hydraulic system:
- hydraulic cylinder with high compression force of 7 tons
- oil capacity: 3.5 l
- even piston movement limiting wood jamming
- stable splitting of seasoned wood and harder species
Dimensions and construction:
- device dimensions: 116 x 42.5 x 61 cm
- compact shape for easy setup and storage
- steel construction resistant to working loads
- weight: 60 kg
Application:
- preparing wood for fireplaces and stoves
- fuel for central heating boilers
- wood for garden fire pits
- use in households and on plots of land
Usage warnings:
Danger! Keep clear of moving parts! Wear eye protection! Wear protective gloves! Wear safety footwear! Wear hearing protection!
