| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 2200 W |
| Force pressure | 5 t |
| Max. pressure | 20.6 MPa |
| Max. rotations | 2800 min⁻¹ |
| Voltage | 220-240 V a.c. |
| Frequency | 50 Hz |
| Log diameter | 50-250 mm |
| Trunk length | 200-520 mm |
| Dimensions | 116x42.5x61 mm |
| Oil tank capacity | 3.5 l |
| Working mode | S3 25% 10 min |
| Nominal current | 9.6 A |
| Acoustic pressure | 75.8 ± 3.0 / 86.8 ± 3.0 dB(A) |
| Acoustic power | 90.5 ± 3.0 / 93.0 ± 3.0 dB(A) |
| Electric insulation class | I |
| Protection grade | IP54 |
| Weight | 55 kg |
| Symbol | YT-79950 |

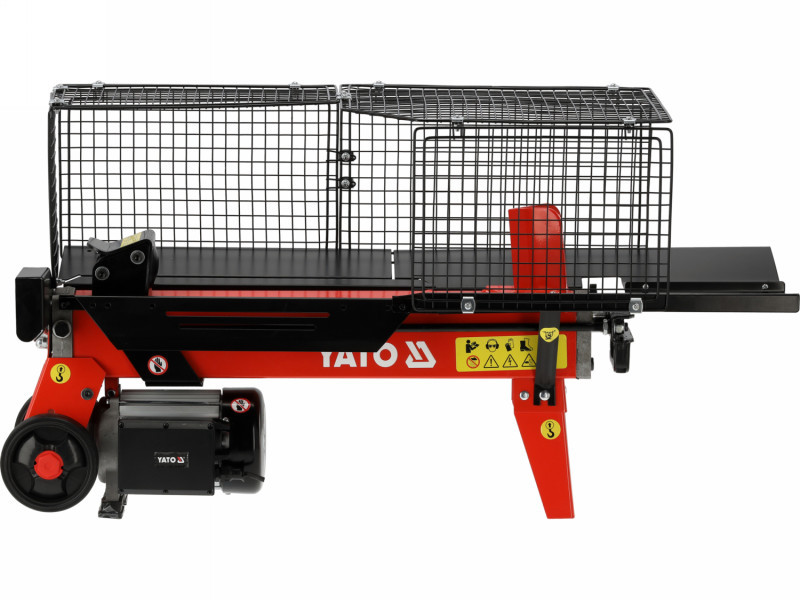

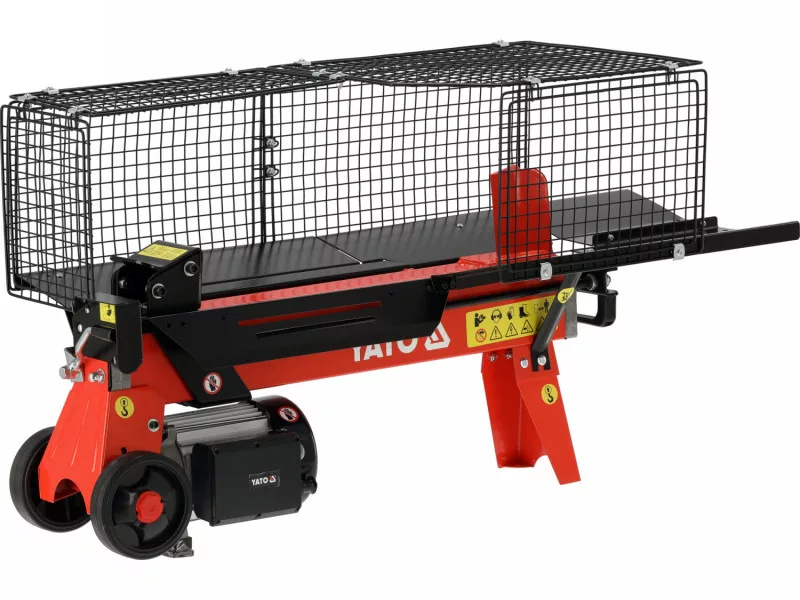

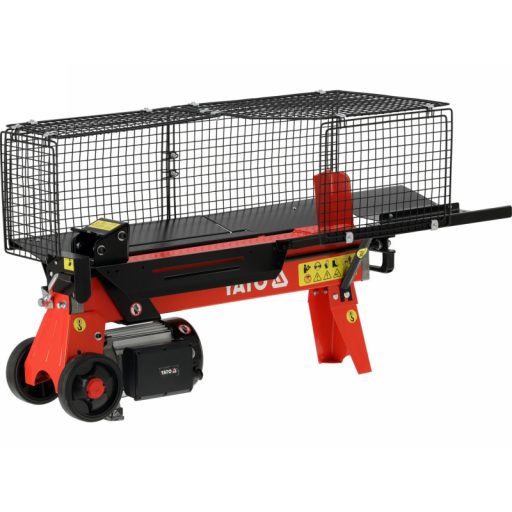

Efficient electric log splitter designed for preparing firewood in domestic conditions. Hydraulic system with a pressure of 20.6 MPa generates a force of 5 tons, allowing for effective splitting of logs without the need for an axe. The 230 V electric drive and 2200 W motor enable operation in a garage, workshop, or under a canopy, without emissions.
The design is adapted for regular intermittent work – stable frame, steel guard, and low vibration level increase operator safety and material control. The device handles logs up to 520 mm in length and up to 250 mm in diameter, making it suitable for preparing fuel for fireplaces, boilers, and home stoves.
Construction and safety:
- 5-ton pressing force generated by a hydraulic cylinder with a cylinder diameter of Ø55 mm
- metal protective cage shielding the operator from splinters
- stable base limiting movement during operation
- low vibration level < 2.5 m/s² improving material control
- noise level 78.8 dB(A) / 89.8 dB(A) – suitable for use in a domestic environment
- IP54 protection rating – safeguarding against dust and moisture
Operating parameters:
- power supply: 230 V ~ 50 Hz
- motor power: 2200 W
- max. speed 2800 rpm
- hydraulic pressure: 20.6 MPa
- operating mode: S3 25% (cyclic operation) - 10 minutes
- log length: 200-520 mm
- log diameter: 50-250 mm
Hydraulic system:
- hydraulic cylinder with a high clamping force of 5 tons
- oil capacity: 3.5 l
- smooth piston movement without sudden impacts
- even splitting of seasoned and soft wood
Dimensions and construction:
- device dimensions: 116 x 42.5 x 61 cm
- compact form for easy storage
- steel frame resistant to working loads
- weight: 55 kg
Application:
- preparing wood for fireplaces and stoves
- fuel for central heating boilers
- wood for fire pits and garden grill areas
- use in households and on plots
Usage warnings:
Danger! Keep clear of moving parts! Wear eye protection! Wear protective gloves! Wear safety footwear! Wear hearing protection!
