| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Standard | EN 362:2004/X |
| Max. load capacity | 100 kg |
| Material | steel |
| bar thickness | 10 mm |
| Opening width | 16 mm |
| Static strength | >22 kN |
| Working temperature | -40 ~ +58 ˚C |
| Self-closing | yes |
| Manual locking | yes |
| Symbol | YT-74229 |

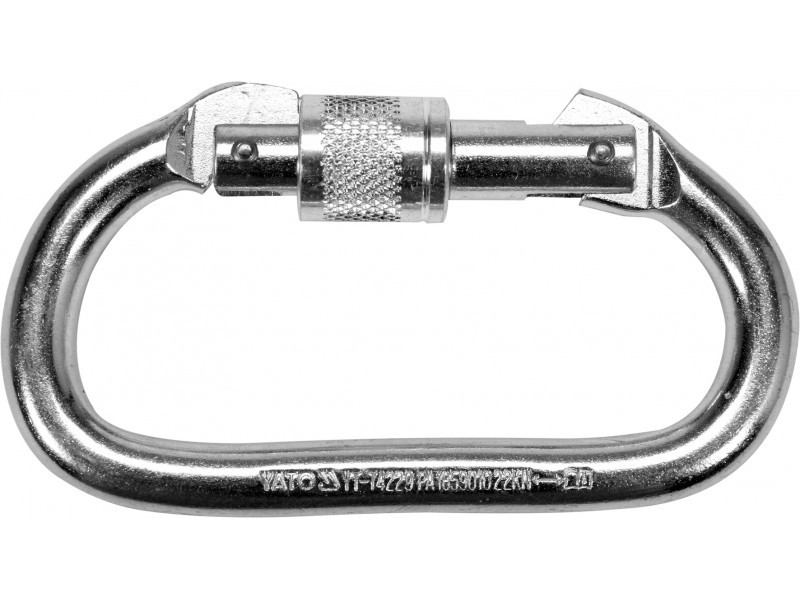

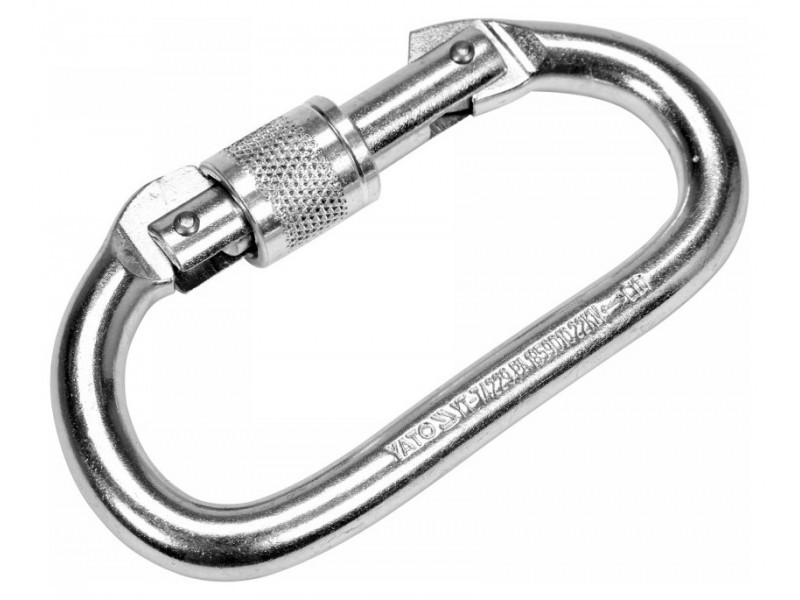

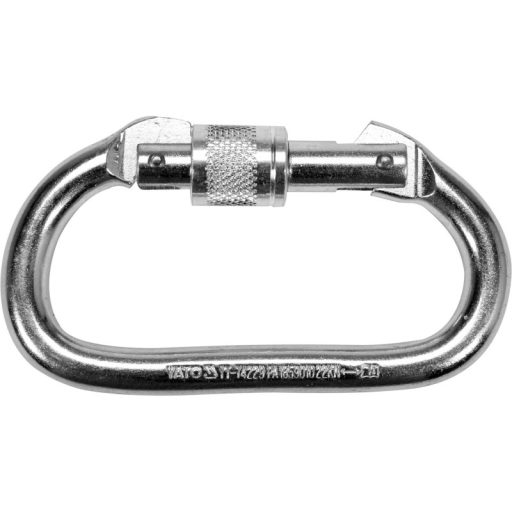

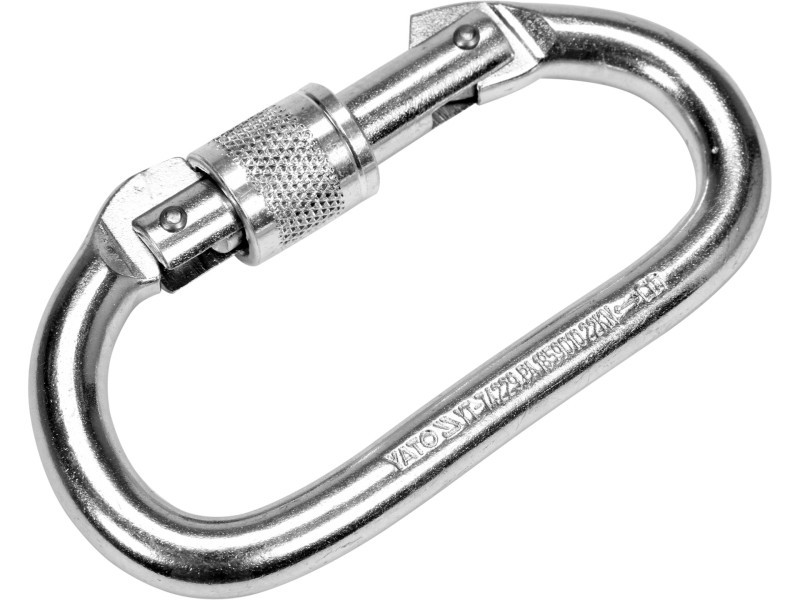

Self-locking snap hook YT-74229 with manual screw locking is a component of a fall arrest system. The snap hook is used as a connector to items such as safety harnesses, ropes, cables, auxiliary straps, as well as to the shock absorber.
- Maximum opening: 16 mm
- diameter: 10 mm
- static strength: 22 KN
The YT-74229 latch has been tested in an EU-accredited laboratory and meets the requirements of the EN 362:2004 Class B standard.
Safety and legal aspects:
Work at height is work performed at a level more than 1 meter above ground/floor level, the surface of which is not surrounded on all sides by solid walls or a protective structure up to a height of 1.5 meters. If it is not possible to use collective protective equipment in such conditions, then the employer ordering the work should, among other things, provide personal protective equipment. Each piece of fall protection equipment should meet certain safety standards, which the manufacturer confirms only through an EU-accredited testing laboratory. Confirmation of compliance with standards first and foremost guarantees the safety of the user, but also protects both the employee and the employer from financial consequences resulting from fines imposed by the labor inspection institution.
The following is an example of this
All elements of YATO fall protection equipment have up-to-date tests confirming compliance with safety standards, and using them according to the instructions guarantees 5 years of reliable operation.
Operiod of use:
The lifetime of the carabiner is five years and is calculated from the first use.
