| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Standard | EN 175:1997, EN 379:2003 + A1:2009 |
| Optical characteristic | 1 / 1 / 1 / 2 |

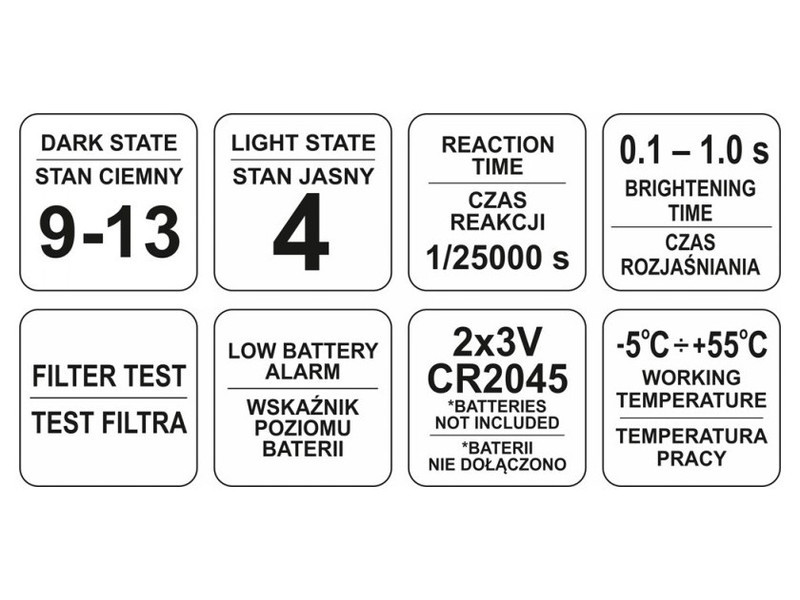

| Dark state | 5-8, 9-13 DIN |
| Light state | 4 DIN |
| Filter type | auto-darkening TRUE COLOR |
| Filter size | 126x103x18 mm |
| Viewing area | 99x56 mm |
| Helmet material | PP |
| Lens material | P.C |

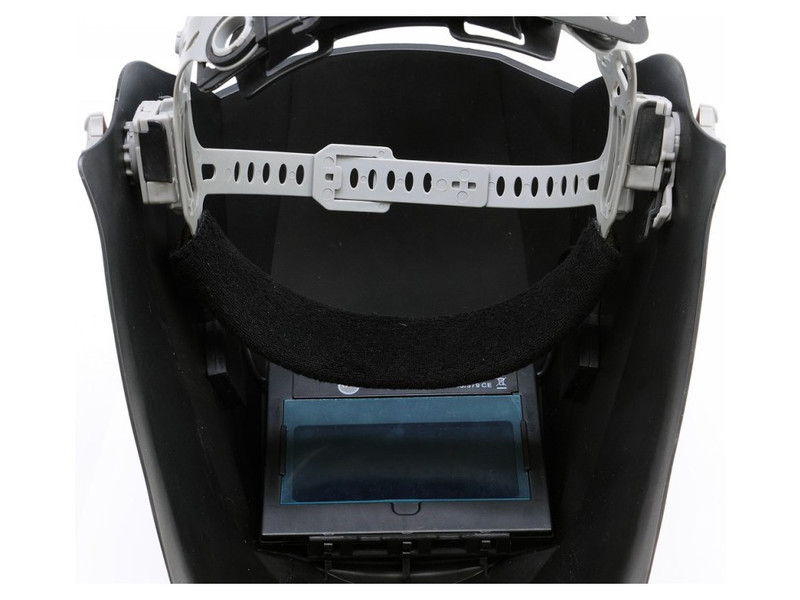

| 4 point headgear | yes |
| Arc sensor quantity | 4 |
| Filter test | yes |
| Reaction time | 1/25000 s |
| Functions | grinding, welding |

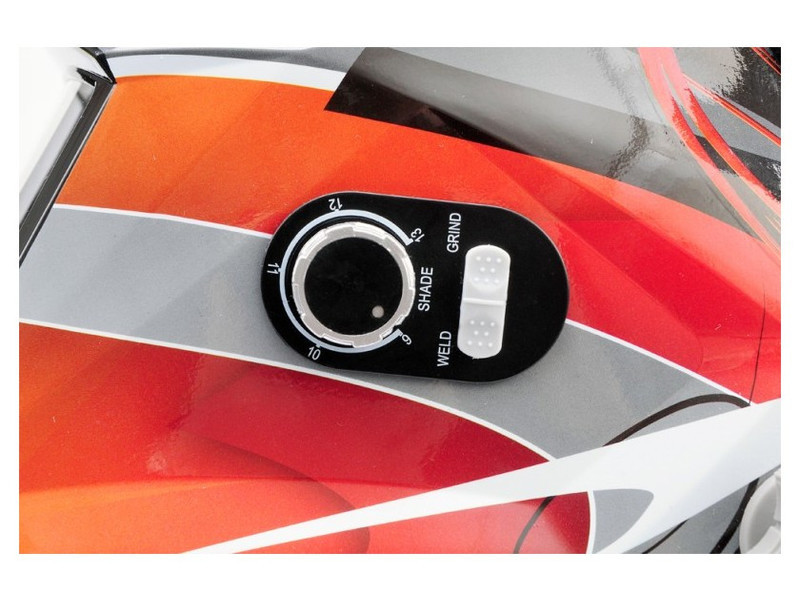

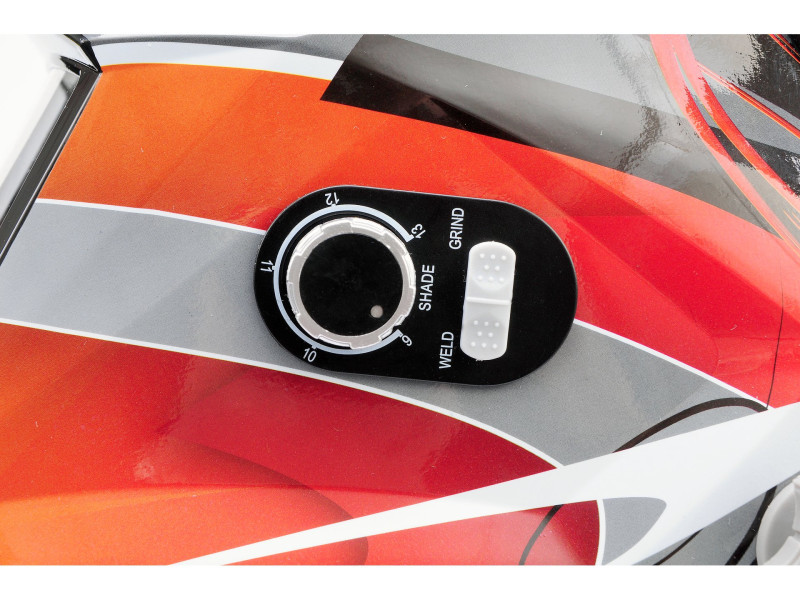

| Shade control | yes, external, using a knob |
| Dimmimg time | 0.3-1 ms |
| Brightening time | 0.1-1 s |
| Automatic sensitivity adjustment | yes, min-max, using the knob |
| Auto power on / off | yes |
| UV/IR proof | yes |
| Power supply | solar cell, battery |
| cell type | 2x3V; CR2450 |
| Low battery indicator | yes |
| Working temperature range | -5 ~ +55 ˚C |
| Storage temperature | -20 ~ +70 ˚C |
| Set includes | welding helmet, protective glass x5 (YT-73924) |
| Application | joining |
| Welding process | MMA, MIG, MAG, TIG |
| Symbol | YT-73921 |

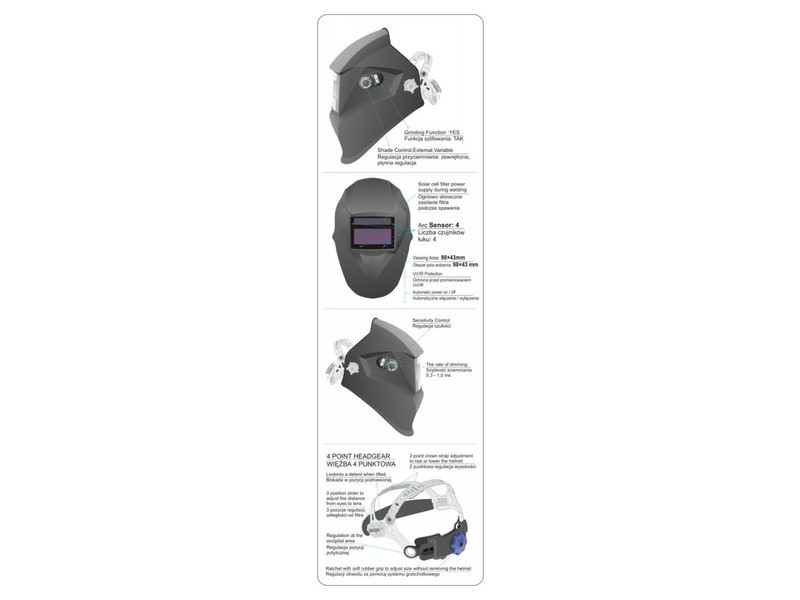

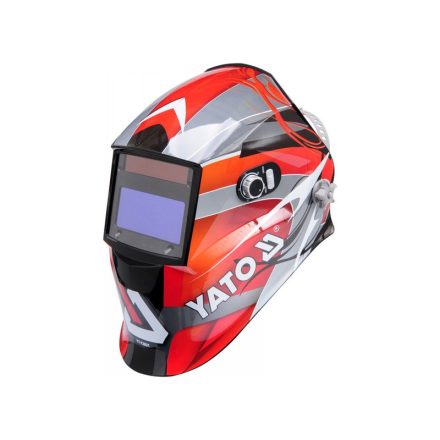

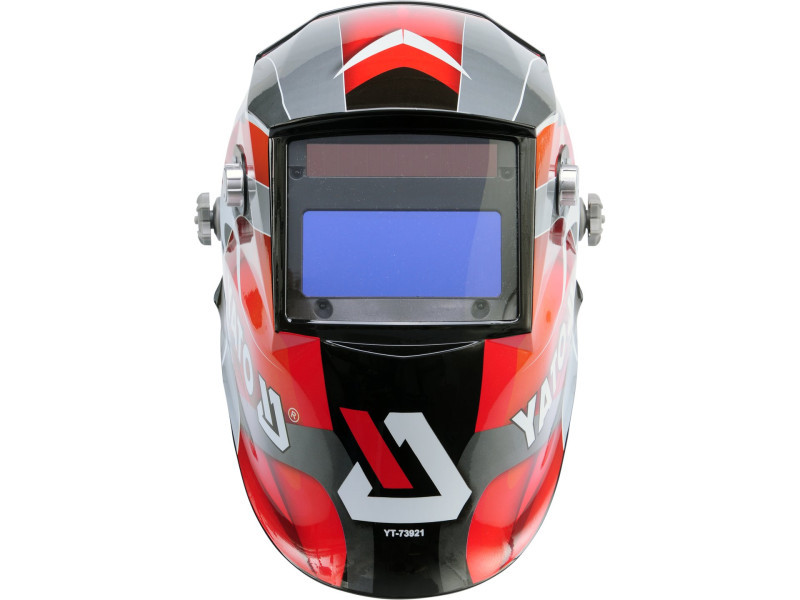

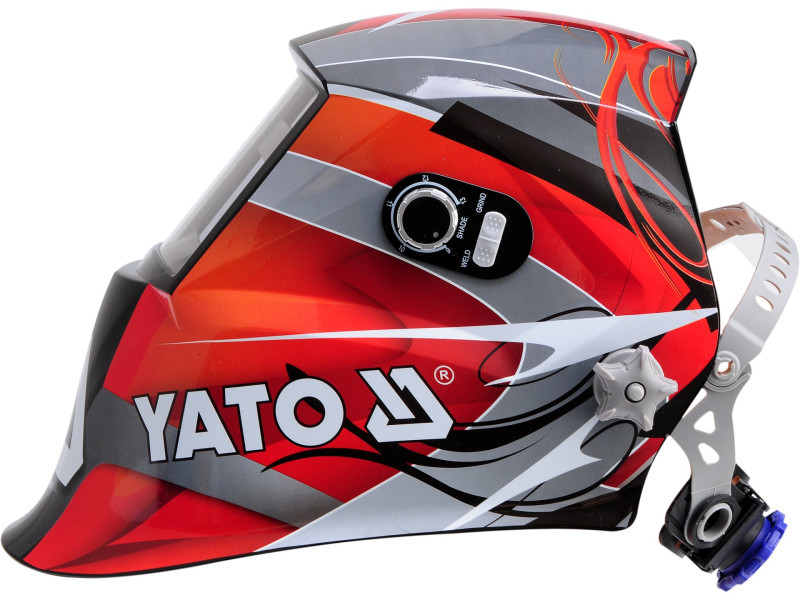

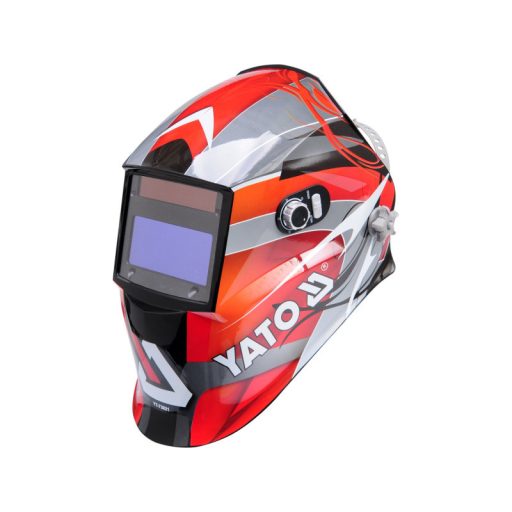

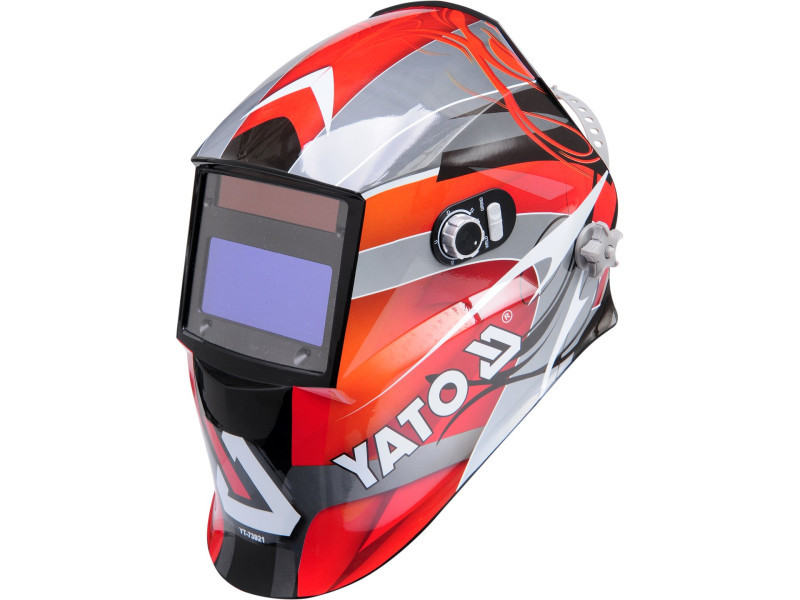

The visor has adjustable darkness level, adjustable sensitivity to the intensity of the light source, as well as adjustable time for maintaining the dark state after welding. A button on the outer shell in the grind setting disables the dimming function. The helmet can then be used as a means of personal protection against, for example, sparks from cutting or grinding metal. The four-point harness, thrusters, size adjustment system and working angles allow the helmet's position to be adapted to individual requirements and working comfort.
The filters have a TEST button to check the operation of the self-dimming function. A routine of checking the filter every time will help protect the operator's eyes and health.
- filter type: self-darkening, true colour
- optical properties: 1 / 1 / 1 / 2
- field of vision: 99x56 mm
- filter size: 126x103 mm
- response time: 0.3-1.0 ms
- brightening time: 0.1-1.0 s
- number of arc detectors: 4
- dark condition: 5-8 | 9-13 DIN
- bright condition: 4 DIN
- filter test
- sensitivity adjustment
- dimming adjustment
- power supply: solar cell + 2xCR2450
- Operating temperature range: -5 ~ +55 ˚C
*In visor versions available on the market from 04.2024r
