| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Hard materials relative humidity range | 0.2-2 % |
| Wood relative humidity range | 6-60 % |
| Max. sense depth | 10 mm |
| Measurement accuracy | ±2% (wood), ±0.1% (hard materials) |
| Dimensions | 122x51x45 mm |
| Power supply | battery |
| cell type | 9V; 6F22 |
| Display type | LCD |
| LED indicators | yes |
| Grain | 1 (wood), 0.1 (hard materials) % |
| Data Hold | yes |
| Auto power off | yes |
| Low battery indicator | yes |
| Operating relative humidity Rh | 85 % |
| Working temperature | 0~40 ˚C |
| Storage temperature | -10 ~ +50 ˚C |
| Weight | 80 g |
| Application | humidity control of plasters, floor screeds and construction boards and wood during construction or renovation works, checking the moisture of wood for fireplaces, smokehouses and stoves |
| Symbol | YT-73141 |

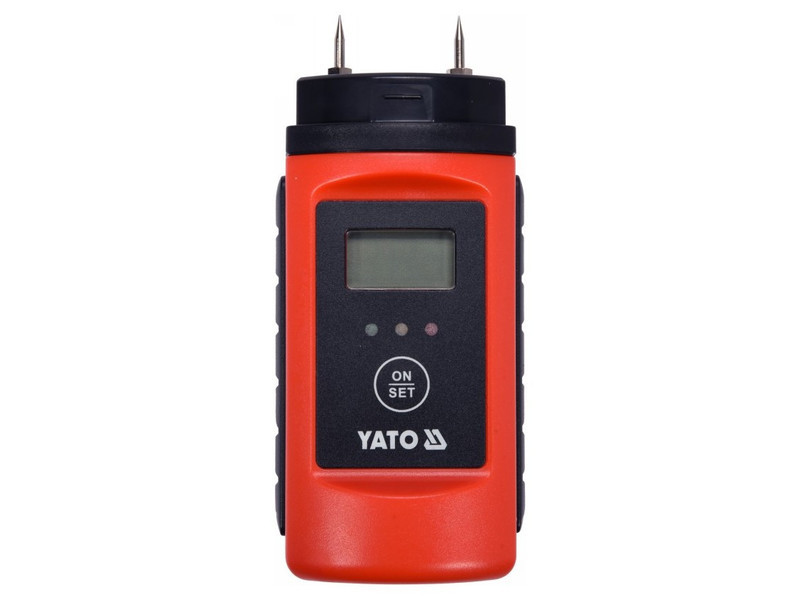

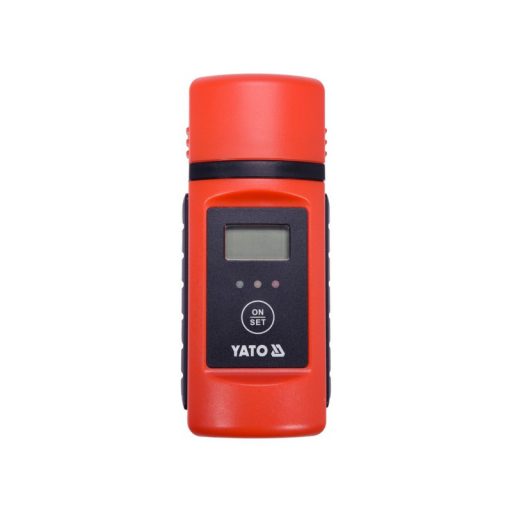

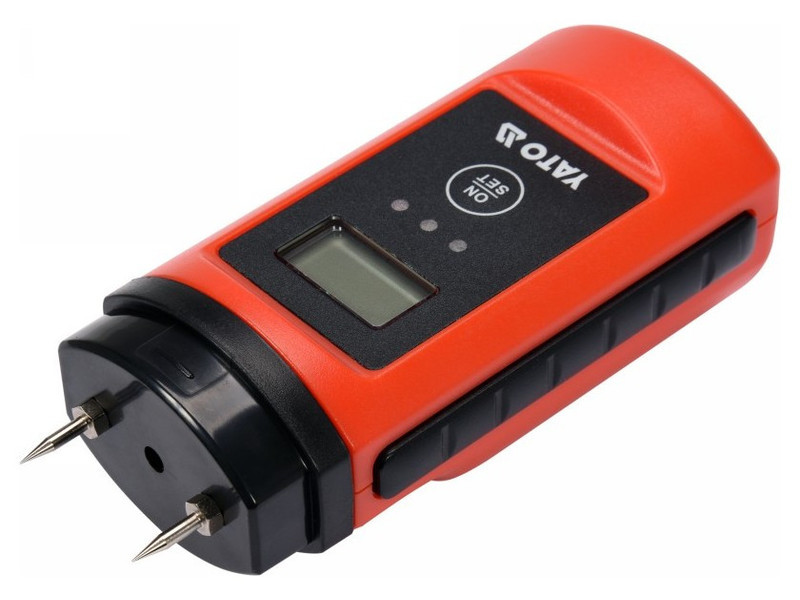

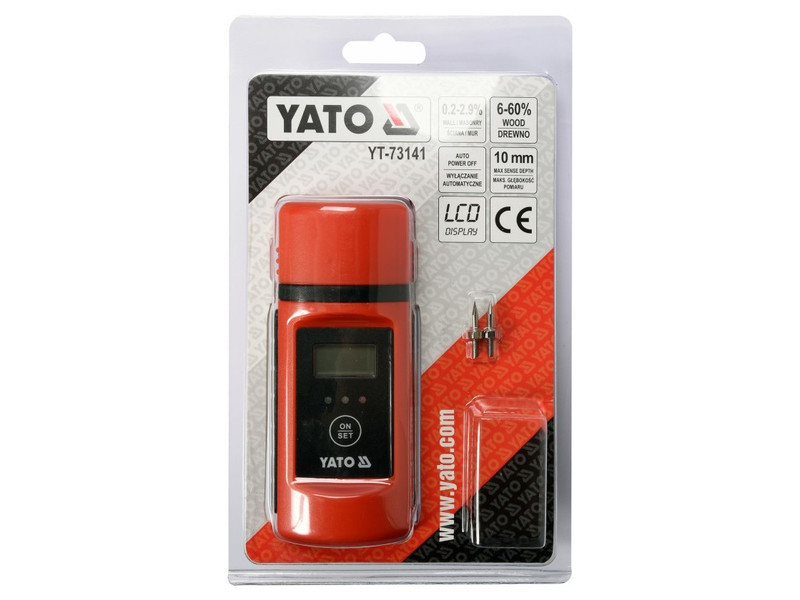

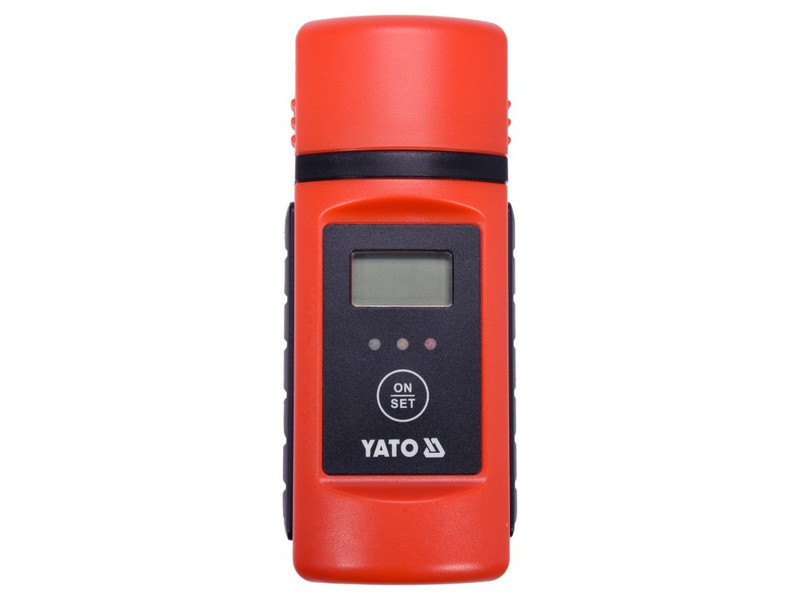

Humidity meter (Hygrometer) for wood and building materialsós - YATO
.Designed to determine the level of humidity of masonryówalls and wood soft and hard. It allows easy and precise measurement by taking into account the reference values adopted for different materialsós.
The hygrometer is often used to check the moisture content of wood for fireplacesós, smokehouses and stovesós (the moisture content of fireplace wood should not exceed 20%).
- measurement to a depth of 10 mm
- measurement accuracy: for building materials +/- 0.1%, for wood +/- 2.0%
- measuring range: masonry 0.2-2.9%, wood 6-60%
- readable LCD display
- 3 LEDs to further indicate humidity levels:green – low humidity, orange – medium,red – high
- .temperature sensor operating in the range 0-40°C (32-99°F)
- automatic shut-off function
- compact size
- power supply: 9V battery (6F22)
- includes two spare electrodes
For checking moisture levels in wood and building materials. Particularly recommended for renovation and finishing work and also for checking the moisture content of firewood. The moisture content of fireplace wood should not exceed 20%. Set the desired material / wood or building materials / with the navigation key, then drive the pins of the electrodes into the tested materialThe maximum depth of about 10 mm. The result of the measurement is read on the screen of the deviceMoisture meter , two spare electrodes.
