| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Measuring range | 0.2-40 m |
| Measurement unit | meters, feet, inches, feet + inches |
| Measurement basis | 3 |
| Measurement memory | 20 |
| Surface measurement | yes |
| Volume measurement | yes |
| Measurement accuracy | ±2 mm |
| Measured angle accuracy | ±1 ˚ |
| Continuous measurement mode | yes |
| Single measurement mode | yes |
| Min. and max. measured distance mode | yes |
| Adding and subtracting distances mode | yes |
| Constant angle pitch measurement mode | yes |
| Indirect measurement using hypotenuse | yes |
| Indirect measurement using two hypotenuses | yes |
| Indirect measurement using divided right-angled triangle mode | yes |
| Indirect measurement using double right-angled triangle mode | yes |
| Indirect measurement using right-angled triangle mode | yes |
| Power supply | battery |
| cell type | 3x1.5V; AAA, 3x1.2V; AAA |
| Charger type | USB |
| Dimensions | 115x49x26 mm |
| Laser | yes |
| Laser class | 2 |
| Laser power | ˂1 mW |
| Laser wave length | 630-670 nm |
| Laser pointer colour | red |
| Display type | backlit LCD, four-line |
| Lowest displayed value | 1 mm |
| Tripod included | no |
| Tripod connection size | 1/4" (6.35 mm) 20UNC |
| Working temperature range | 0~40 ˚C |
| Storage temperature | -10 ~ +50 ˚C |
| Protection grade | IP65 |
| Weight | 0.1 kg |
| Symbol | YT-73126 |

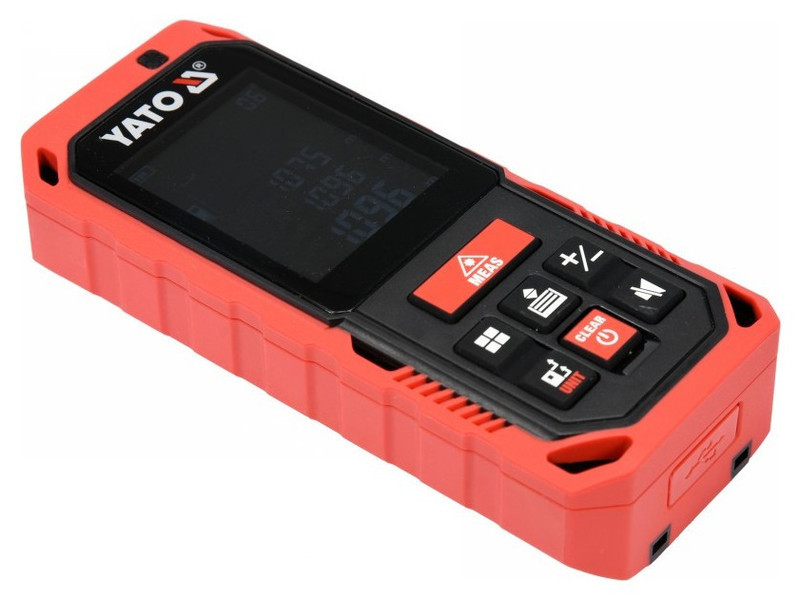

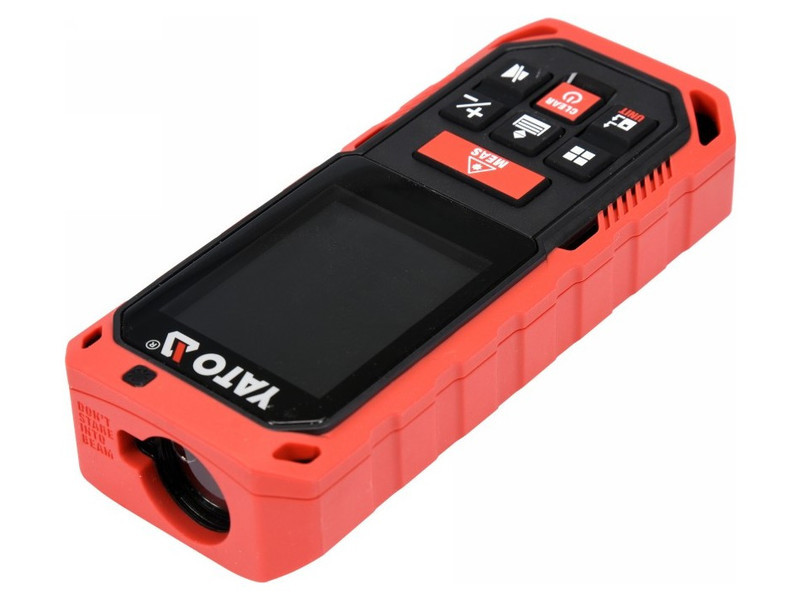

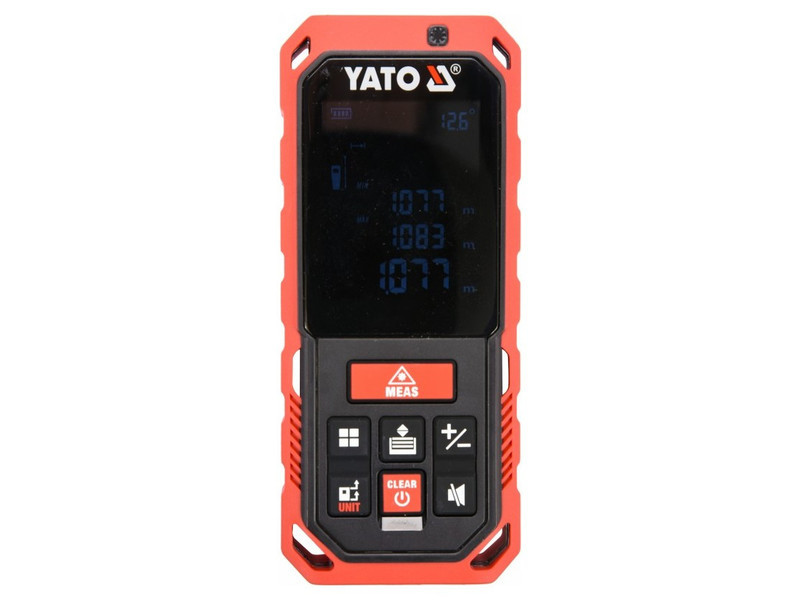

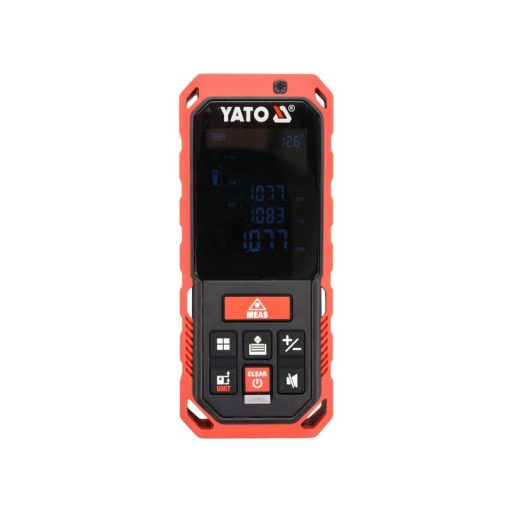

Laser rangefinder for fast and precise distance measurements from 0.2 - 40 m
- Continuous measuring functions
- Calculation of area and volume

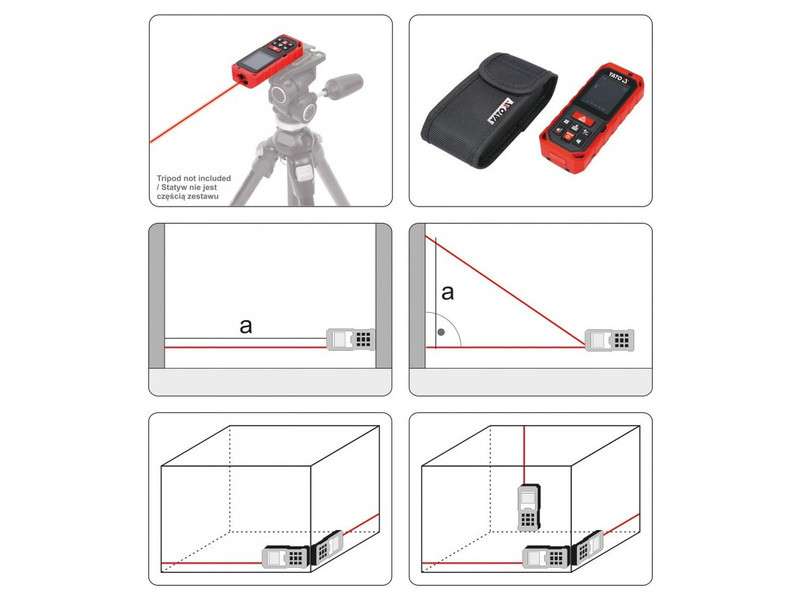

- 3 types of measurements by. Pythagoras' theorem
- storage of 20 results
- variable measurement starting point
- change of measurement units
- continuous tilt angle measurement during distance measurements
- resistant screen
. - protection class IP65
- power supply of 3 AAA NiMh batteries via USB
- battery status indicator
- reinforced housing
Included:
- diameter
- USB cable
- leash
- case
Before replacing the batteries, slide the cover on the back of the unit, following the direction of the arrow then by lifting the cover from the sides, lift it up and slide it out.
Strengthened sealing of the device in accordance with IP65 requirements.
Use in accordance with the included instructions.
