| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Measuring range | 0.05-100 (in both directions) m |
| Measurement unit | meters, feet, inches, feet + inches |
| Measurement basis | 3 |
| Measurement memory | 100 |
| Surface measurement | yes |
| Volume measurement | yes |
| Operating relative humidity Rh | 85 % |
| Measurement accuracy | ±2 mm |
| Calibration range | -9 ~ +9 mm |
| Functions | two-sided measurement, calibration |
| Continuous measurement mode | yes |
| Single measurement mode | yes |
| Wall area measurement mode | yes |
| Min. and max. measured distance mode | yes |
| Adding and subtracting distances mode | yes |
| Constant angle pitch measurement mode | yes |
| Indirect measurement using hypotenuse | yes |
| Indirect measurement using two hypotenuses | yes |
| Indirect measurement using divided right-angled triangle mode | yes |
| Indirect measurement using double right-angled triangle mode | yes |
| Indirect measurement using right-angled triangle mode | yes |
| Power supply | rechargeable |
| Battery type | Li-Ion |
| Battery voltage | 3.7 V d.c. |
| Battery capacity | 850 mAh |
| Battery energy | 3.15 Wh |
| Charger type | USB Type-C |
| Dimensions | 118x54x26 mm |
| Laser | yes |
| Laser class | 2 |
| Laser power | ˂1 mW |
| Laser wave length | 510 + 10 nm |
| Laser pointer colour | green |
| Electronic digital spirit level | yes |
| Magnet | yes, at the back |
| Display type | TFT backlit LCD |
| Automatic screen rotation | yes |
| Screen lock | yes |
| Auto power off | 20 (laser), 180 (rangefinder) s |
| Low battery indicator | yes |
| Tripod included | no |
| Tripod connection size | 1/4" (6.35 mm) 20UNC |
| Working temperature range | 0~40 ˚C |
| Storage temperature | -10 ~ +50 ˚C |
| Weight | 155 g |
| Symbol | YT-731250 |

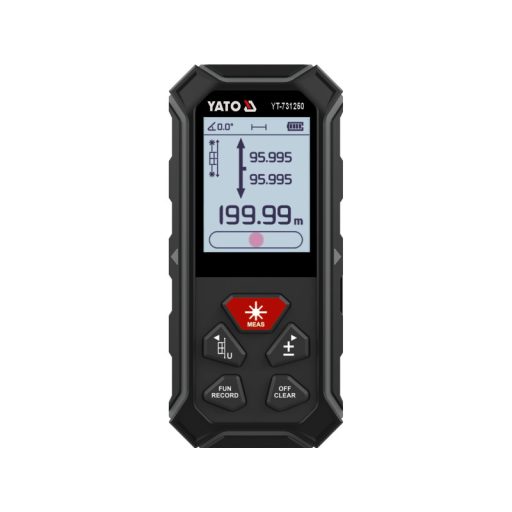

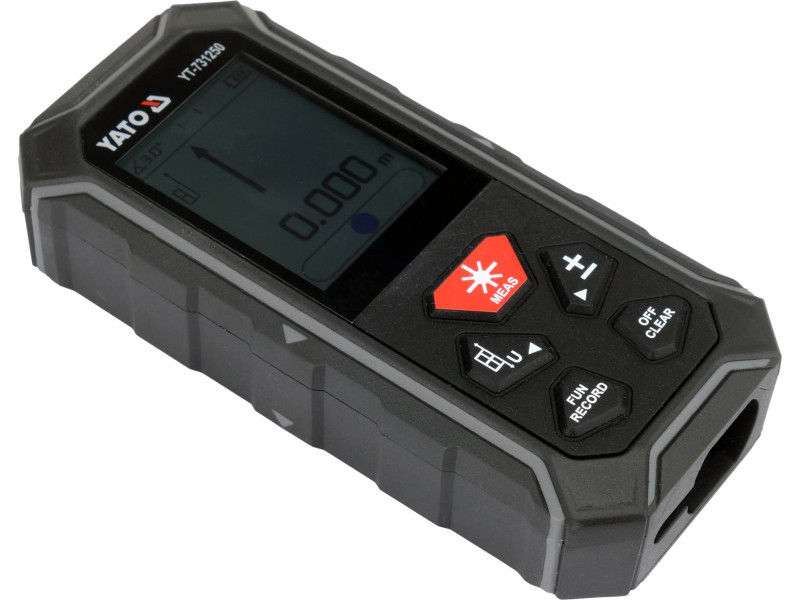

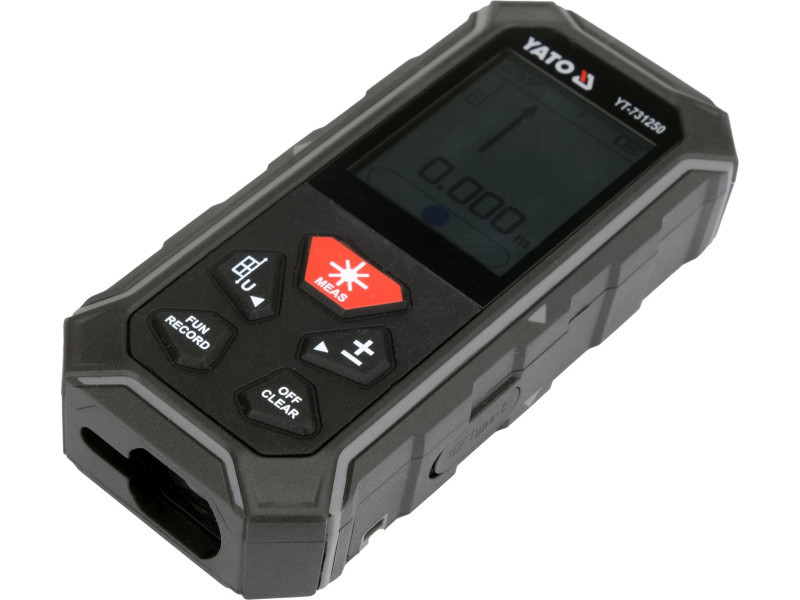

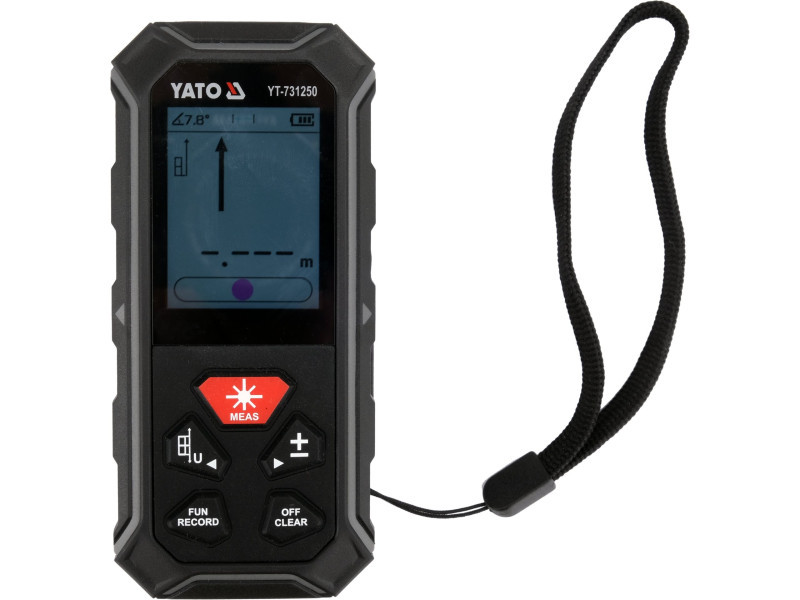

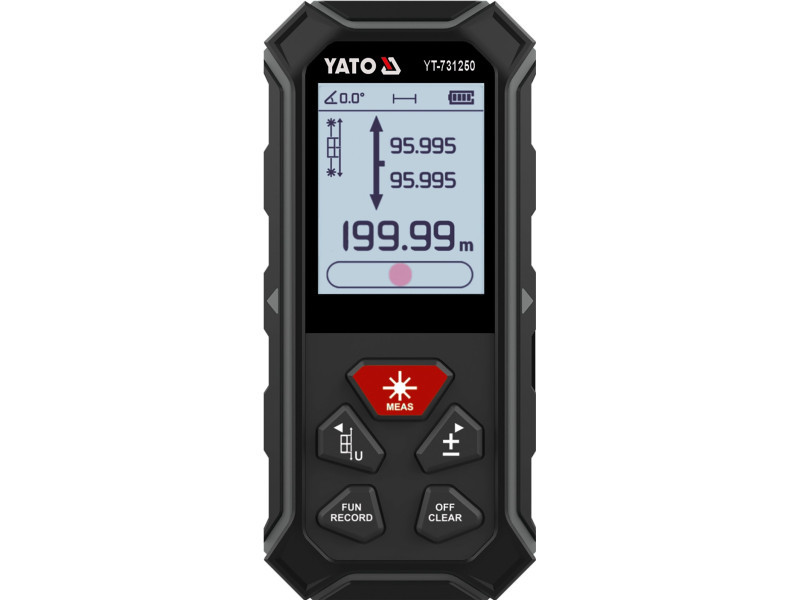

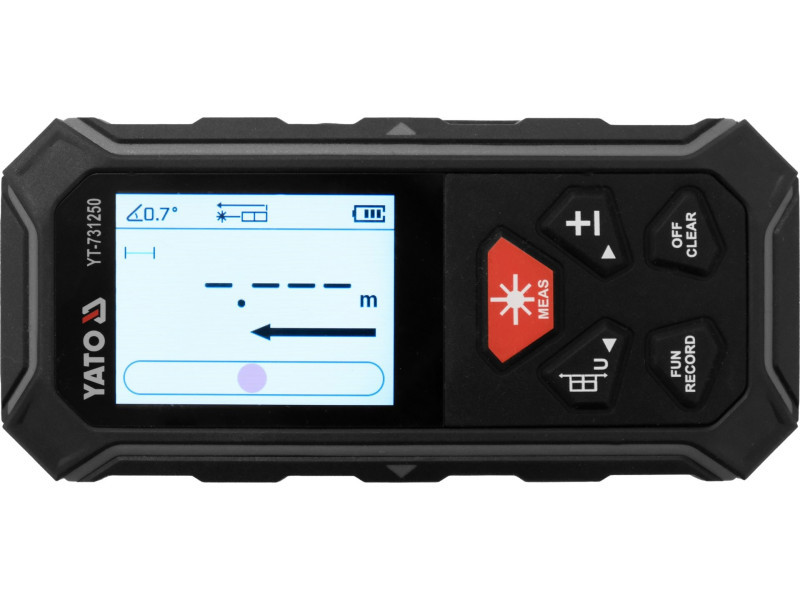

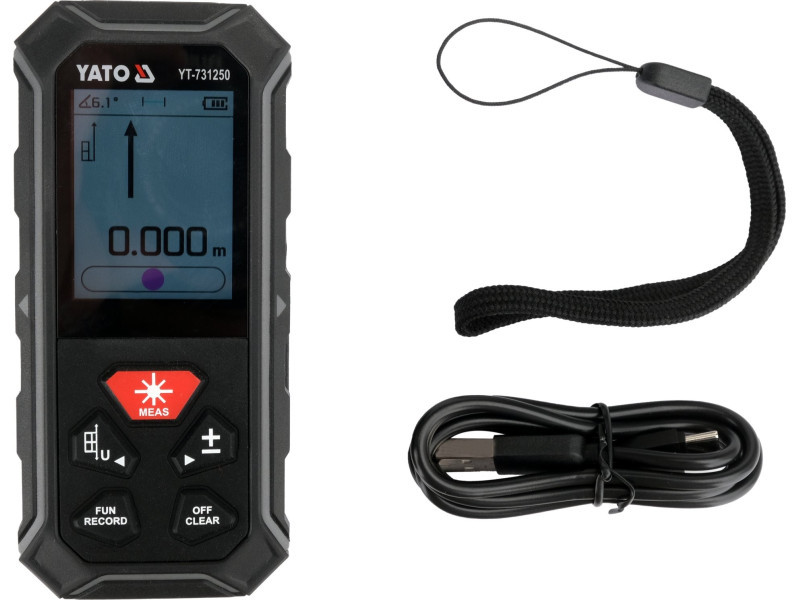

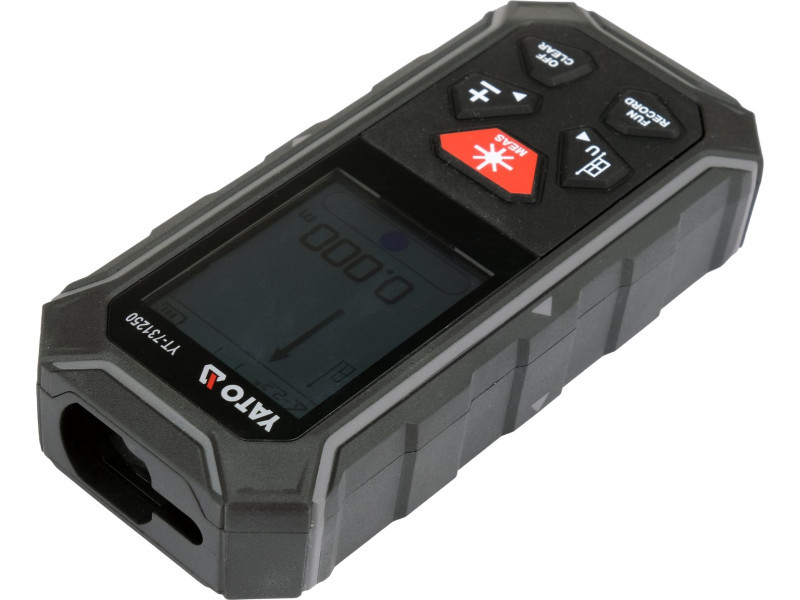

Two-way laser rangefinder for fast and precise distance measurements in the range from 0.05 to 100 meters in one direction, up to 200 meters in both directions. The housing contains two rangefinder modules - one in the front, the other in the back. When the measurement function is activated from both sides simultaneously, we gain the ability to immediately measure the width and height of rooms from any location.
The optics guarantee trouble-free measurements inside buildings. Measurements outside in sunny conditions are possible, however, in strong sunlight, despite the use of a green beam, we may have difficulty seeing it. For outdoor measurements, the rangefinder with a video preview YT-73128 will work perfectly.
The rangefinder has a number of additional functions. One of the more interesting ones is the painter function, which allows for quick measurement of square meters of walls. First, we measure the height, then the width of each wall. The rangefinder will automatically calculate the square meters of the measured areas by adding the surfaces of the walls measured sequentially. This function significantly speeds up measurements for preparing estimates for tasks such as plastering, painting, applying putty, etc. Thanks to the two-way construction, wall measurements in one room can be done from one place.
Functions:
- point measurement
- continuous measurement, current value, max/min
- painter function (measurement of square meters of walls)
- calculating area and volume
- measurements using the Pythagorean theorem
- adding and subtracting measurements
- variable starting point of measurement
- changing units of measurement
- digital level
- memory of 100 results
- automatic screen rotation
- automatic laser shutdown: 20 s
- automatic rangefinder shutdown: 180 s
- calibration
Additional information:

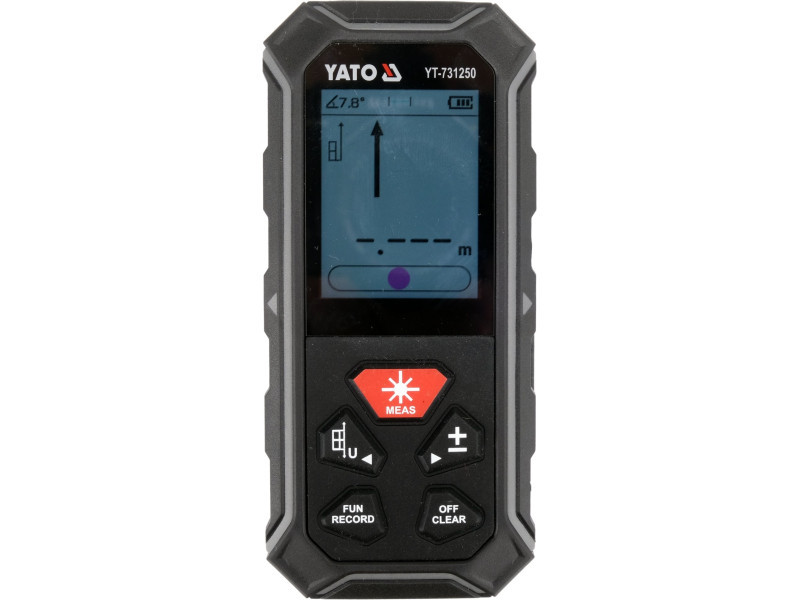

- large, readable color LCD display
- battery status indicator
- reinforced housing

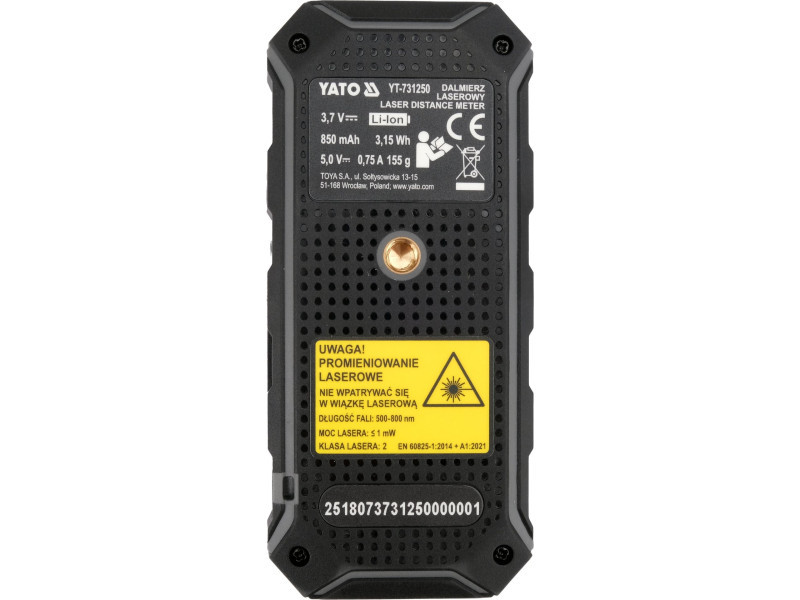

- built-in magnet on the back of the housing
- power supply: Li-Ion 3.7 V, 850 mAh battery

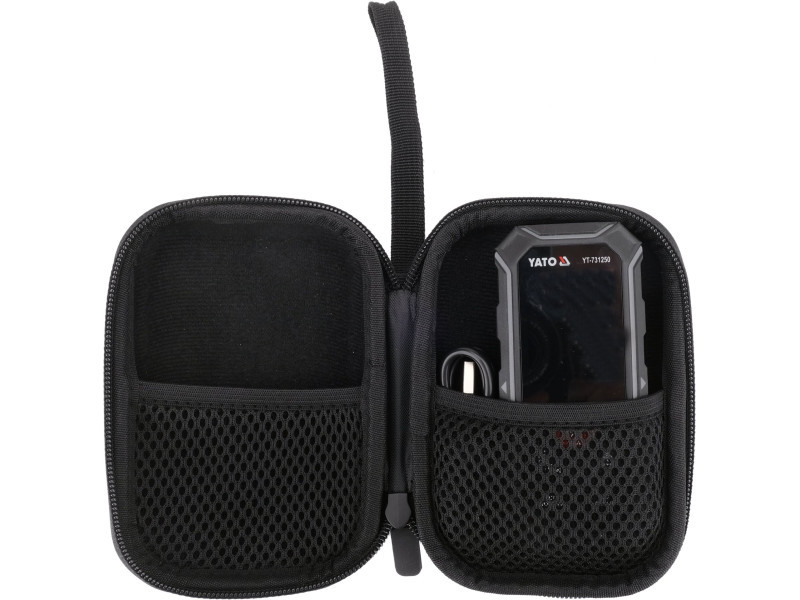

- closed case
Usage warnings:
Caution: laser radiation. Do not stare into the laser beam.
Class 2 laser device.
