| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Measuring range | 0.05-30 m |
| Measurement unit | meters, feet, inches, feet + inches |
| Measurement basis | 3 |
| Surface measurement | yes |
| Volume measurement | yes |
| Operating relative humidity Rh | 85 % |
| Measurement accuracy | ±5 mm |
| Calibration range | -9 ~ +9 mm |
| Functions | calibration |
| Continuous measurement mode | yes |
| Single measurement mode | yes |
| Min. and max. measured distance mode | yes |
| Adding and subtracting distances mode | yes |
| Indirect measurement using hypotenuse | yes |
| Indirect measurement using two hypotenuses | yes |
| Indirect measurement using divided right-angled triangle mode | yes |
| Indirect measurement using double right-angled triangle mode | yes |
| Indirect measurement using right-angled triangle mode | yes |
| Power supply | rechargeable |
| Battery type | Li-Ion |
| Battery voltage | 3.7 V d.c. |
| Battery capacity | 220 mAh |
| Battery energy | 0.81 Wh |
| Charger type | USB Type-C |
| Dimensions | 85x23x11.5 mm |
| Material | aluminum |
| Laser | yes |
| Laser class | 2 |
| Laser power | ˂1 mW |
| Laser wave length | 630-670 nm |
| Laser range | 30 m |
| Laser pointer colour | red |
| Display type | backlit LCD |
| Auto power off | 20 (laser), 150 (rangefinder) s |
| Low battery indicator | yes |
| Working temperature range | 0~40 ˚C |
| Storage temperature | -10 ~ +50 ˚C |
| Weight | 29 g |
| Symbol | YT-731240 |

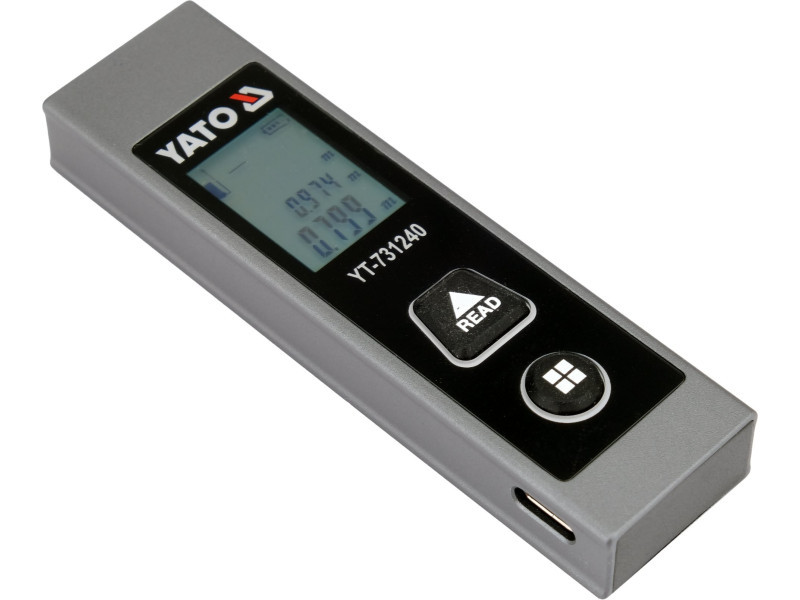

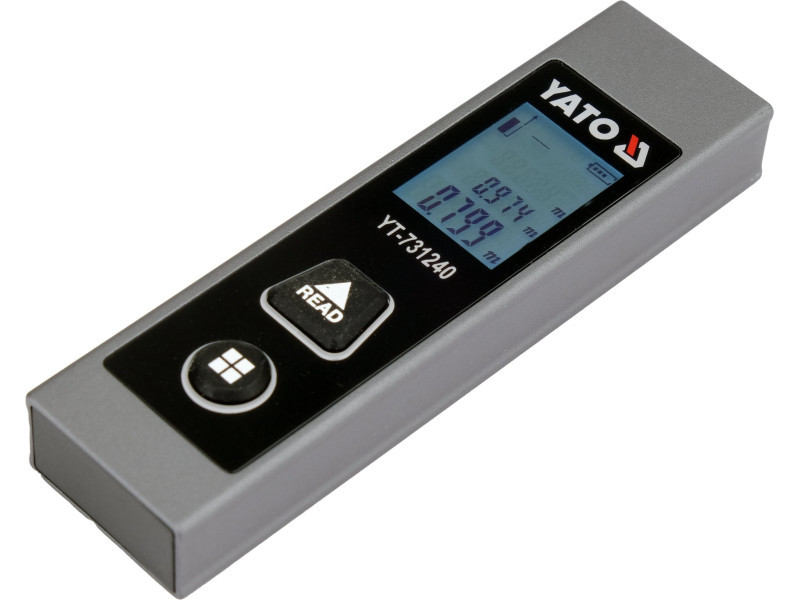

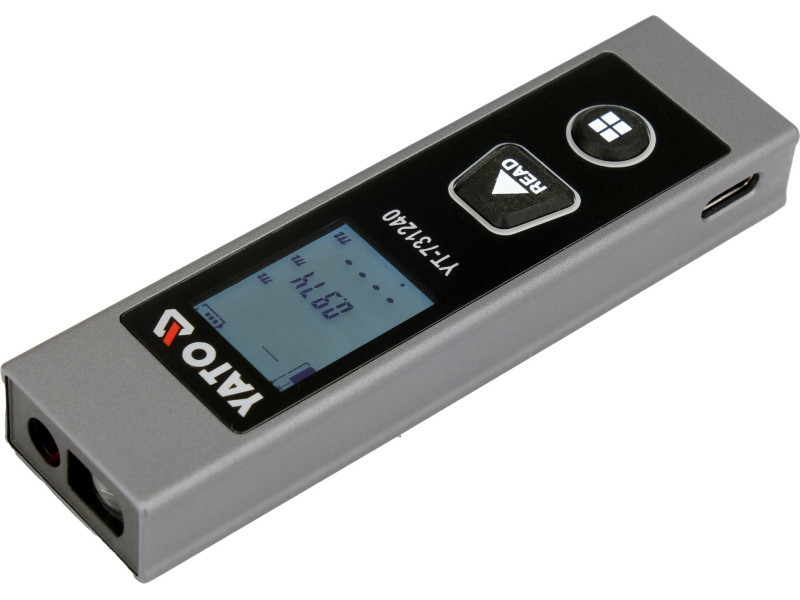

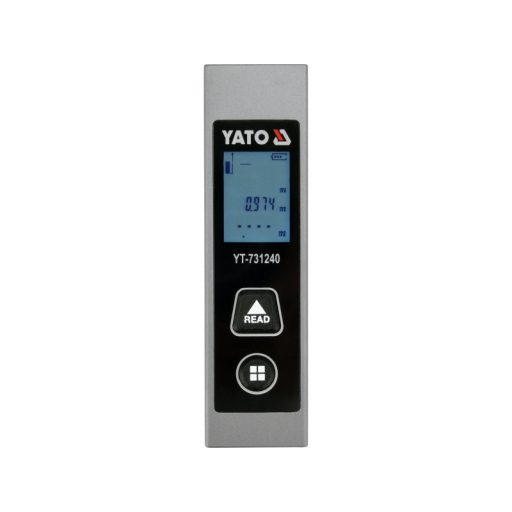

A pocket laser rangefinder is perfect for quick and precise distance measurements ranging from 0.05 to 30 meters and interior volume calculations. The compact dimensions of 86 mm x 23 mm x 12 mm, equivalent to the size of a man's index finger, make the tool extremely handy and pocket-sized. The laser is equipped with a calibration function, ensuring the accuracy of measurements even with frequent use.
Features:
- point and continuous measurement
- calculation of area and volume
- measurements based on the Pythagorean theorem
- variable starting point for measurements
- changing measurement units allows you to adjust the operating mode to current needs
- automatic laser shutdown after 20 seconds and rangefinder shutdown after 150 seconds extends working time on a single charge
- calibration ensures the highest measurement accuracy even with intensive use
Additional information:
- compact dimensions allow for one-handed operation and convenient carrying
- measurement range of 0.05–30 m enables efficient measurements in typical construction and installation conditions

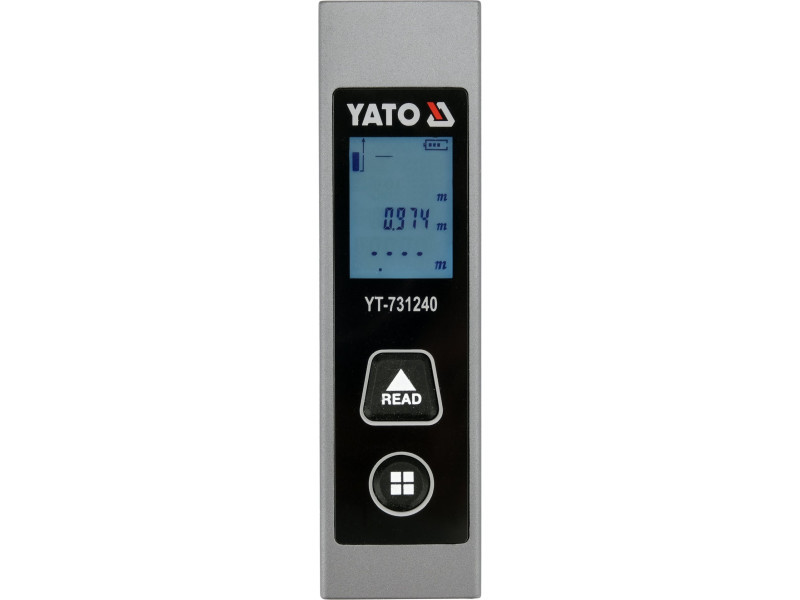

- clear LCD display
- battery status indicator
- durable and damage-resistant aluminum housing
- power supply: Li-ion 3.7 V, 220 mAh

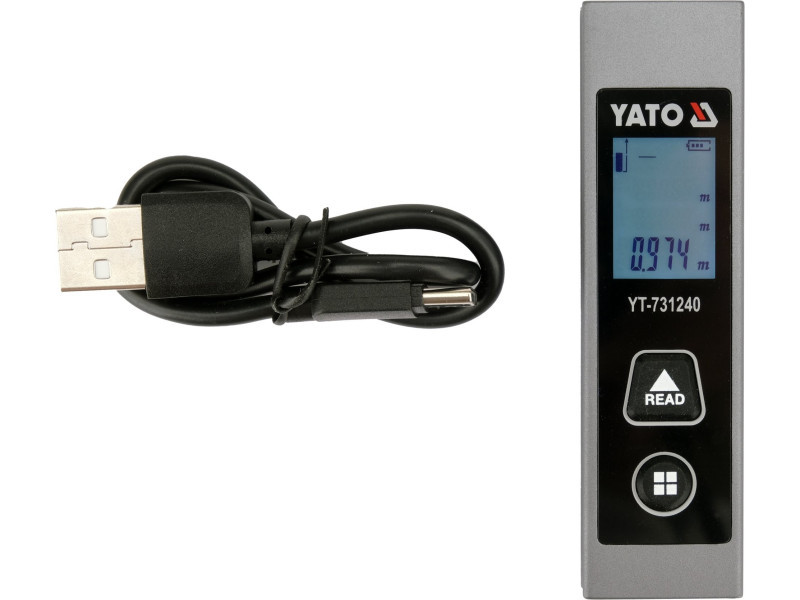

- convenient charging via USB-C port
*The optics of the YT-731240 rangefinder may not be able to detect the laser beam outside in full sunlight. Measurements outside are possible after dusk or at night
Usage warnings:

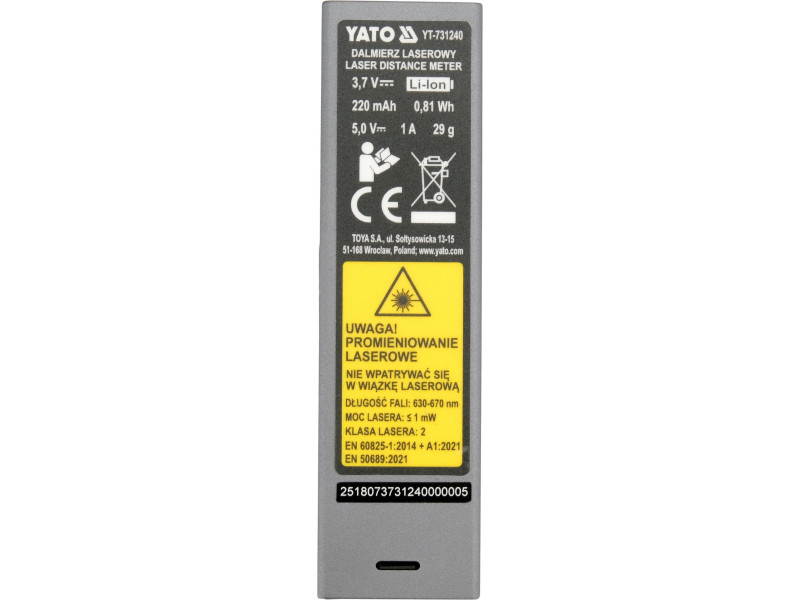

Caution: laser radiation. Do not stare into the laser beam.
Class 2 laser device.
