| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Measuring range | 0.2-40 m |
| Measurement unit | meters, feet, inches |
| Measurement memory | 20 |
| Surface measurement | yes |
| Volume measurement | yes |
| Measurement accuracy | ±2 mm |
| Measured angle accuracy | ±3 ˚ |
| Continuous measurement mode | yes |
| Single measurement mode | yes |
| Adding and subtracting distances mode | yes |
| Indirect measurement using double right-angled triangle mode | yes |
| Indirect measurement using right-angled triangle mode | yes |
| Power supply | battery |
| cell type | 2x1.5V; AAA |
| Dimensions | 85x82x56 mm |
| Tape length | 5 m |
| Tape width | 19 mm |
| Rotation angle | 90 ˚ |
| Material | ABS |
| Laser | yes |
| Laser class | 2 |
| Laser power | ˂1 mW |
| Laser wave length | 630-670 nm |
| Laser indicator type | linear rotary |
| Laser pointer colour | red |
| Display type | backlit LCD |
| Working temperature range | 0~40 ˚C |
| Storage temperature | -10 ~ +60 ˚C |
| Protection grade | IPX0 |
| Weight | 0.28 kg |
| Symbol | YT-73122 |

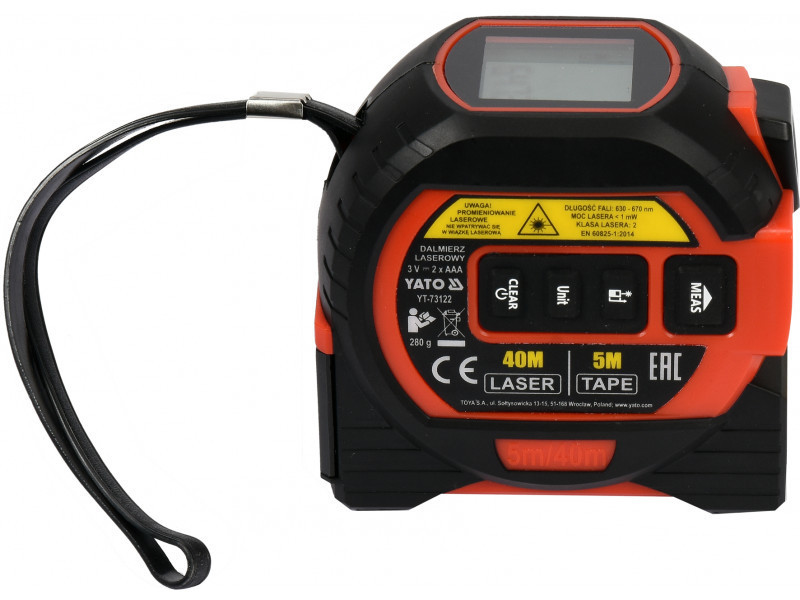

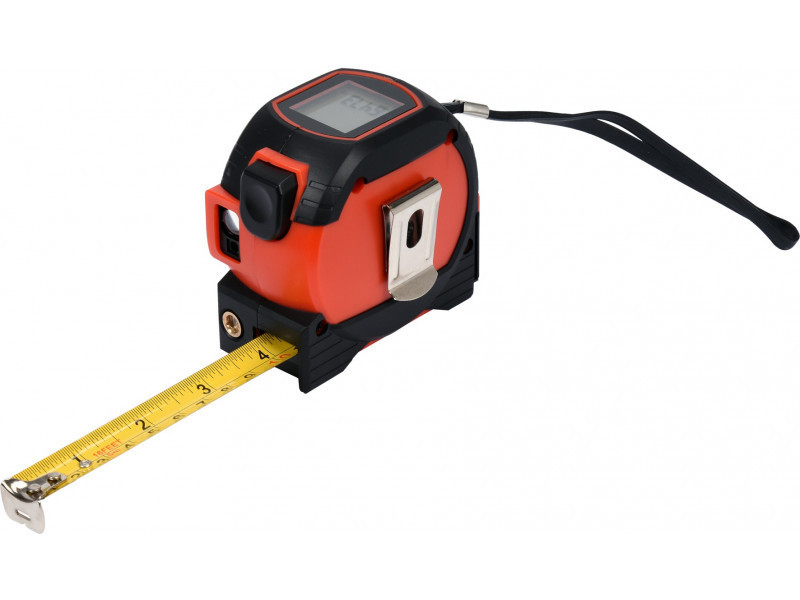

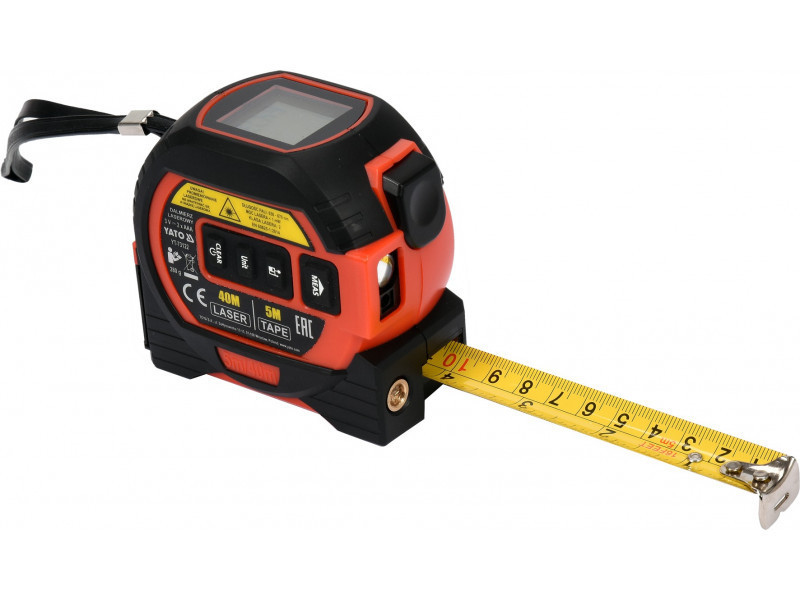

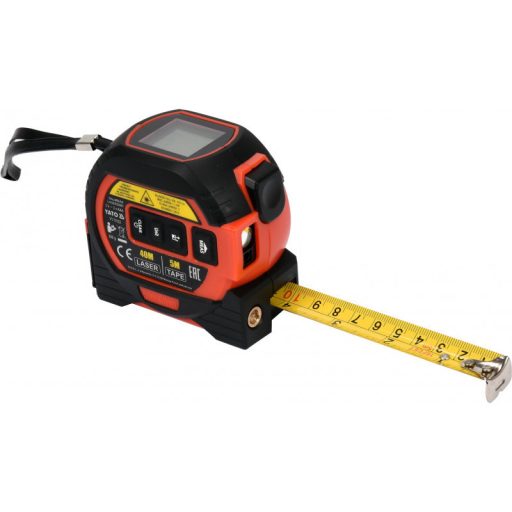

40m laser rangefinder with 5m retractable tape measure and crosshair laser
- laser distance meter with measurement range from 0.2 to 40 m
- functional crossed laser, indication accuracy +/- 2 mm / 40 m
- easy intuitive operation

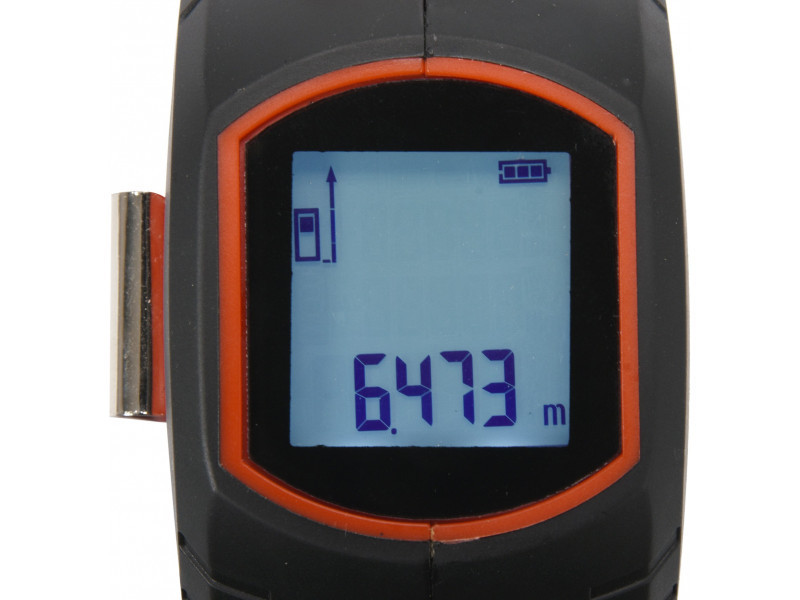

- results readable on LCD screen./li>
- sound signaling
- steel strip in yellow
./li> - millimeter and inch graduation
- durable housing made of ABS plastic additionally reinforced with black plastic covers
- the cassette has a clip for attaching and a lanyard
./li> - power supply - 2 batteries 1.5 V type AAA
- dimensions height - 80 mm, width 85 mm, thickness 50 mm
Basic functions:
- changing measurement units / meters, inches, feet/
. - measurement taken from the rear or front wall of the case
- summing of measurements
- calculation of area
- cubic area
- trigonometric measurements
- storage of 20 measurements
- automatic shutdown
Measurement designed to take precise, quick measurements indoors and outdoors.
Measuring distance with a rangefinder from 20 cm to 40 m and with a steel tape measure up to 5 m.
According to the included instruction manual.
The crosshair laser turns on after momentarily pressing the switch /about 3 sec/.
