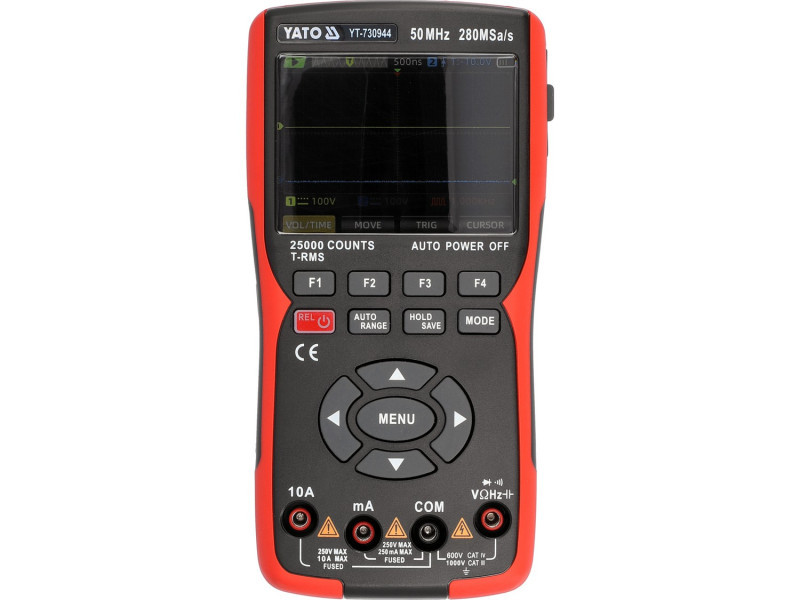

YATO 3-in-1 Oszilloskop mit Multimeterfunktion, 280 Msa/s, 50 MHz

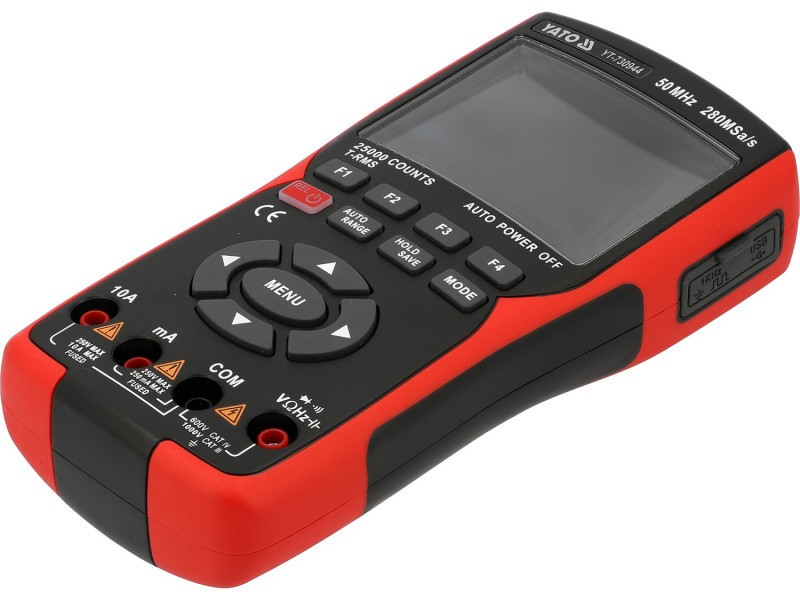

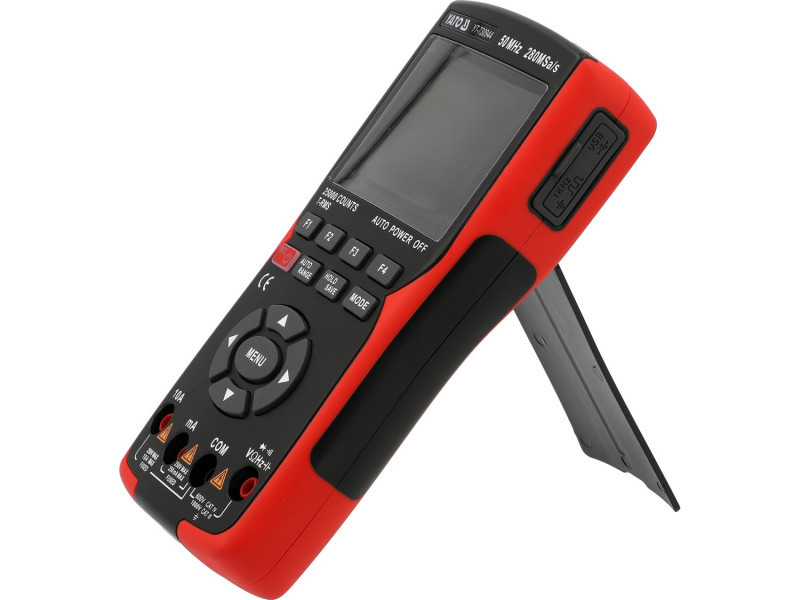

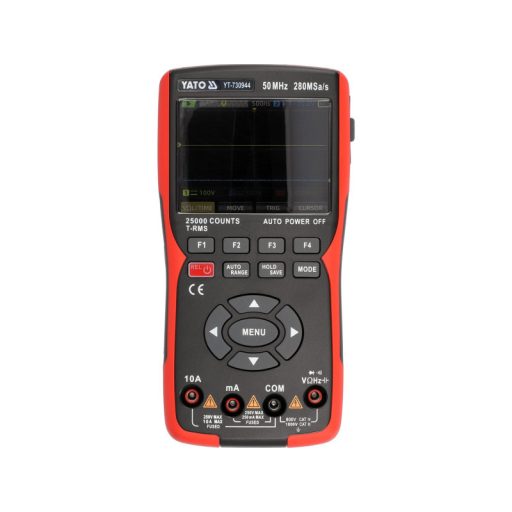

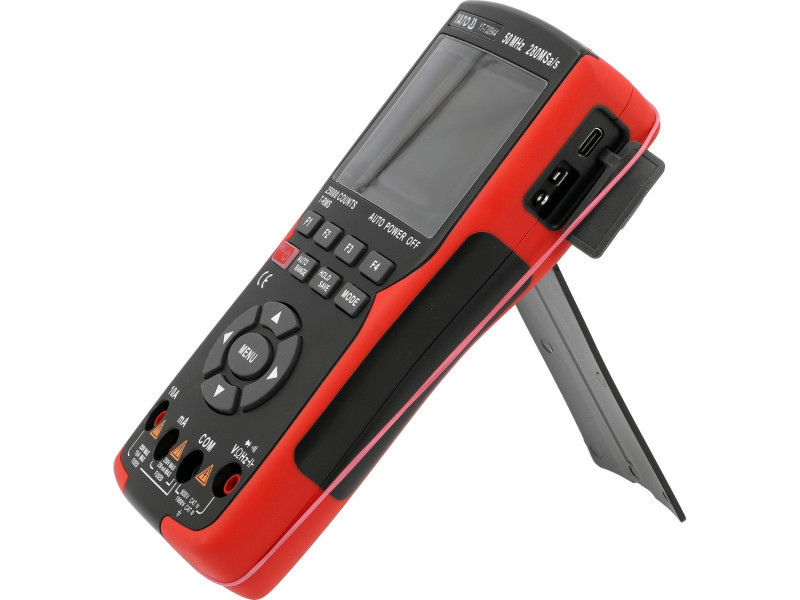

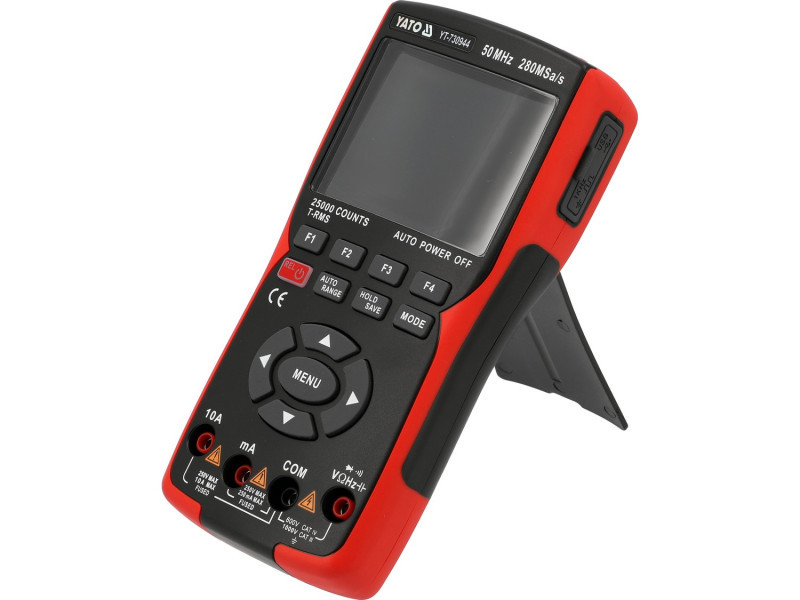

Universal meter, two-channel oscilloscope and basic waveform generator in one. It allows you to perform basic and advanced measurements of electrical quantities and visualize the tested signal in real time. The 3.5" IPS matrix color display guarantees readability from any angle. The replaceable 3400 mAh li-ion battery, rechargeable via the built-in usb-c port, is sufficient for about 6 hours of continuous operation. The multitude of additional functions, wide measurement ranges, speed of operation and high precision will be appreciated by electronic engineers, electricians and home do-it-yourselfers alike.

Basic parameters of the oscilloscope:

• bandwidth: 50MHz
• sampling frequency: 280MSa/s
• acquisition memory: 128kpts

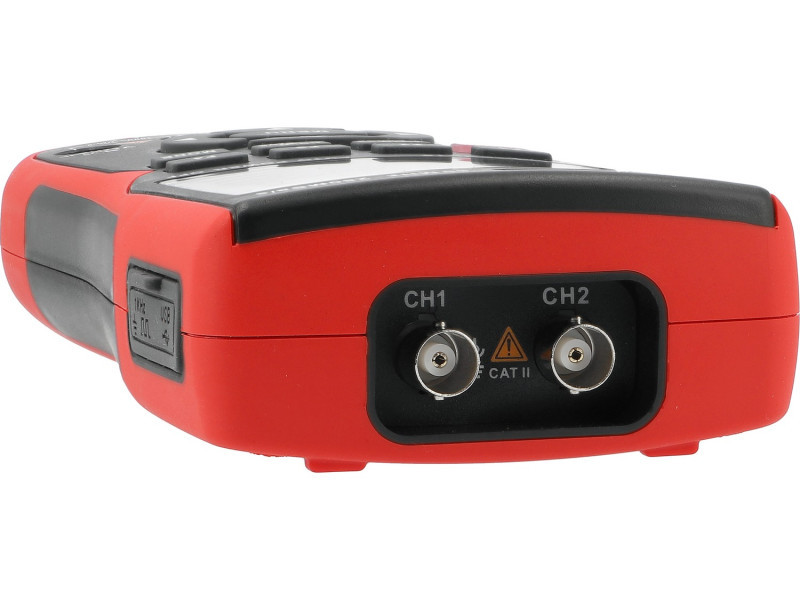

• number of channels: 2
• measurement probe support: x1 and x10

Selected oscilloscope functions:

• AUTO - automatically and quickly obtain a stable waveform on the oscilloscope displayautomatically detect the time base and voltage of the signal under test
• SAVE - saves a screenshot to .bmp graphic file format
• TRIG - signal trigger modes
• CURSOR - measurement lines, enables precise measurement of the value of the visualized waveform
• PROBE - set the attenuation of the measuring probe x1 luv x10
• MEASURE - display of measurements: frequency, period, voltages: rms, minimum, maximum, peak-to-peak
• XY MODE - compares signals from two channels in terms of frequency and phase shifts and presents them in visual form (Lissajous patterns)
• CALIBRATE - auto calibration function
• STORAGE - device mode for transferring data, e.g. transferring saved screenshots to a computer

Basic measurements of the meter:

• AC voltage measurement: A.C. 0-750V, TRUE RMS (40-1000Hz)
• DC voltage measurement: D.C. 0-1000V
• alternating current measurement: A.C. 0-10A, TRUE RMS (40-1000Hz)
• DC current measurement: D.C. 0-10A
• resistance measurement: 0-250MΩ
• diode test:_IF 1.8mA,_UR 3.2V
• circuit continuity test: 0-50Ω

Additional measurements of the meter:

• capacitor measurement: 0-99.99mF
• frequency measurement: 0-999.9Khz

Meter measurement accuracy:

Example of accuracy determination for AC voltage measurement. Calculation for the measurement result: 235V

• Measurement accuracy of YT-730944 meter for this range is : ±(0.5% + 3), resolution 0.01V
• calculation of measurement error formula: (measurement result x 0.5%) + 3 x resolution
• calculation: (235 x 0.5%) + 3 x 0.01 = 1.175 + 0.03 = 1.205V

Actual result including measurement error for 235V indication = 235 ± 1.205V

• The result including the measurement error for the indication of measuring12*var of DC voltage: 12V = 12 ± 0.009V
• result including measurement error for indication of AC current measurement: 8A = 8 ± 0.067A

A table with the resolution and accuracy for the measurement can be found in the instruction manual.

Meter functions:

• TRUE RMS - a meter with this function displays the true rms value of AC voltage/voltage. Unlike averaging meters, devices with true rms show the correct value not only for sinusoidal waveforms, but also for sinusoidal waveforms distorted, such as by higher harmonics, or square or triangular waveforms. A must-have function wherever impulse power supplies, motor inverter drives, HVAC systems, etc. appear in a circuit.
• AUTO - automatic adjustment of the measurement range. When measuring unknown values with a meter with manual range adjustment using the knob, make measurements sequentially from the largest range up to the range giving the most accurate result - otherwise you risk damaging the device. On the other hand, in the case of a multimeter with the AUTO function, you only need to make one measurement and the meter will automatically find the optimal range. The meter starts by default in AUTO mode
• RANGE - manual change of the measurement range. A useful function when checking many of the same components with a known value, such as a series of resistors. Manual setting of the range will shorten the time of such measurements significantly
• REL - using the function during a measurement will reset the display to zero and take the value seen before the display as the reference level. The next measurement will show the difference between the measured value and the retained reference value
• MAX/MIN/AVG - retaining on the display the maximum, minimum and average value from the current measurement
• HOLD/SAVE - retaining on the display the currently measured value, saving it to memory.

Additional information:

• LCD display, maximum displayed result: 25000
• adjustable backlighting of the screen
• sound and light signal in the test of circuit continuity for resistance below 50Ω
• possibility to enable diode and circuit continuity tests separately

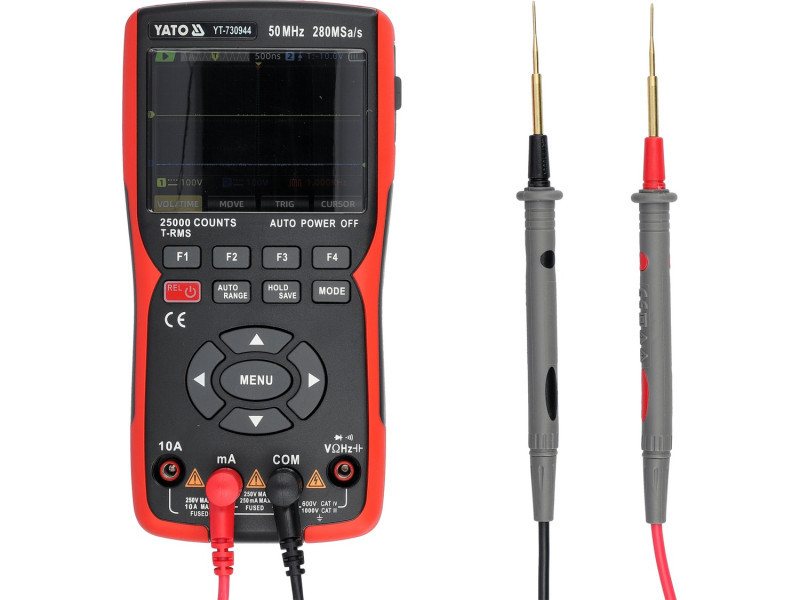

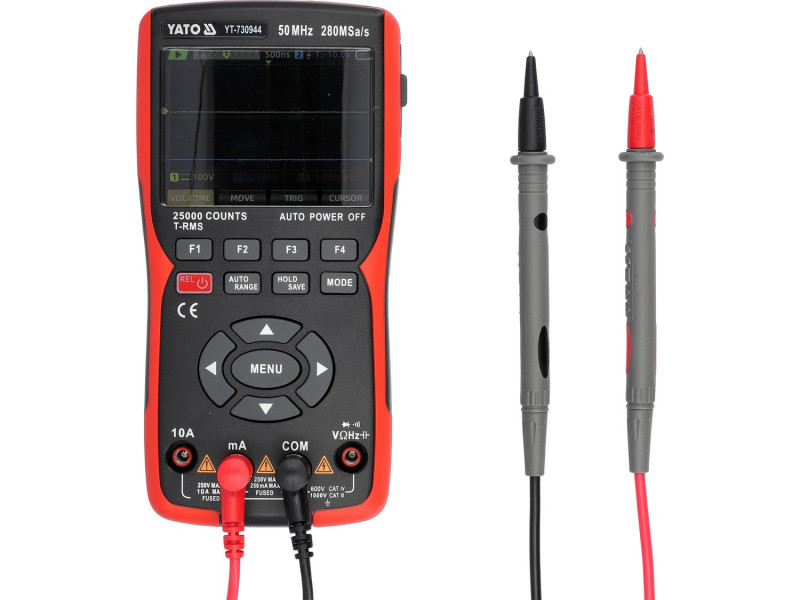

• measuring probes with a length of 14.5 cm
• cable length including probes: 97 cm
• diameter of the cable including insulation: 3.5 mm
• needle caps for measurements of small SMD components

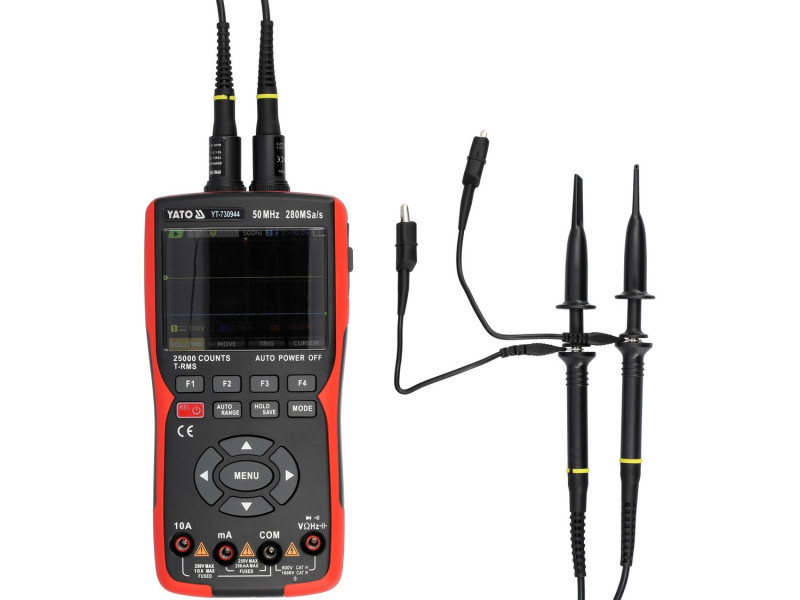

• two P2060 oscilloscope probes with accessories
• construction with overload protection
• ABS plastic housing
• automatic shutdown of the meter with adjustable time of 15-120 minutes
• possibility to disable the automatic shutdown mode
• low battery indicator
• soft case with zipper
• power supply: 18650 Li-ion cell
