| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Alternating voltage | 0-600 V a.c. |
| Direct voltage | 0-600 V d.c. |
| Alternating current | 0-600 A |
| Resistance | 0-40 MΩ |
| Continuity test | 0-50 Ω |
| Conduction test | yes |
| Diode test | yes |
| Battery test | yes |
| TRUE RMS | yes |
| Data Hold | yes |
| Non-contact AC voltage detection NCV | yes |
| Dimensions | 185x71x35 mm |
| Material | ABS |
| Max. clamp gap | 26 mm |
| Max. diameter of the tested cable using the clamp | 26 mm |
| Display type | LCD |
| LED backlight | yes |
| Display range | 3999 |
| Auto measurement range | yes |
| Sampling frequency | 3 times per second |
| Bell ring | yes |
| Auto power off | 20 min |
| Front lighting | yes |
| Low battery indicator | yes |
| Power supply | battery |
| cell type | 3x1.5V; AAA |
| Working temperature range | 0~40 ˚C |
| Operating relative humidity Rh | 75 % |
| Storage temperature | -10 ~ +50 ˚C |
| Weight | 0.15 kg |
| Application | electric |
| Symbol | YT-730935 |

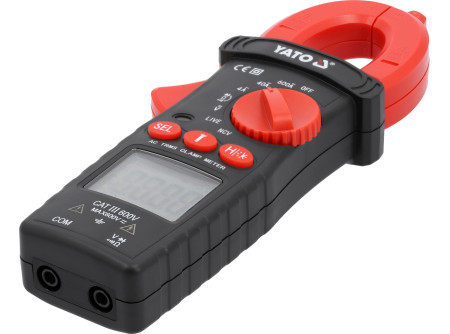

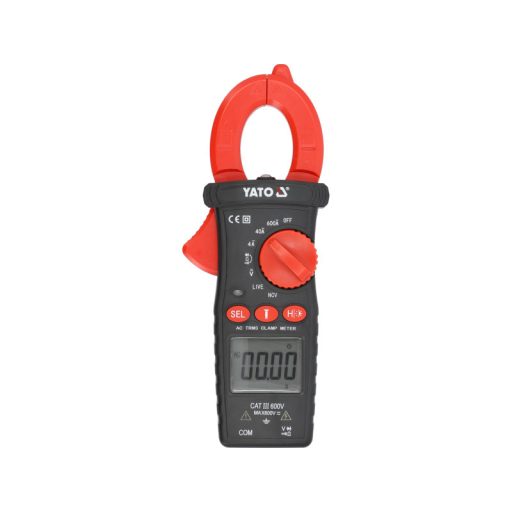

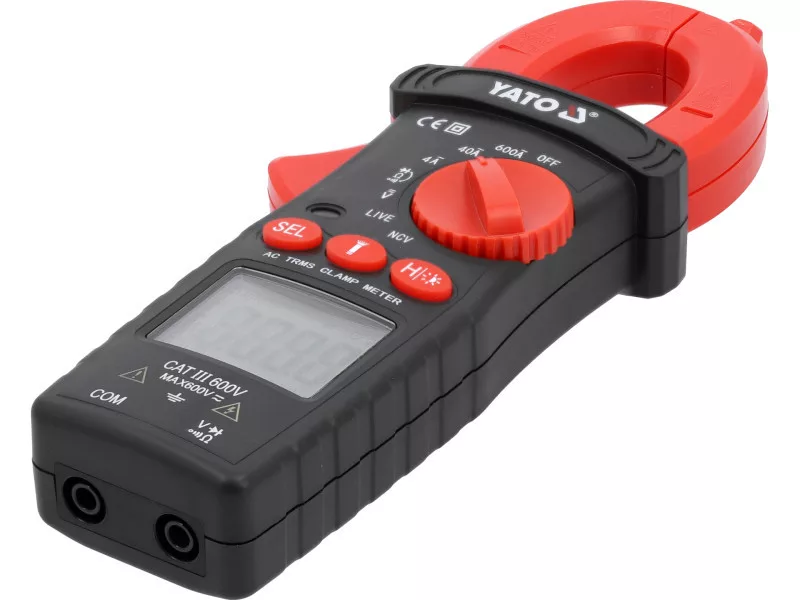

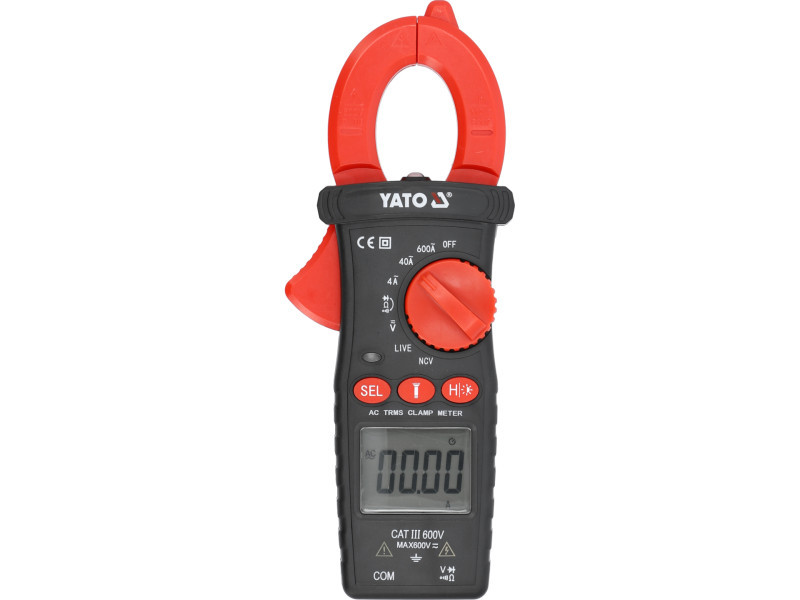

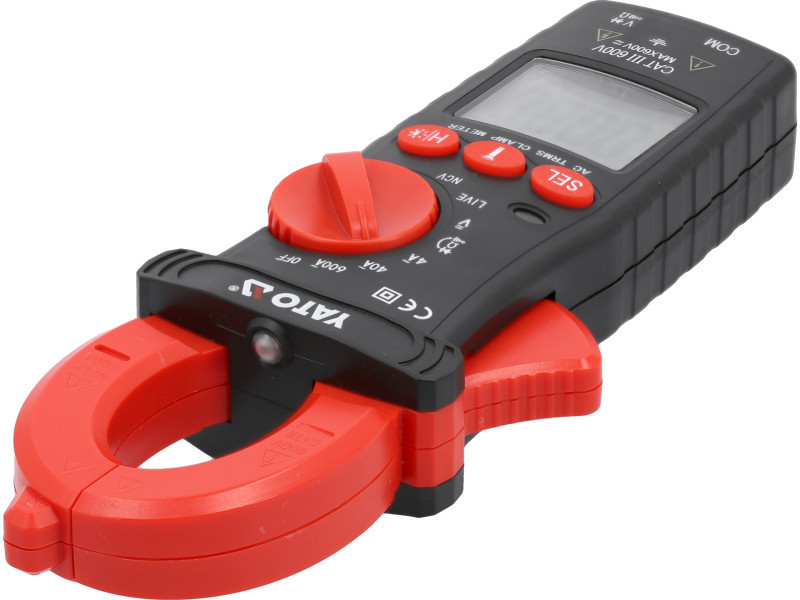

Clamp universal multimeter with automatic range. It enables basic and advanced electrical measurements to be made. Equipped with measuring clamps to measure the AC current in a single conductor using the inductive method. The measurement takes place without disconnecting the circuit or disconnecting it from the power source, and allows a much higher current to be measured than with conventional electrical meters.
Basic measurements:
- AC voltage measurement: A.C. 0-600 V, TRUE RMS (40-1000 Hz)
- DC voltage measurement: D.C. 0-600 V
- AC current measurement: A.C. 0.001-600 A, TRUE RMS (40-1000 Hz)
- resistance measurement: 0.1 Ω - 40 MΩ
- diode test: IF: 1 mA, UR: 2.3 V
- circuit continuity test: 0-50 Ω
Additional measurements:
- non-contact AC voltage detection: NCV
- phase presence measurement (sampler function)
Other information:
- LCD display, maximum displayed result: 3999
- illumination of the display and the field of the clamps
- acoustic signal in the continuity test for resistances below 50 Ω
- pincers expand to 26 mm

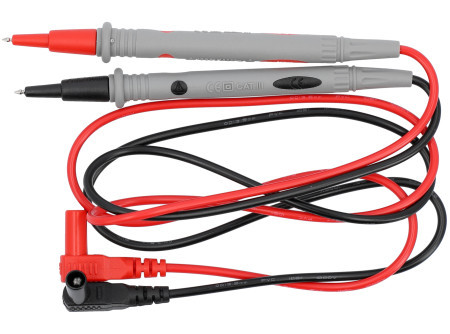

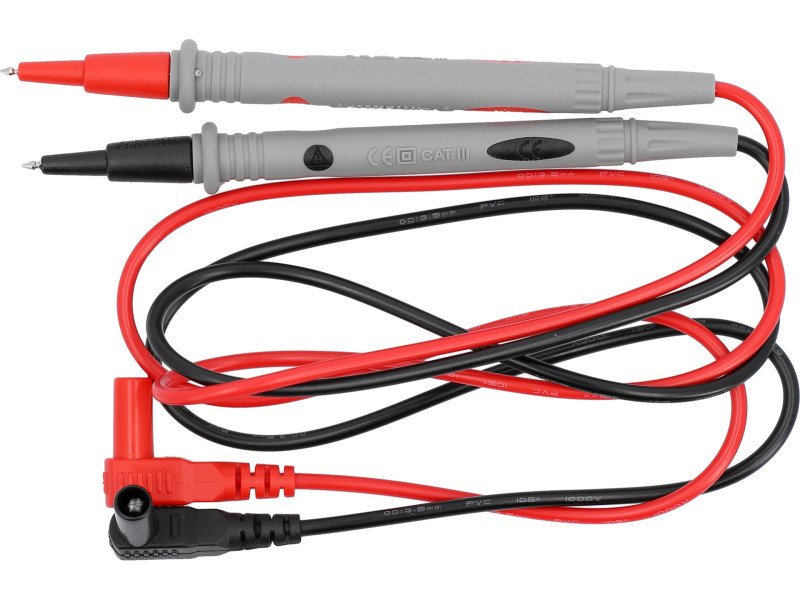

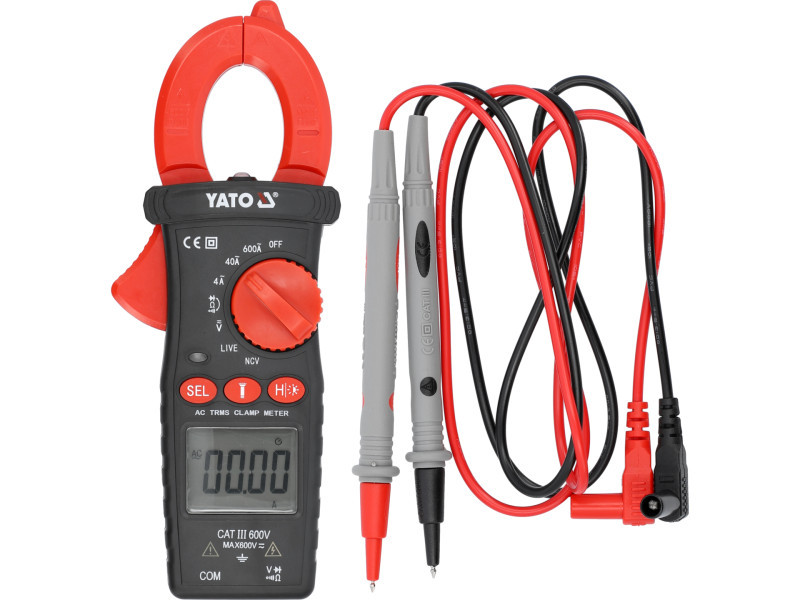

- measuring probes 12 cm long
- length of cable including probes: 85cm
- cable diameter including insulation: 3.5mm
- insulation of test leads: PVC
- automatic switch-off after 20 minutes of inactivity
- low battery indicator
- power supply: two 1.5 V (AAA) batteries

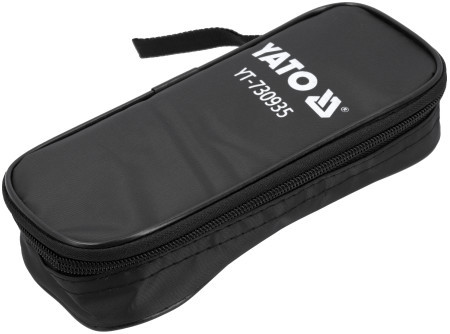

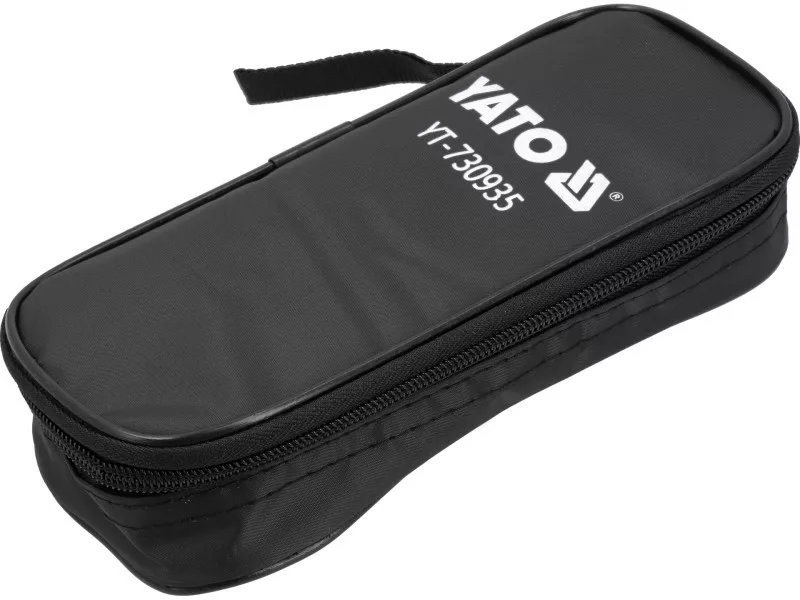

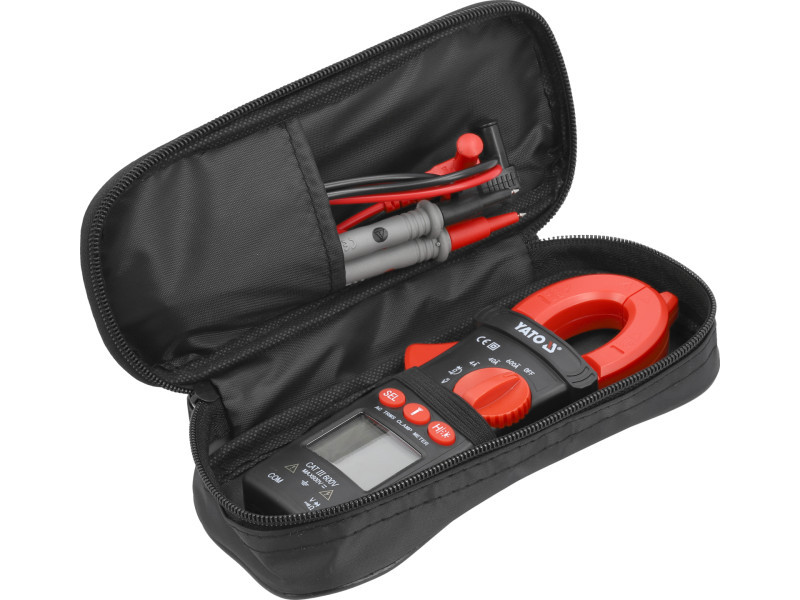

- cover included
