| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Alternating voltage | 0-600 V a.c. |
| Direct voltage | 0-600 V d.c. |
| Alternating current | 0-600 A |
| Direct current | 0-600 A |
| Resistance | 0-60 MΩ |
| capability | 0-60 mF |
| Regularity | 0-10 MHz |
| Temperature | -30 ~ +1000 ˚C |
| Continuity test | 0-50 Ω |
| Conduction test | yes |
| Diode test | yes |
| Battery test | yes |
| Peak measured value preservation mode | yes |
| TRUE RMS | yes |
| Data Hold | yes |
| Non-contact AC voltage detection NCV | yes |
| Dimensions | 172x64x32 mm |
| Material | ABS |
| Max. clamp gap | 25 mm |
| Max. diameter of the tested cable using the clamp | 25 mm |
| Display type | LCD |
| LED backlight | yes |
| Display range | 6000 |
| Auto measurement range | yes |
| Sampling frequency | 3 times per second |
| Bell ring | yes |
| Auto power off | 15 min |
| Front lighting | yes |
| Low battery indicator | yes |
| Power supply | battery |
| cell type | 2x1.5V; AAA |
| Working temperature range | 0~40 ˚C |
| Operating relative humidity Rh | 75 % |
| Storage temperature | -10 ~ +50 ˚C |
| Weight | 0.161 kg |
| Application | electric |
| Symbol | YT-73093 |

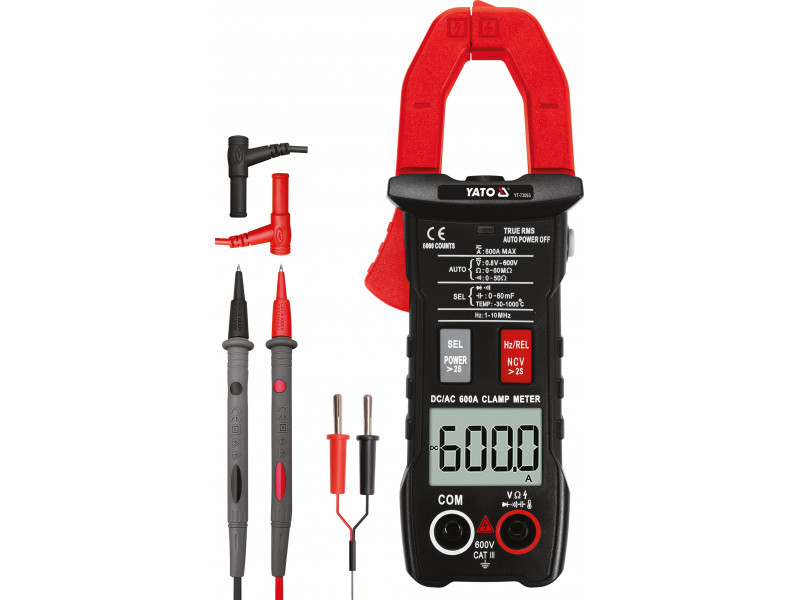

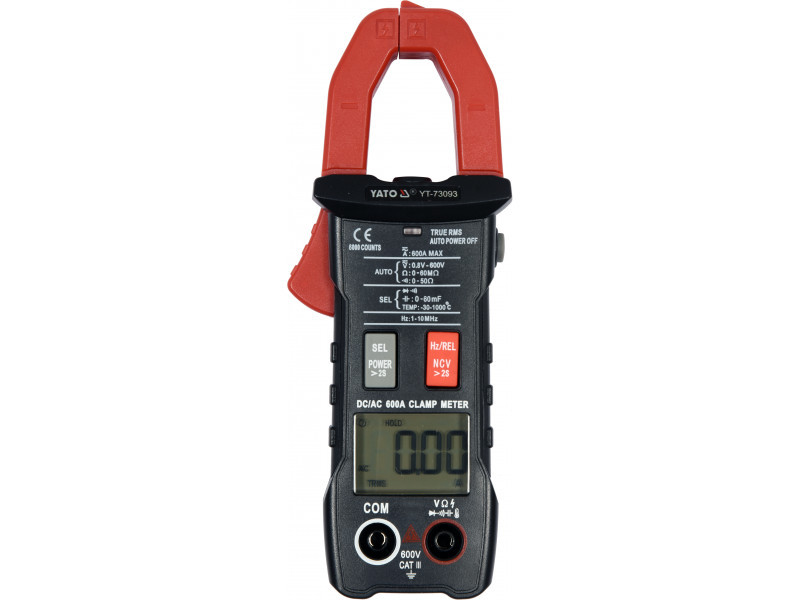

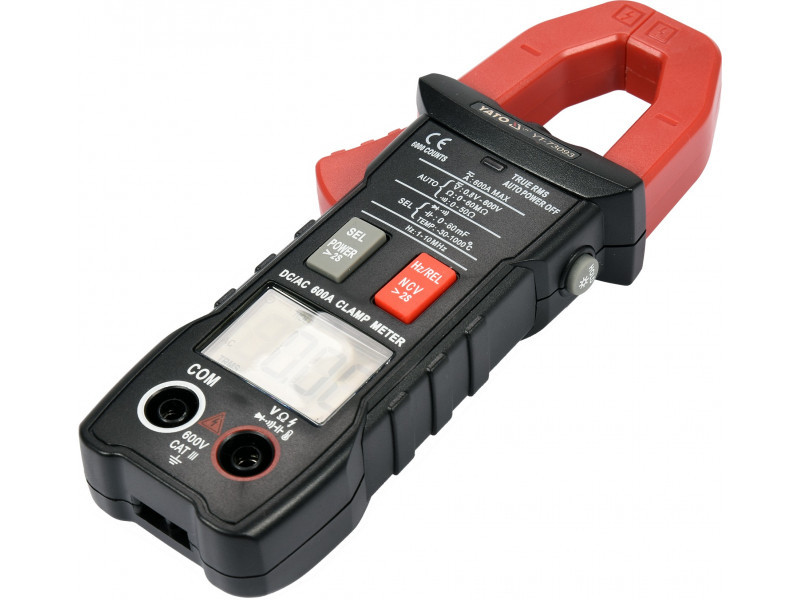

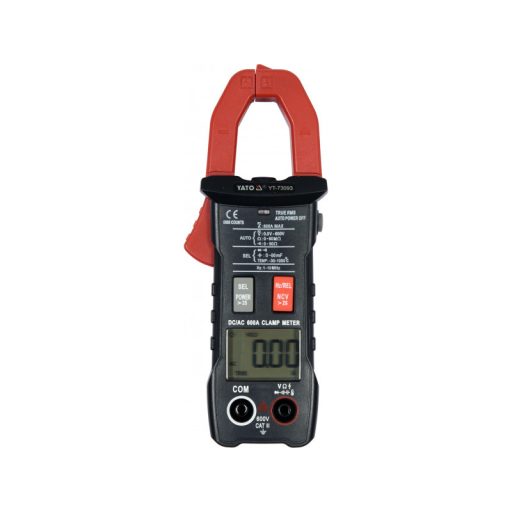

Universal clamp meter YT-73093 with automatic range selection for every measurement allows for basic and advanced measurements of electrical quantities. The meter is equipped with measurement clamps that allow for measurement of both direct and alternating current in a single wire using a built-in HALL sensor. The measurement can be done without disconnecting the circuit or disconnecting it from the power source and allows for measuring much higher current than conventional electrical meters. The measurement probe wires have silicone, flexible, and high-temperature resistant insulation.
Basic measurements:
- measurement of alternating voltage: A.C. 0-600 V, TRUE RMS
- measurement of direct voltage: D.C. 0-600 V
- measurement of alternating current: A.C. 0-600 A, TRUE RMS
- measurement of direct current: D.C. 0-600 A
- measurement of resistance: 0-60 MΩ
- diode test: IF 5 mA, UR 3 V
- continuity test: 0-50 Ω
Additional measurements:
- measurement of capacitor capacity: 0-60 mF
- measurement of frequency: 0-10 Mhz
- temperature measurement: -30 to 1000 °C
- non-contact detection of alternating voltage: NCV
Measurement accuracy:
Example of determining accuracy for the measurement of alternating current AC. Calculations for the measurement result: 30 A
- accuracy of the YT-73093 meter for this range is: ±(2.0%+30), resolution 0.01 A
- error calculation formula: (measurement result x 2%) + 30 x resolution
- calculations: (30 x 2%) + 30 x 0.01 = 0.6 + 0.3 = 0.90 A
Actual result considering measurement error for indication of 30 A = 30 ± 0.90 A.
- result considering measurement error for indication of alternating voltage measurement: 235 V = 235 ± 4.175 V
- result considering measurement error for indication of direct voltage measurement: 12 V = 12 ± 0.09 V
A table with resolution and accuracy for each measurement can be found in the user manual.

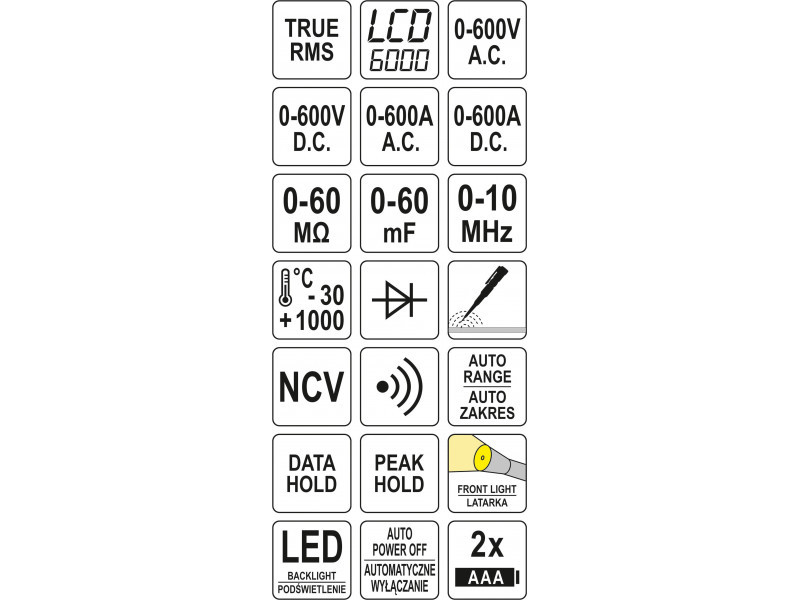

Built-in functions:
- TRUE RMS - a meter with this function displays the true effective value of alternating voltage/current. Unlike averaging meters, true rms devices show the correct value not only for sinusoidal waveforms, but also for distorted sinusoidal waveforms, e.g. with higher harmonics, or square or triangular waveforms. A mandatory function wherever impulse power supplies, inverter drives for motors, HVAC installations, etc., are present in the circuit.
- NCV - non-contact detection of alternating voltage by inductive method. The meter detects the presence of voltage in an insulated wire, and can also indicate the phase wire
- AUTO - automatic range selection for measurement. In the case of measuring unknown values using a meter with manual range change using a dial, measurements should be performed successively from the largest range to the range that gives the most accurate result - otherwise, there is a risk of damaging the device. In contrast, with a multimeter with AUTO function, only one measurement needs to be taken and the meter will automatically find the optimal range. The meter defaults to AUTO mode
- DATA HOLD - maintains the currently measured value on the display
- PEAK HOLD - maintains the highest measured value on the display using measurement probes
- INRUSH current - measurement of starting current using measurement clamps. The meter will measure the current intensity within 100 ms of starting the device
Additional information:
- LCD display, maximum displayed result: 6000
- backlight of the screen and measurement area of the clamps
- automatic switch from diode test to continuity test for circuit resistance below 50Ω (no possibility to set the meter only to diode test)
- audible signal in continuity test for resistance below 50Ω
- clamps open up to 25 mm and allow measurement of a single wire with a maximum diameter of 25 mm
- measurement probes length: 14.5 cm
- length of the cable with probes: 97 cm
- diameter of the cable with insulation: 3.5 mm

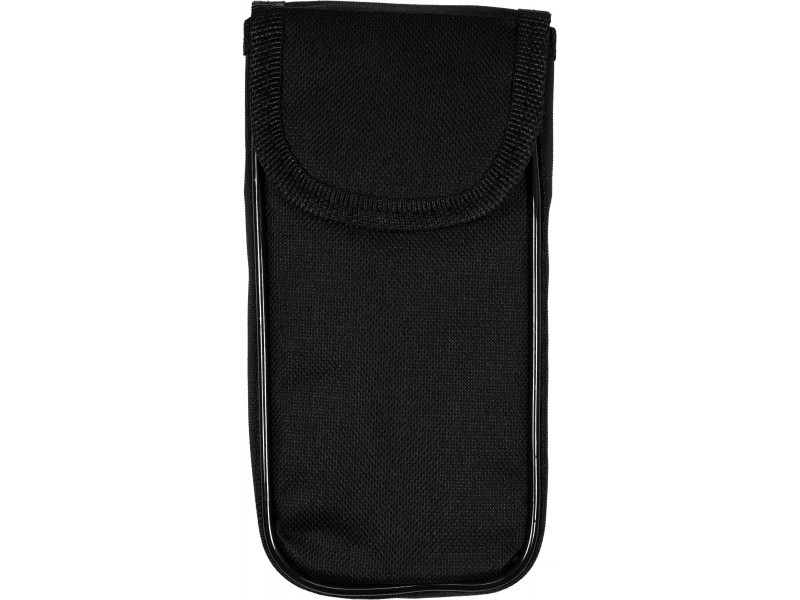

- carrying case included in the set
- construction with overload protections
- automatic shut-off of the meter after 15 minutes of inactivity
- possibility to disable the automatic shut-off mode of the device
- low battery indicator
- power supply: two 1.5 V batteries (AAA)
Visual description:
Attention!
Clamp meter current measurement is done only on a single wire. Clamping the clamps on a multi-core cable without isolating a single wire will show incorrect results or zero current flow.
