| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Alternating current | 0-600 A |
| Dimensions | 137x45x21 mm |
| Material | ABS |
| Max. clamp gap | 31 mm |
| Max. diameter of the tested cable using the clamp | 20 mm |
| Bell ring | no |
| Working temperature range | 0~40 ˚C |
| Storage temperature | -10 ~ +50 ˚C |
| Weight | 0.14 kg |
| Application | electric |
| Connectable to | YT-73085 |
| Symbol | YT-73090 |

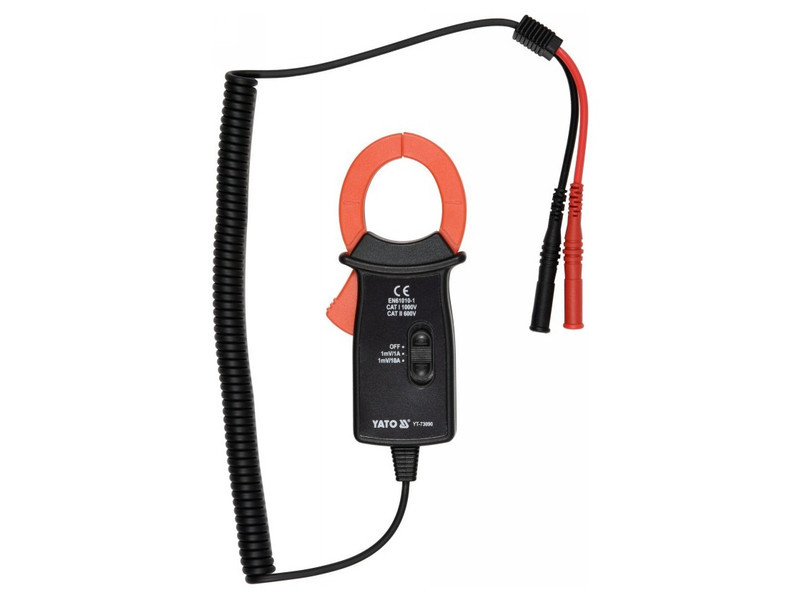

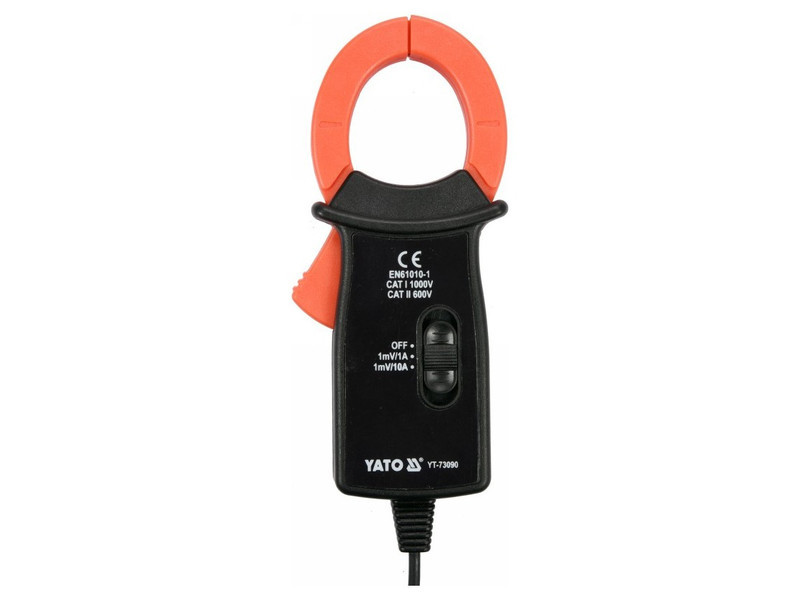

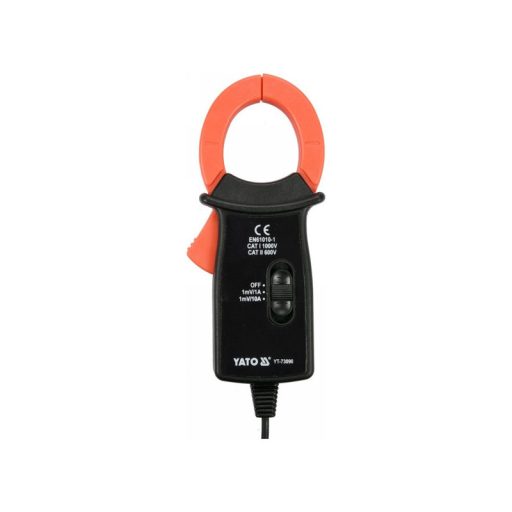

YT-73090 clamp meter equipped with clamps to measure AC current in a single wire by inductive method. This makes it possible to measure much higher current than conventional electric meters. The meter is a complementary accessory to the YT-73085 universal meter, as well as any universal meter that measures in the millivolt range.
Basic measurements:
- AC current measurement: A.C. 0-600 A
Measurement accuracies:
Example of determining accuracy for AC current measurement. Calculation for the measurement result: 30 A
- Measurement accuracy of YT-73090 meter for this range is : ±(2% + 0.5), resolution of 1 A
- calculation of measurement error formula: (measurement result x 2%) + 0.5 x resolution
- calculation: (30 x 2%) + 0.5 x 1 = 0.6 + 0.5 = 1.10 A
The actual result including measurement error for the indication of 30 A = 30 ± 1.25 A.
A table with the resolution and accuracy for the measurement can be found in the user's manual.
Additional information:
- clamps open up to 31 mm and allow measurement of a single wire with a maximum diameter of up to 20 mm
- 2-stage adjustment of the measurement range: up to 200 A and up to 600 A

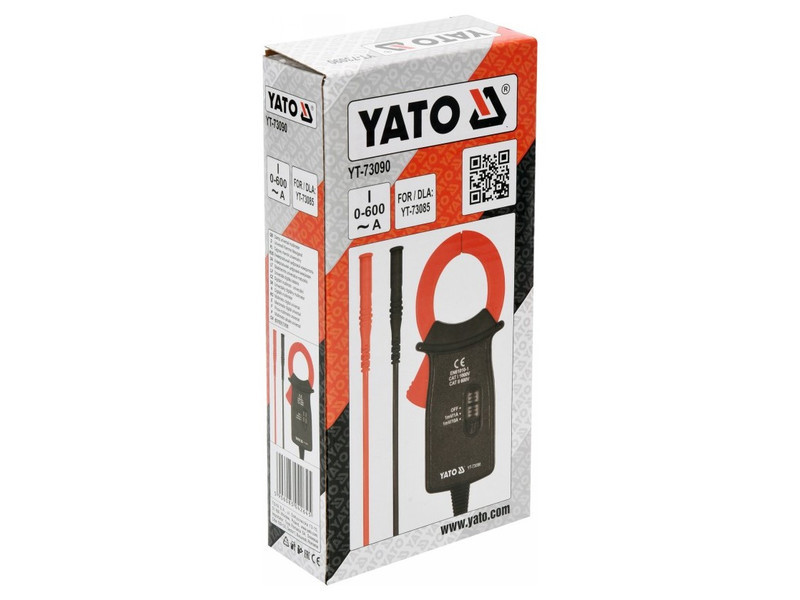

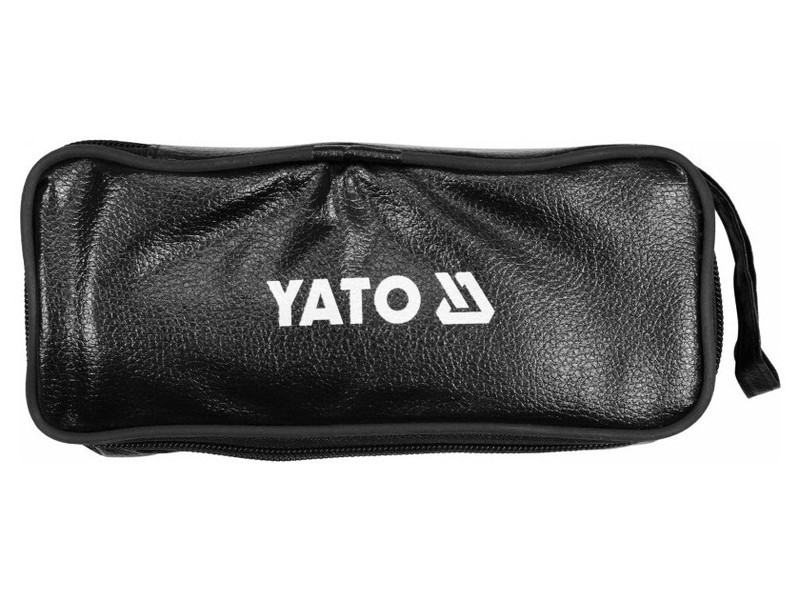

- including carrying case and measuring probes
Attention!
Current measurement with clamp meters is performed only on a single conductor, a single cable. Fastening the clamps on a multiconductor cable without isolating a single conductor will show an incorrect result or zero current flow.
