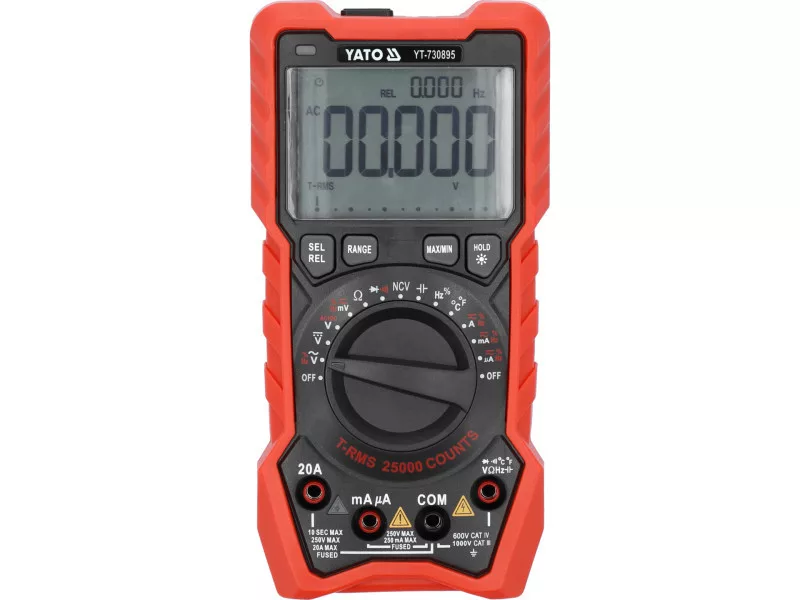

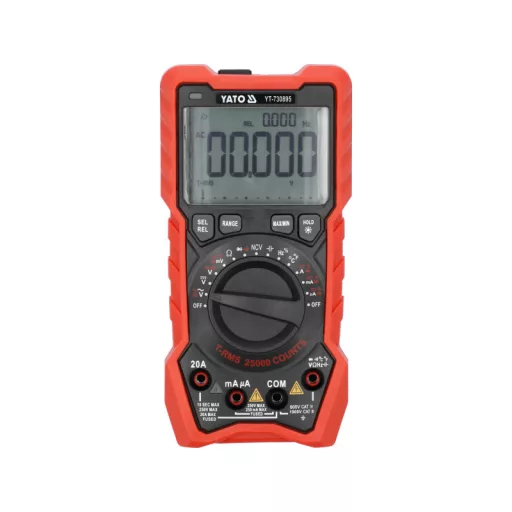

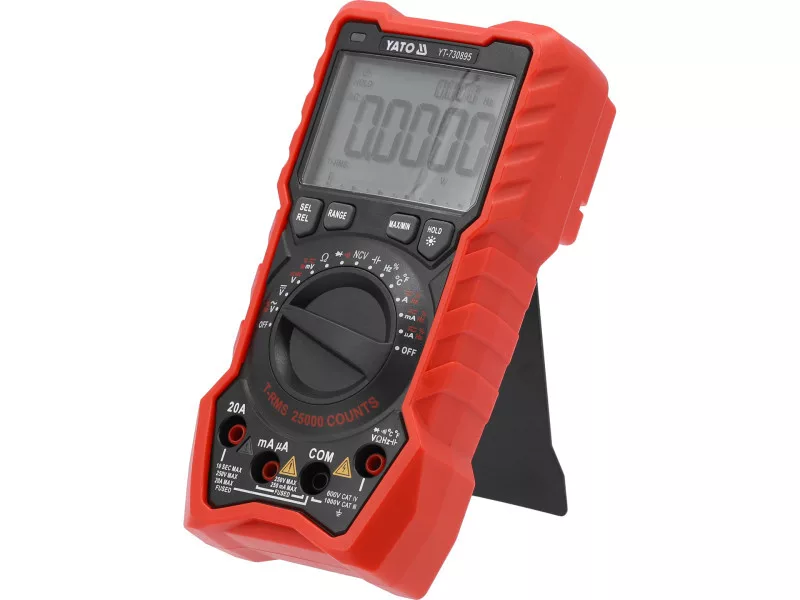

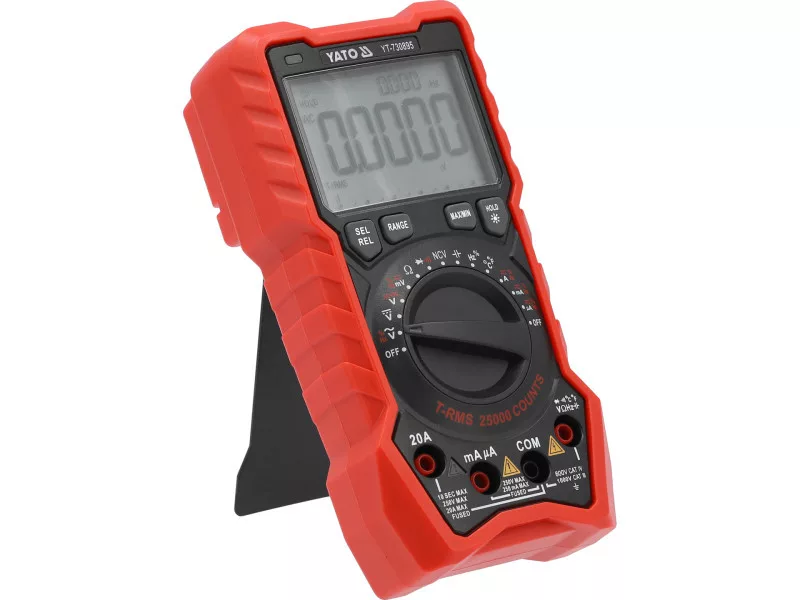

YATO Digitalmultimeter

Name: YATO Digitalmultimeter
Brand: YATO
SKU: YT-730895
Price: 80.19 EUR
Availability: InStock

Artikelnummer:

YT-730895

Daten

Márka:

YATO

EAN kód:

5906083105814

Csomagolás:

1 / 50

Külső raktáron:

500

Terméktípus:

Multiméter

Várható szállítás: 2026.05.13

Bestellbar

Bestandshöhen

Saját raktár - Miskolc 0 Stück

Innen szállítunk, a raktáron lévő terméket rendszerint 1 munkanappal később kézbesítjük

Üzlet - Miskolc 0 Stück

Innen is szállítunk, a raktáron lévő terméket rendszerint 1 munkanappal később kézbesítjük

Saját külső raktár - Miskolc 0 Stück

Innen is szállítunk, a raktáron lévő terméket rendszerint 1 munkanappal később kézbesítjük

Beszállítói raktár 500 Stück

Európai raktár, általában 1-2 hét alatt érkezik be hozzánk, utána szállítjuk ki

80,19 €

Stück

Details

Brand	Yato
Entity responsible for this product in the EU	TOYA S.A.More
Series	GRF
Alternating voltage	0-750 V a.c.
Direct voltage	0-1000 V d.c.
Alternating current	0-20 A
Direct current	0-20 A
Resistance	0-250 MΩ
capability	0-99.99 mF
Regularity	0-10 MHz
Temperature	-20 ~ +1000 ˚C
Duty cycle	1 ÷ 99 %
Continuity test	0-50 MΩ
Conduction test	yes
Diode test	yes
Minimum measurement value	yes
Maximum measurement value	yes
Relative value	yes
TRUE RMS	yes
Data Hold	yes
Non-contact AC voltage detection NCV	yes
Dimensions	180x90x50 mm
Material	ABS
Display type	LCD
LED backlight	yes
Display range	25000
Auto measurement range	yes
Sampling frequency	3 times per second
Bar graph	0-100
Bell ring	yes
Auto power off	15 min
Front lighting	no
Low battery indicator	yes
Power supply	battery
cell type	3x1.5V; AA
Working temperature range	0~40 ˚C
Operating relative humidity Rh	75 %
Storage temperature	-10 ~ +50 ˚C
Weight	0.26 kg
Application	electric
Symbol	YT-730895

Universal meter for professionals and hobbyists

The YT-730895 digital meter combines measurement precision with incredible functionality. Indispensable in every toolbox!

Precision and versatility:

Automatic range measurement for ease and safety of operation
LCD display counting up to 25000 digits for maximum reading accuracy
TRUE RMS function providing precise measurements for any type of current waveform
Durable housing with non-slip PVC holster, increasing device safety and durability
Silicone, flexible, and high-temperature resistant measuring probe wires
Wide measurement ranges and industrial precision, appreciated by professionals and DIY enthusiasts
Non-contact detection of alternating current (NCV) for quick and safe diagnosis
Construction with comprehensive overload protections
Fast operation speed, ensuring efficient measurement performance
Multifunctional display that facilitates data reading in any conditions

Compact size

Measurement precision

Large LCD display

Soft case included

Professional applications

Detailed technical data:

Voltage measurements: AC 0-750 V (TRUE RMS), DC 0-1000 V
Current measurements: AC 0-20 A (TRUE RMS), DC 0-20 A
Resistance: Wide measurement range up to 250 MΩ
Capacitance: Precise measurements up to 99.99 mF
Frequency measurement: Accurate readings up to 10 MHz
Temperature measurement range: From -20°C to 1000°C
LCD display: Clear, with a maximum result of 25000 digits
Automatic shutdown: After 15 minutes of inactivity (with deactivation option)

Additional advantages and features:

TRUE RMS: True effective value for sinusoidal and distorted waveforms, indispensable for switch-mode power supplies or inverter drives.

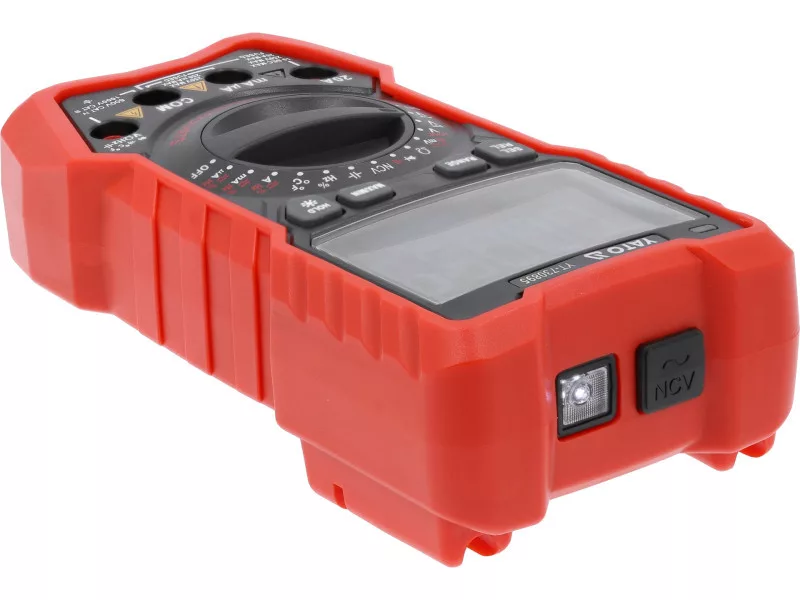

NCV (Non-contact voltage): Non-contact detection of alternating current using inductive method, increasing work safety.
AUTO: Automatic range adjustment, default for convenience and device protection.
RANGE: Manual range change function, useful for serial measurements of components with known values.
REL (Relative Measurement): Zeroing the display and measuring the difference relative to a reference value, ideal for quick comparisons.
MAX/MIN: Function to retain the maximum or minimum value on the display during measurement.
HOLD: Pausing the currently measured value on the display, facilitating reading.
Backlit LCD screen for better visibility in difficult lighting conditions.
Sound and light signal in continuity test for resistance below 50 Ω.

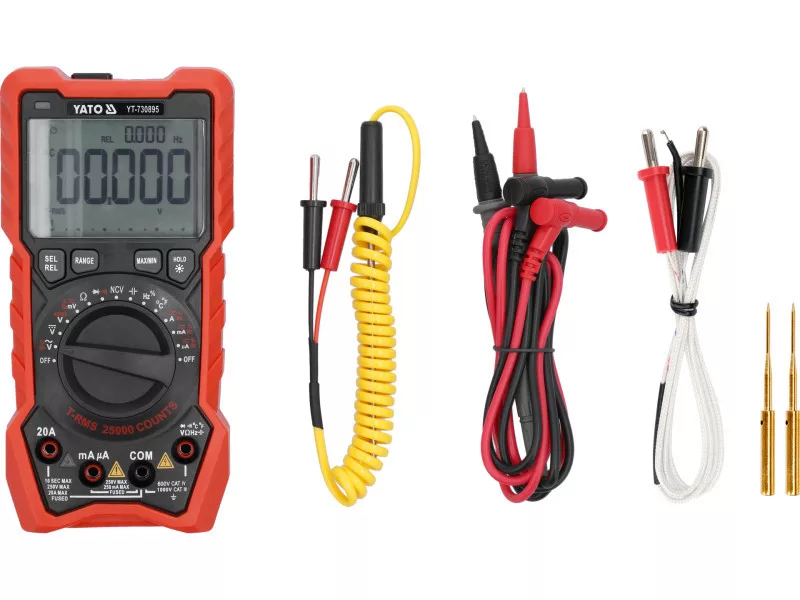

Includes two temperature probes: immersion for liquids and point for surfaces.

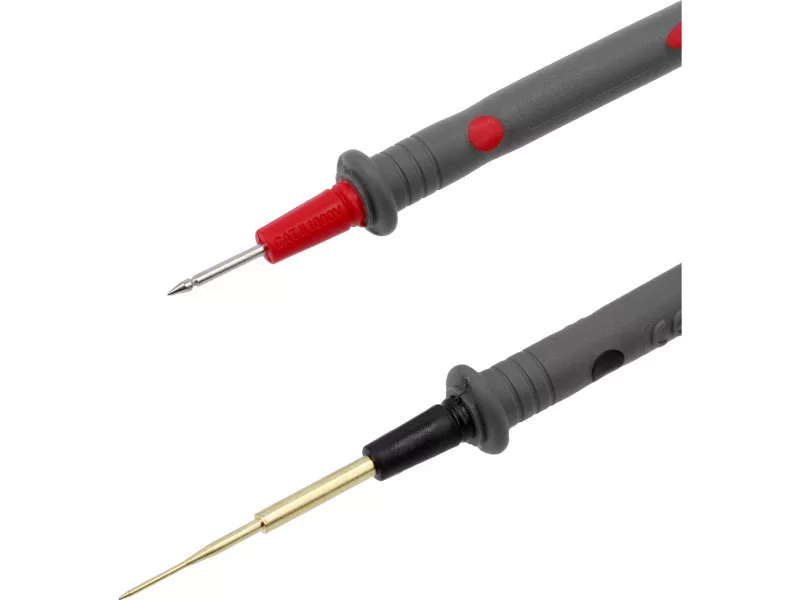

Additional needle tips for precise measurements of small SMD components.

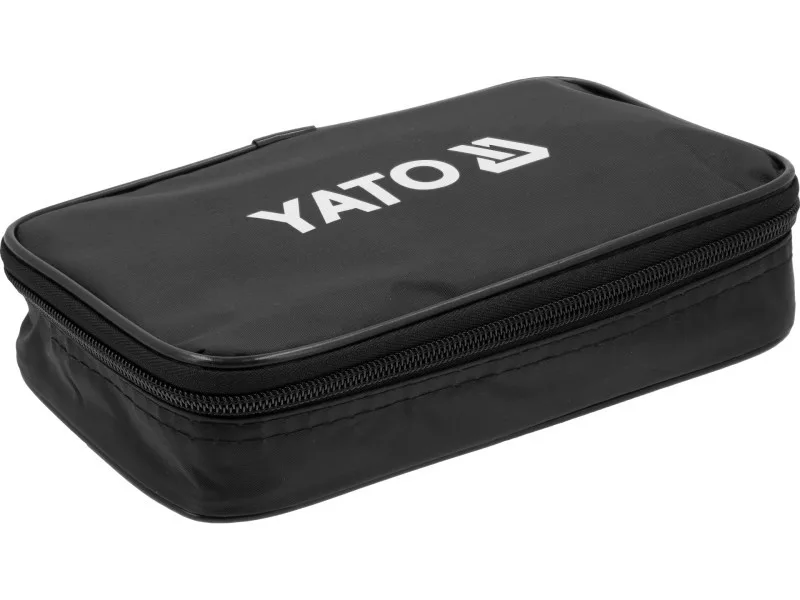

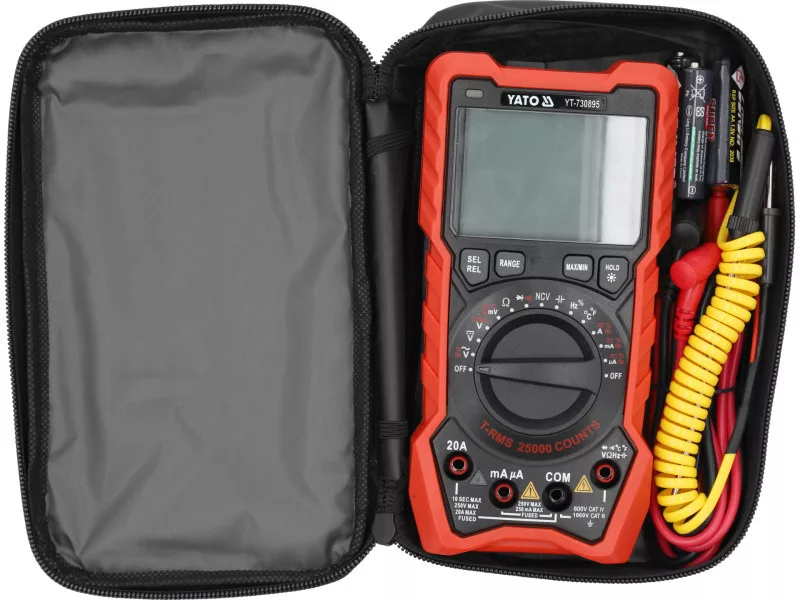

Soft zippered case for safe storage and transport.
Powered by three 1.5 V (AA) batteries with low battery level indicator.
Warning light near current measurement sockets, increasing user safety.
