| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Max. voltage | 1000 V |
| Max. current | 20 A |
| Length | 1200 mm |
| Length of handle | 150 mm |
| Spout length | 20 mm |
| Tip diameter | 0.3 mm |
| Material | galvanized copper wire x80 |
| Handle material | PVC |
| Measurement category | CAT III |
| Wire insulation type | silicone |
| Electric insulation class | II |
| Working temperature range | 0~150 ˚C |
| Operating relative humidity Rh | 75 % |
| Application | electric |
| Symbol | YT-73077 |

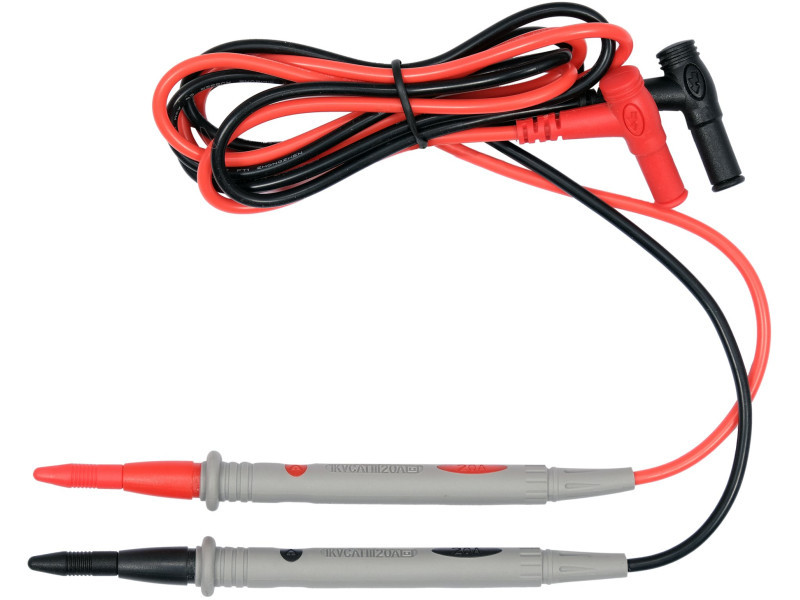

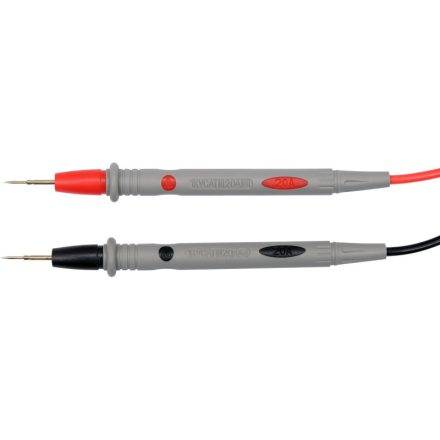

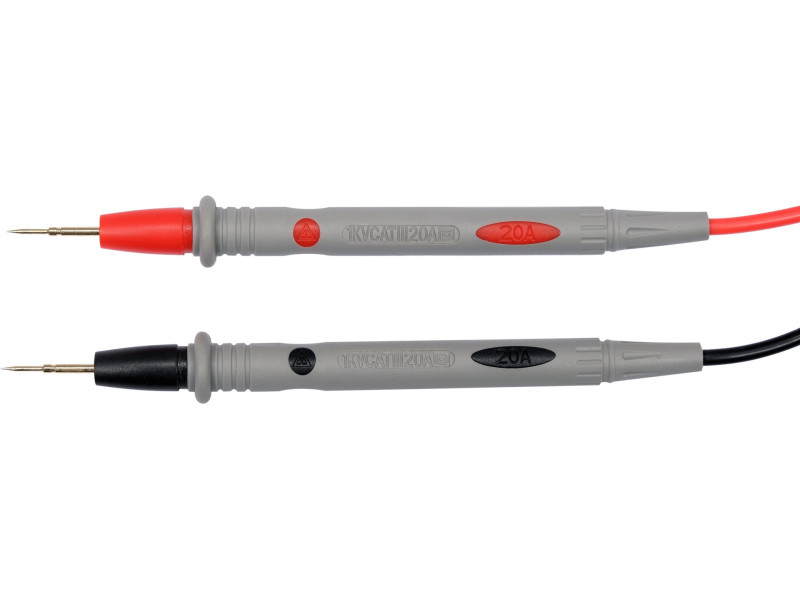

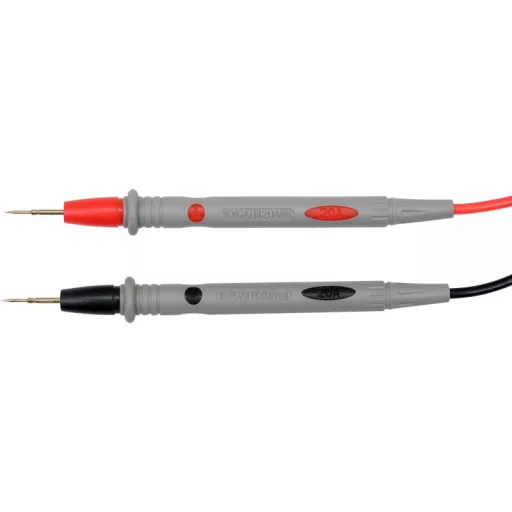

Measuring probes with sharp brass tips with silver plating. The diameter at the end of the probes is just 0.3 mm. The wires are made of 80 tinned copper wires. The cables are covered with silicone flexible insulation that is resistant to high temperatures. The probes are ideal for measuring small components, e.g. on smartphone PCBs. They will break through the cable insulation without any problems.
- overall length: 120 cm
- handle length: 150 mm
- tip length: 20 mm
- max. voltage 1000 V
- max. intensity 20 A
