| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRE |
| Measuring range | 0-12.7 mm |
| Clock diameter | 57 mm |
| Mounting pin diameter | 8 mm |
| Power supply | battery |
| cell type | 1x1.5V; LR44 |
| Functions | zeroing |
| Measurement unit | meters, inches |
| Measurement accuracy | ±0.01 mm |
| Reading type | electronic |
| Display type | LCD |
| Operating relative humidity Rh | 80 % |
| Working temperature range | 0~40 ˚C |
| Storage temperature | -20 ~ +70 ˚C |
| Compatible with | YT-72460 |
| Application | workshop work, machine control, servicing and checking the correct installation of brake discs and all types of pulleys and shafts, |
| Application contd | stable measuring point for checking runout of rotating elements |
| Symbol | YT-72453 |

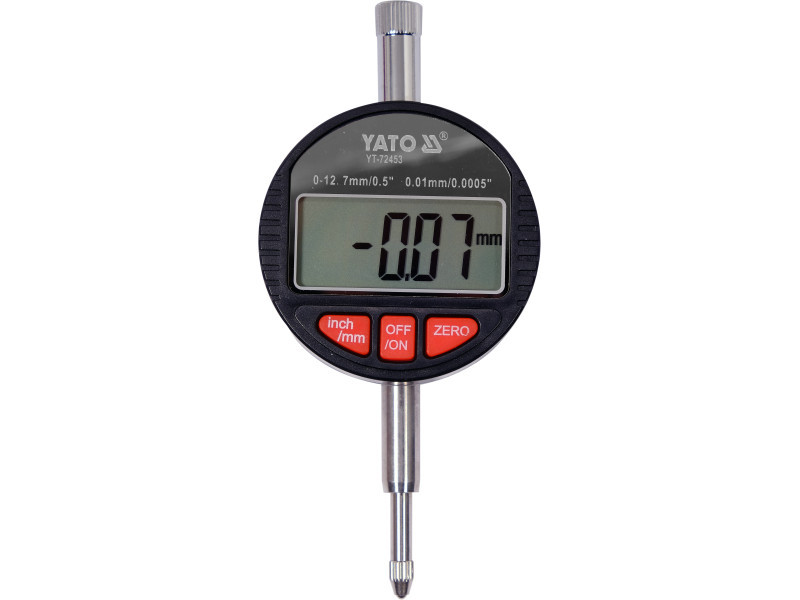

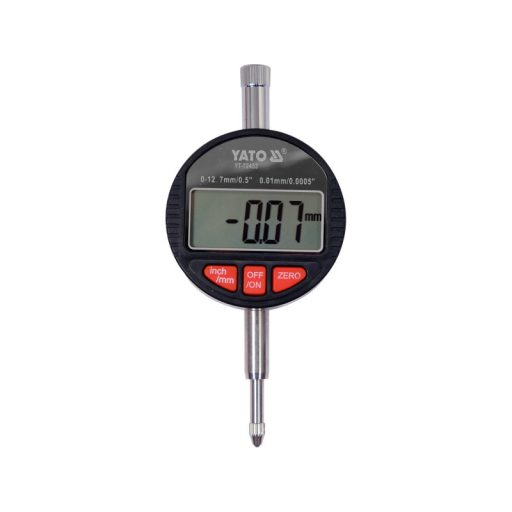

Professional electronic dial sensor YT-72453 is widely used in workshop work and machine inspection. It will be perfect for handling and checking the correctness of the installation of brake discs and all kinds of pulleys or shafts. Thanks to the special magnetic base, YT-72453 can serve as a stable measuring point for checking the runout of rotary componentsós.
- Graduation 0.01 mm
- Measuring range 0-12.7 mm
- Mounting mandrel - &.Phi; 8 mm
- Diameter of the clock face ~ Φ 57 mm

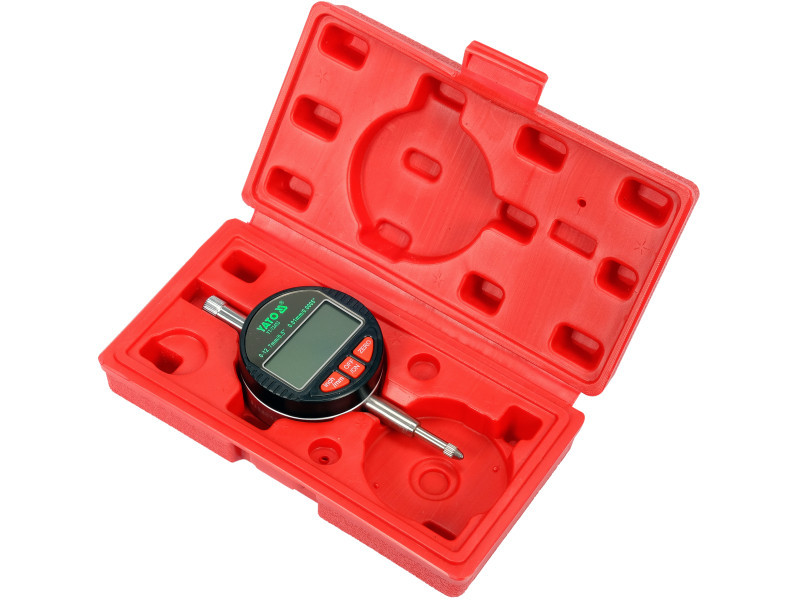

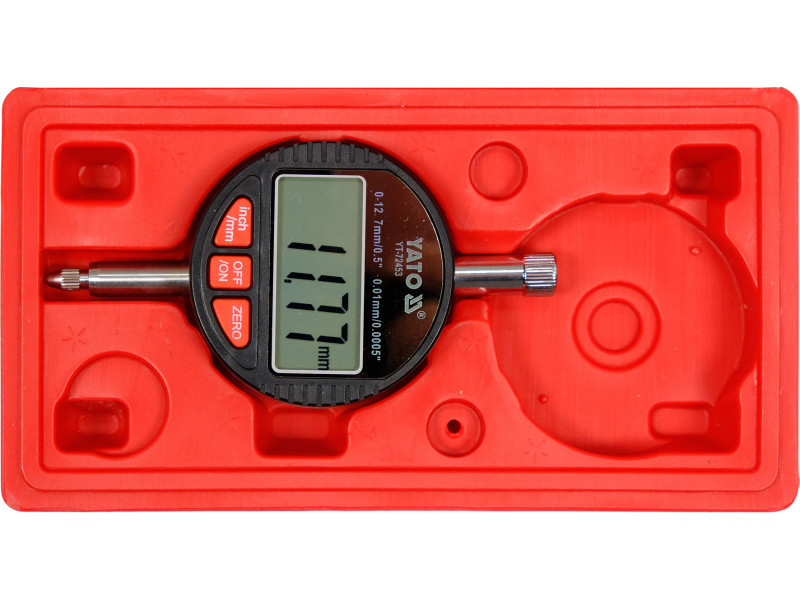

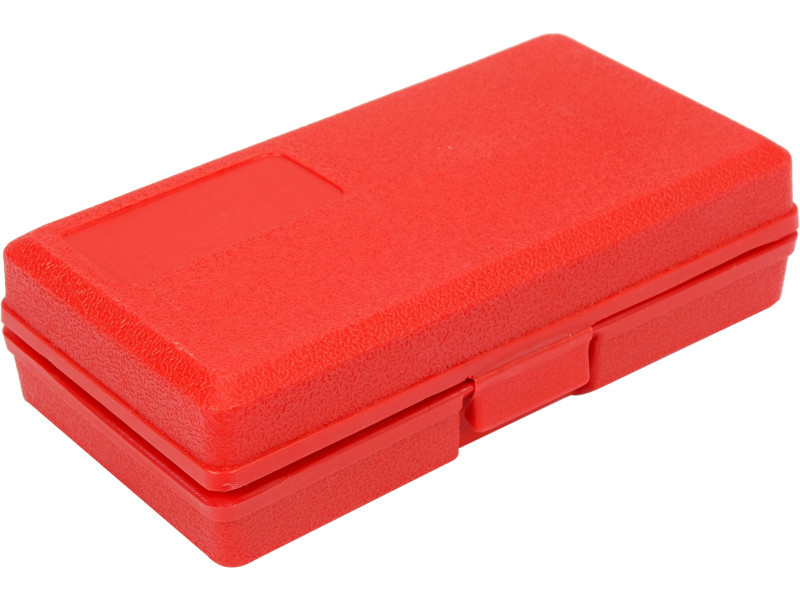

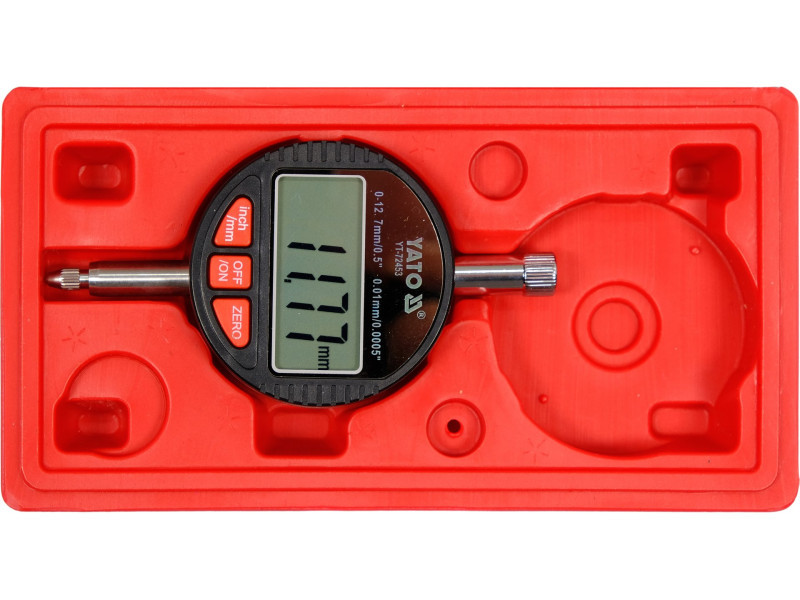

- Packaged in a sturdy plastic box.
