| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRE |
| Measuring range | 0-12.7 mm |
| Measurement accuracy | ±0.001 mm, ±0.00005″ |
| Metric scale | yes |
| Inch scale | yes |
| Reading type | electronic |
| Display type | LCD |
| Reading resolution | 0.001 mm, 0.00005″ |
| Handle depth | 30 mm |
| Power supply | battery |
| cell type | 1.5V; LR44 |
| Battery capacity | 150 mAh |
| Working temperature range | 5~40 ˚C |
| Storage temperature | -20 ~ +60 ˚C |
| Application | carrying out thickness measurements on materials (sheets, plates, sheets) made of e.g. metal, paper, plastics, glass |
| Symbol | YT-72321 |

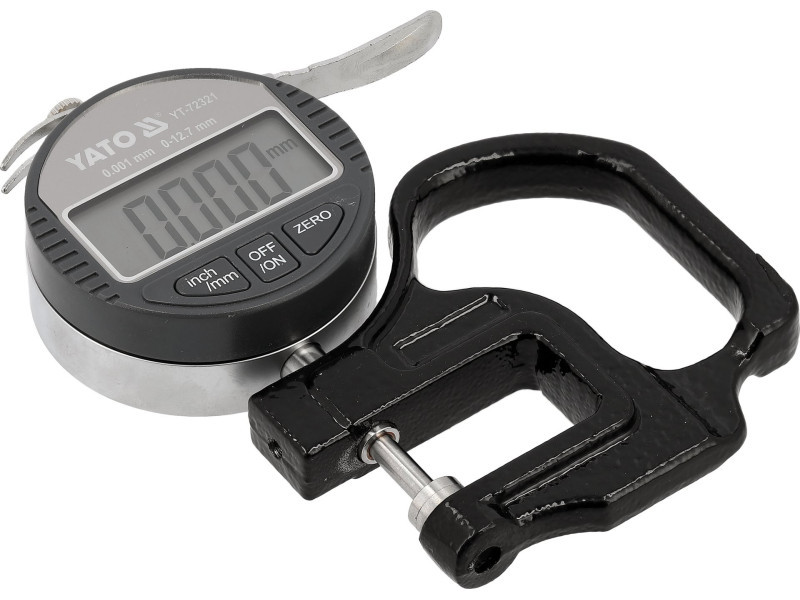

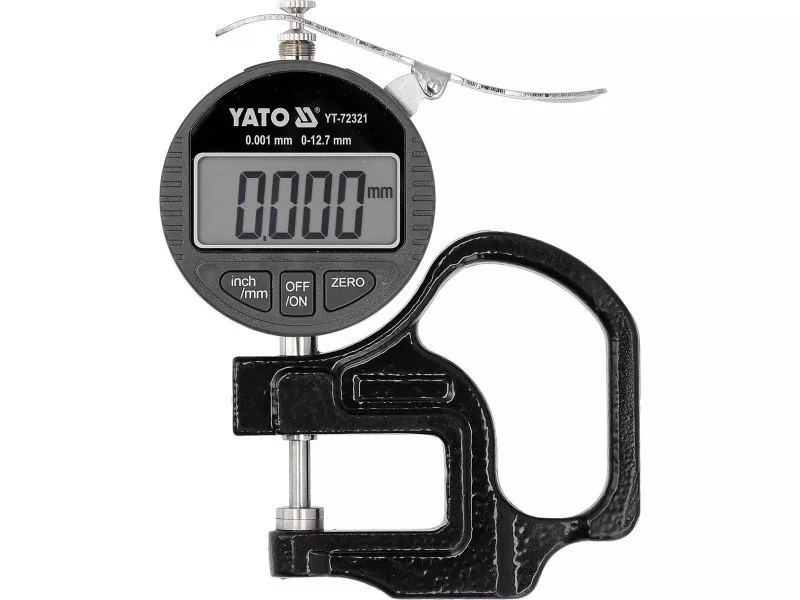

The electronic thickness gauge with an accuracy of ±0.001 mm is a precise measuring tool designed to determine the thickness of various materials, including metal sheets, plates, sheets made of metal, paper, plastics, or glass. It is suitable for workshops, measurement laboratories, and quality control, where the accuracy and repeatability of measurements are crucial.
It combines high measurement precision with ease of use, making it an indispensable tool for specialists and individuals performing measurements in demanding workshop conditions.
Device functions:
- unit conversion - the ability to switch between metric and inch scale
- on/off - enables energy saving and easy device activation
- zeroing - allows for quick setting of the reference point before measurement
Parameters:
- measurement range: 0-12.7 mm
- measurement accuracy: ±0.001 mm|±0.00005″
- reading resolution: 0.001 mm|0.00005″
- display: electronic, on an LCD screen, providing quick and clear measurement in metric and inch scale
- jaw depth: 30 mm
- operating temperature: 5-40°C
- storage temperature: -20-60°C
- power supply: 1.5 V battery (LR44) with a capacity of 150 mAh

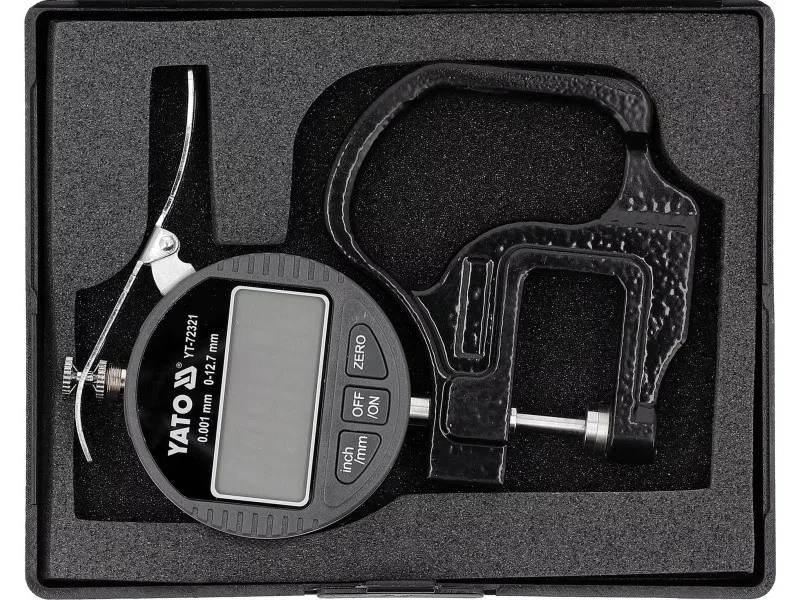

- packed in a convenient carrying case
