| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Dimensions | 1000x390x12 mm |
| Length | 1000 mm |
| Width | 390 mm |
| Thickness | 12 mm |
| Material | laminated MDF board |
| Joint worktop width | 250-700 mm |
| Operation angle | 30, 45, 67.5 ˚ |
| Set includes | template, mounting pin x4 |
| Application | for making stable connections on kitchen countertops |
| Symbol | YT-70890 |

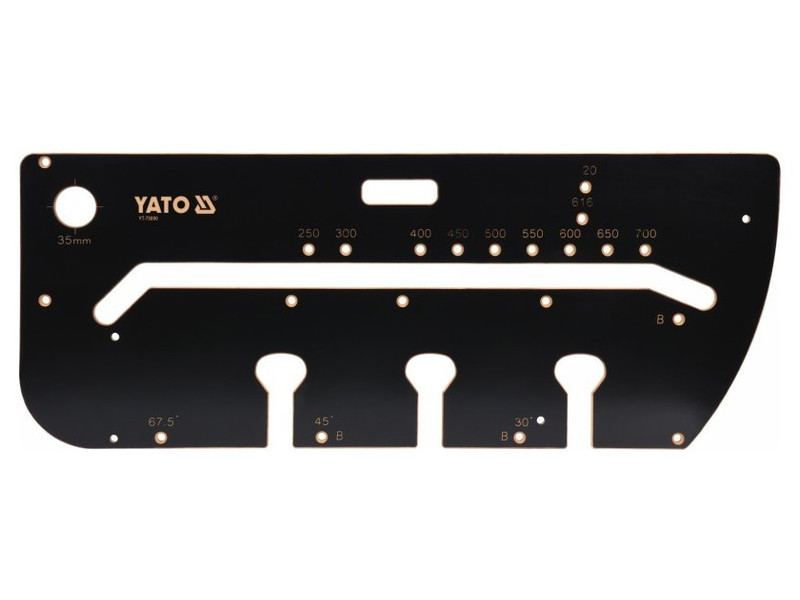

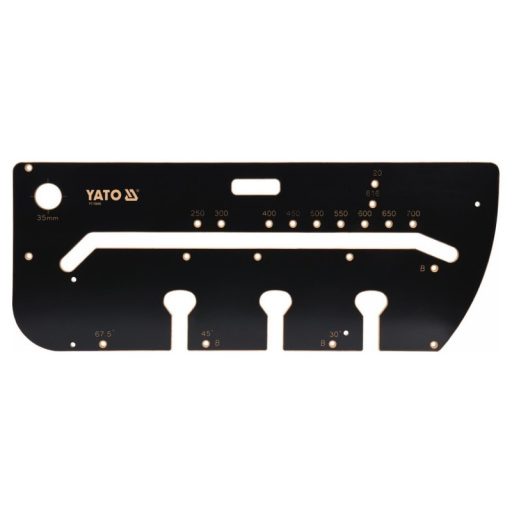

Milling template for milling countertop joints .Made of mdf type laminated board. External dimensions approximately 1000 x 390 x 12 mm.
Instructional material on the Tool Portal can be found here.
For making stable joints of kitchen worktops To work with a router using a coping sleeve with a diameter of 30 mm and a finger cutter with a working part diameter of 12.7 mm. Template, mounting pins (4 pieces)
