| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Size | 250x160 mm |
| Measured angle range | 90 ˚ |
| Material | #45 carbon steel |
| Surface finish | polished, polished |
| DIN | 875/2 |
| Shape | flat |
| Symbol | YT-70754 |

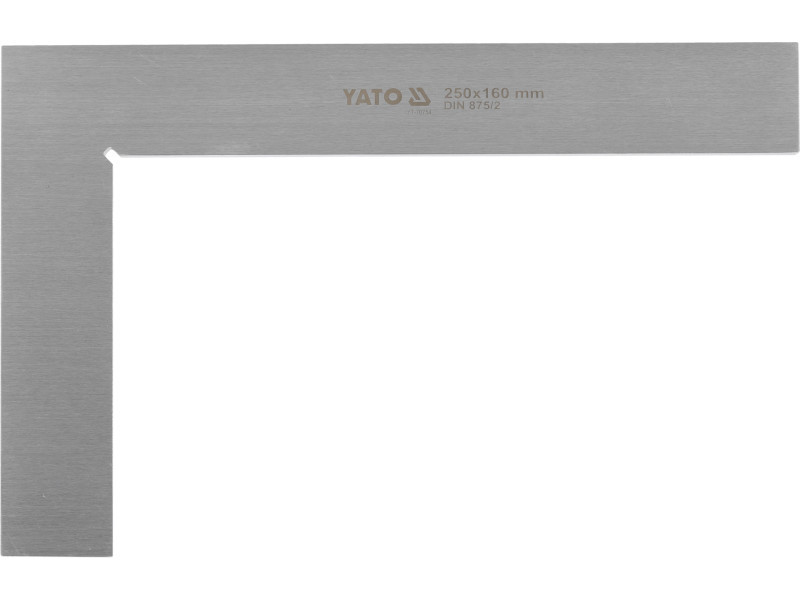

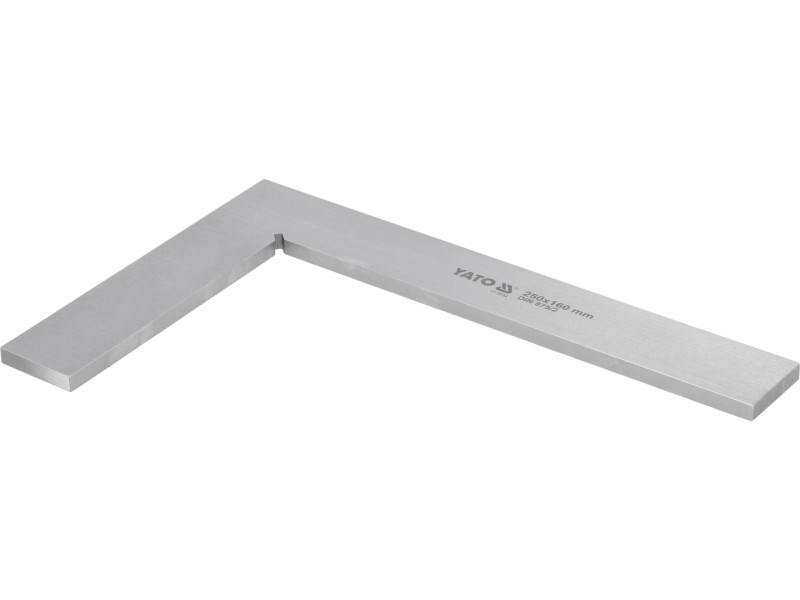

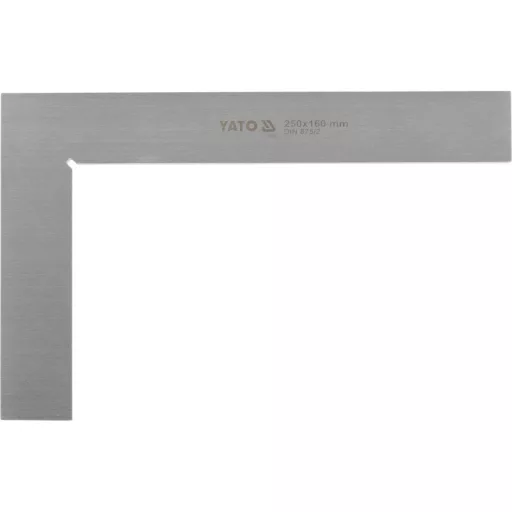

Steel locksmith angle bar designed for measuring and scribing work.
- main bar is made of carbon steel C45
- ground and polished surface
- range of measured angle: 90 degrees
- millimeter and inch graduation (150 mm and 6").
- the foot with the slat is connected by three rivets
- slat thickness: ........ mm
- bead: width 14.7 mm, length 114 mm
- the bevel has a hole for hanging
SHAPE: FLAT; MATERIAL: CARBON STEEL 45#; EXECUTION IN ACCORDANCE WITH DIN 875 /II; SURFACE FINISH: GROUND AND POLISHED
