| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRE |
| Working capacity | 100-400 mm |
| Length | 565 mm |
| Width | 60 mm |
| Height | 110 mm |
| Base dimensions | 90x60x25 mm |
| Base plate thickness | 4 mm |
| Bolt diameter | 8 mm |
| Material | steel |
| Surface finish | galvanized |
| Handle material | wood |
| Application | transferring dimensions and angles to the cut surface of concrete slabs or blocks |
| Symbol | YT-70695 |

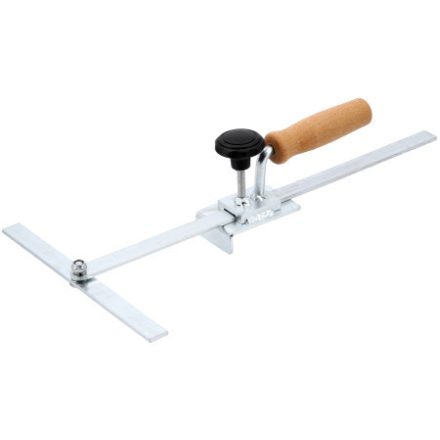

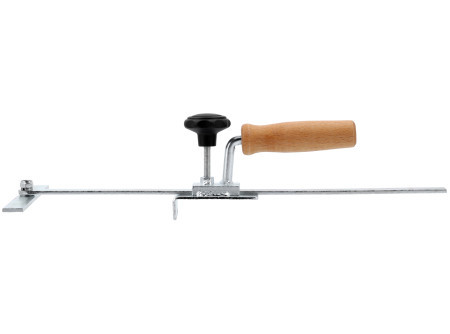

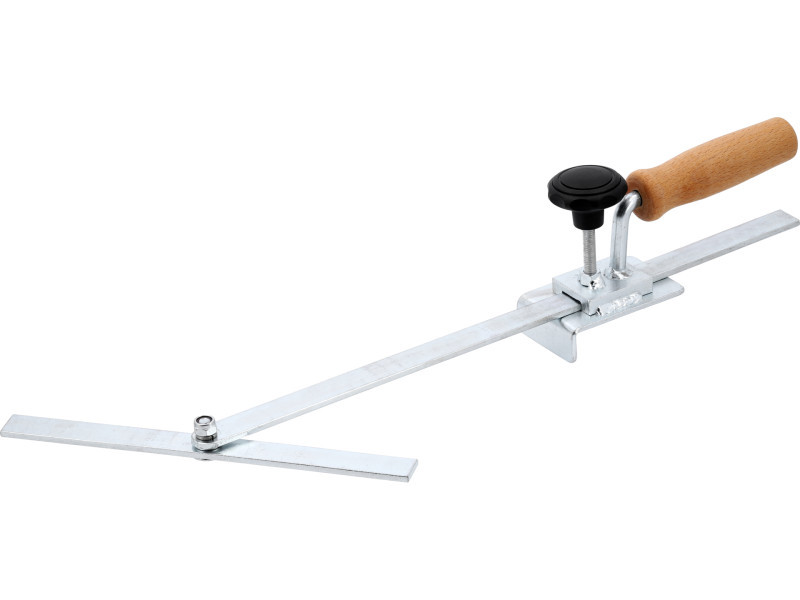

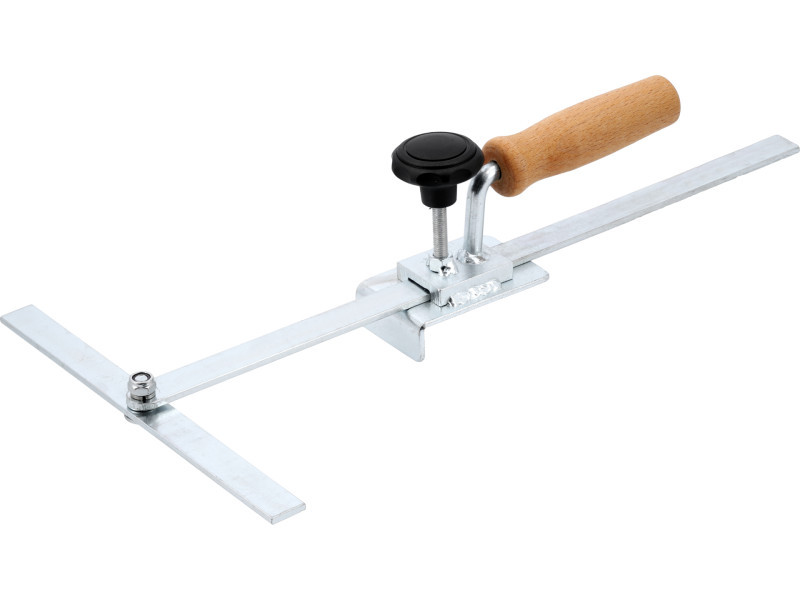

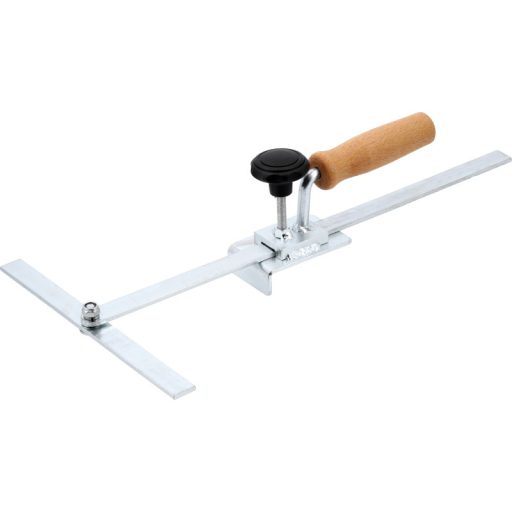

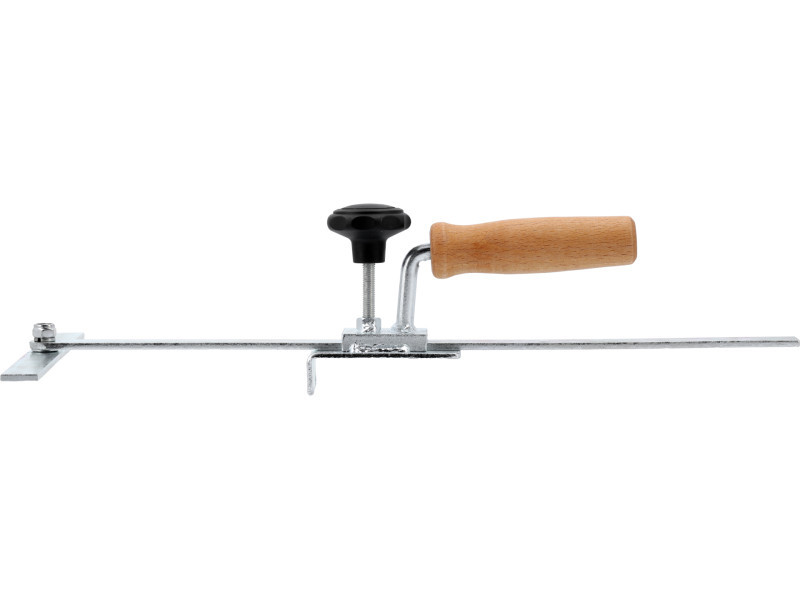

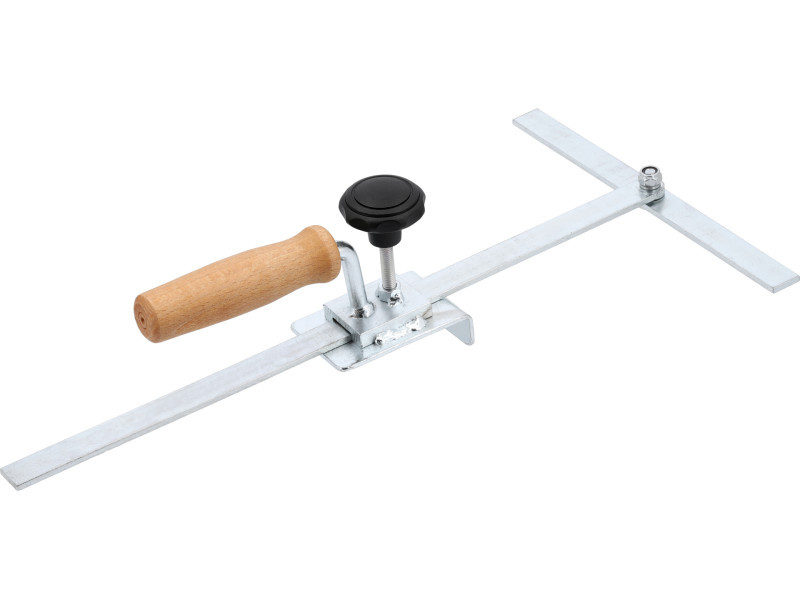

Durable and functional paving gauge designed for quick and precise transferring of dimensions and angles directly onto the paving material. It significantly facilitates cutting concrete blocks and sidewalk slabs according to the designated shape, increasing the efficiency and productivity of work.
It particularly streamlines the reproduction of dimensions in places requiring high accuracy - on edges or in corners.
The solid construction and resistance to external conditions of the zinc coating make it a reliable tool in the daily work of pavers and installation teams. The gauge is extremely easy to use, allowing for quick determination of cutting lines.
- working range: 100–400 mm
- length: 565 mm
- width: 60 mm
- height: 110 mm
- sliding ruler: 450 × 20 × 4 mm
- cross ruler: 250 × 20 × 4 mm
- base: 90 × 60 × 25 mm, thickness 4 mm
- fastening screw: Ø 8 mm
- material: corrosion-resistant zinc-coated steel, resistant to moisture and atmospheric factors
- handle: wooden
- weight: 0.9 kg
- packaging: 6 pieces
