| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Type of | rectangular staples, nails, sticks |
| Staple dimensions | 6-14x1.2x10.6 mm |
| Staple length | 6-14 mm |
| Staple width | 10.6 mm |
| Staple thickness | 1.2 mm |
| Nail dimensions | 10-14x1.2x2 mm |
| Pin size | 14x1.2 mm |
| Material | steel |
| Handle material | PVC |
| Adjustable impact function | yes |
| Application | upholstery, carpentry, finishing works |
| Symbol | YT-7003 |

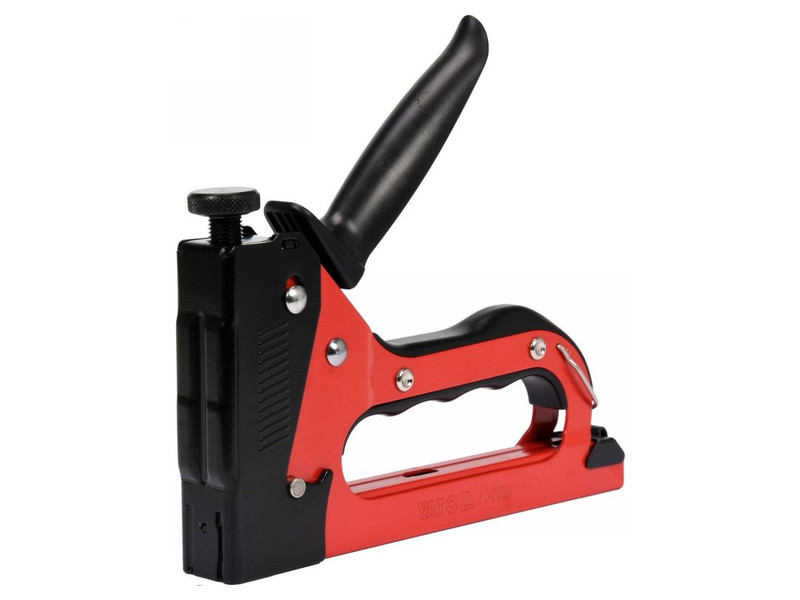

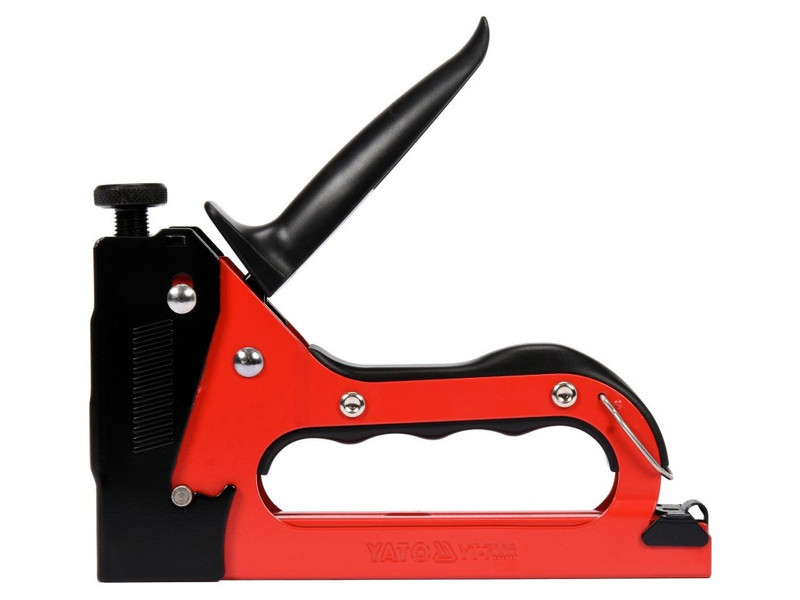

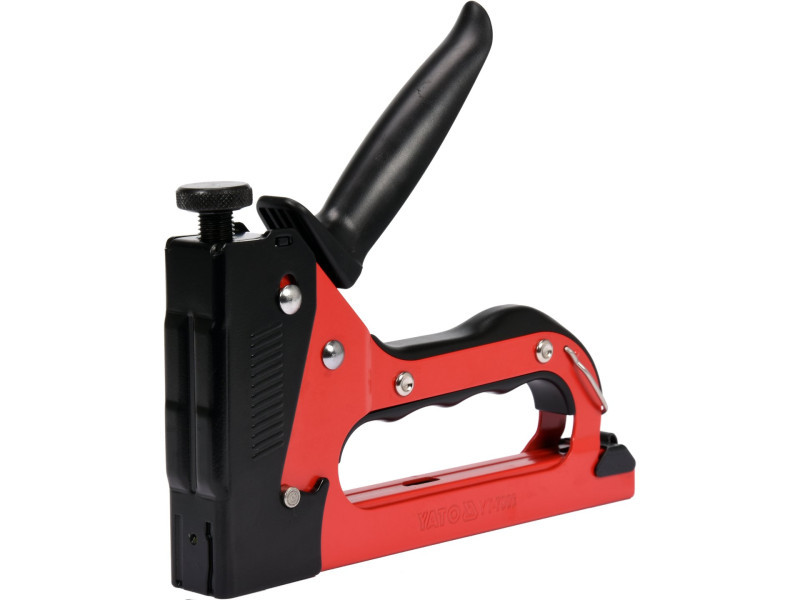

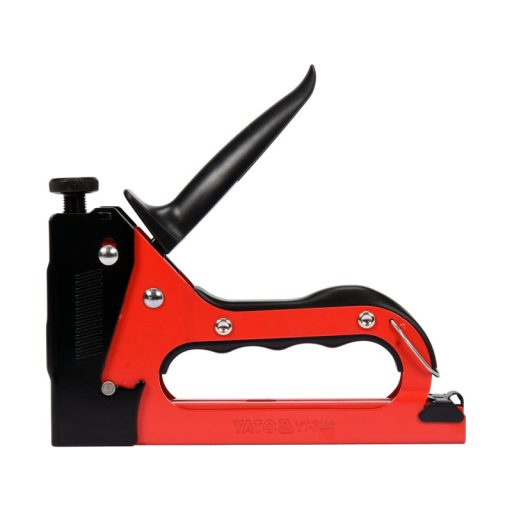

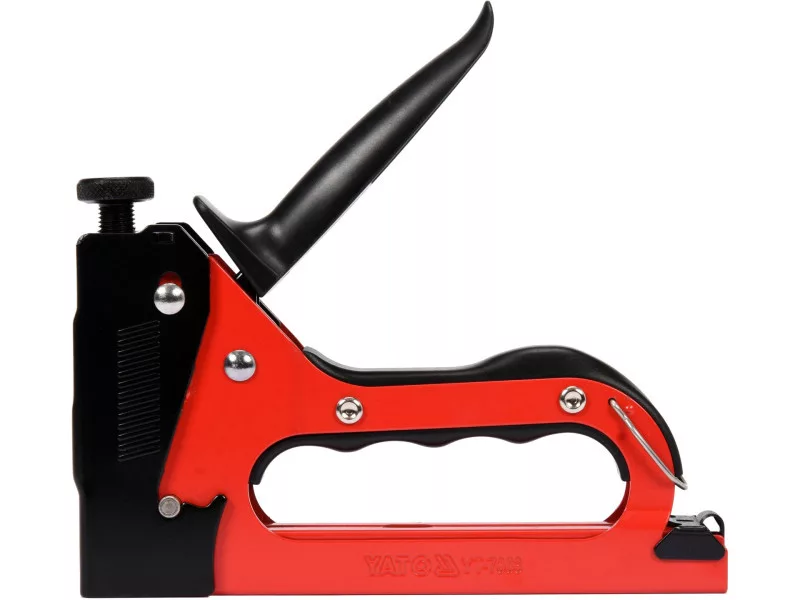

Upholstery stapler designed for quick joining of different materials such as wood with fabrics, cardboard, paper, or leather. Used in upholstery, roofing, decorating, and finishing works in construction, etc. It joins materials using a steel staple or nail driven in with great force.
The stapler is intended for driving typical steel, rectangular staples ranging in length from 6-14mm and nails with a length of 8 to 14mm. It also drives steel pins with a length of 14mm.
The stapler has an adjustment for the pressure of the striker spring - adjustable striking force.
Compatible staples:
- YT-7022: dimensions 6 x 1.2 x 10.6 mm
- YT-7023: dimensions 8 x 1.2 x 10.6 mm
- YT-7024: dimensions 10 x 1.2 x 10.6 mm
- YT-7025: dimensions 12 x 1.2 x 10.6 mm
- YT-7026: dimensions 14 x 1.2 x 10.6 mm
Usage warnings:
Warning! Always use personal safety equipment at work.
