| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Mounting type | constantly |
| Jaws width | 100 mm |
| Jaws range | 80 mm |
| Dimensions | 120x210x130 mm |
| Material | cast iron |
| Surface finish | hammer painted |

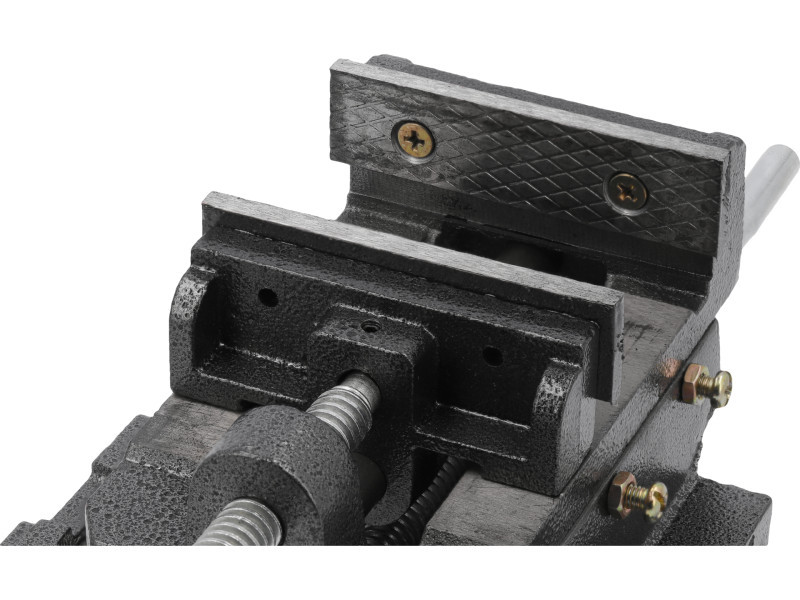

| Jaws finish | knurled |
| Slot size | 10 mm |
| Weight | 7.2 kg |
| Application | cross, for stable material clamping during machining |
| Symbol | YT-65075 |

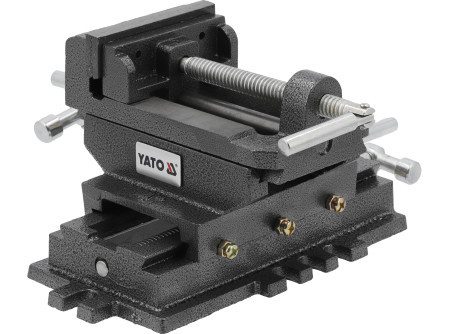

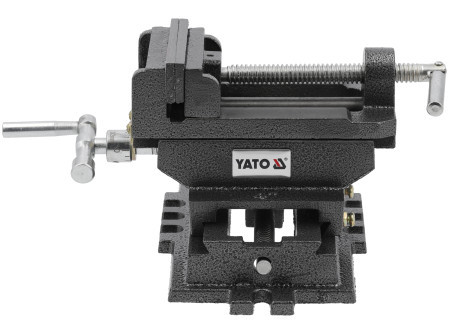

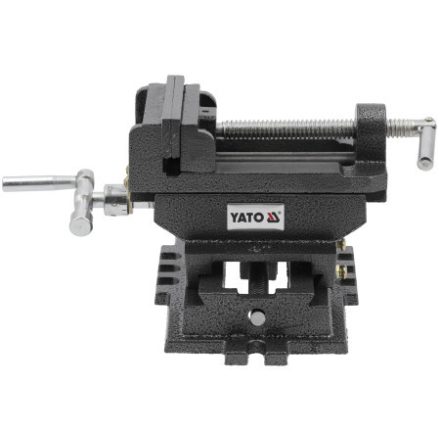

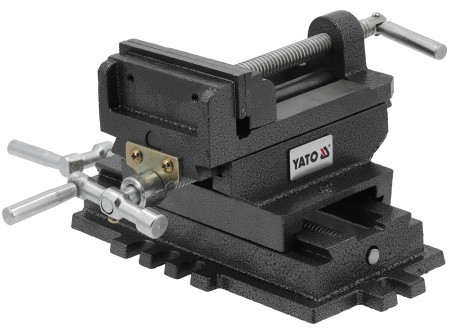

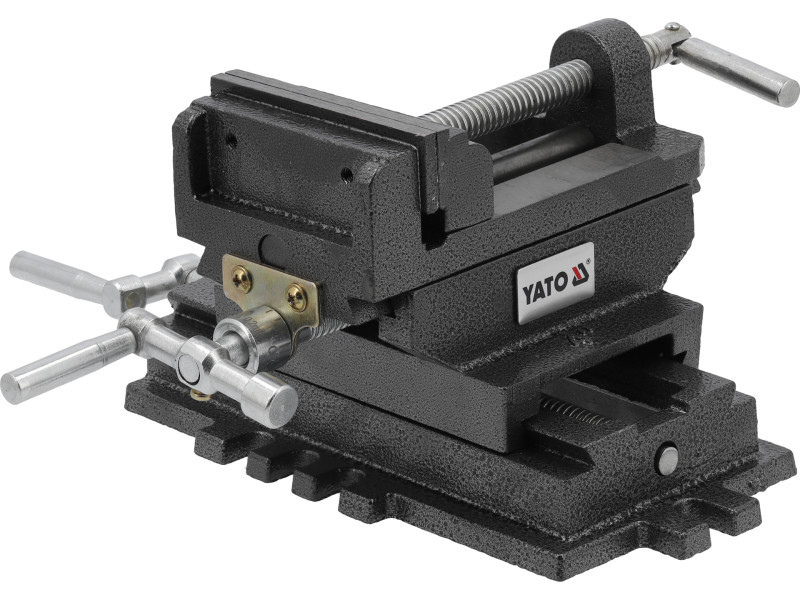

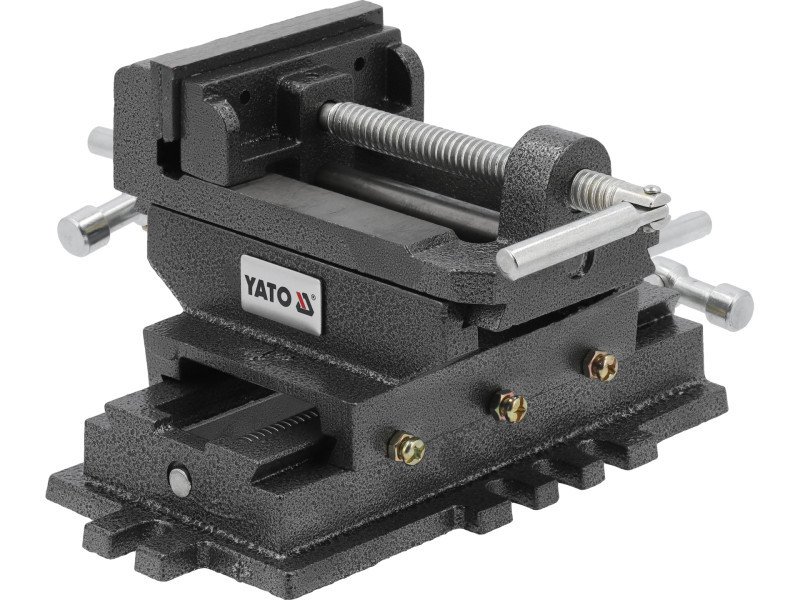

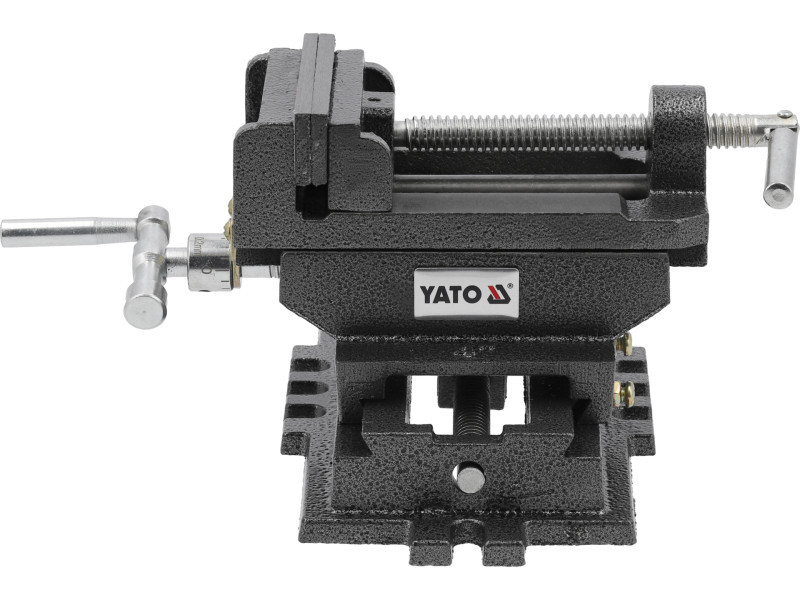

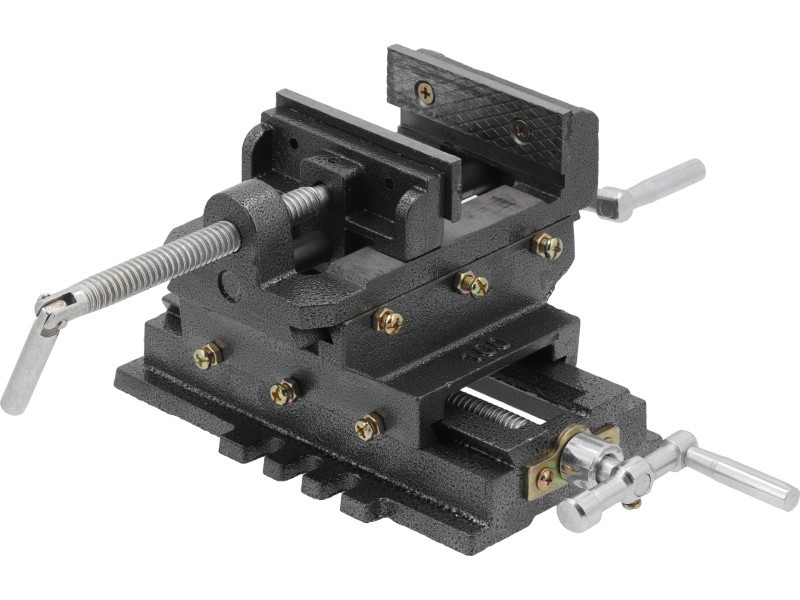

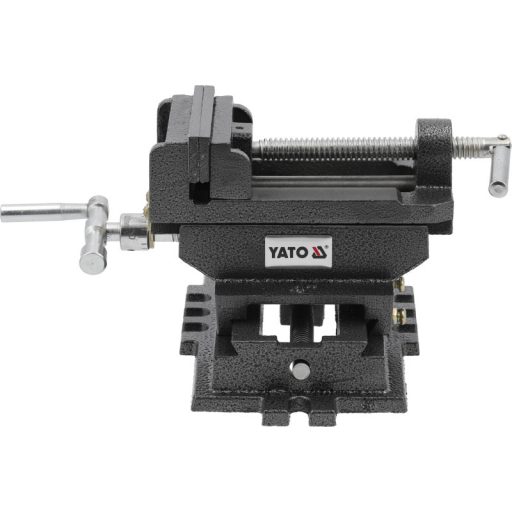

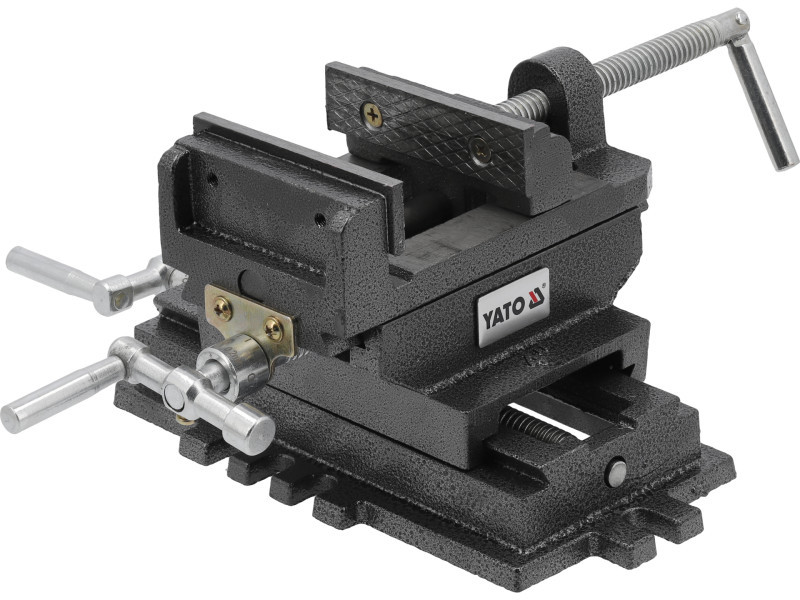

Cross machine vise equipped with two-way pull screws allows work in vertical and horizontal planes. It ensures stabilization of processed materials in construction, welding, locksmith, carpentry, etc. Works permanently attached to the workbench.
- two-axis work - in vertical and horizontal planes - with precise positioning of the processed element
- jaw width: 100 mm
- max. jaw opening: 80 mm
- material: cast iron, surface finished with hammer paint
- trapezoidal screw ensures smooth movement and high load capacity
- T-handle allows for convenient and quick tightening with the appropriate clamping force
- replaceable jaws
- permanently mounted to the workbench using screws
- hole diameter for mounting on the bench: 10 mm
- body dimensions: 120 x 210 x 130 mm
- weight: 7.2 kg
The vise is compatible with interchangeable magnetic jaw inserts of different hardness, e.g. YT-65001, YT-65006.
