| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Working capacity | 125-290 cm |
| Max. load capacity | 30 kg |
| Pipe diameter | 32 mm |
| Material | steel tube |
| Surface finish | surfaced |
| Head material | rubber-coated steel |
| Telescopic | yes |
| Application | installation of plasterboards, spreading the installed door frames |
| Symbol | YT-64552 |
Telescopic supports are designed for temporary fixing of building and construction elements. Most often used for fixing gypsum board or other panels during their fitting and permanent screwing, for example, on ceilings.
Tightening the screwed board with brackets, allows one installer to work effectively, independently.

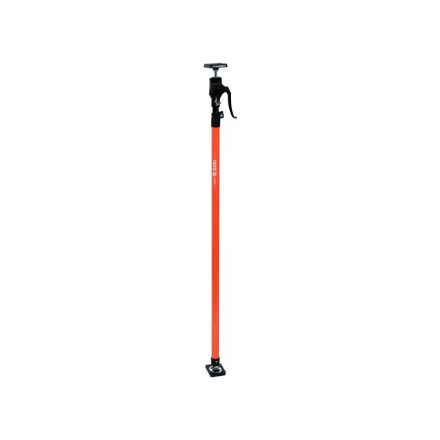

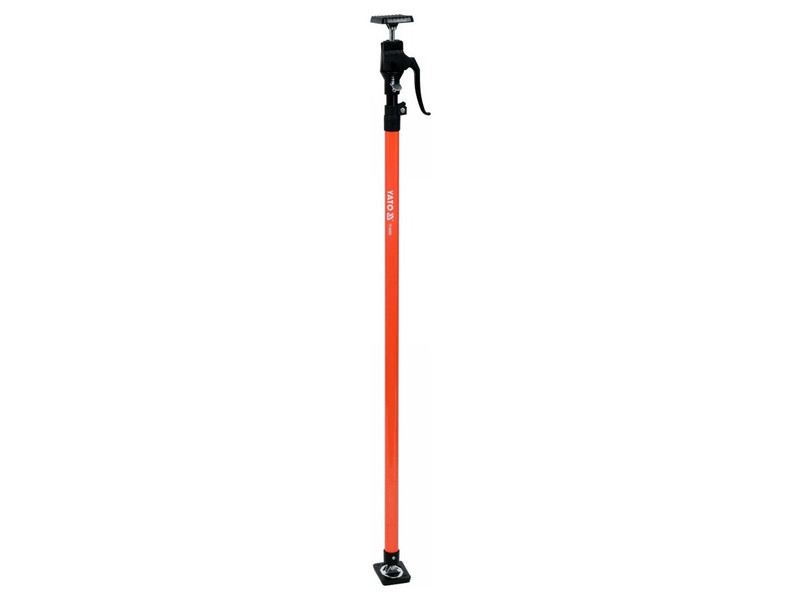

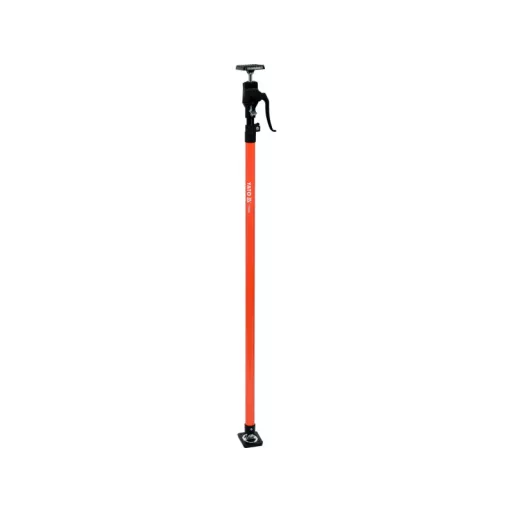

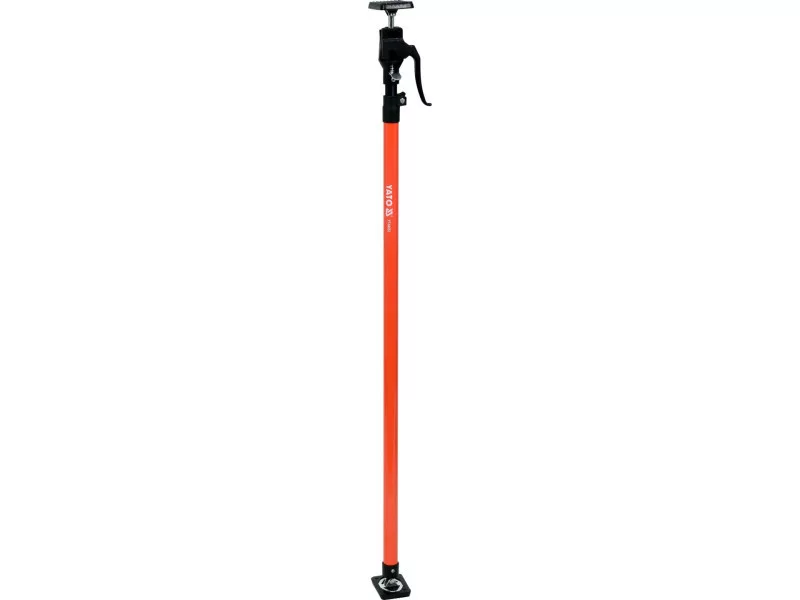

The support is made of a steel tube ending in wide rubberized feet, placed on joints, adjusting to the slant of ceilings or walls.

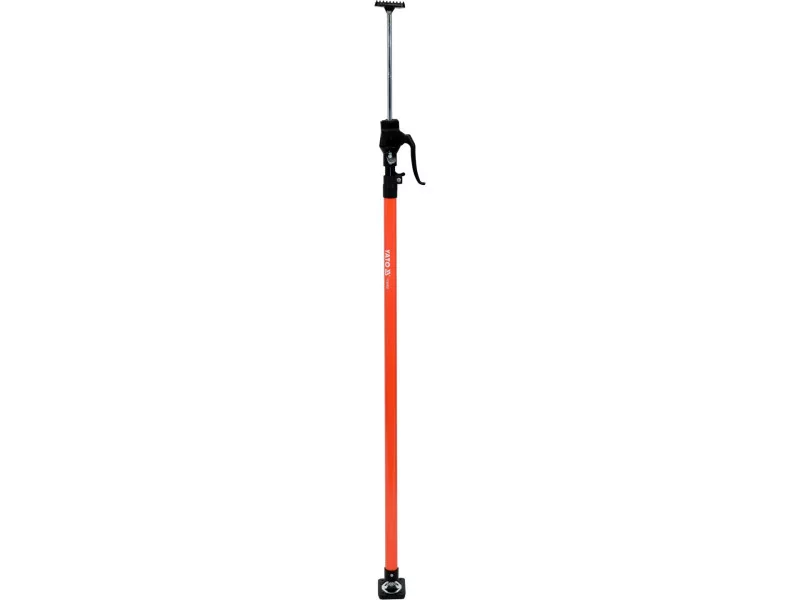

Length adjustment is carried out in two stages by initial extension from the body and locking with spring-loaded pins, and precise extension and adjustment of the support performed with a lever button.
An important area of application of the brackets is the effective spreading of door frames necessary when installing doors or windows. Yato brackets are characterized by a very solid workmanship that guarantees long-term , safe operation .
Directions for use:
Extend the bracket by locking the spring-loaded pin in the appropriate hole (bright line on the inner tube marks the position of the latches) place under the element to be fixed and press precisely, using the lever. Unlocking is done by pulling back the metal tongue protruding under the lever.
