| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Diameter | 32 mm |
| Segment size | 4x8x20 mm |
| For | YT-81980 |
| Thread size | 1-1/4" (32.0 mm) |
| Toolholder type | hexagonal |
| Max. disc linear velocity | 80 m/s |
| Max. hole depth | 400 mm |
| Application | hardened concrete, reinforced concrete, granite, silicate brick, porous ceramics |
| Work type | dry, wet |
| Compatible with | diamond drilling rig |
| Symbol | YT-60371 |

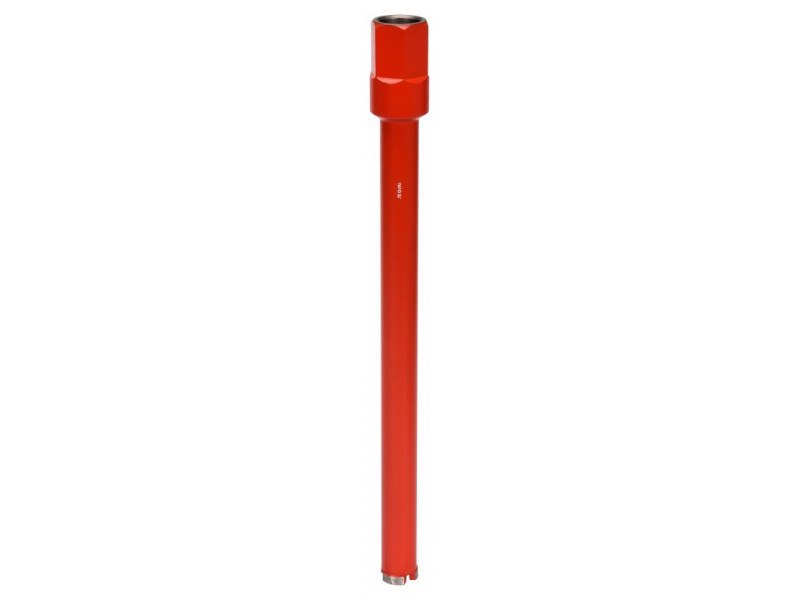

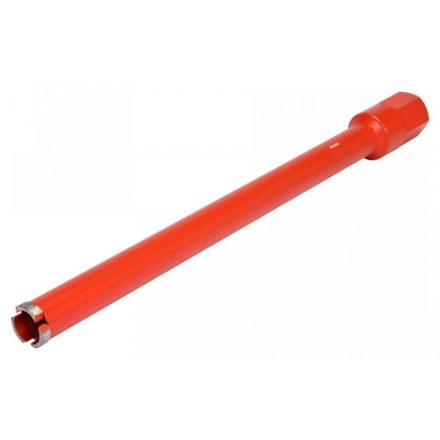

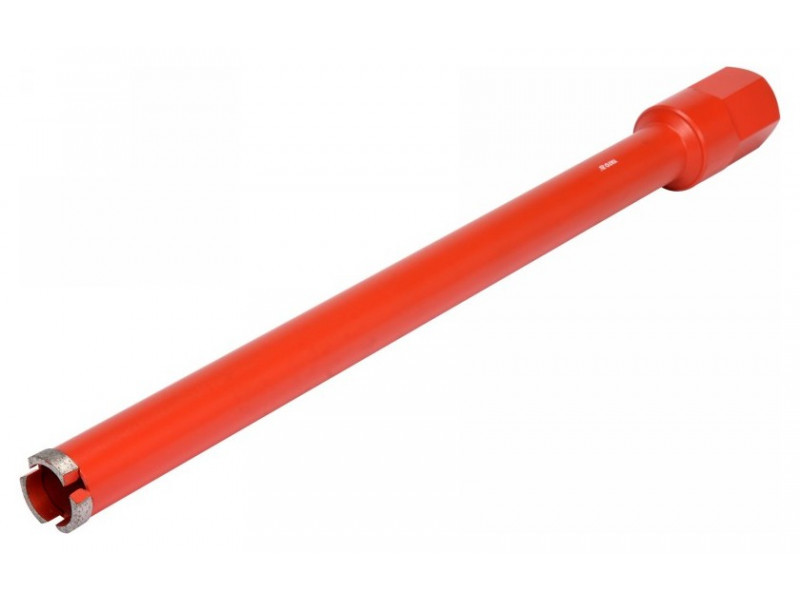

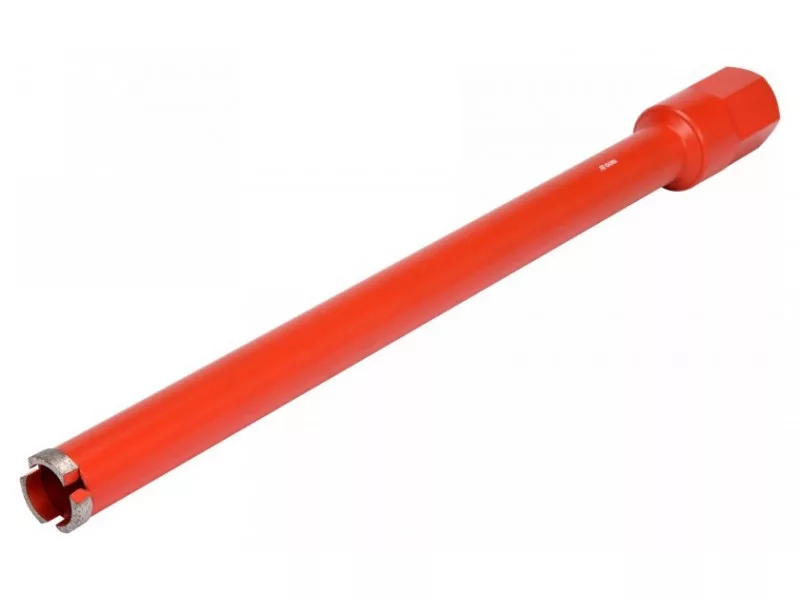

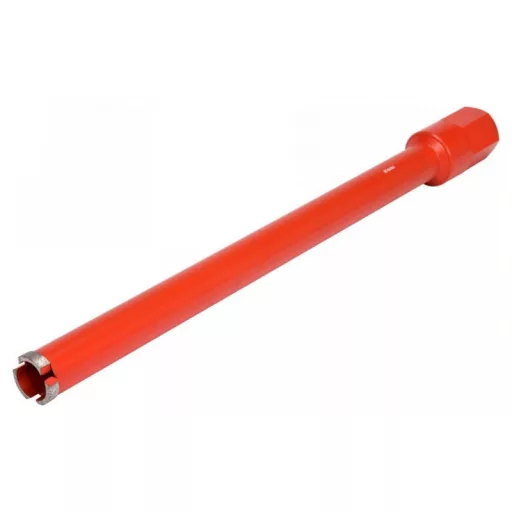

YATO crown drill bit for drill rig designed for use without impact – dry and wet – with a drill rig (e.g. YT-81980). Allows fast and precise drilling of holesós, even without a tripod, in reinforced concrete, concrete, silicate, such as for electrical boxes, drilling through ceilingsós for pipes and cables, installation of cable routes or ventilation ducts.
- laser-welded segments resistant to overheating caused by cutting rebarós, even when working dry
- a layer of soft cobalt in the segment allows hand drilling „from”. under cans in reinforced concrete, exposing the diamond, without the need for a tripod
- increased resistance to high temperatures, friction and mechanical damage
- 5/4” shank fits all tools available on the market
- crown length: 430 mm
Usage warnings:
Warning! Always use personal safety equipment at work.
