| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRE |
| Max. pulling power | 1500 daN |
| Rope length | 3 m |
| Rope diameter | 6 mm |
| Gear ratio | 15:1 |
| Symbol | YT-5914 |

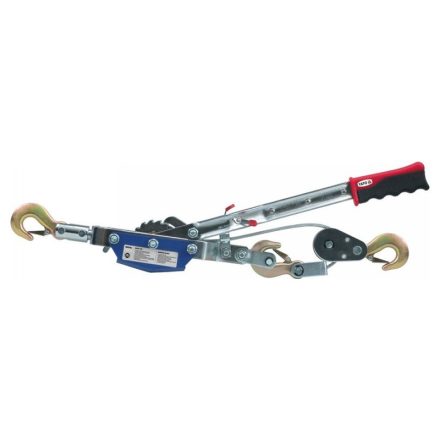

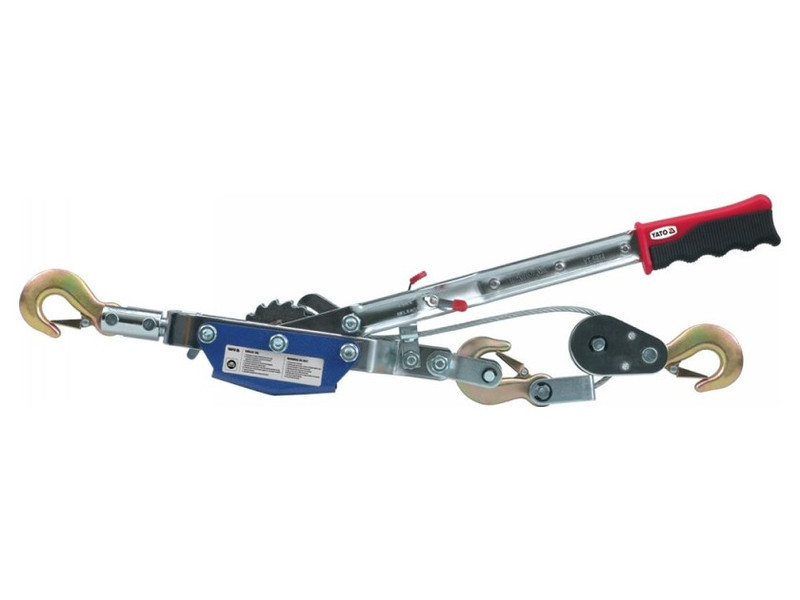

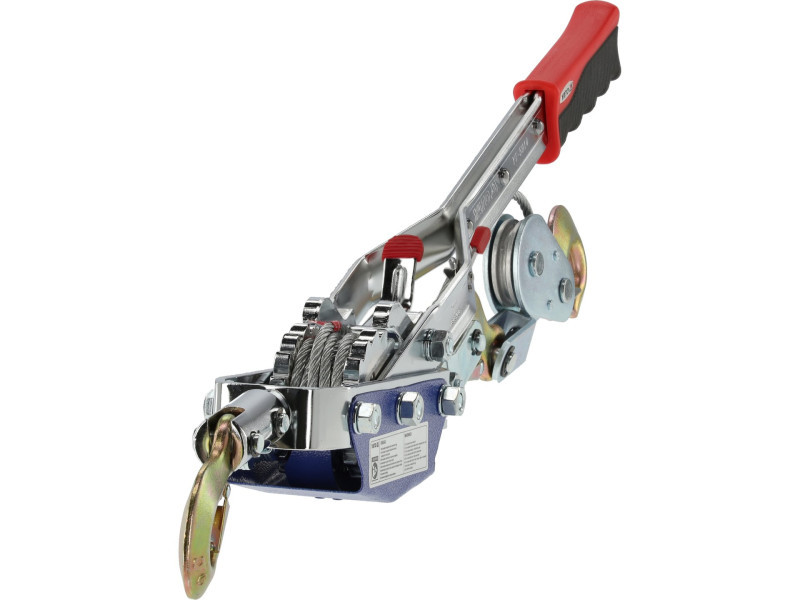

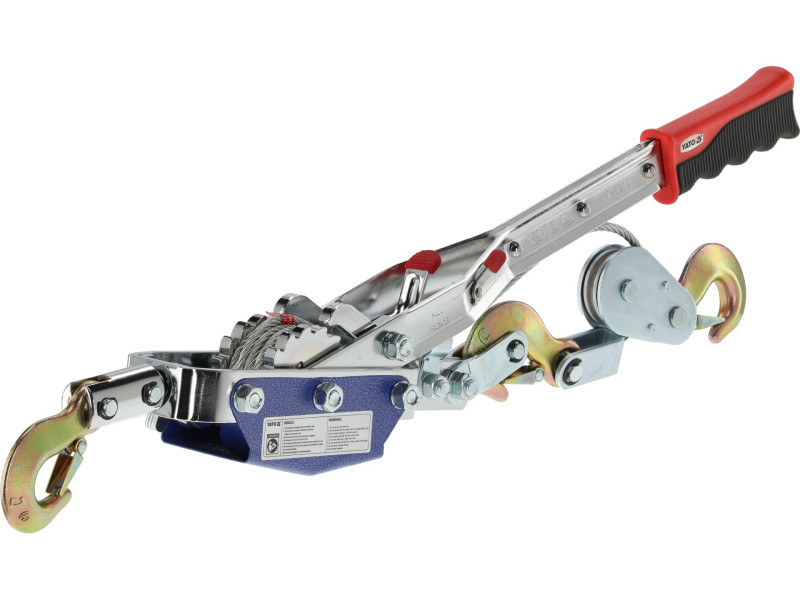

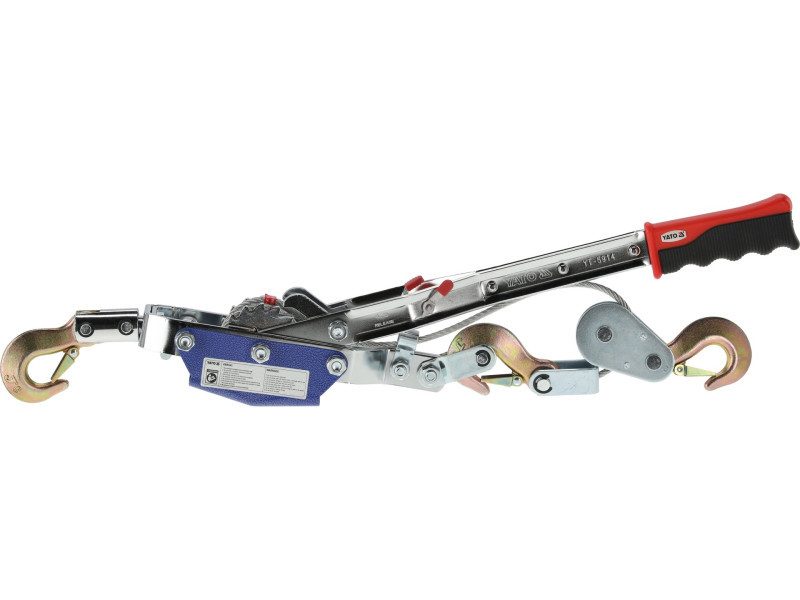

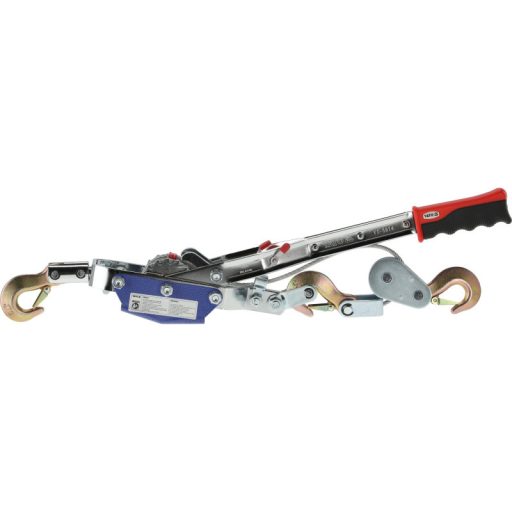

The hand -driven cable strip consists of a steel body containing the drum, gears and a large, properly selected ratio. The drive lever is used to move the drum and wind the steel rope. The winch can move loads with a weight of up to approx. 1530 kg over 3 m. The cable knocking machine with manual drive is used to transport loads in a horizontal plane, e.g. to drag the chests on the ramp. Due to the construction, it must not be used for vertical weightlifting. Removing the rope: - attach the fixed hook to the fixed base - move the arm lock lever - lift the strander arm slightly - move the drum lock lever - pull the rope to the desired length ropes or load displacement release of the rope stress: - move the arm lock lever - move the winch arm to such a position that the arm of the arm lock lever releases the drum blockade; The drum will jump over one tooth - repeat the surgery until the required rope expansion is achieved
