| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRE |
| Max. lifting capacity | 1500 kg |
| Max. lifting height | 1.5 m |
| Needed force to lift max. load | 220 N |
| Working load test | 22.5 kN |
| Weight increase for each additional meter of lifting height | 1.4 kg |
| Load chain quantity | 1 |
| Load chain link size | 8x24 mm |
| Weight | 11.5 kg |
| Symbol | YT-58964 |

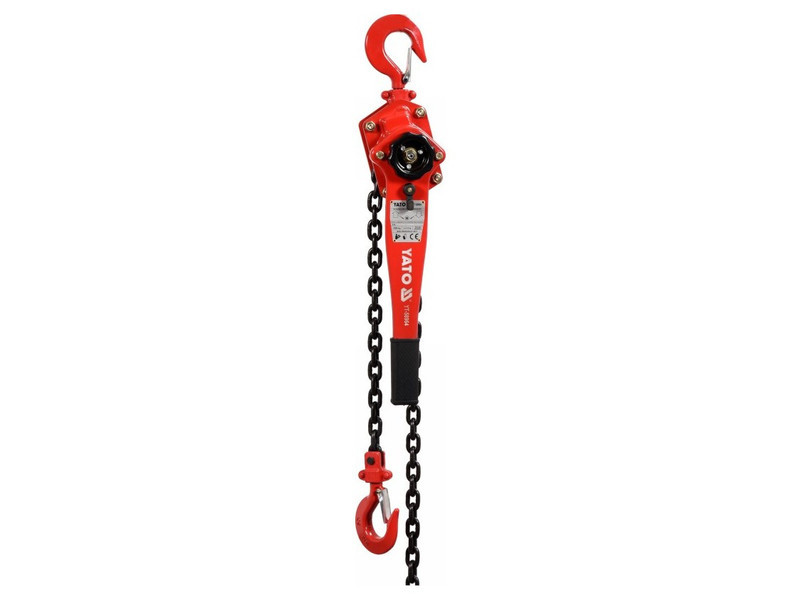

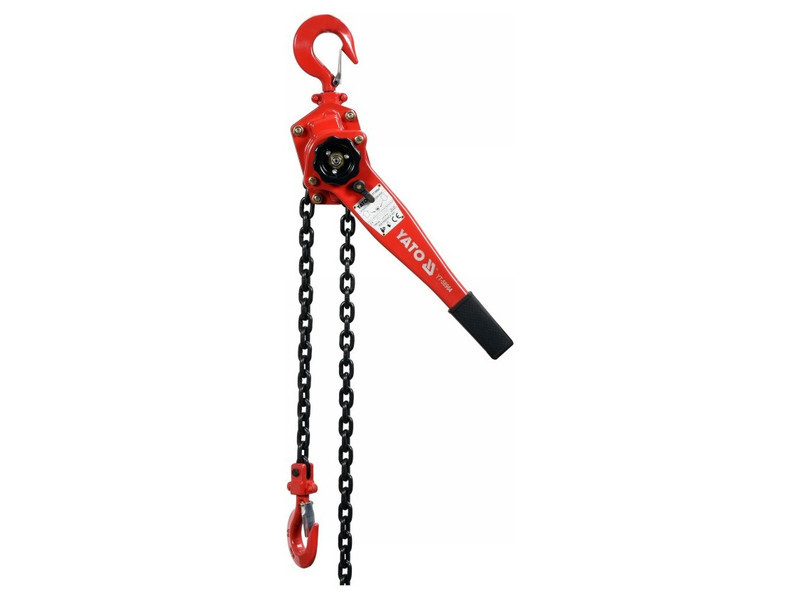

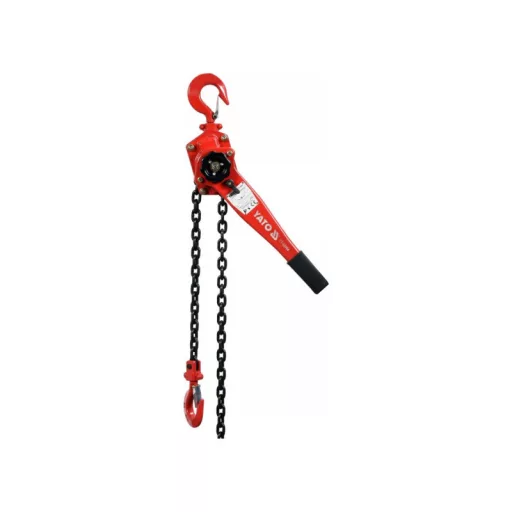

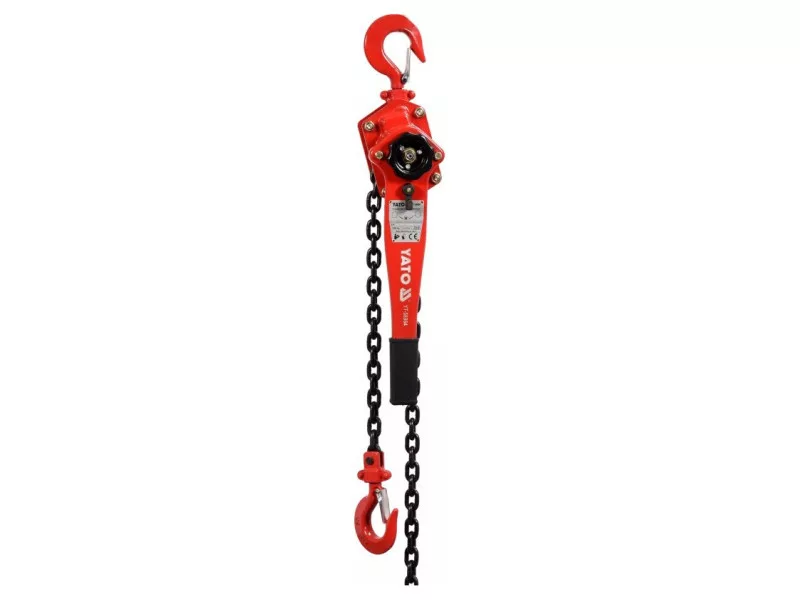

NEW LINE OF YATO CHAIN LEVERLOCKS Yato chain lever hoists , are designed for intensive use in industrial conditions in manufacturing companies, transport companies, shipyards, mines and warehouses. They allow lifting heavy loads, structural elements , foundation of machines as well as pre-tensioning of ropes and effective securing of heavy loads . The hoists are equipped with hooks of special design to increase the safety of work. The lifting height is 1500 mm .The new line of hoists is distinguished by a compact damage-resistant all-steel, corrosion-protected design . Precise lever mechanism, minimizes the force required to lift loads.The full product line includes lever hoists with lifting capacity from 750 kg - 9 tons ... Detailed data available in the technical documentation of the equipment. Hoists are covered by service during and after the warranty. Manual hoists with a lifting capacity of more than 2,000 kg are subject to notification and stationary acceptance by the Office of Technical Inspection. For lifting heavy loads, tensioning , setting. Before using, please read the instruction manual.
