| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRE |
| Max. lifting capacity | 7500 kg |
| Max. lifting height | 1.5 m |
| Needed force to lift max. load | 140 N |
| Working load test | 11.2 kN |
| Weight increase for each additional meter of lifting height | 0.8 kg |
| Load chain quantity | 1 |
| Load chain link size | 6x18 mm |
| Weight | 9.5 kg |
| Symbol | YT-58962 |

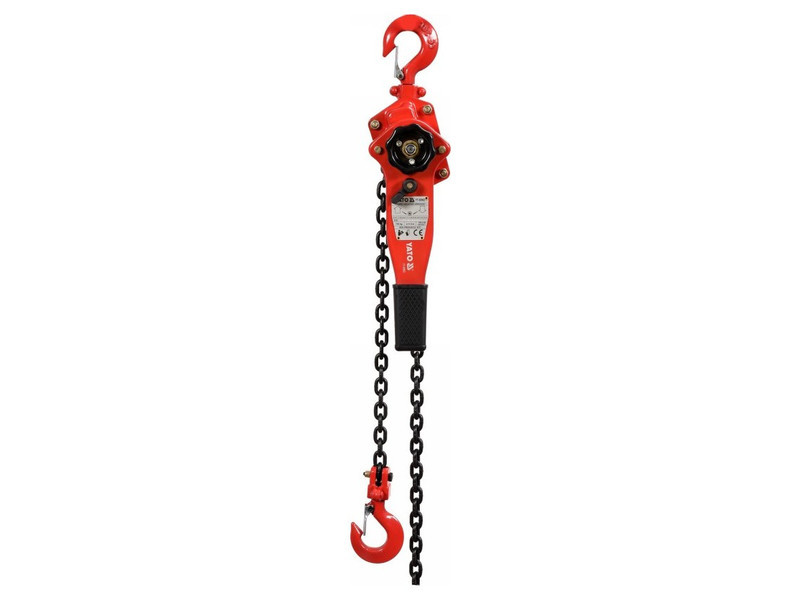

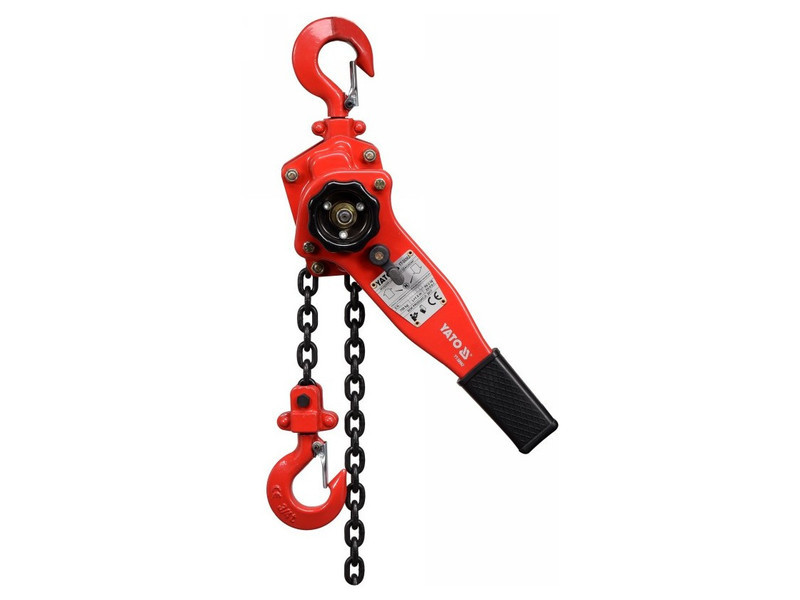

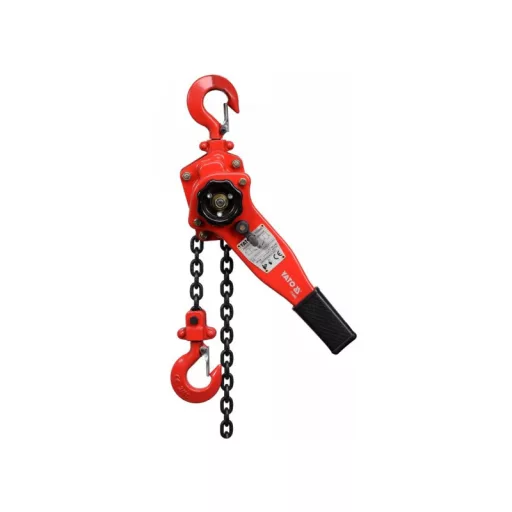

NEW LINE OF YATO CHAIN LEVERLOCKS Yato chain lever hoists , are designed for intensive use in industrial conditions in manufacturing companies, transport companies, shipyards, mines and warehouses. They allow lifting heavy loads, structural elements , foundation of machines as well as pre-tensioning of ropes and effective securing of heavy loads . The hoists are equipped with hooks of special design to increase the safety of work. The lifting height is 1500 mm .The new line of hoists is distinguished by a compact damage-resistant all-steel, corrosion-protected design . Precise lever mechanism, minimizes the force required to lift loads.The full product line includes lever hoists with lifting capacity from 750 kg - 9 tons ... Detailed data available in the technical documentation of the equipment. Hoists are covered by service during and after the warranty. Manual hoists with a lifting capacity of more than 2,000 kg are subject to notification and acceptance by the Office of Technical Inspection (UDT). For lifting heavy loads, tensioning, positioning. Before using, please read the instruction manual.See the instruction manual
