| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 12 W |
| Operating pressure | 0.27-0.82 MPa |
| Max. pressure | 0.82 MPa |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Required air flow | 424-707 l/min |
| Air connection diameter (PT) | standard |
| Max. abrasive volume | 17 l |
| Capacity | 220 l |
| External dimensions | 1380x940x580 mm |
| Working part dimensions | 370-540x840x560 mm |
| Air supply hose inside diameter | 3/8" (9.5 mm) |
| Material | steel plate |
| Surface finish | sandblasted |
| Output voltage | 12 V d.c. |
| Output current | 1 A |
| Acoustic pressure | 63.5 ± 3.0 dB(A) |
| Acoustic power | 65.0 ± 3.0 dB(A) |
| Vibrations | 2.5 m/s² |
| Weight | 43 kg |
| Set includes | sandblaster, sandblasting gun, a hose sucking abrasive, air connection hose with spigot, nozzle x4 (Ø4, Ø5, Ø6, Ø7 mm), lamp power supply, window protection foil x4, gloves, |
| Set includes cont’d | PTFE tape |

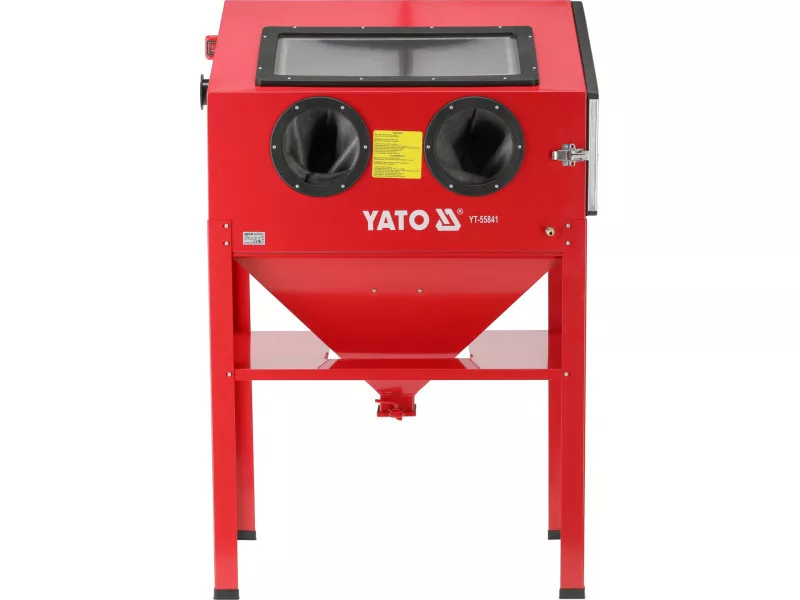

| Symbol | YT-55841 |
- material: sheet steel
- surface finish: sandblasted
- capacity: 220 l
- weight: 43 kg
- power: 12 W
- required air flow: 424-707 l/min
- air connection diameter: standard
- Outer dimensions: 1380x940x580 mm
- inner diameter of the air supply hose: 3/8" (10.0 mm)
- dimensions of working part: 370-540x840x560 mm
- maximum abrasive volume: 17 l
- scope of delivery: sandblaster, sandblasting gun, abrasive suction hose, air connection hose with connection nozzle, nozzle x4 (Ø4, Ø5, Ø6, Ø7 mm), power supply for lamp, window protection foil x4, gloves, Teflon tape
Usage warnings:
Warning! Secure door before operating machine. Unsecured door can cause serious injury. Warning! Disconnect machine from air and electrical supply before maintenance. 1. Often clean dust collector and filters. 2. Check parts wearing, i.e. nozzles, orifices and gloves. 3. Check abrasives. Abrasives wear out and need to be replaced periodically. 4. Periodically clean inside of sandblaster cabinet. 5. Avoid moisture in the air lines and abrasive. 6. Check door gasket for leaks weekly. 7. Do not exceed the maximum air pressure.
