| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 8 W |
| Operating pressure | 0.27-0.82 MPa |
| Max. pressure | 0.82 MPa |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Required air flow | 424-707 l/min |
| Air connection diameter (PT) | standard |
| Max. abrasive volume | 6.5 l |
| Capacity | 90 l |
| External dimensions | 585x485x494 mm |
| Working part dimensions | 580x480x350 mm |
| Air supply hose inside diameter | 3/8" (9.5 mm) |
| Material | steel plate |
| Surface finish | sandblasted |
| Output voltage | 12 V d.c. |
| Output current | 667 mA |
| Acoustic pressure | 63.5 ± 3.0 dB(A) |
| Acoustic power | 65.0 ± 3.0 dB(A) |
| Vibrations | 2.5 m/s² |
| Weight | 17.5 kg |
| Set includes | sandblaster, sandblasting gun, a hose sucking abrasive, air connection hose with spigot, nozzle x4 (Ø4, Ø5, Ø6, Ø7 mm), lamp power supply, window protection foil x4, gloves, |
| Set includes cont’d | PTFE tape |
| Symbol | YT-55840 |

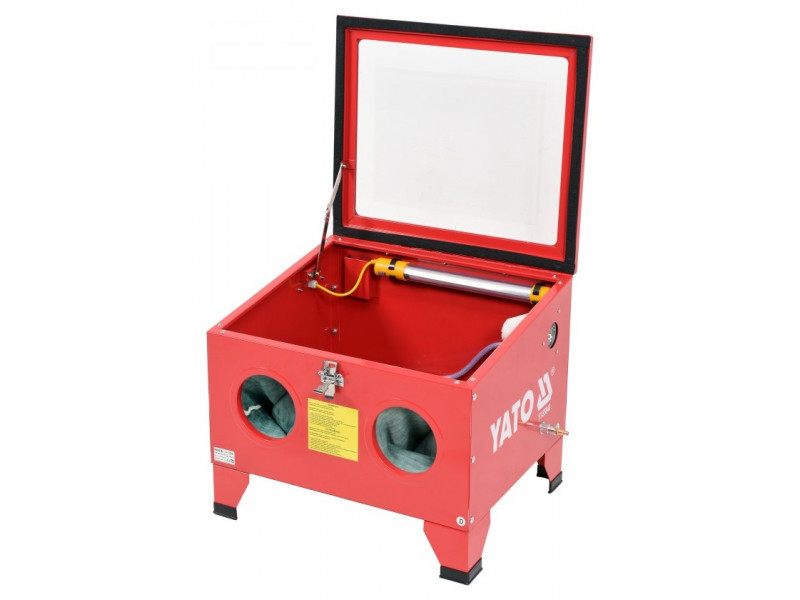

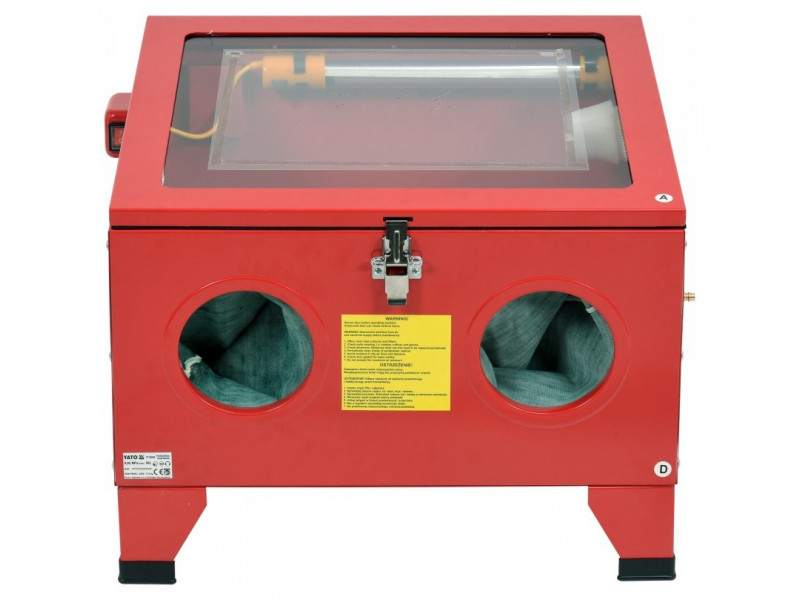

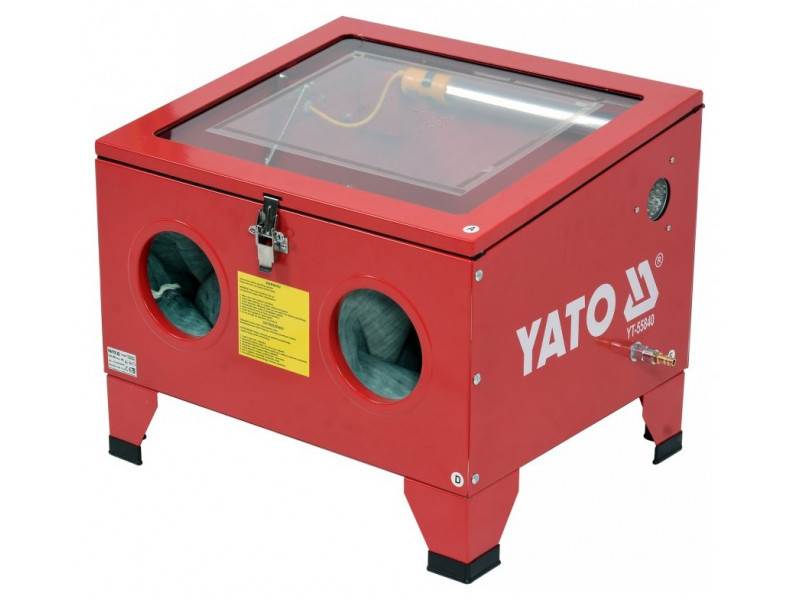

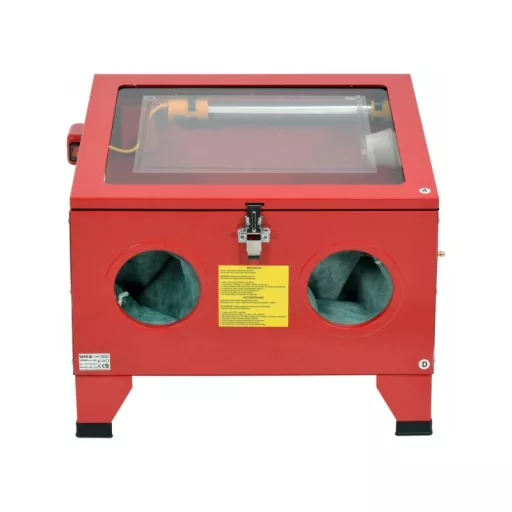

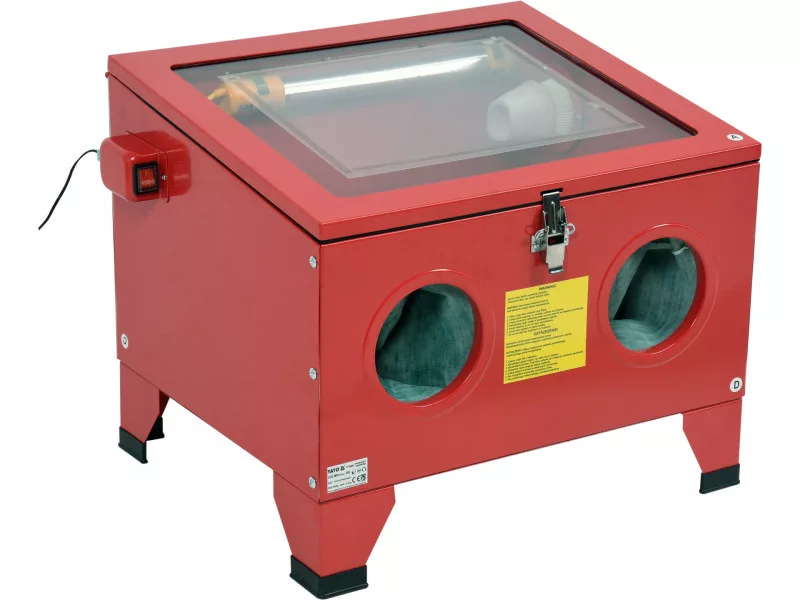

Pneumatic sandblaster cabin for fast and convenient cleaning of rust, paint and dirt by means of circulating closed circuit abrasive. Indispensable in automotive workshops and industrial plants
- Cabin volume: 90 l
- working pressure: 0.27-0.82 MPa
- air consumption: 424-707 l/min
- internal dimensions of the cabin: 580 x 480 x 350 mm
- equipment dimensions: 585 x 490 x 490 mm
- pistol for sandblasting with 4 interchangeable ceramic nozzles 4, 5, 6, 7 mm

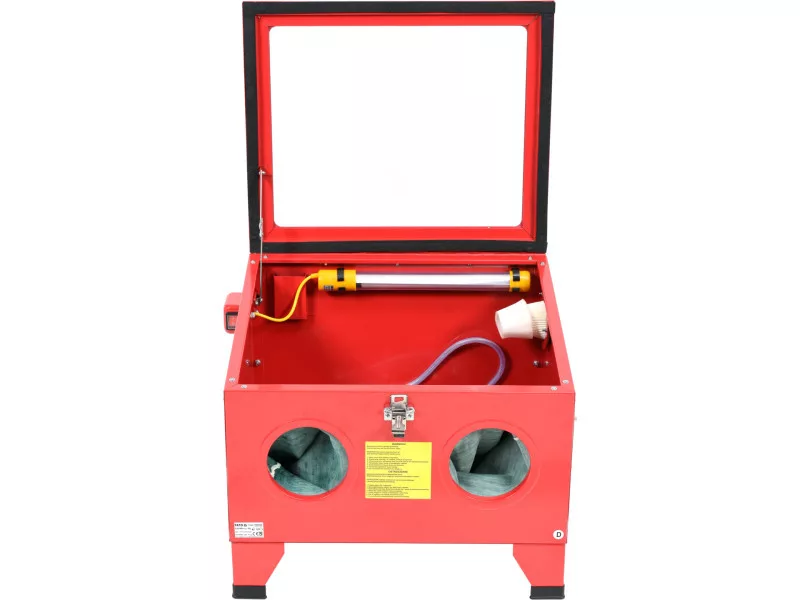

- .large 485 x 390 mm window with replaceable protective film
- bright illumination with 12 V fluorescent lamp
- .drain hole for quick change of sandblasting material

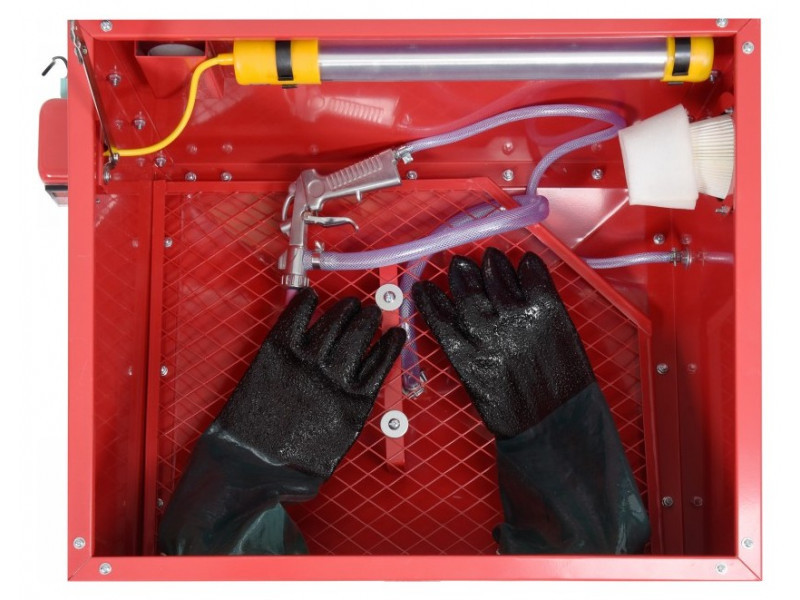

- rubber gloves integrated into the machine
-
- the machine's rubber gloves. li>stable truss for easy processing

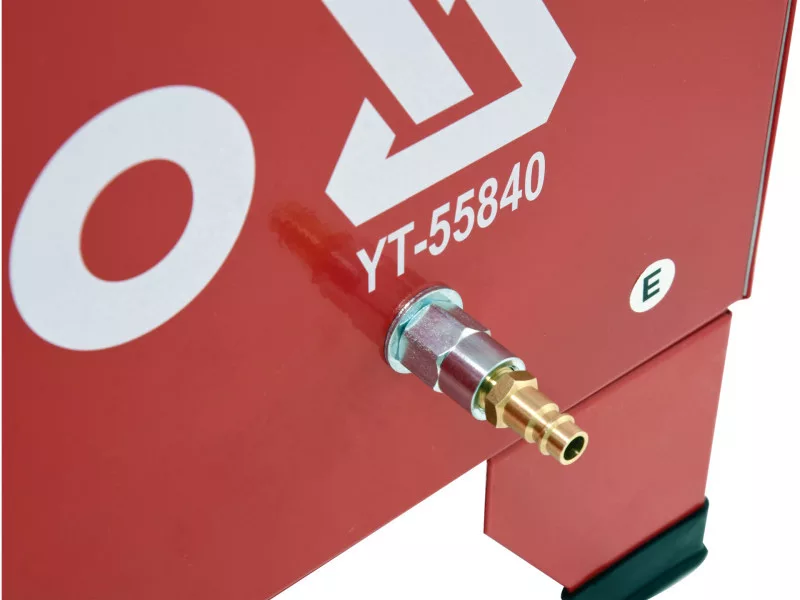

- standard connection
- anti-skid, rubberized legs
Included:
- sandblasting gun
- abrasive suction hose
- air connection hose including spigot
- 4 nozzles
. - power supply for the lamp
- 4 interchangeable films for protecting the window
- gloves integrated with the cabin
- Teflon tape for sealing
Usage warnings:
Warning! Secure door before operating machine. Unsecured door can cause serious injury. Warning! Disconnect machine from air and electrical supply before maintenance. 1. Often clean dust collector and filters. 2. Check parts wearing, i.e. nozzles, orifices and gloves. 3. Check abrasives. Abrasives wear out and need to be replaced periodically. 4. Periodically clean inside of sandblaster cabinet. 5. Avoid moisture in the air lines and abrasive. 6. Check door gasket for leaks weekly. 7. Do not exceed the maximum air pressure.
