| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Lifting range | 1140-1945 mm |
| Max. lifting capacity | 500 kg |
| Material | steel plate |
| Surface finish | lacquered |
| Wheels | yes |
| Wheel quantity | 4 |
| Wheel material | steel |
| Weight | 24 kg |
| Application | for work on the gearbox, exhaust pipes, engine, suspension, etc. in passenger cars |
| Symbol | YT-55600 |

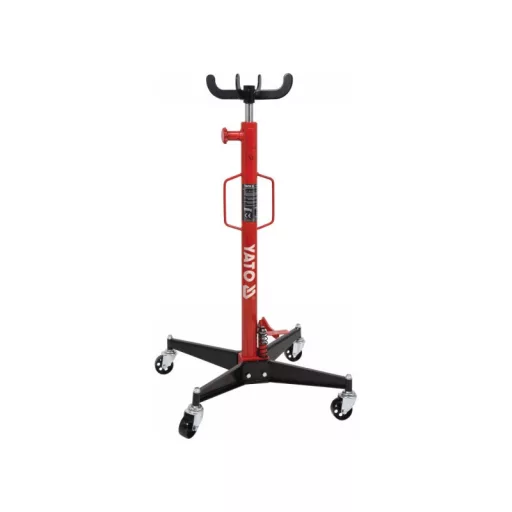

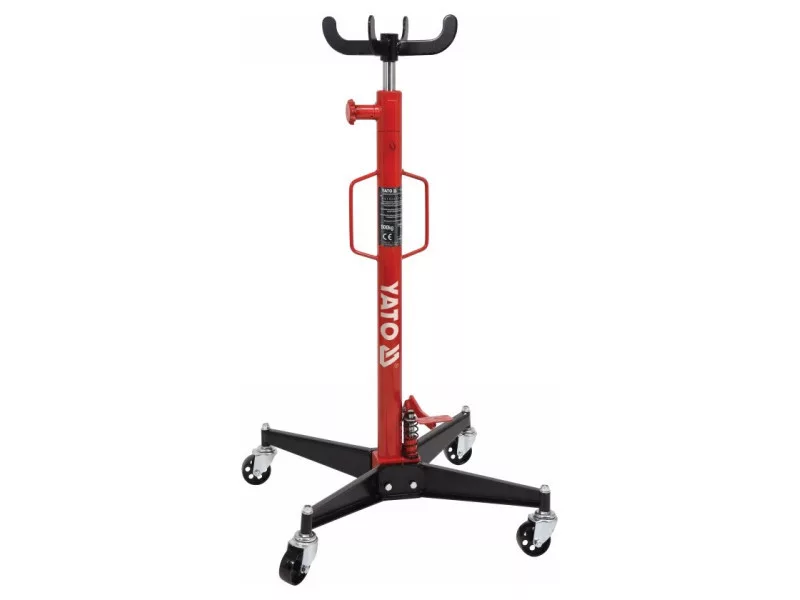

Hydraulic jack equipped with foot pump and precision valveór. Designed for work with gearboxós, exhaust pipes, engine, suspension, etc. on passenger cars.
- maximum load: 500 kg
- working range: 1140-1945 mm
- precise valveór
- rotatable kórs provide freedom of movement
- solid steel construction resistant to corrosion and mechanical damage
- single-sided cylinder (for lifting the object) with the possibility of transporting the load
- non-forcing foot pump provides the possibility of servicing the car by one person
Usage warnings:
Warning! Always use personal safety equipment at work.
Before using the elevator, read the instructions carefully.
Do not exceed the lifting capacity of the elevator.
It is imperative to place the jack on a firm, level and stable surface.
Do not perform any activities under an elevated and unsecured vehicle.
Do not adjust the safety valve.
