| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Size | M5 |

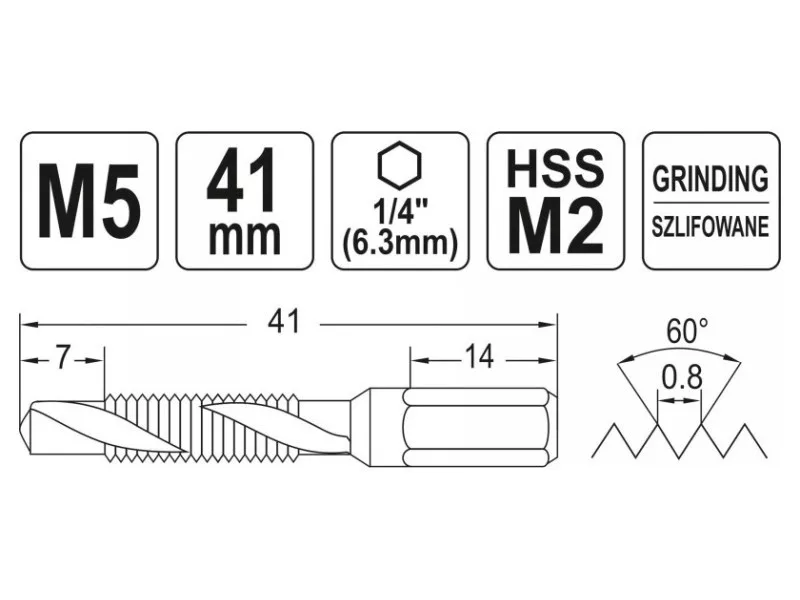

| Overall length | 41 mm |
| Drilling part diameter | 7 mm |
| Holder size | 1/4" (6.3 mm) |
| Toolholder type | hexagonal |
| Toolholder length | 14 mm |
| Thread size | metric |
| Thread pitch | 0.8 mm |
| Material | HSS M2 |
| Surface finish | refined |
| Kąt gwintu | 60 ˚ |
| Pitch | coarse winding |
| Symbol | YT-44842 |

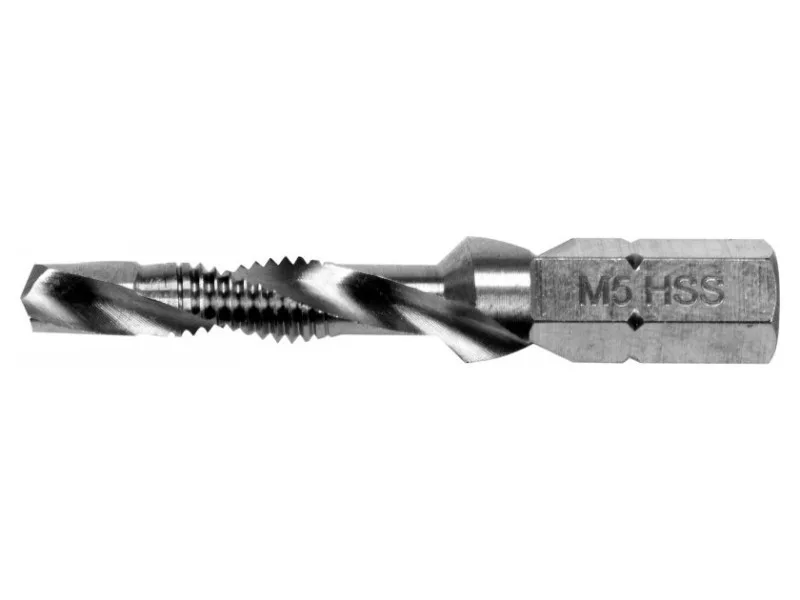

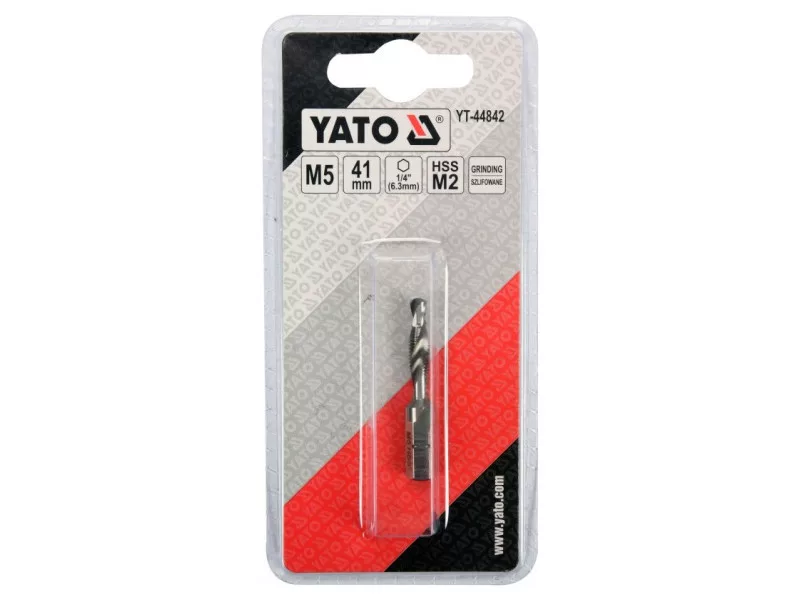

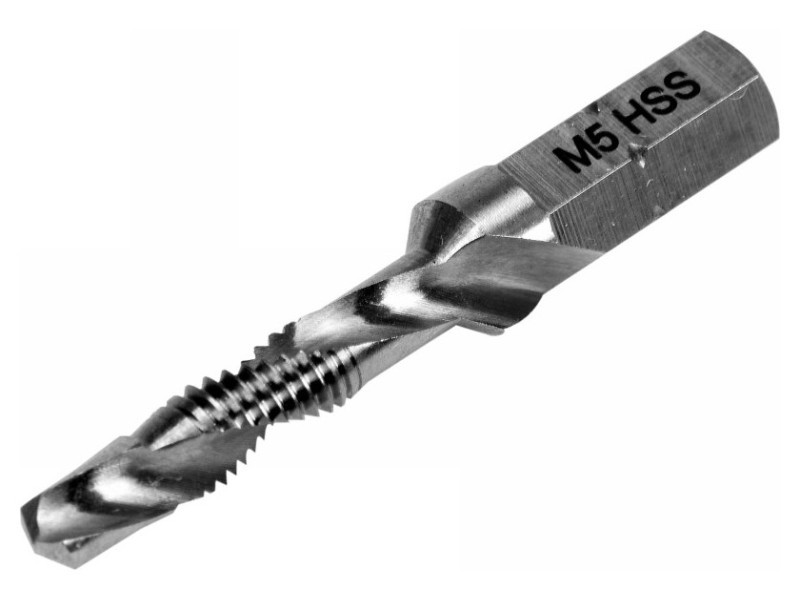

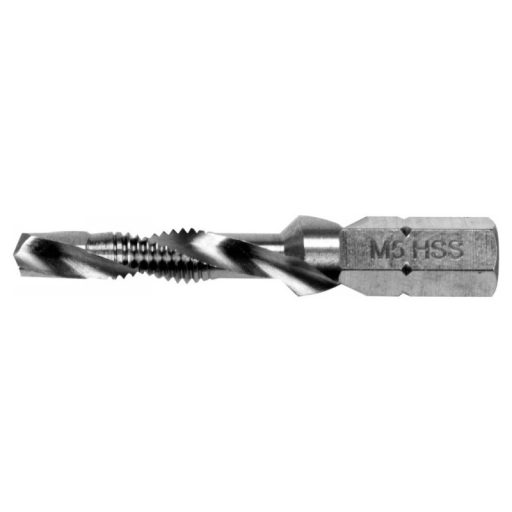

Drill-tapper by Yato YT-44842 Designed for cutting precision metric threads. Used for machine and manual threading.
- made of high quality HSS M2 high speed steel
- ground surface provides excellent precision and faster drilling speed
- durable and resistant to damage and dulling
- self centering drill bits
- excellent chip removal
- 1/4" HEX chuck
Parameters:
- material: HSS M2
- size: M5
- thread pitch [mm]: 0.8
Usage warnings:
Warning! Always use personal safety equipment at work.
