| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Diameter | 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
| Length | 100 mm |
| Working length | 75 mm |
| Rung quantity | 15 |
| Max. cutting capacity | 4 mm |
| Toolholder type | triangle |
| Material | HSS 4341 |
| Surface finish | coated with titanium nitride |
| Application | high-quality stainless steel, structural steel, cold rolled steel, non-ferrous metals, steel sheets, plastic |
| Symbol | YT-44748 |

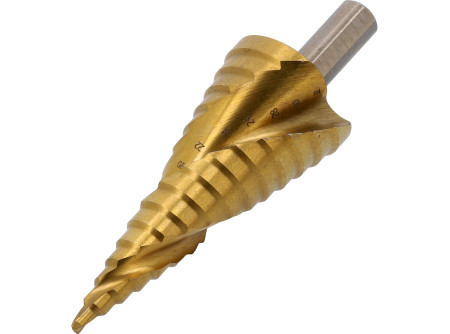

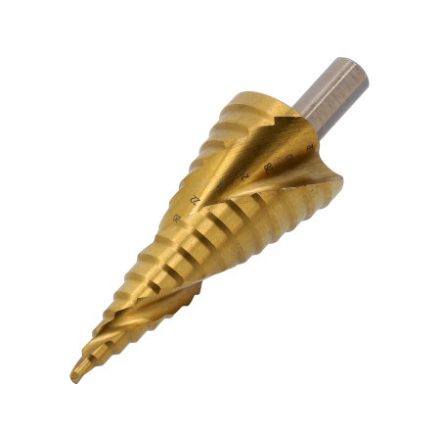

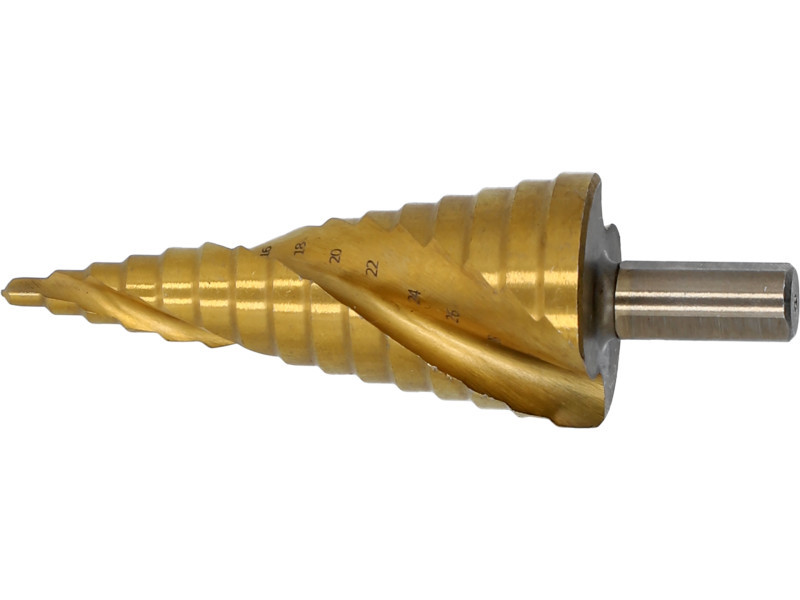

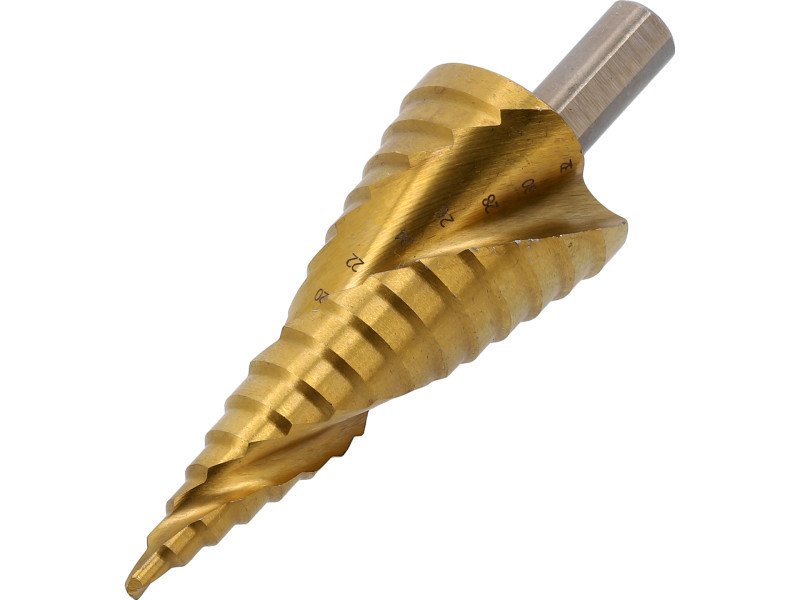

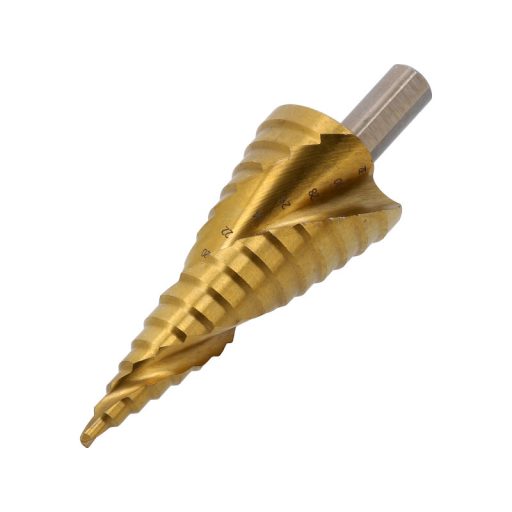

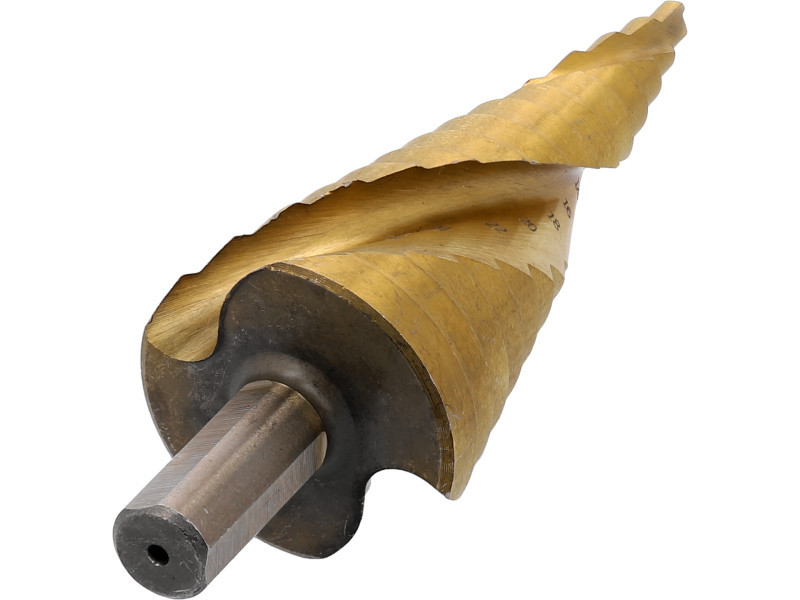

Spiral step drills designed for drilling in high-grade stainless steel, structural and cold-rolled steel, non-ferrous metals, steel sheets, and plastics.
- made of high-speed steel HSS 4341, coated with titanium nitride to increase the drill bits' lifespan
- the edges of the drilled hole remain clean and burr-free
- automatic centering on rounded and slippery surfaces
- quick heat dissipation when drilling in hard materials
- 2 spiral chip grooves efficiently remove debris
- triangle tool holder ensures excellent attachment in the drill
- max. cutting thickness: 4 mm
Usage warnings:
Warning! Always use personal safety equipment at work.
