| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Dimensions | 150x80x1 mm |
| Diameter | 1/16"-1/2" / 1.0-13 mm |
| Material | steel |
| Pcs | 10 |
| Set includes | insert x2 (metric: 1, 1.5, 2, 2.5, 3, 3.2, 3.5, 4, 4.2, 4.5, 4.8, 5, 5.2, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13 mm; inch: 1/16", 5/64", 3/32", 7/64",More |
| Set includes cont’d | 1/8”, 9/64”, 5/32”, 11/64”, 3/16”, 13/64”, 7/32”, 15/64”, 1/4", 17/64”, 9/32”, 19/64”, 5/16”, 21/64”, 11/32”, 23/64”, 3/8”, 25/64”, 13/32”, 27/64”), More |
| Set includes cont’d 2 | drill stop x7 (Ø3, 4, 5, 6, 8, 10, 12 mm), hex key for locking the stop (1.5 mm) |
| Application | hole diameter control, for mounting on twist drills to obtain a hole of the desired depth |
| Symbol | YT-44095 |

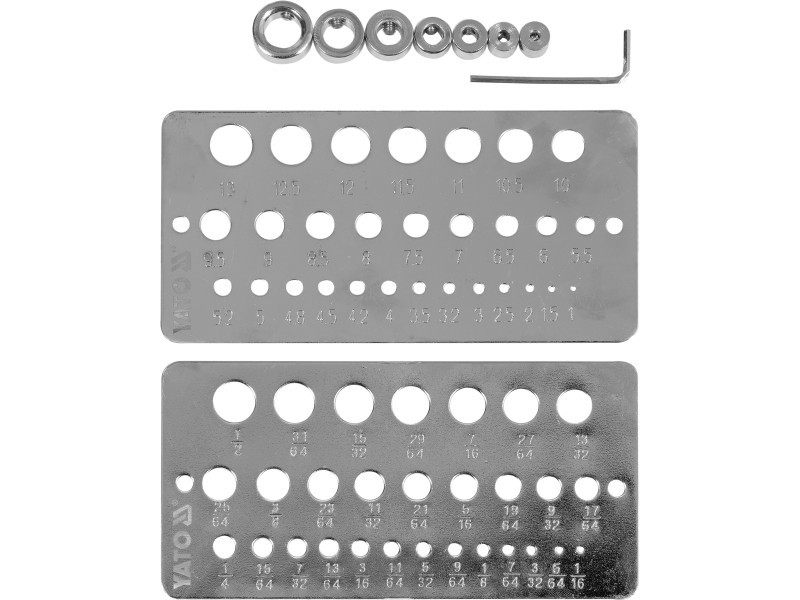

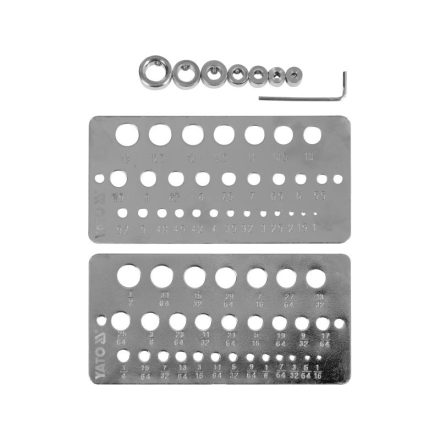

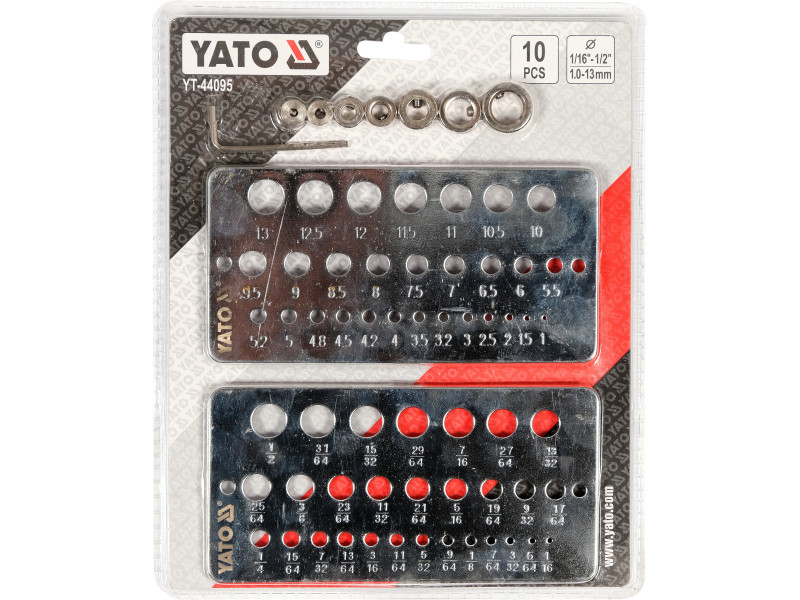

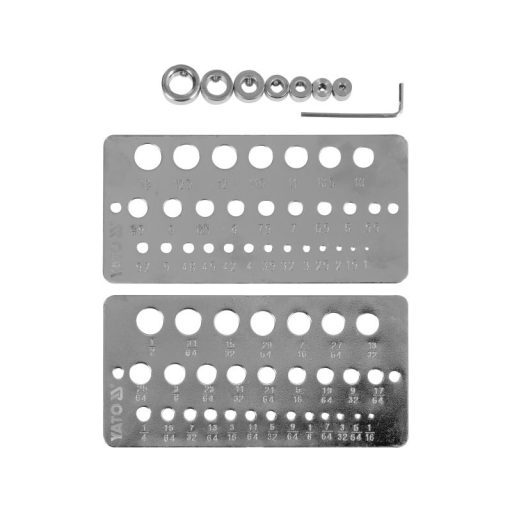

A set of 10 pieces consists of twoósteel plates with holes for diameter inspection.
Dimension of plate approx. 150 x 80 mm x 1 mm.
- metric plate fi/mm 1/1.5/2/2.5/3/3.2/3.5/4/4.2/4.5/4.8/5/5.2/5.5/6/6.5/7/7/7.5/8/8.5/9/9.5/10/10.5/ 11/11.5/12/12.5/13
- inch plate fi/":1/16,5/64,3/32,7/64,1,8/9/64,5/32,11/64,3/16,13/64,7/32,15/64,1/4,17/64,9/32,19/64,5/16,21/64,11/32,23/64,3/8,25/64,13/32,27/64,7/16,29/64,15/32,31/64,1/2
In the set of drilling depth stops - turned, steel with locking screw fi 3 / 4 / 5 / 6 / 8 / 10 / 12 mm and one key inbus 1.5 mm. Gauges are used for quick initial check of outside diameters /e.g. drills , shaftsós , rodsós , wiresós etc.
Gauges are used for quick initial check of outside diameters /e.g. drills , shafts , rods , wires etc Ring-shaped drill depth stops , when put on the drill , allow precise control of the depth of the drilled hole. The stops are put on the drill, determining the appropriate depth of drilling / the ring should be locked on the drill / Checking the diameter of the test piece / e.g. nail, rod, shaft / we put it in such a hole in which it can be moved with minimal clearance The diameter is given on the plate next to the hole The set includes two control plates and drilling depth stops - turned, steel with locking screw fi 3 / 4 / 5 / 6 / 8 / 10 / 12 mm and one key inbus 1.5 mm.
