| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Diameter | 110 mm |
| Hole saws diameter | 33-103 mm |
| Drilling diameter | 9.5 mm |
| Drill bit length | 139 mm |
| Material | carbon steel |
| Surface finish | surfaced |
| Blade material | YG8 |
| Set includes | talerz mocujący, wiertło centrujące |
| Application | aerated concrete, brick, silikat, ceramics |
| Symbol | YT-43919 |

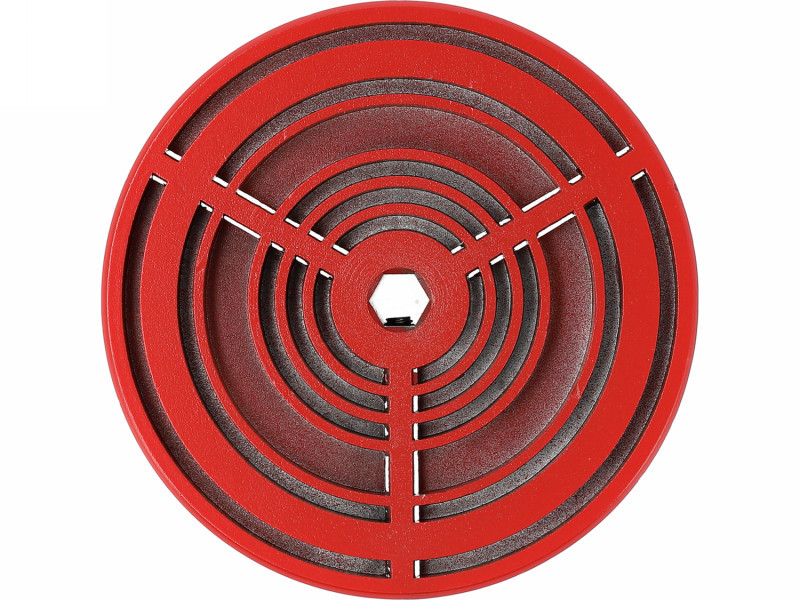

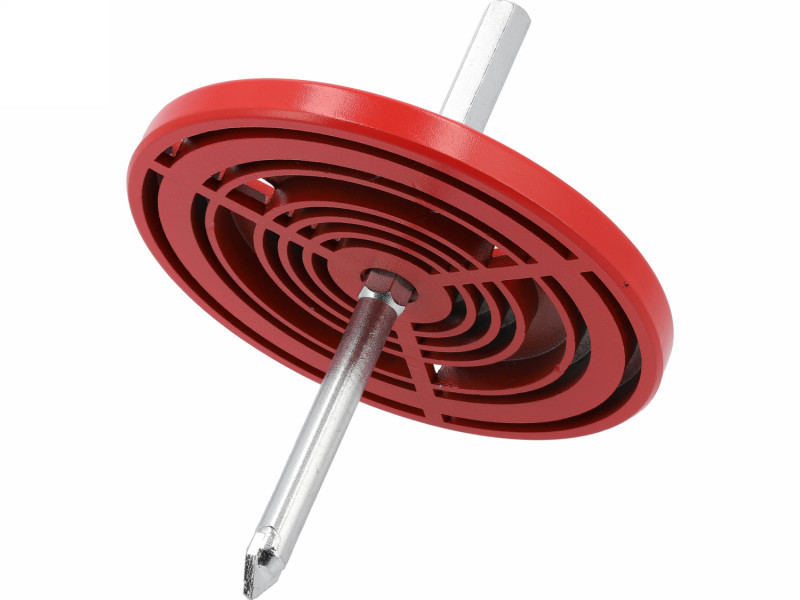

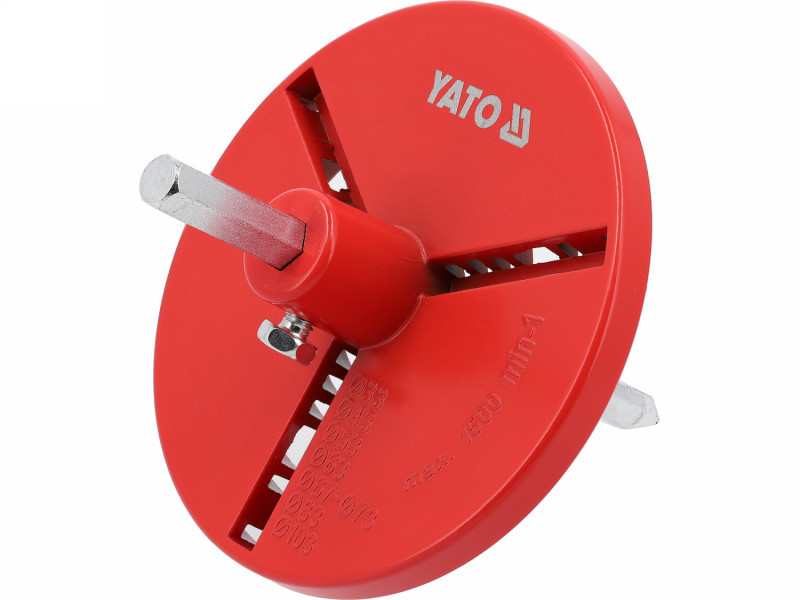

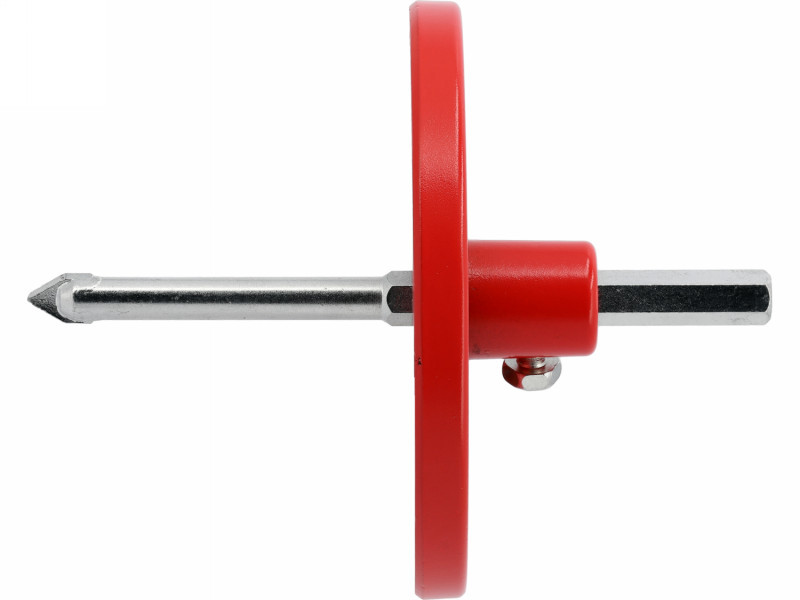

Mounting plate with centering drill is a complementary element for tungsten carbide core drills, designed with precise and safe drilling in mind for mineral materials. It ensures stable seating of the core drill and accurate start of the hole in hard and brittle substrates. The solid construction and carefully selected materials guarantee reliability and long life during intensive use in installation and assembly work.
Application:
- ceramics
- silicate
- autoclaved aerated concrete
- brick
Technical parameters:
- material: powder-coated carbon steel
- blade material: YG8 steel - increased resistance to corrosion and mechanical damage
- mounting plate diameter: 110 mm
- working range: 33-103 mm
- centering drill diameter: 9.5 mm
- total length: 139 mm

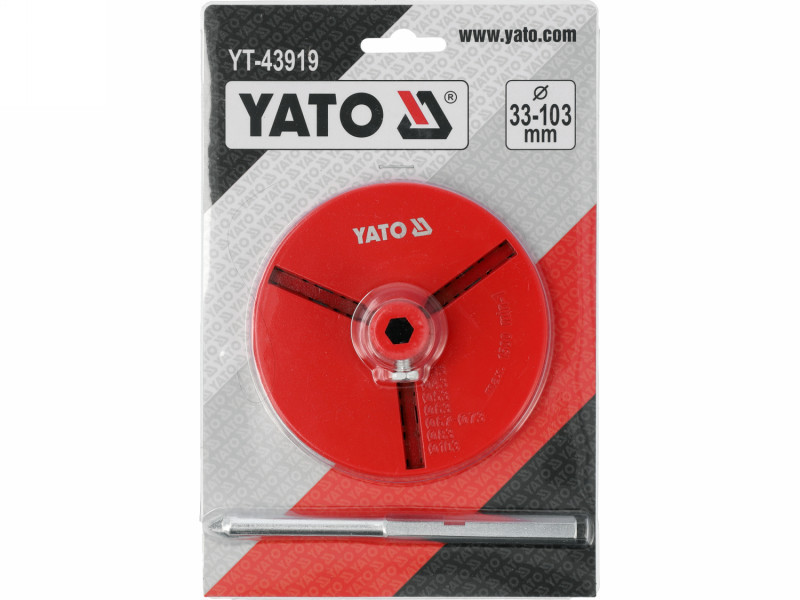

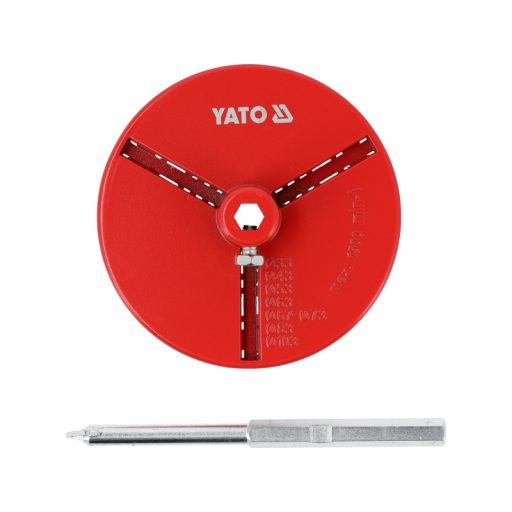

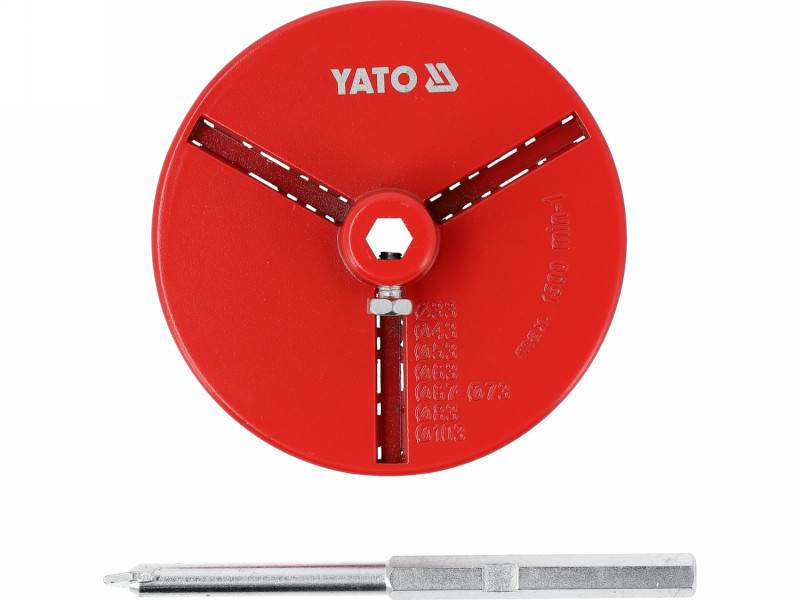

Set contents:
- mounting plate
- centering drill
Usage warnings:
Warning! Always use personal safety equipment at work.
