| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Diameter | 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10 mm |

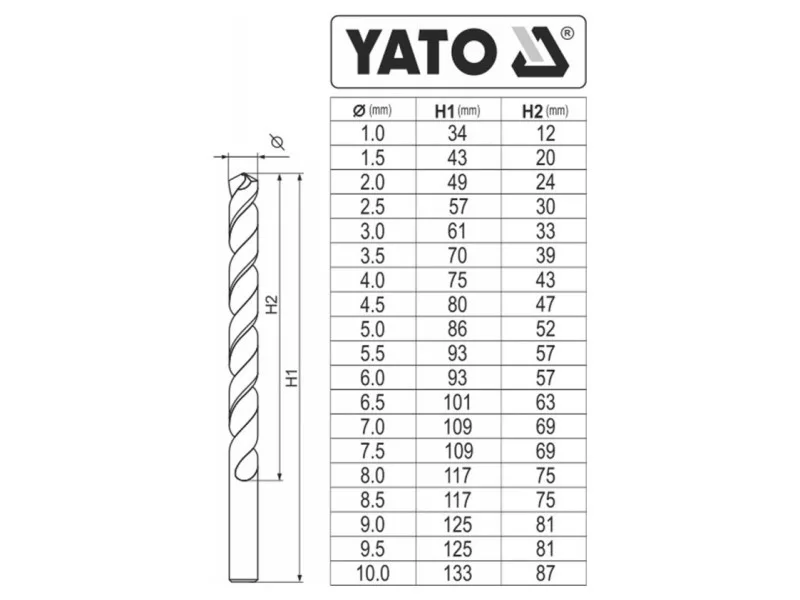

| Overall length | 34, 43, 49, 57, 61, 70, 75, 80, 86, 93, 93, 101, 109, 109, 117, 117, 125, 125, 133 mm |
| Working part length | 12, 20, 24, 30, 33, 39, 43, 47, 52, 57, 57, 63, 69, 69, 75, 75, 81, 81, 87 mm |
| Toolholder type | cylindrical |
| Material | HSS-E Co HS6-5-2-5 |
| Surface finish | polished, polished |
| DIN | 338 |
| Standard | PN-EN ISO 4957:2002(U) |
| Drill bit point angle | 135 ˚ |
| Split point | yes |
| High temperature resistance | yes |
| Tensile strength | >900 N/mm² |
| Pcs | 19 |
| Application | stainless steel, stainless steel, acid-resistant steel, cast iron, non-ferrous metals, plastic |
| Symbol | YT-41604 |

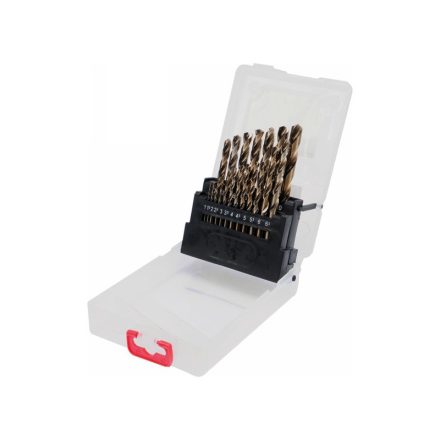

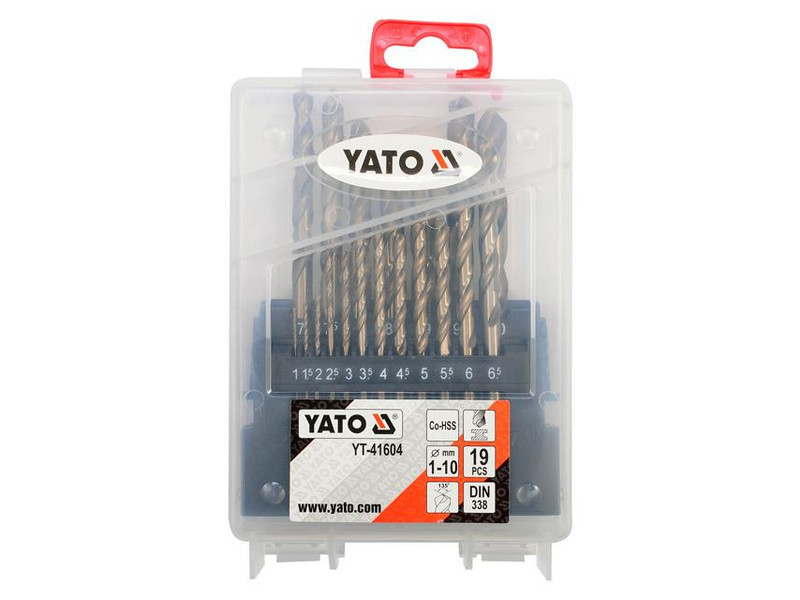

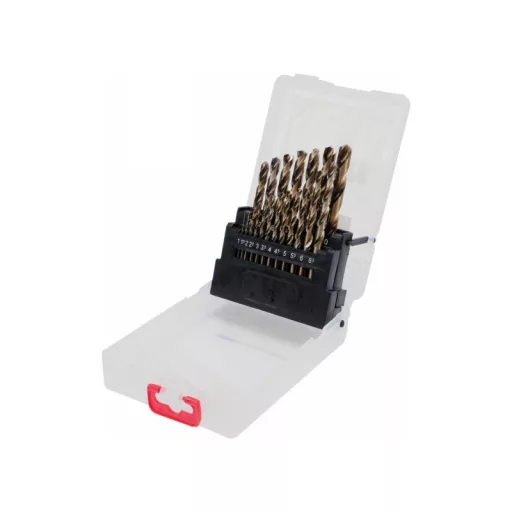

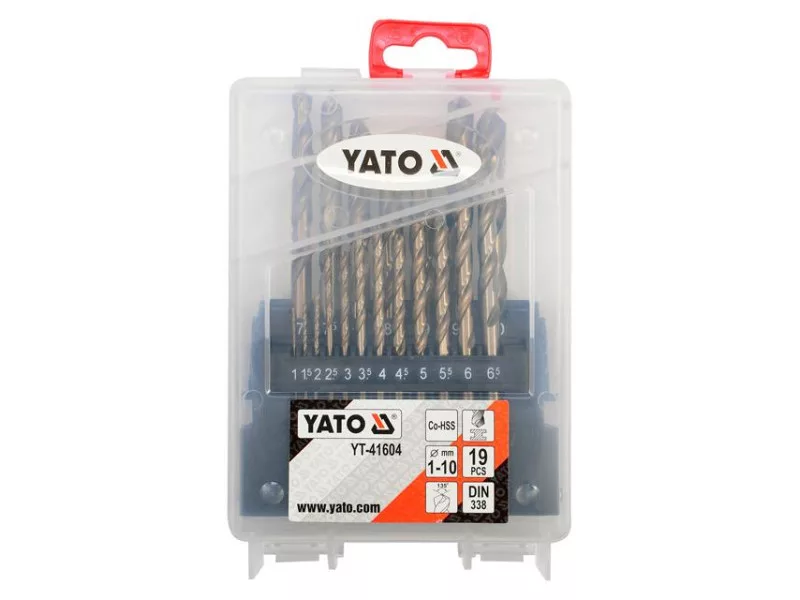

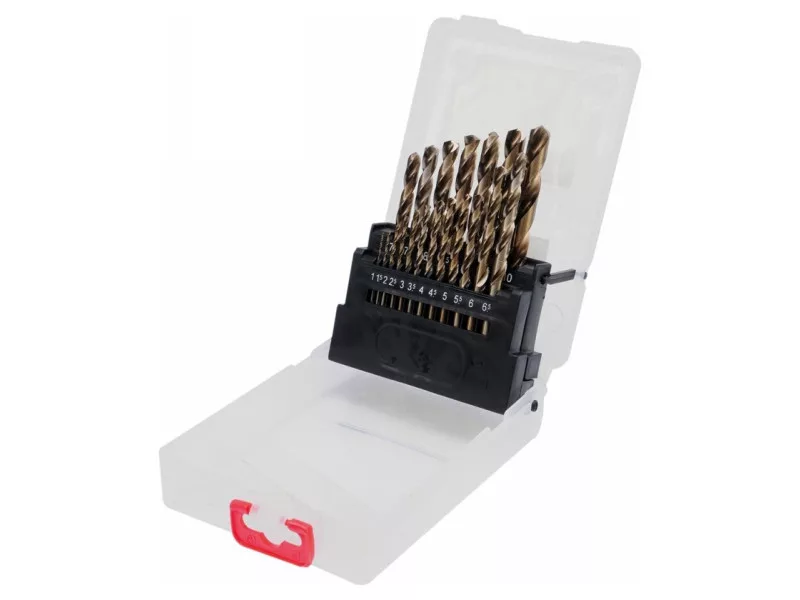

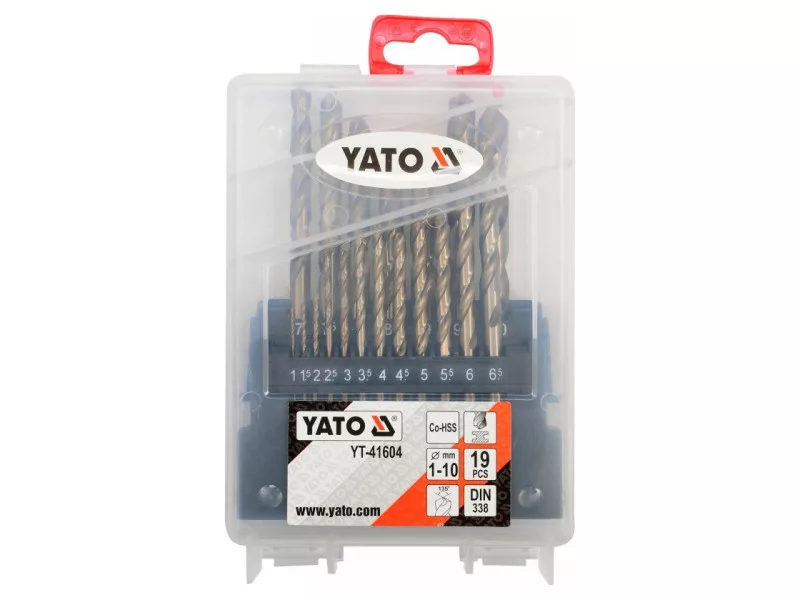

A set of cobalt drills for metal 19 pcs. Resistant to high temperature. The set consists of 19 drills with a diameter [mm]: 1; 1.5; 2; 2.5; 3; 3.5; 4; 4.5; 5; 5.5; 6; 6.5; 7; 7.5; 8; 8.5; 9; 9.5; 10
Usage warnings:
Use of hand tools may be dangerous! Always use personal protection equipment at work. Use only proper undamaged tools. Select the type and size of tool according to intended application. Do not overload tools. Keep tools away from children. Use tools with proper care.
