| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Holder size | 1/4" (6.3 mm), 1/2" (12.7 mm) |
| Material | 60CrV, CRV 6140, CrV 50BV30, CrMo, S2, SK5 |
| Number of teeth | 72 |
| AS-DRIVE | yes |
| Pcs | 79 |
| Application | car services, mechanical services, industry, household |
| Symbol | YT-38911 |

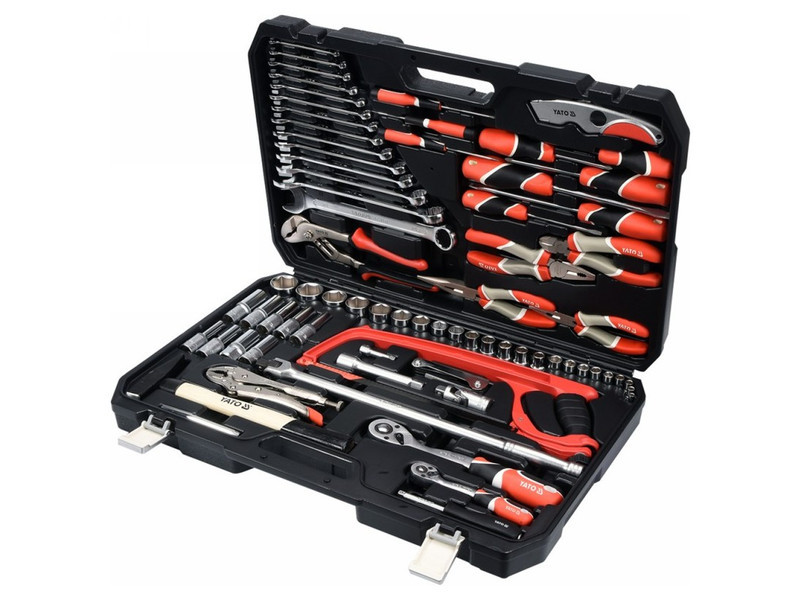

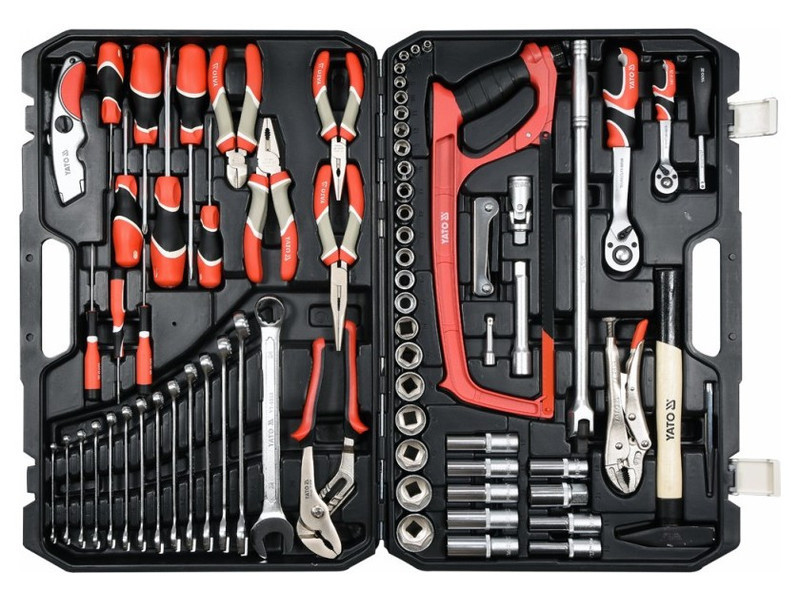

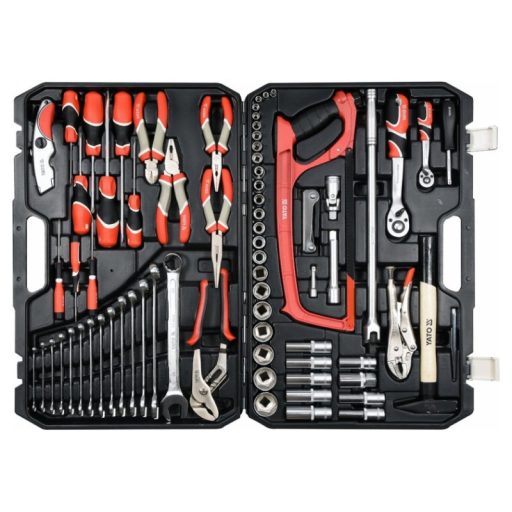

A professional 79-piece tool set designed for the needs of specialized automotive and mechanical service centers. The socket wrenches and drive sockets are made of durable, tool-grade chrome-vanadium steel CrV.
The sockets are made using the die forging method, and before the hardening process, they are calibrated using precision gauges and control devices. Sockets equipped with the AS-Drive system, increasing the maximum torque by 25%, with full protection of nut edges, sockets with a two-tone surface finish.
The ratchets have a three-component handle and 72 teeth (5-degree working stroke).
The set allows for work requiring very high loads and precision, enabling many service tasks related to loosening and tightening threaded connections of various nominal sizes.
- external dimensions of the set: 590 x 390 x 105 mm

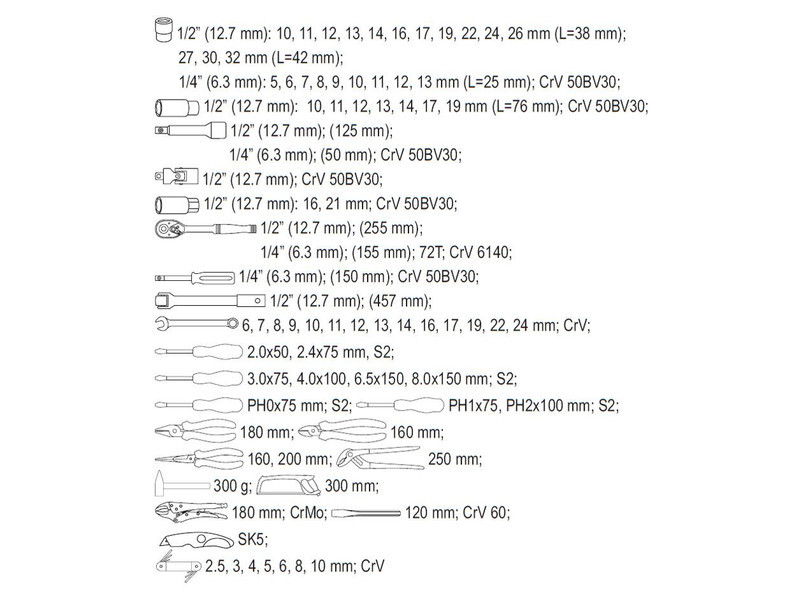

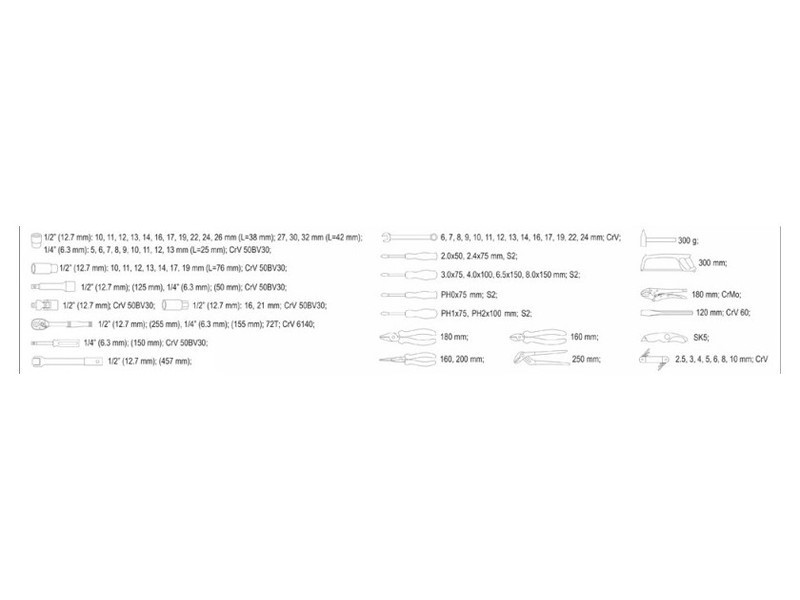

Included in the set:
- sockets:
- 1/2” (12.7 mm): 10, 11, 12, 13, 14, 16, 17, 19, 22, 24, 26 mm (L=38 mm); 27, 30, 32 mm (L=42 mm)
- 1/4” (6.3 mm): 5, 6, 7, 8, 9, 10, 11, 12, 13 mm (L=25 mm)
- long sockets 1/2” (12.7 mm): 10, 11, 12, 13, 14, 17, 19 mm (L=76 mm)
- extensions:
- 1/2” (12.7 mm): 125 mm
- 1/4” (6.3 mm): 50 mm
- Cardan joint 1/2” (12.7 mm)
- spark plug sockets 1/2” (12.7 mm): 16, 21 mm
- ratchets:
- 1/2” (12.7 mm): 255 mm; 72T
- 1/4” (6.3 mm): 155 mm; 72T
- handle for 1/4” (6.3 mm) sockets: 150 mm
- swivel handle 1/2” (12.7 mm): 457 mm
- combination wrenches: 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 17, 19, 22, 24 mm
- precision screwdrivers:
- flat 2.0x50, 2.4x75 mm
- Phillips: PH0x75 mm
- screwdrivers:
- flat: 3.0x75, 4.0x100, 6.5x150, 8.0x150 mm
- Phillips: PH1x75, PH2x100 mm
- universal pliers 180 mm
- side cutting pliers 160 mm
- long nose pliers: 160 mm, 200 mm
- adjustable pliers 250 mm
- 300 g engineering hammer
- metal saw 300 mm
- locking pliers 180 mm
- punch 120 mm
- utility knife with trapezoidal blade
- hex key set: 2.5, 3, 4, 5, 6, 8, 10 mm
Usage warnings:
Warning! Always use personal safety equipment at work.
