| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Grip range | 400-670 mm |
| Material | steel |
| Surface finish | surfaced |
| Handle material | PVC |
| Type | of paving, adjustable |
| Application | moving bricks, clinker, paving stones and small concrete or stone tiles |
| Symbol | YT-37470 |

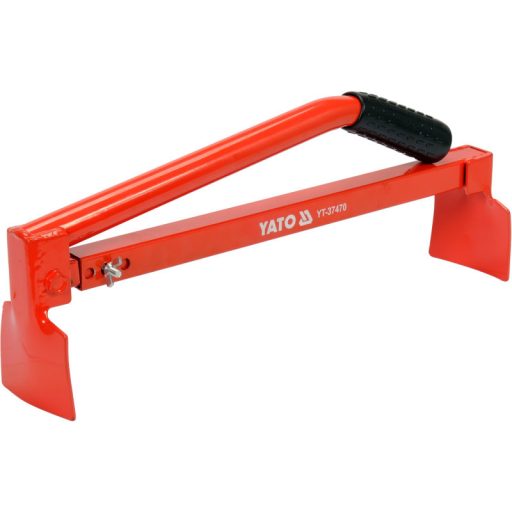

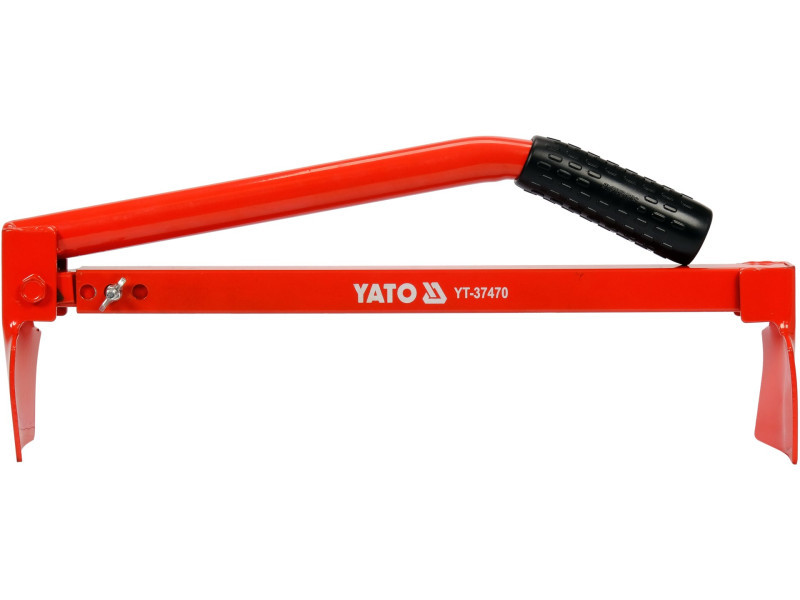

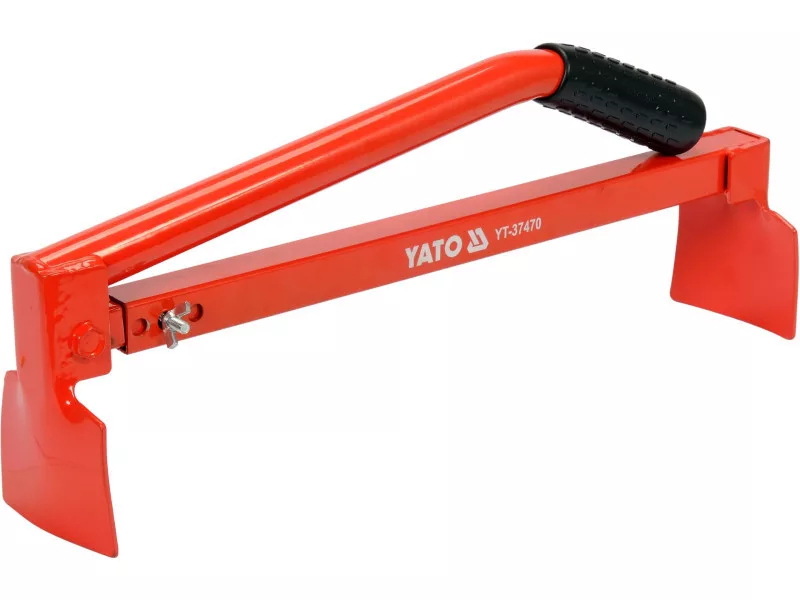

The clamping fixture is designed for independent handling of slabs, blocks, bricks, hollow blocks and other building elements with a width of 40 to 67 cm.
- the minimum width of the lifted elements is approx. 400 mm
- the maximum spacing is about 670 mm
- the external horizontal arm is made of 25 x 25 mm square profile and the internal one is made of 20 x 20 mm
- the handle's feet are made of 3 mm thick sheet metal
.-
- solid handle made of steel pipe fi ok 30 mm , is covered with a plastic handle
- surface protected against corrosion - painted
The gripper clamps automatically on the lifted element when lifted by the handle up.
