| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Max. cutting length | 230 mm |
| Max. cutting capacity | 15 mm |
| Length | 650 mm |
| Worktop dimensions | 650x460 mm |
| Material | aluminum, HSS W5 |
| Surface finish | surfaced |
| Horizontal cutting angle | 15, 22.5, 30, 45 ˚ |
| Fold | no |
| Application | floor panels |
| Symbol | YT-37303 |

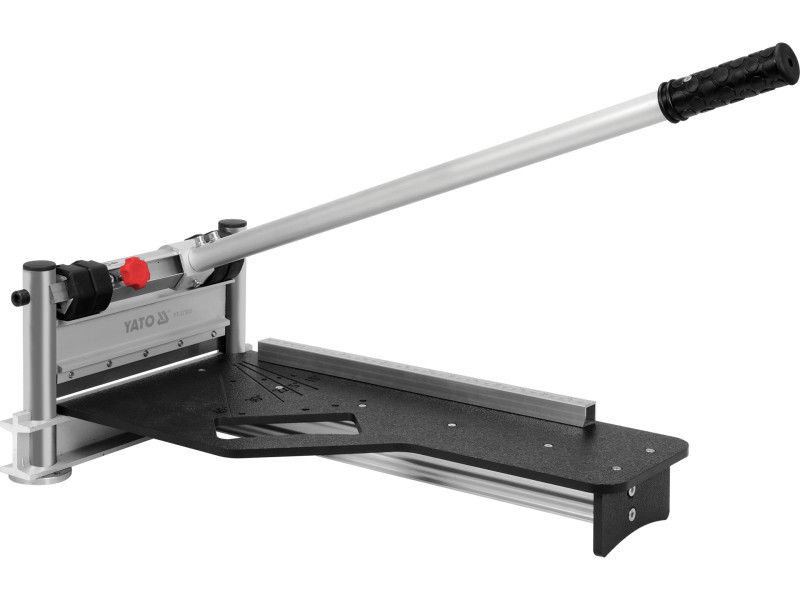

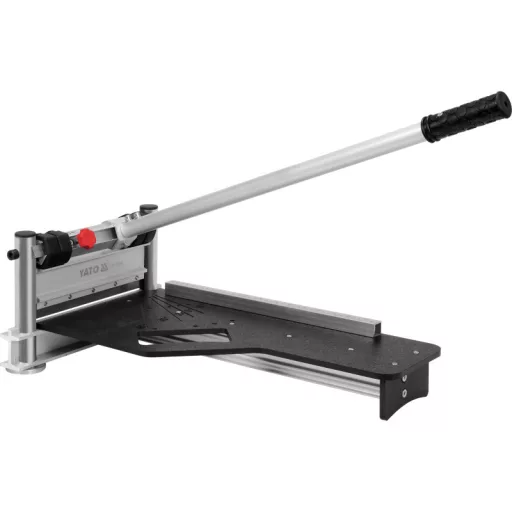

Guillotine for cutting floor panels, with a cutting width of 230 mm and a maximum material thickness of 15 mm. The guillotine blade is embedded in aluminium profiles, mounted on vertical steel plinths. The pressure arm is approximately 650 mm long. The work surface is made of hard, wear-resistant plastic and measures 460 mm x 650 mm. On the tabletop, a built-in angle iron allows cutting at angles: 15°, 22.5°, 30°, and 45°
The guillotine is designed for cutting floor panels, vinyl panels, parquet, rubber, foam, PVC, VCT tiles and more. To use the machine, place the workpiece on the tabletop, between the knife mounting plinths. Then, press the lever sensitively, lowering the blade onto the material and pressing down to cut off the desired section. Due to the exceptional sharpness of the knife, special care must be taken when working.
- maximum cutting length: 230 mm
- maximum cutting thickness: 15 mm
- Length: 650 mm
- worktop dimensions: 650 × 460 mm
- horizontal cutting angles of 15°, 22.5°, 30° and 45°
- replaceable HSS W5 cutting blade
Usage warnings:
Warning! Always use personal safety equipment at work.
