| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRE |

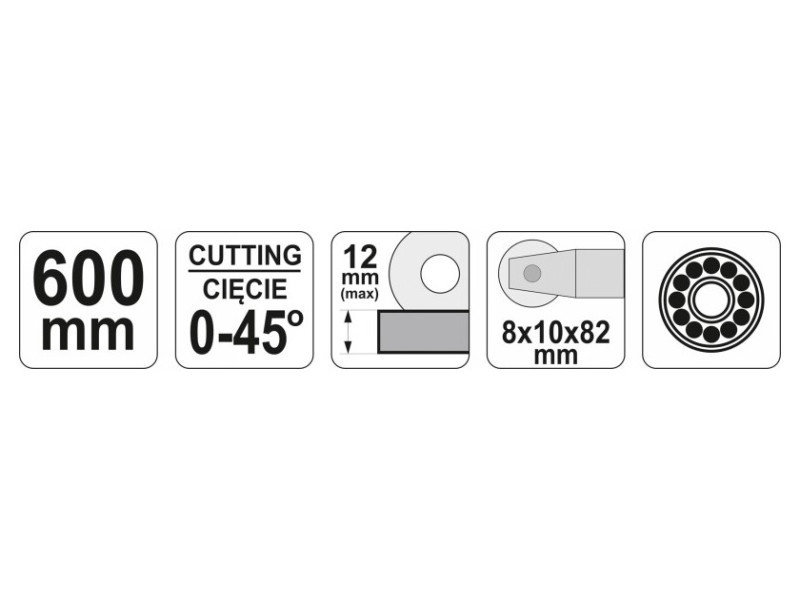

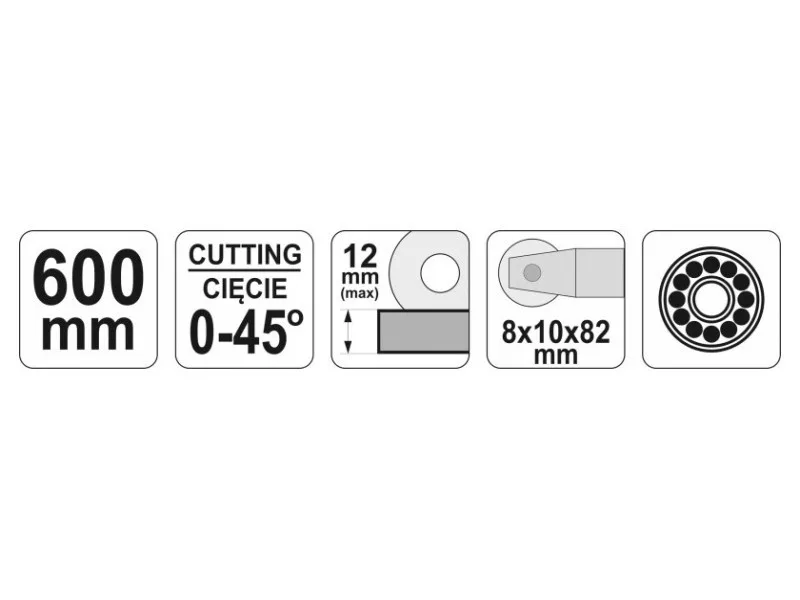

| Max. tile thickness | 12 mm |
| Cutting length | 600 mm |
| Horizontal cutting angle | 0-45 ˚ |
| Base dimensions | 790x150 mm |
| Guide bar diameter | 16 mm |
| Cutting wheel dimensions | 8x10x82 mm |
| Material | steel |
| Blade material | carbide |
| Bearing | yes |
| Bearing type | ball |
| Weight | 4.93 kg |
| Set includes | tile cutting device, angle |
| Application | glaze |
| Symbol | YT-37036 |

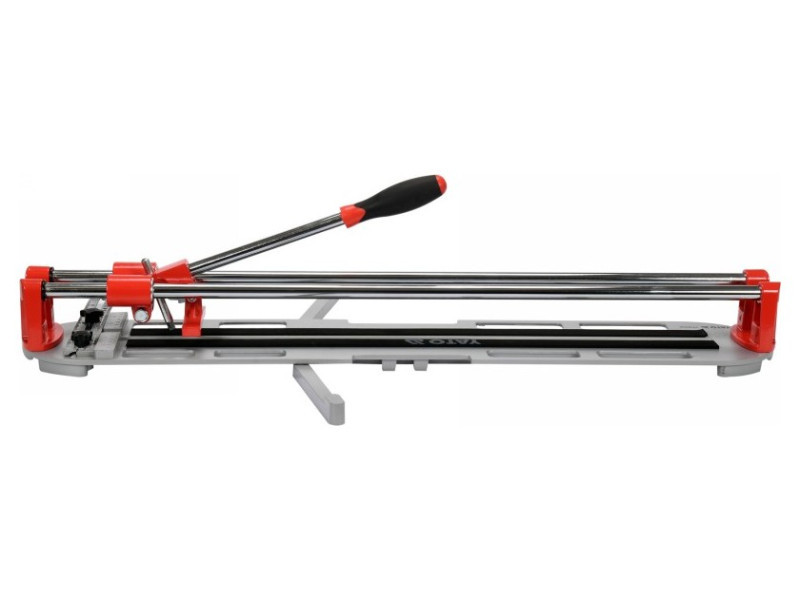

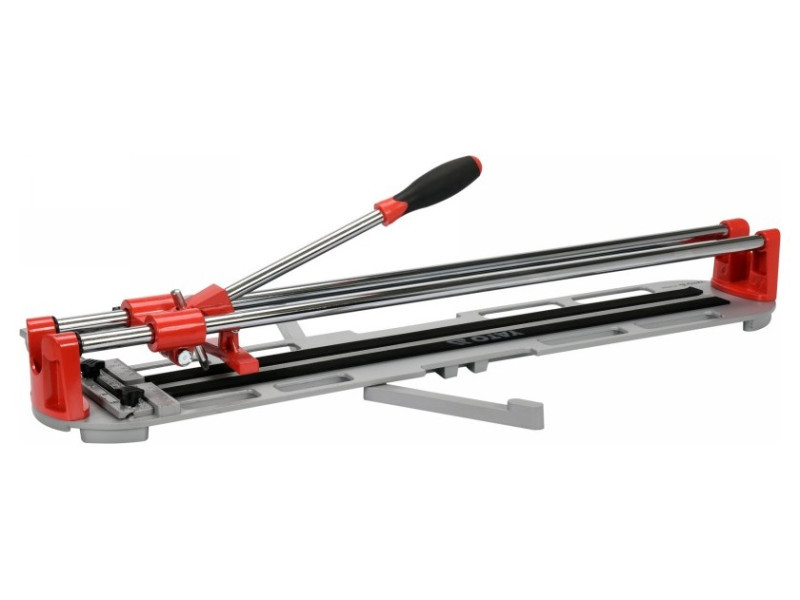

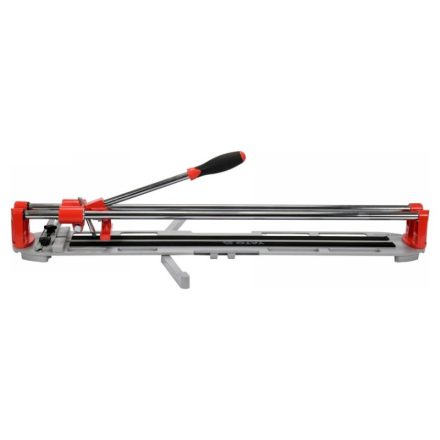

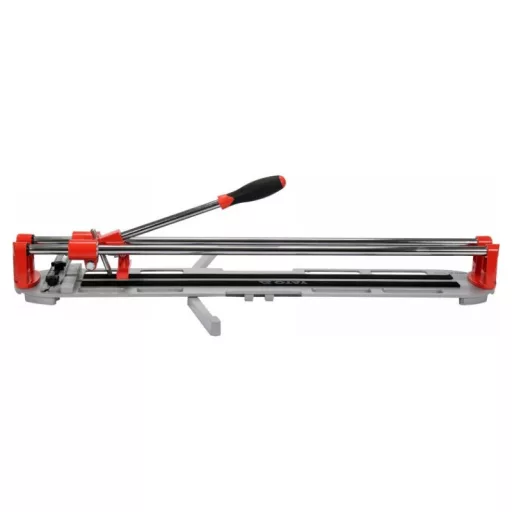

Tile cutter YATO YT-37036 is a professional tool for precision cutting and breaking of ceramic tiles. It consists of a stable base, two parallel guides and a cutting unit with a breaker and cutting disc. Designed for craftsmen and discerning do-it-yourselfers.
Characteristics:

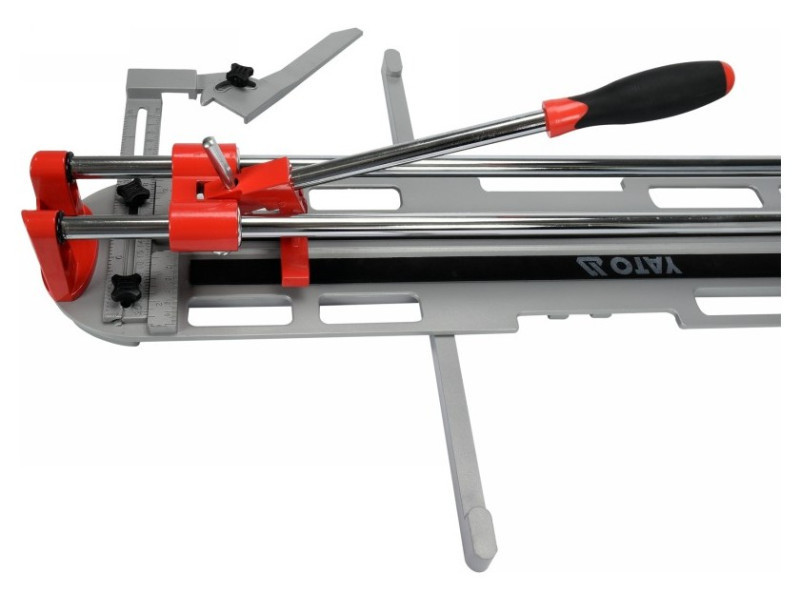

- equipped with an additional 200 mm long adjustable bevel with a movable arm
- base made of die-cast aluminum, with two movable supports
- breaker on bearings, with a steel lever with a diameter of 15 mm

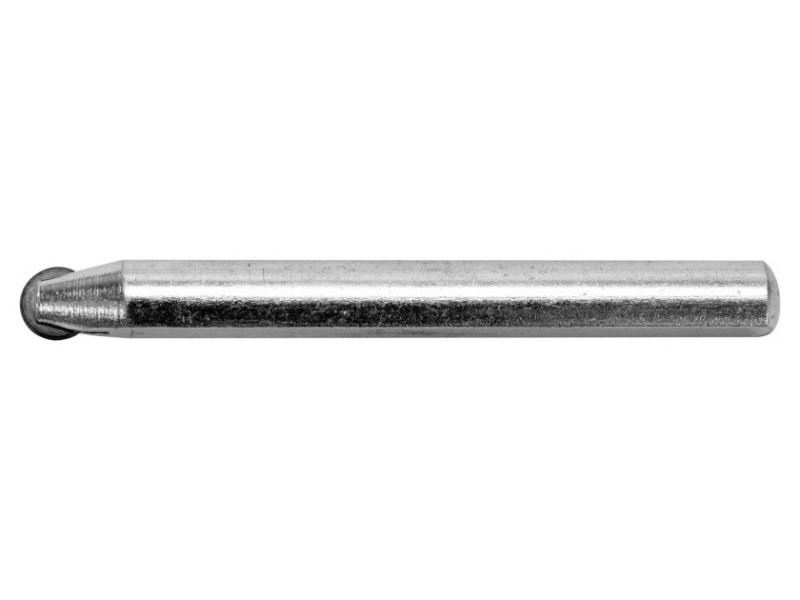

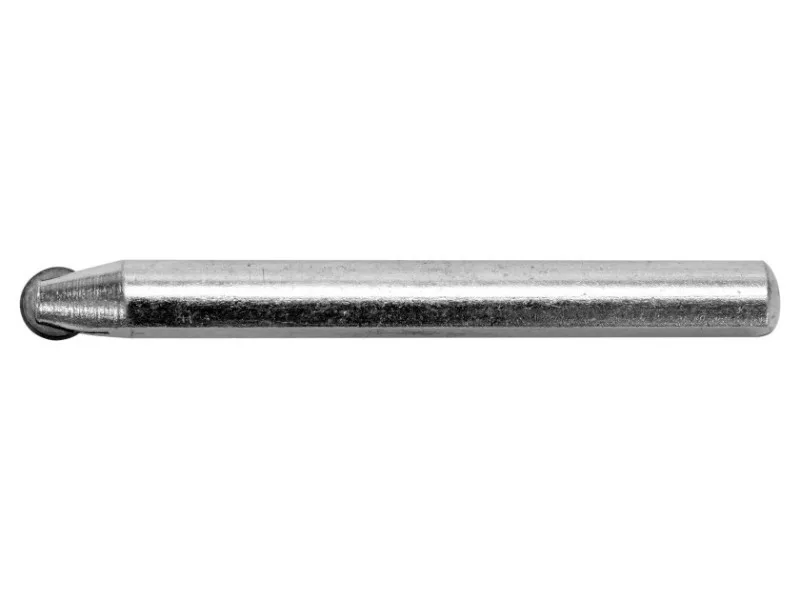

- cutting wheel with a diameter of 8 mm, mounted on a grooved mandrel
- 2 strips of sponge with a width of. 20 mm in the base
- 2-component handle

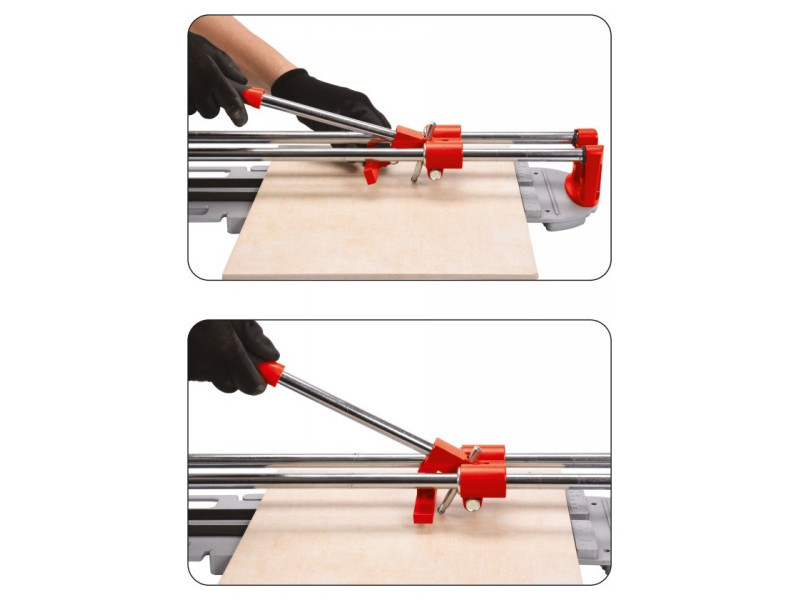

Base made of pressure-cast aluminum with two movable supports installed to support large tiles and metal movable angle bracket. The bearing-mounted breaker assembly is mounted on stable steel guides made of 16 mm diameter tubing. Cutting knife-circle fi 8 mm permanently mounted on a mandrel fi 10 x 82 mm. On the work surface are pasted two strips of technical micro-rubber, facilitating the breaking of tiles. Breaker lever of steel fi 15 mm, also plays the role blocking position of the knife.
Usage warnings:
Warning! Always use personal safety equipment at work.
