| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Power | 1.7 kW |
| Gas type | butane from an external cylinder |
| Gas tank type | disposable, threaded, self-sealing, under direct pressure, type EN417 |
| Gas usage | 123 g/h |
| Piezo ignition | yes |
| Operation angle | 360 ˚ |
| Head offset | 360 ˚ |
| Flame adjustment | yes |
| Weight with empty tank | 0.3 kg |
| Application | jewelry, handicraft, modeling, gastronomy, burning small metal or wooden surfaces, lighting fireplaces, grills and stoves, bending and warm forming, |
| Application contd | heat welding and gluing, unscrewing stuck screws, reheating and thawing, shrinking of heat-shrinkable materials |
| Symbol | YT-36711 |

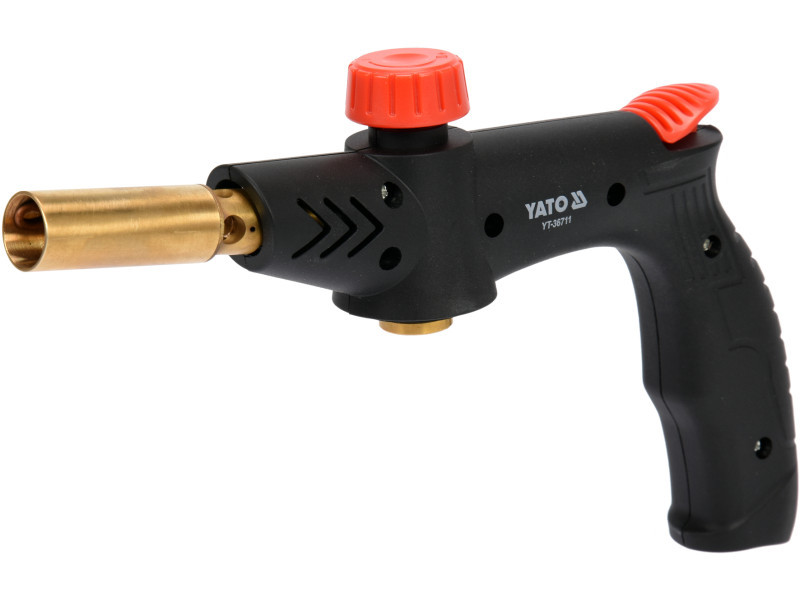

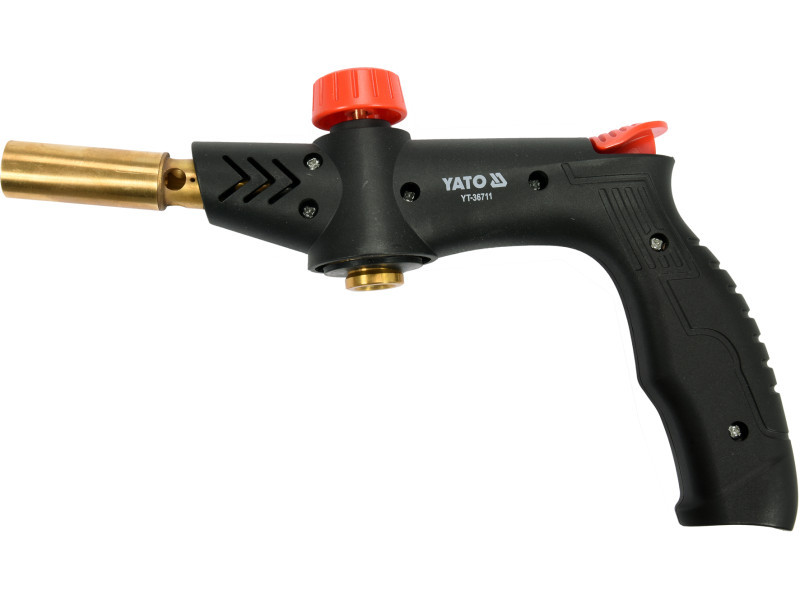

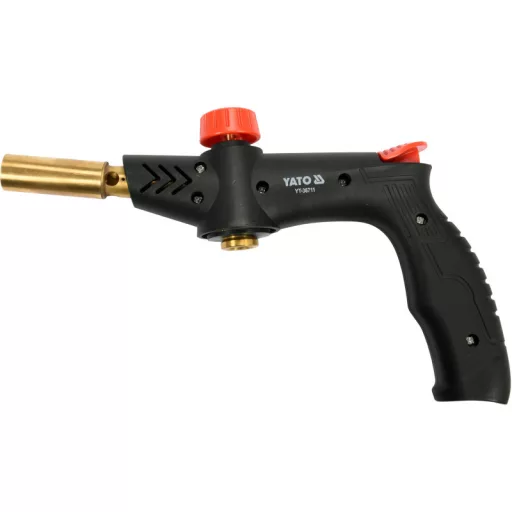

Gas burner designed for soldering, heating and drying. Thanks to the power supply by means of gas containers (cartridges), it is possible to work in places without energy sources.
The burner can be used with disposable containers, equipped with a self-sealing threaded connector, according to EN 417.
Additional information:
- the torch screws onto a typical gas cylinder
- convenient to manipulate pistol grip
- effective piezo igniter
.-
- flow adjustment knob placed vertically above the cylinder
- burner made of brass, turned - fi 19 mm
Usage warnings:
Use only with disposable containers containing technical butane gas, equipped with a self-sealing connector, complying with EN 417.
Use only in well-ventilated areas.
Read the instructions before using this device.
Make connections or changes to containers in a flameless atmosphere, away from bystanders.
Use safety glasses when using the kit.
Turning off the burner: Turn the control knob all the way in the direction marked "OFF". The flame will go out spontaneously.
Be careful, because the metal parts of the burner have been heated during operation. Leave to cool down.
