| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Power | 30-125 W |
| Gas type | butane lighter gas, propane-butane lighter gas |
| Flame temperature | 1300 ˚C |
| Blast temperature | 600 ˚C |
| Max. temperature of soldering tip | 450 ˚C |
| Gas usage | 9.3 g/h |
| Working time | 75 min |
| Tank capacity | 30 ml |
| Piezo ignition | yes |
| Gas level inspection window | yes |
| Lock | yes |
| Child protection | yes |
| Weight with empty tank | 100 g |
| Pcs | 7 |
| Set includes | nozzle, arrowhead x4, tin, sponge |
| Application | tin soldering, pyrography - burning in the wood, shrinking of heat-shrinkable materials, Cu pipe brazing, unscrewing stuck screws, defrosting, bending and warm forming, |
| Application contd | heat welding and gluing |
| Symbol | YT-36706 |

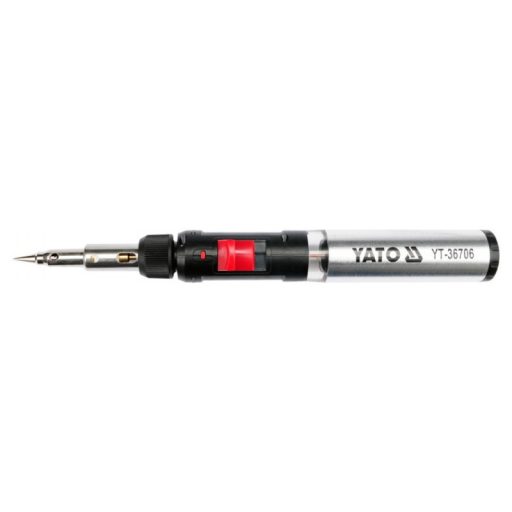

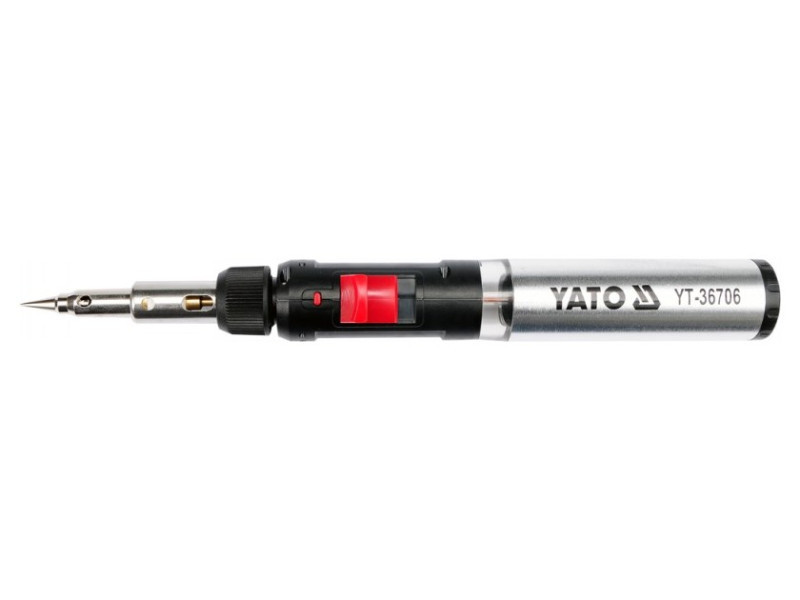

3-in-1 gas soldering iron with piezo ignition kit powered by lighter gas - butane with a power of 30-125W.
- has the function of soldering iron (max temp 450º c), tanning iron (max temp 600º c) and torch (max temp 1300º c)
- .tank capacity is 30ml which allows you to work for up to 75min

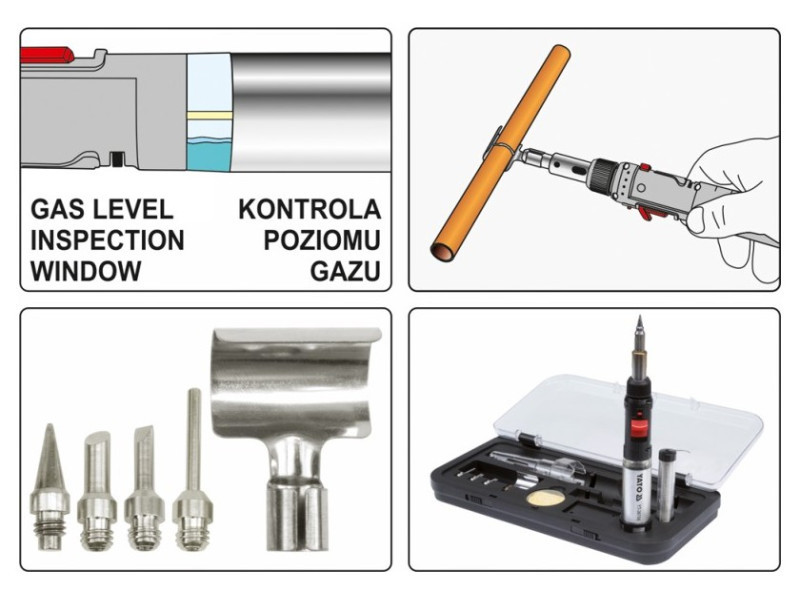

- an inspection window in the body allows you to check the gas level
- .burner is designed for tin soldering, pyrography (burning in wood), burning or shrinking of heat shrinkable materials
- the burner can be used for soldering cu pipes, unscrewing baked screws, welding or thawing, as well as for bending and heat forming

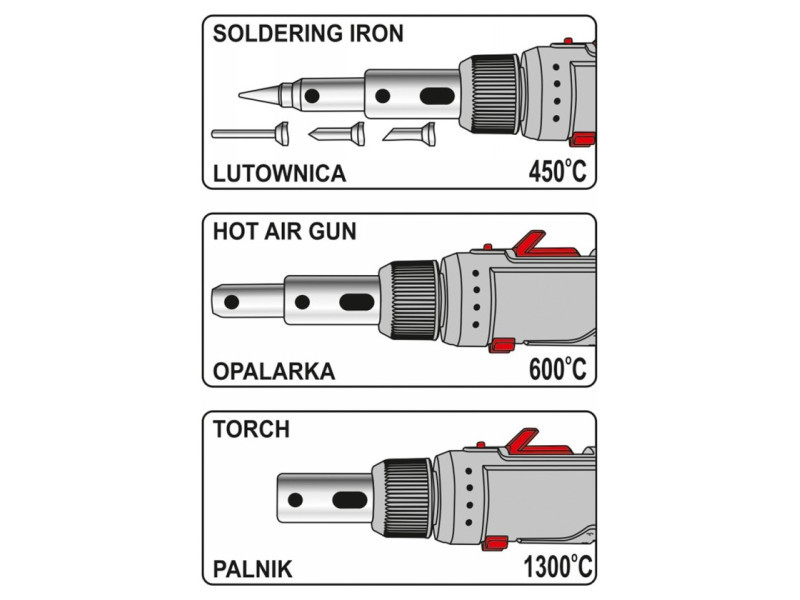

Provides function:
- soldering iron (max temp 450º C)
- burner (max temp 600º C)
- burner (max temp 1300º C)

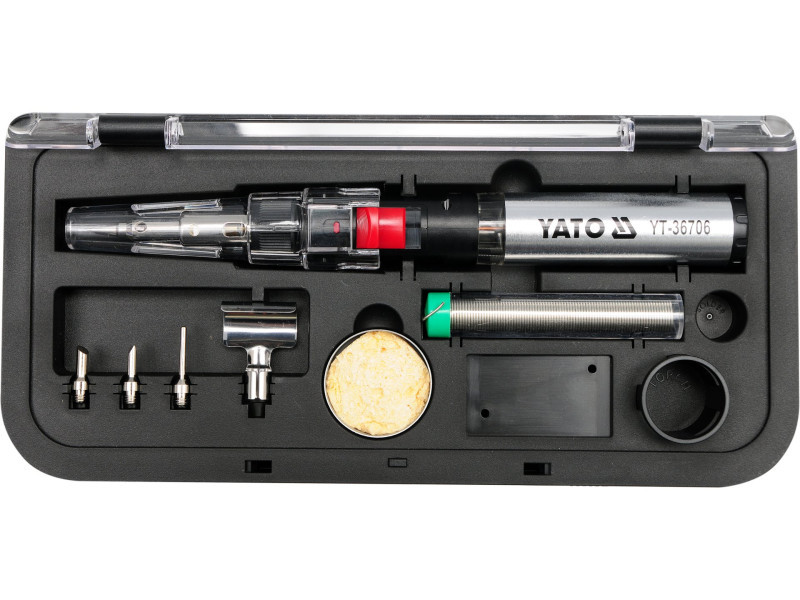

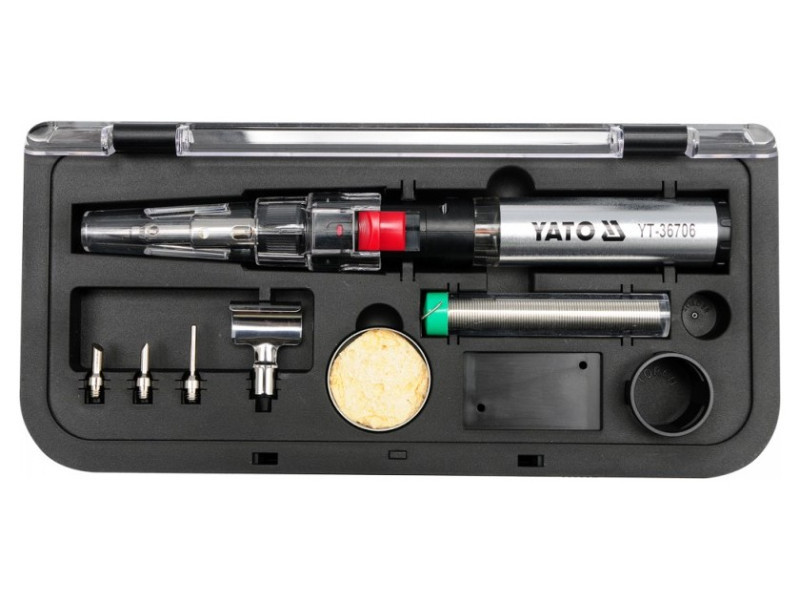

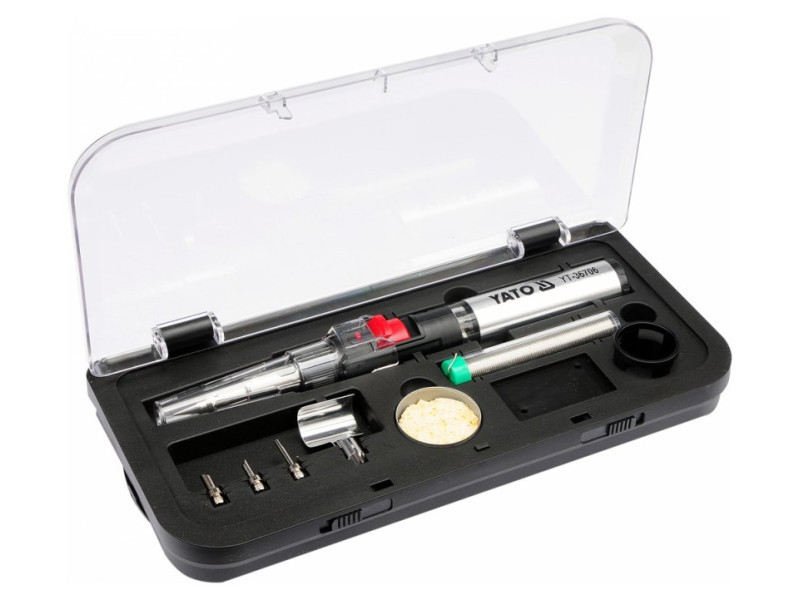

The kit includes:
- tin
- sponge
- 4 different spearheads
- Dish

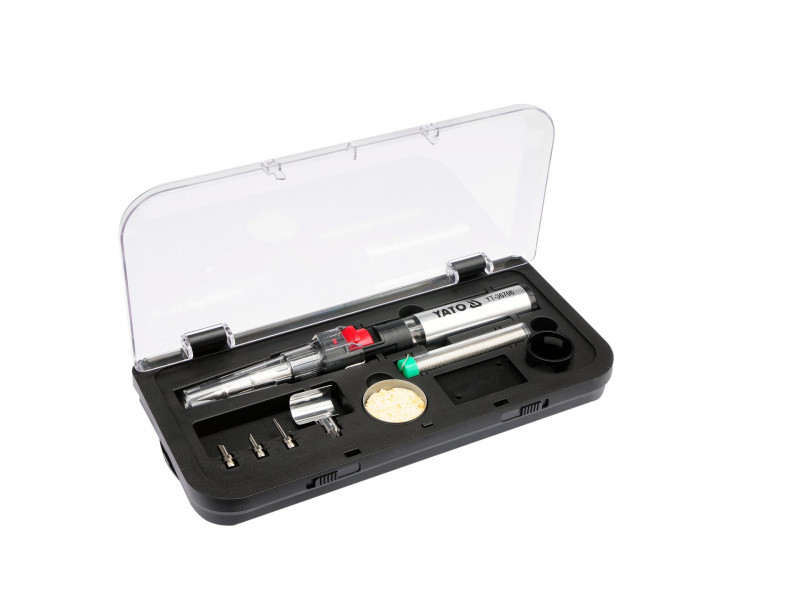

Also, the special box has the function of a soldering iron and tin stand creating a mobile workstation.
Usage warnings:
Use only in well-ventilated areas.
Read the instructions before using this device.
Make connections or changes to containers in a flameless atmosphere, away from bystanders.
Use safety glasses when using the kit.
