| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Max. working pressure | 0.7 MPa |
| Recommended working pressure | 0.62 MPa |
| Required air flow | 148 l/min |
| Crushing pressure | 1894 kg |
| Air connection diameter (PT) | standard |
| Air supply hose inside diameter | 3/8" (9.5 mm) |
| Rivets diameter | 2.4, 3.2, 4, 4.8, 6.4 mm |
| Jaw quantity | 2 |
| Max. piston stroke | 19 mm |
| Acoustic pressure | 81.2 ± 3.0 dB(A) |
| Acoustic power | 92.1 ± 3.0 dB(A) |
| Vibrations | 0.6 ± 0.56 m/s² |
| Weight | 2 kg |
| Symbol | YT-3618 |

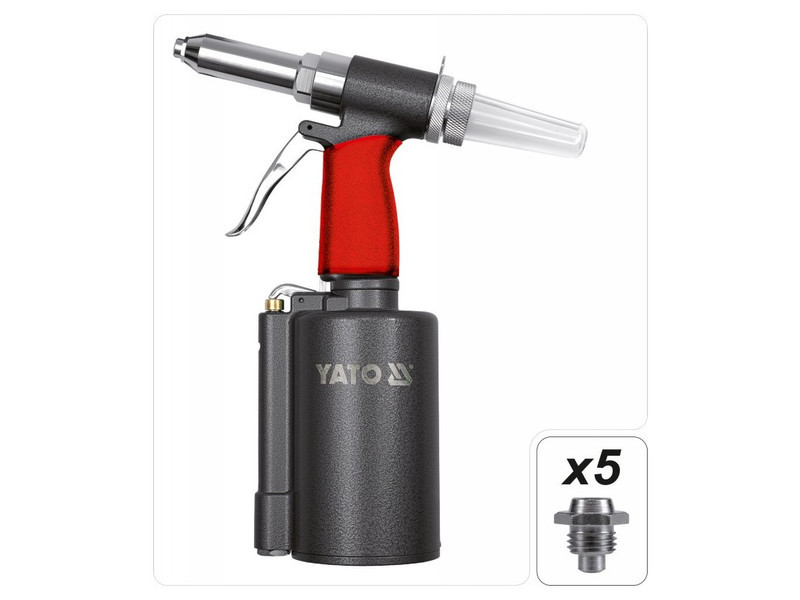

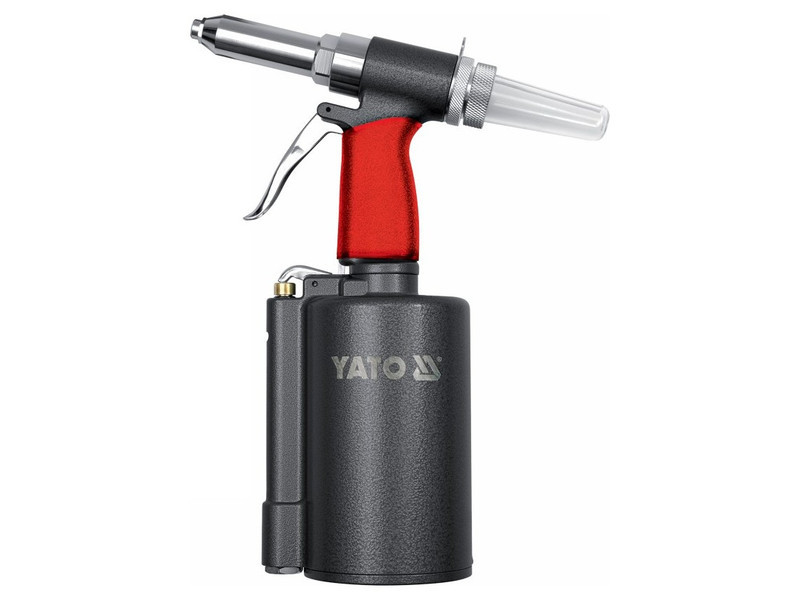

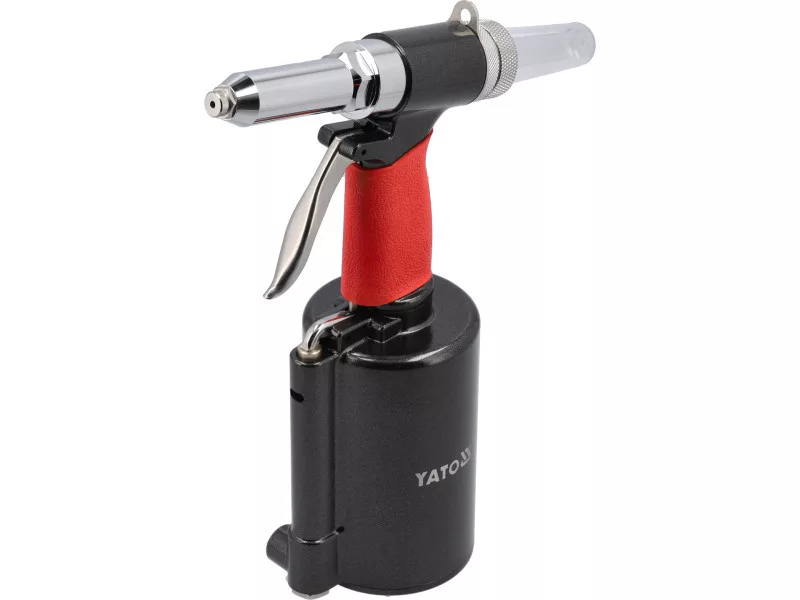

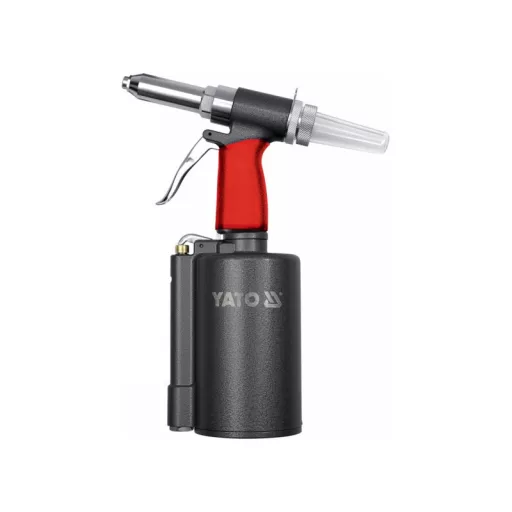

Pneumatic riveting machine is a tool powered by a stream of compressed air at the appropriate pressure.
With the help of rivetsórivets, steel, including stainless steel or aluminum, it is possible to join partsórivets together. It provides more efficient and convenient work than a manual riveting machine.
The riveting machine is equipped with a connector that allows it to be connected to a pneumatic system.
The equipment includes:
- additional heads for rivetsóother diameters
- keys allowing to replace them
Parameters:
- Weight [kg] - 2.0
- Diameter of air connection (PT) [”] - 1/4
- Diameter of air supply hose (internal) [”] - .3/8
- Diameter of rivets handled [mm] - 2.4; 3.2; 4.0; 4.8; 6.4
- .Crushing force [kg] / [N] 1894 / - 18561
- Maximum piston stroke [mm] - 19
- ./li>
- Maximum operating pressure [MPa] - 0.70
- Recommended operating pressure [MPa] - .0.62
- Required air flow (at 6.2 bar) [l/min] - 148
- .Sound pressure (EN ISO 15744) [dB(A)] - 81.2 ± 3.0
- Sound power (EN ISO 15744) [dB(A)] - 92.2 ± 3.0
- Sound power (EN ISO 15744) [dB(A)] - 92.2 ± 3.0
- Vibration (EN 28662-1) [m/s2 ] - 0.4 ± 1.5
Usage warnings:
Warning! Always use personal safety equipment at work.
