| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Nuts diameter | M3, M4, M5, M6 |
| Rivets diameter | 2.4, 3.2, 4, 4.8 mm |
| Length | 275 mm |
| Jaws material | CrMo |
| Surface finish | phosphated |
| Handle material | carbon steel, PVC |
| Casing material | aluminum |
| Jaw quantity | 3 |
| Rotary head | yes |
| Operation angle | 360 ˚ |

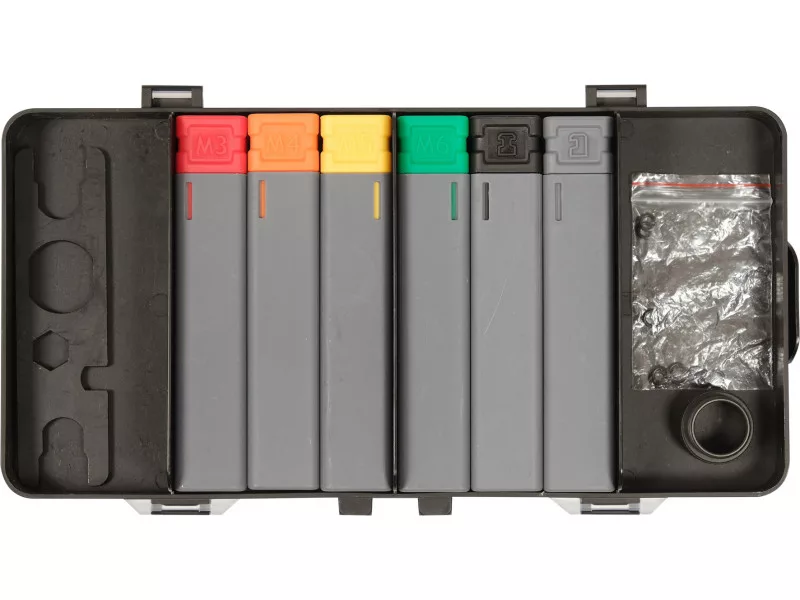

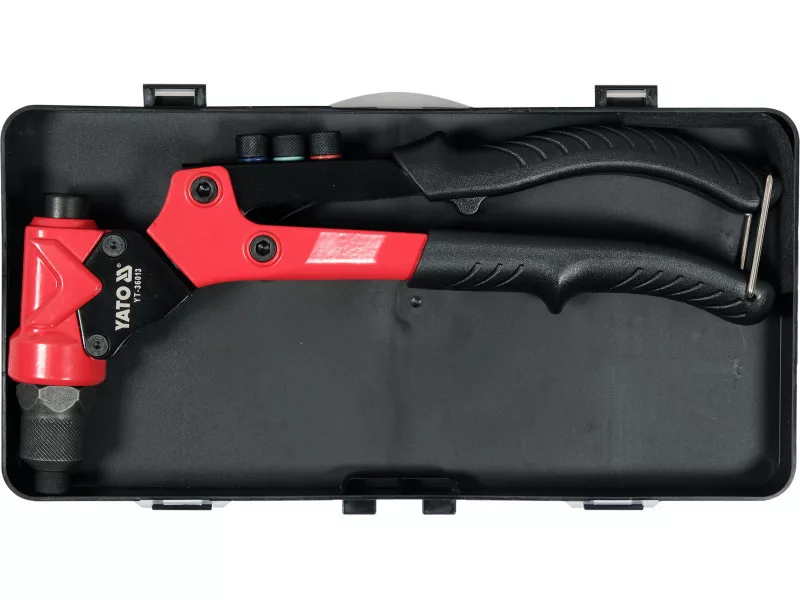

| Set includes | riveter, rivet head, rivet nut head, round head, square head |
| Symbol | YT-36013 |

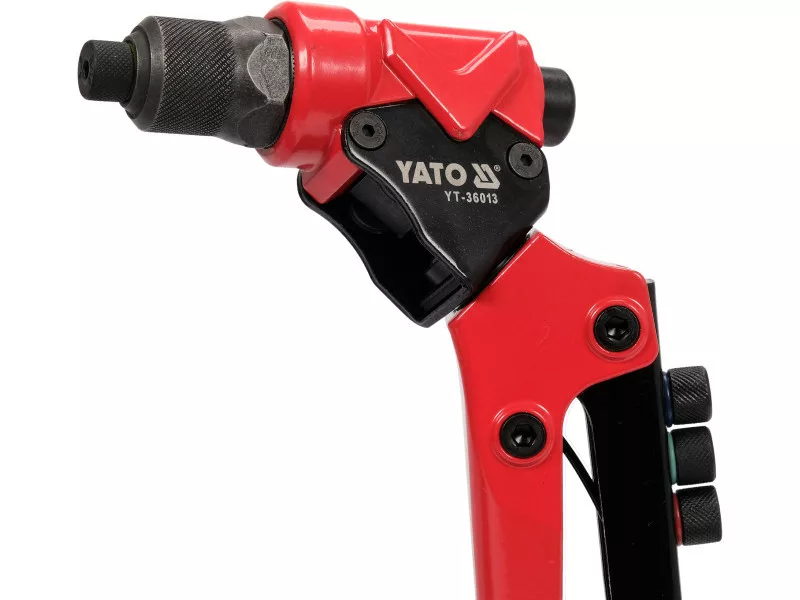

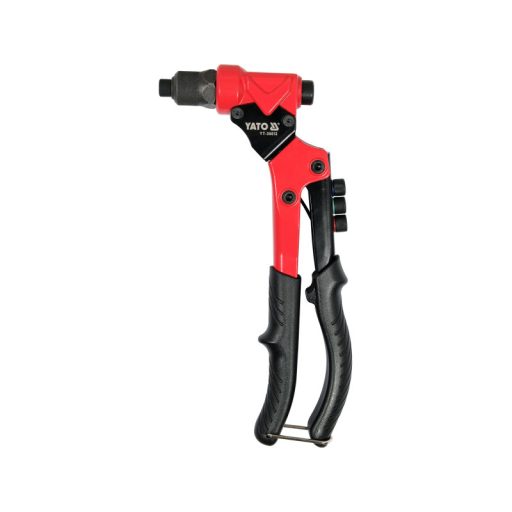

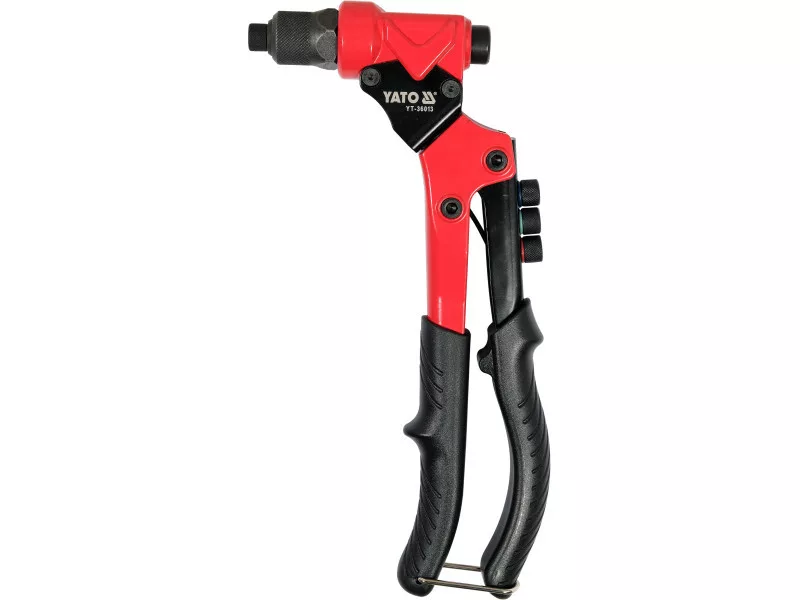

The riveting machine with a 360° rotating head allows you to work in a convenient position, suitable even for places with difficult access. It allows you to make rivet and rivet-nut connections, as well as cut materials and widen holes.
- Riveting head
- Rivet nut heads: M3, M4, M5, M6 make connections using an internally threaded sleeve, allowing additional components to be screwed in with metal screws or bolts
- Rivet heads: 2,4, 3,2, 4, 4,8 allow you to get permanent connections, locking the rivets embedded in the hole by tightening the riveting tool
- round-head and square-head cutters allow you to cut and countersink holes in sheet metal, plastics
- cuts for rivets.
-
- Jaws made of durable CrMo steel
- Aluminum body
- PVC-coated steel handle
- Length: 275 mm
- mounting key included
Usage warnings:
Warning! Always use personal safety equipment at work.
