| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Working range | 30 m |
| Self-levelling range | ±3 ˚ |
| Power supply | rechargeable |
| Battery type | Li-Ion |
| Battery voltage | 3.7 V d.c. |
| Battery capacity | 3600 mAh |
| Battery energy | 13.32 Wh |
| Max. working time | 3 h |
| Dimensions | 117x99x133 mm |
| Laser | yes |
| Laser class | 2 |
| Laser power | ≤1 mW |
| Laser wave length | 508-530 nm |
| Laser range | 30 m |
| Laser accuracy | ±2 mm / 10 m |
| Laser indicator type | linear, cross, with electronic compensator |
| Laser pointer colour | green |
| Tripod included | yes |
| Tripod connection size | 1/4" (6.35 mm) 20UNC |
| Working temperature range | -10 ~ +40 ˚C |
| Protection grade | IP54 |
| Weight | 0.51 kg |
| Set includes | laser, battery x2, charger, pilot, wall bracket, tripod adapter, metal plate, mini tripod with adjustable XYZ axis, platform adjustable up and down, goggles |
| Symbol | YT-30424 |

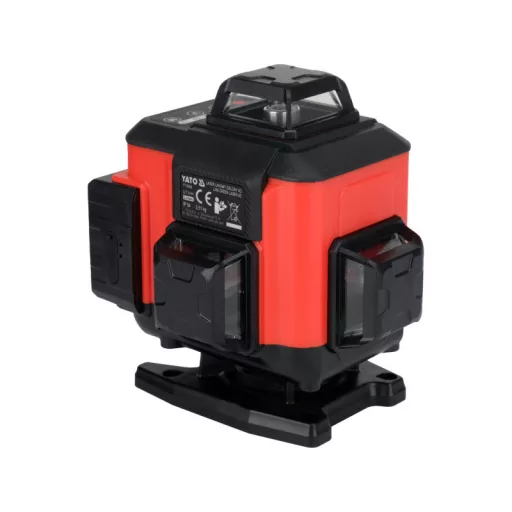

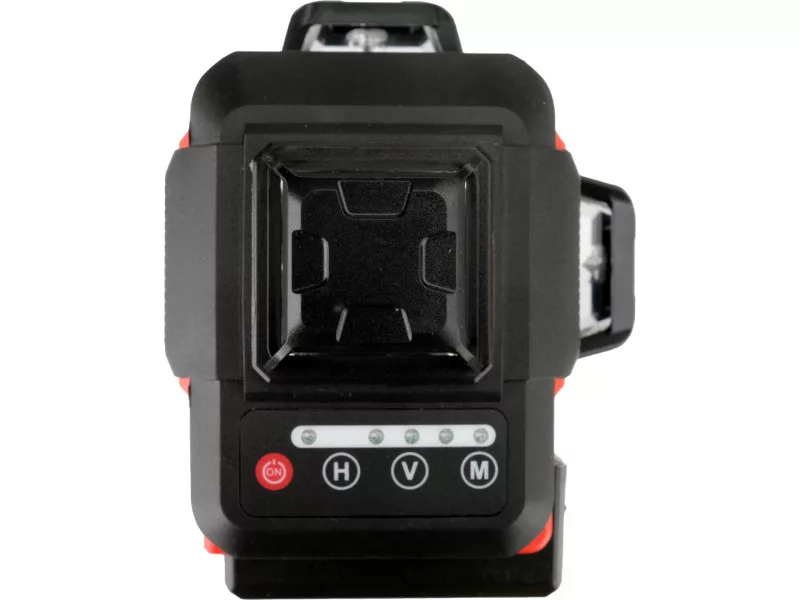

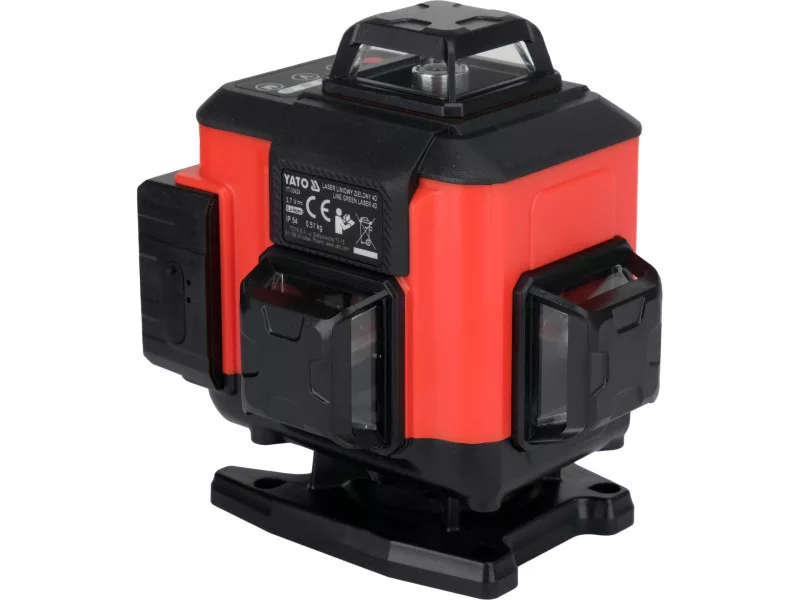

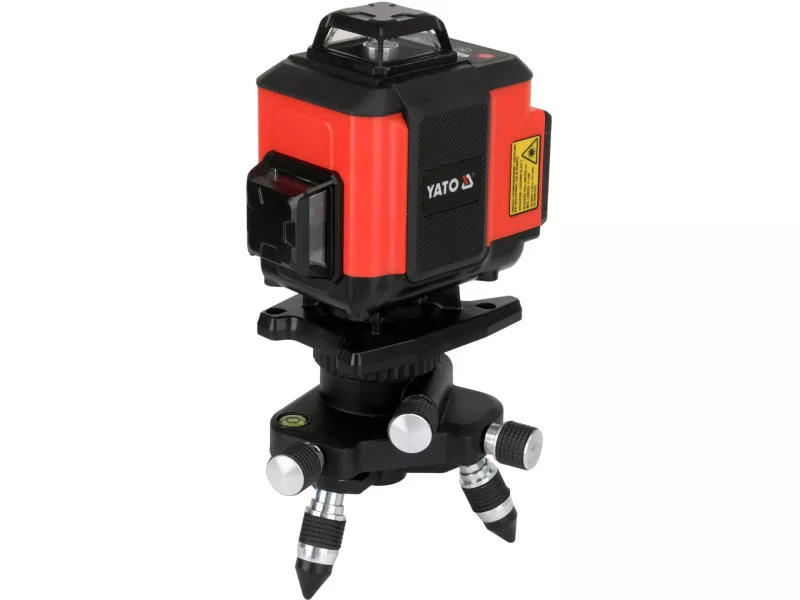

4D four-plane laser with electronic compensator and green beam. It throws 16 lines, four on each plane. It allows to obtain level and plumb on each wall simultaneously in real time. The laser diodes use Japanese technology, which guarantees excellent visibility indoors and a working range of up to 30 meters.
The electronic compensator uses laser level technology to level the beams. Motors position the laser perfectly in both vertical and horizontal planes and maintain this state within the self-leveling range continuously. The advantage of this solution over gravity-leveled lasers is high vibration resistance. Passing person, construction vehicles, compacting pavers, and many other sources of smaller or larger vibrations will not disrupt the work of the laser user.
- working range: 30 m
- accuracy: ± 2 mm/10 m
- self-leveling range: ± 3.0°
- laser power: ≤1 mW
- laser wavelength: 508-530 nm
- mounting: 1/4''
- IP54 sealing class guarantees dustproofness and resistance to drops from any direction
- housing made of durable plastic in IP54 sealing class, with rubber anti-slip overlays
- laser class: 2
- working temperature: -10 ~ +40˚C
- 2 batteries 3.7 V with increased capacity 3600 mAh allow continuous operation with alternately use
- max. working time on one battery charge: 3 h
- packed in a suitcase with vibration-absorbing foam filling

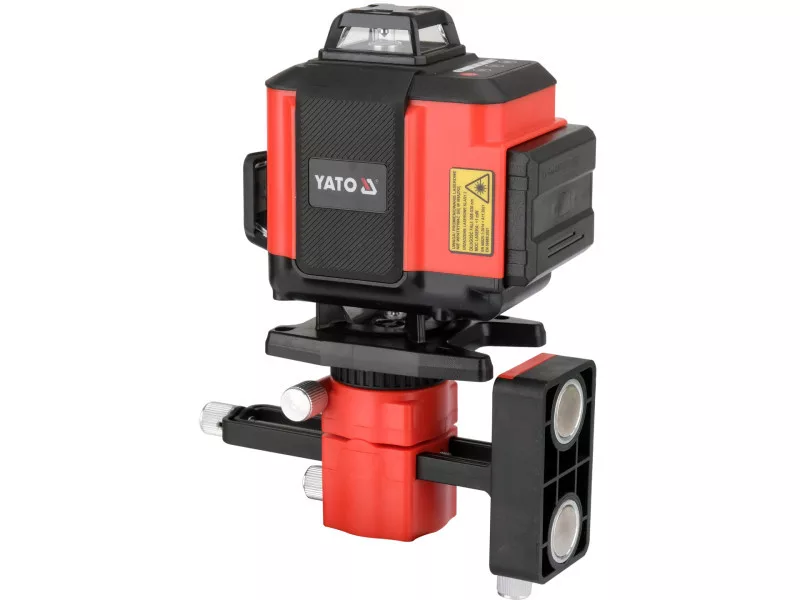

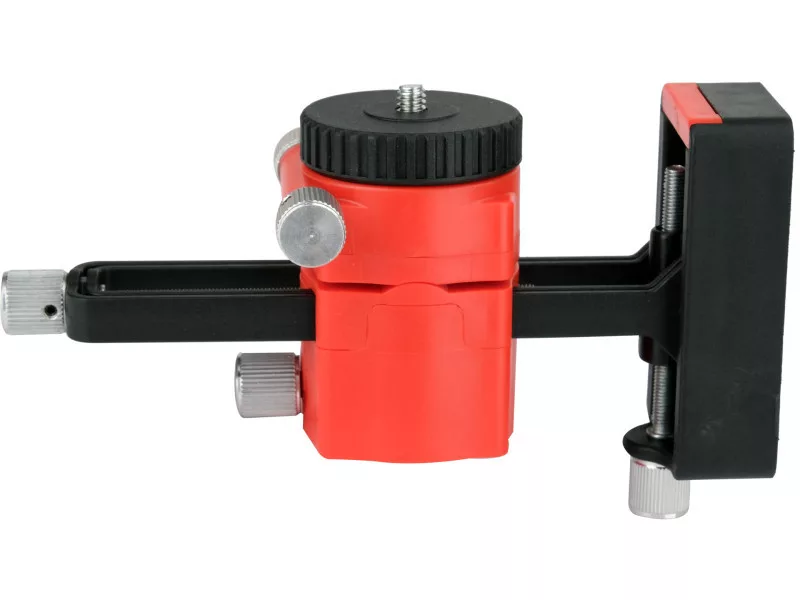

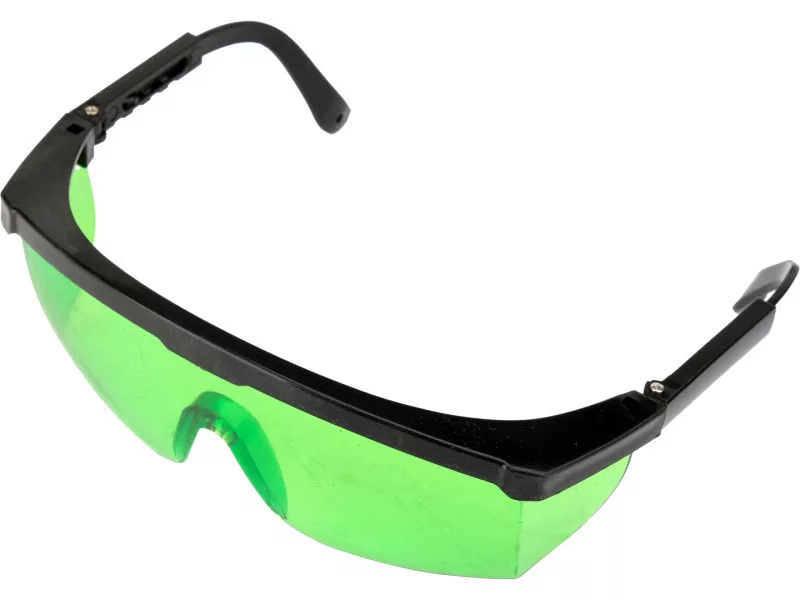

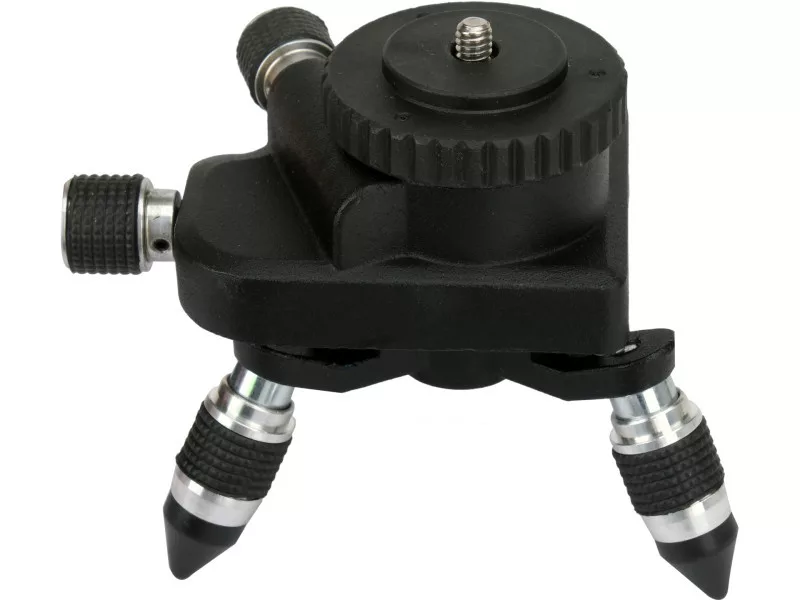

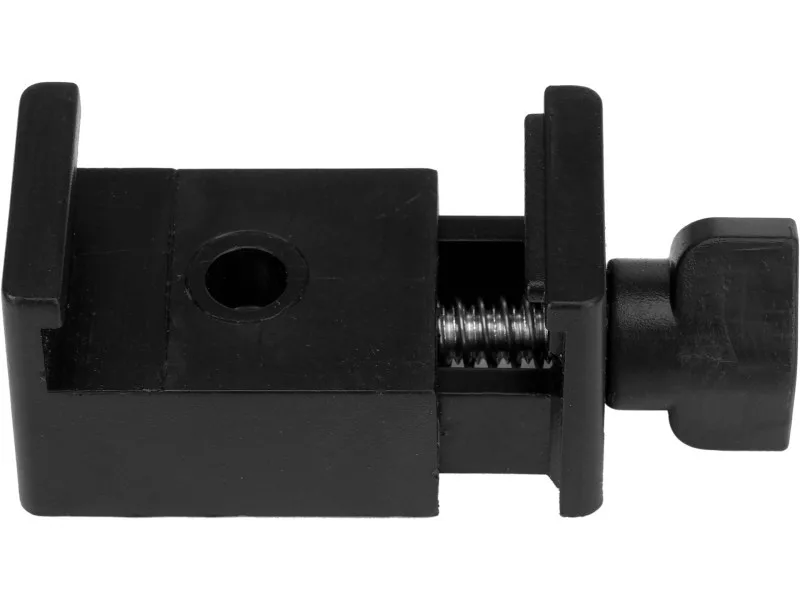

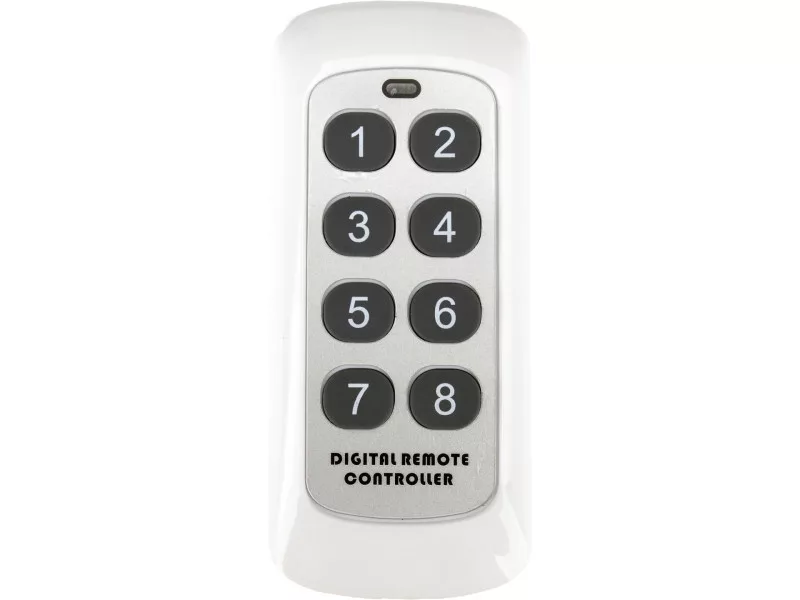

- included in the set: tripod with 1/4" (6.35 mm) 20UNC thread, 2 batteries, charger, remote control, wall mount, tripod adapter, metal plate, mini tripod with XYZ axis adjustment, adjustable top-down platform, protective glasses
- dimensions: 117 x 99 x 133 mm
- weight: 0.51 kg
Usage warnings:
Caution: laser radiation. Do not stare into the laser beam.
Class 2 laser device.
