| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRE |
| Working range | 10 m |
| Dimensions | 230x20x47 mm |
| Functions | distance measurement (single, continuous), marking vertically or horizontally, level illumination |
| Length | 230 mm |
| Material | ABS, aluminum |
| Vials | 2 |
| Laser | yes |
| Laser class | 2 |
| Laser power | ˂1 mW |
| Laser wave length | 630-670 nm |
| Laser accuracy | ±3 mm / 0.5-20 m |
| Laser indicator type | linear |
| Laser pointer colour | red |
| Magnet | yes |
| Magnet quantity | 3 |
| Display type | LED |
| Power supply | rechargeable |
| Battery type | Li-Ion |
| Battery voltage | 3.7 V d.c. |
| Battery capacity | 300 mAh |
| Battery energy | 1.11 Wh |

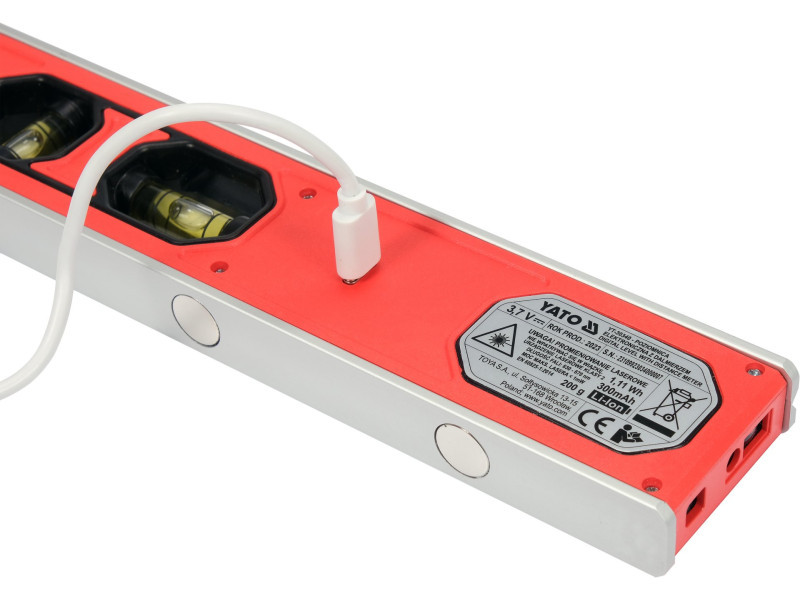

| Charger type | USB Type-C |
| Auto power off | 3 min |
| Working temperature range | 10~40 ˚C |
| Storage temperature | 0~50 ˚C |
| Weight | 200 g |
| Symbol | YT-30340 |

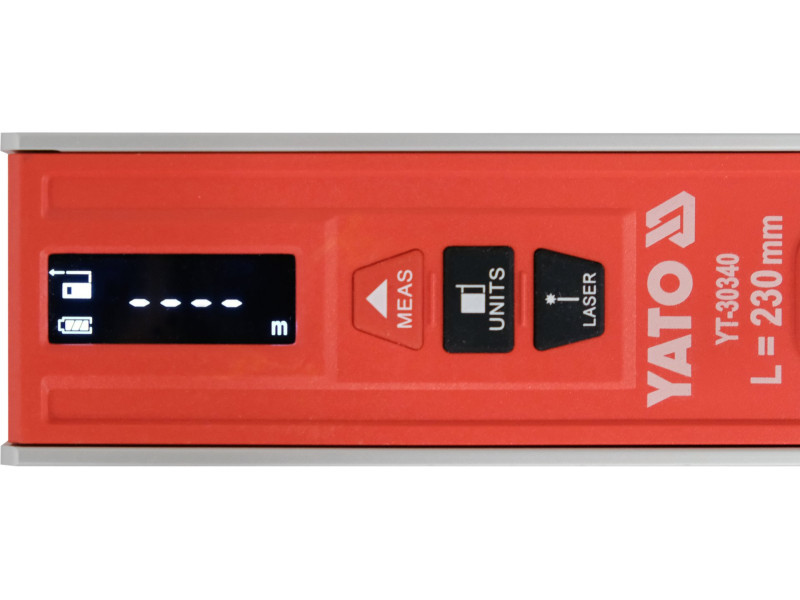

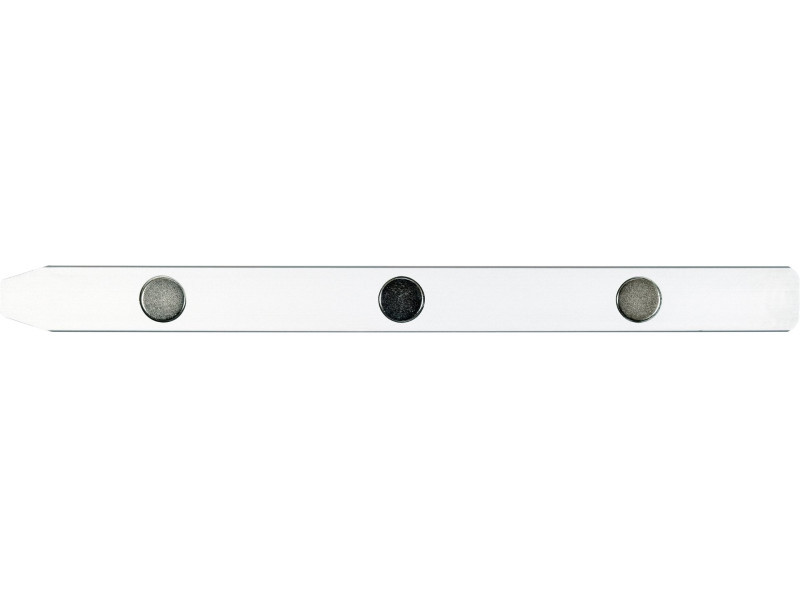

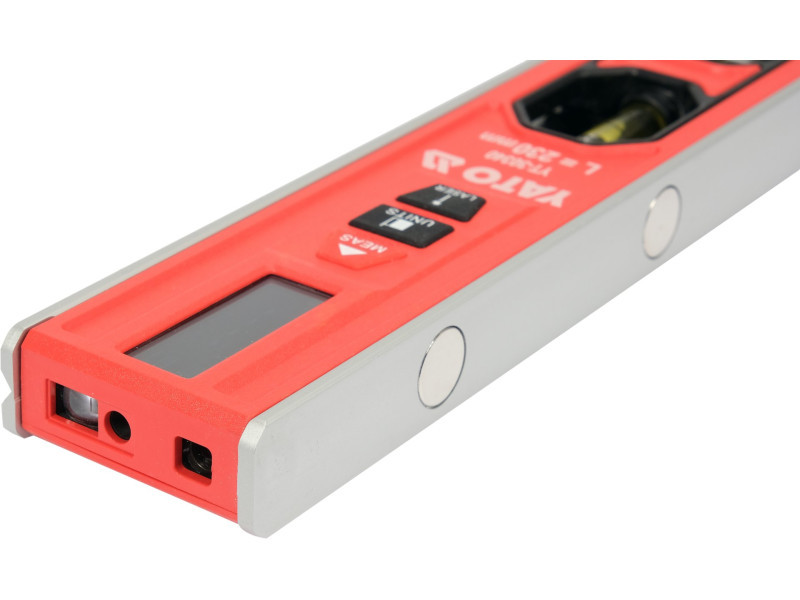

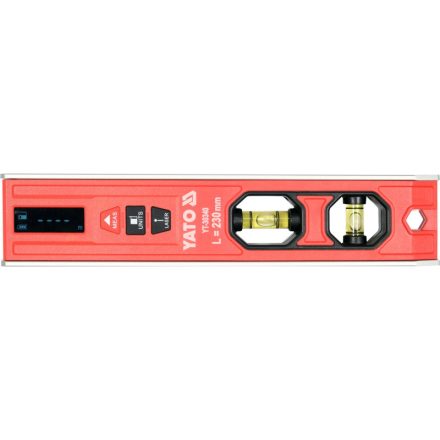

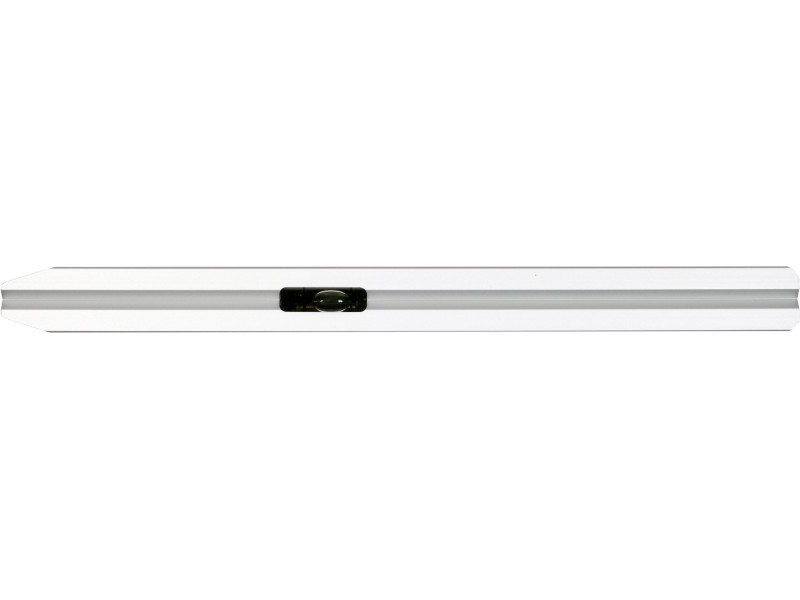

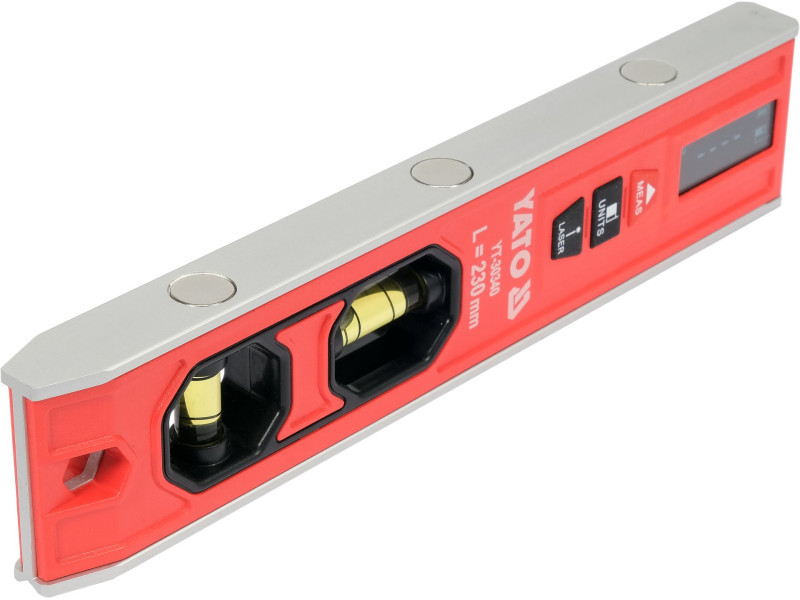

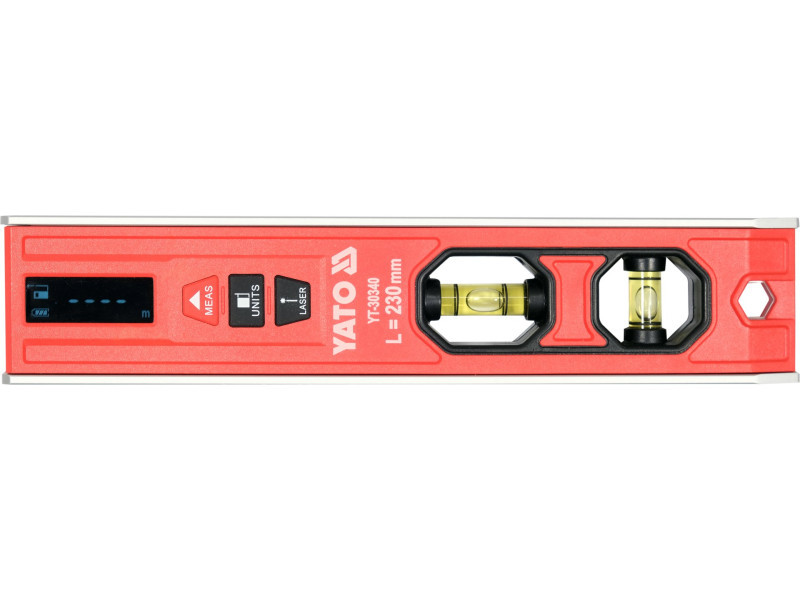

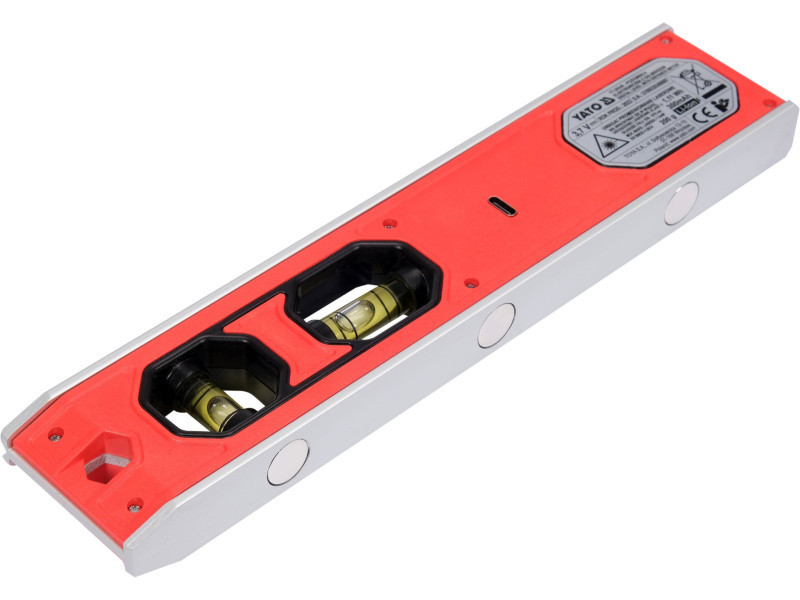

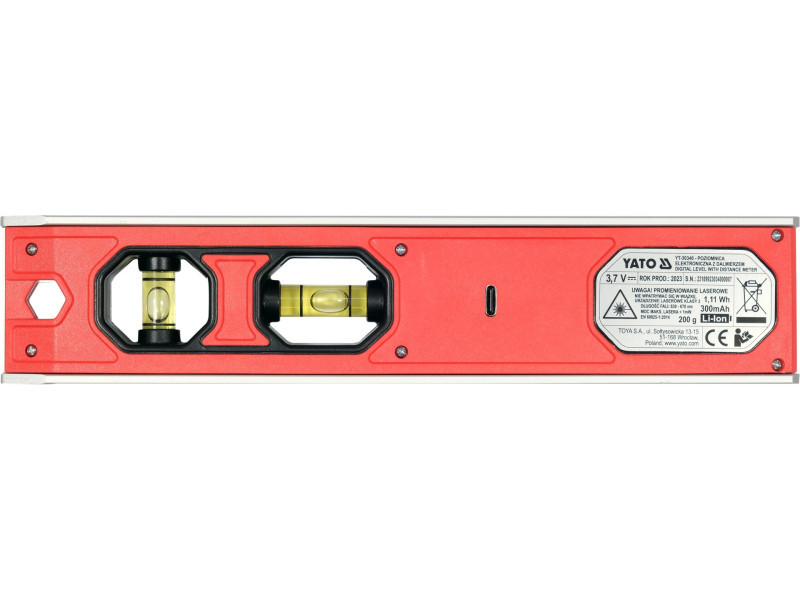

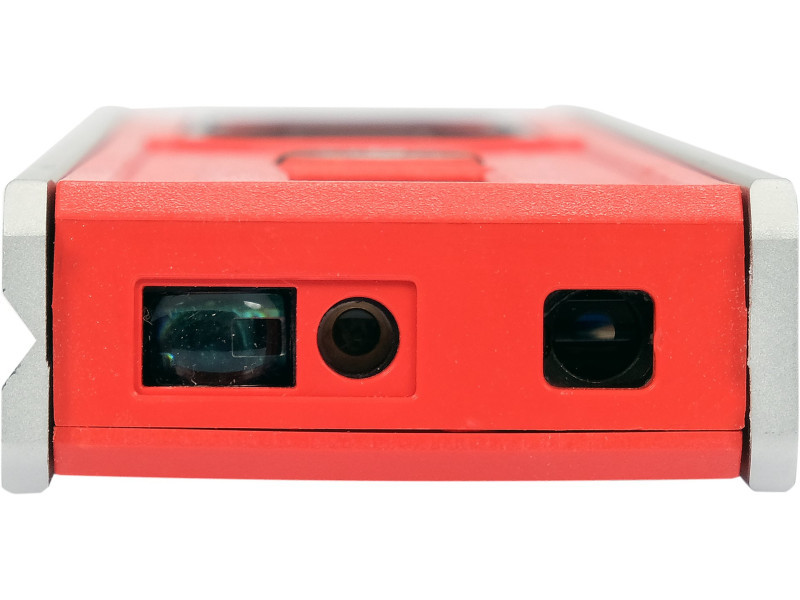

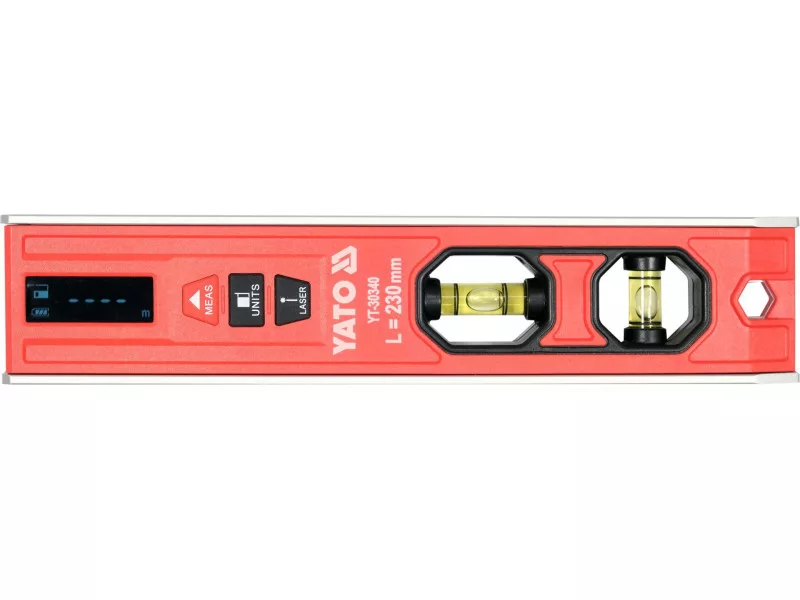

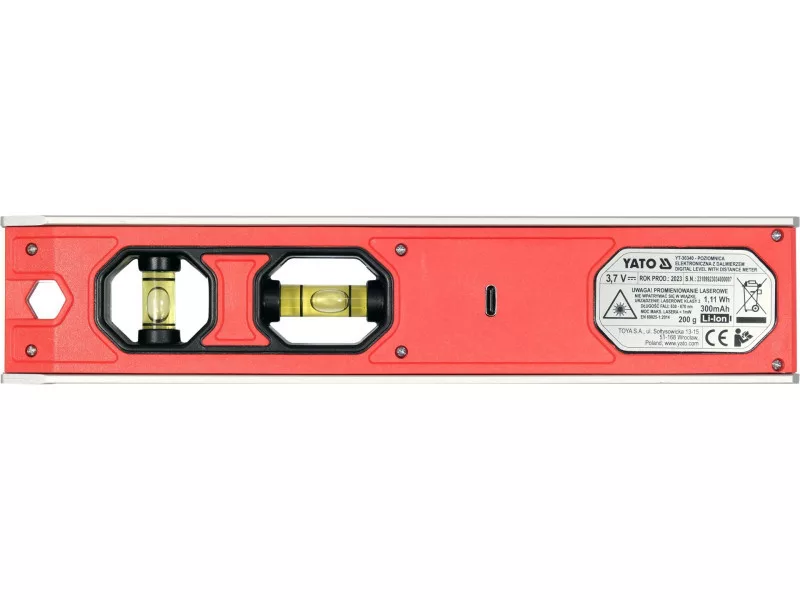

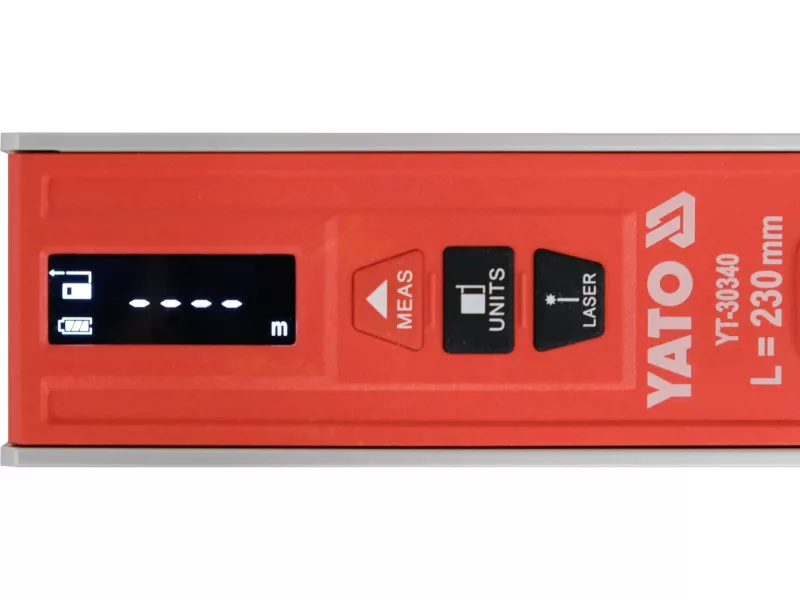

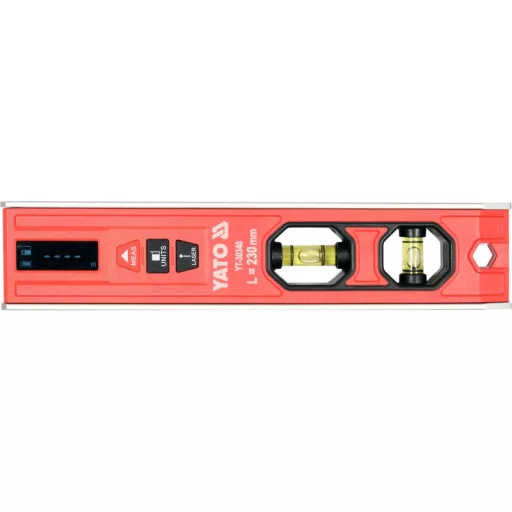

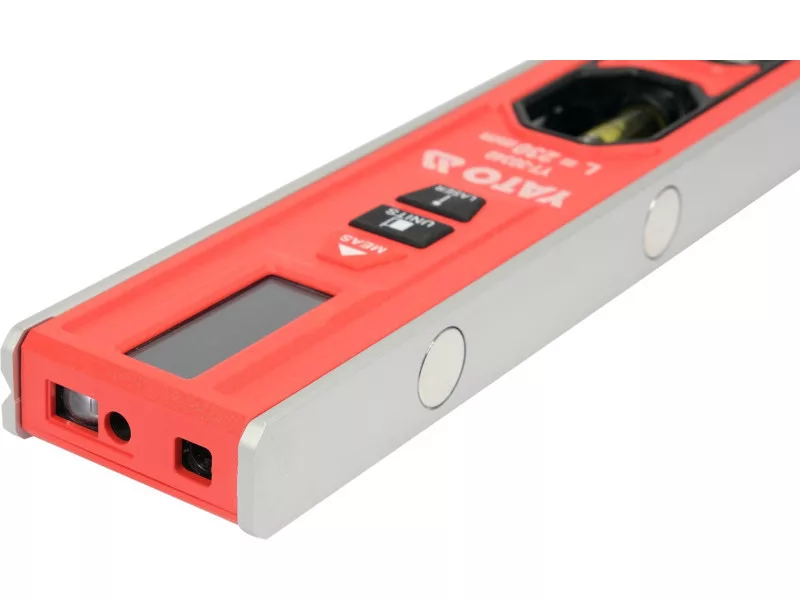

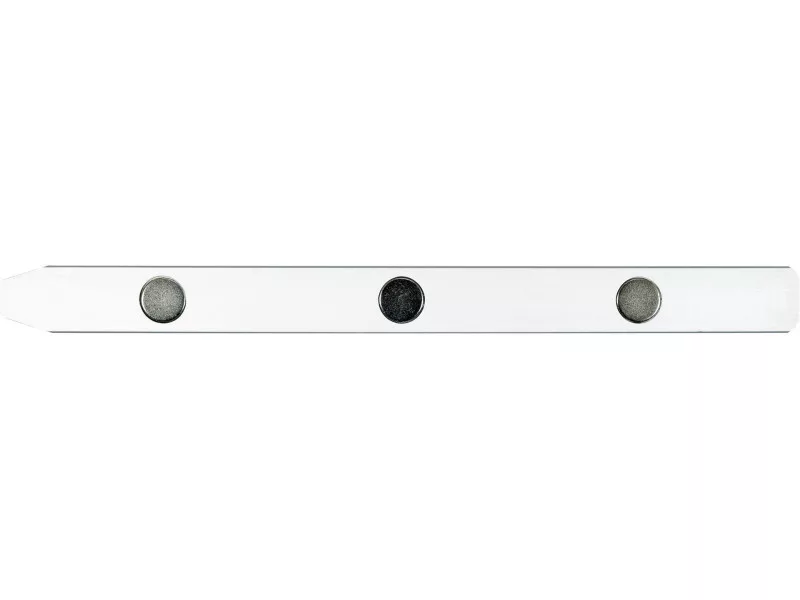

Electronic torpedo level 230 mm with laser for distance measurement and horizontal or vertical line determination. The rangefinder can operate in stationary or dynamic mode (changing distance during measurement). Can be measured from the front or rear edge. The results are displayed on the LCD screen. A groove (prism) is cut into the upper plane of the housing. The spirit level has two glass vials that can be illuminated independently of each other. There are 3 strong magnets mounted in the base. Body made of aluminium section, housing made of ABS.
- laser accuracy: ± 3 mm / 0.5-20 m
- laser: class 2, red colour
- automatic switch-off after 3 min
- operating temperature: 10 to 40 ˚C
- power supply: lithium batteries 300 mAh 3.7 V
- dimensions: 230x20x47 mm
Usage warnings:
Caution: laser radiation. Do not stare into the beam.
Class 2 laser device.
