| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Functions | drukowana skala w siatce 1 mm, specjalna skala dla elektryków (umożliwia wykonanie 4 oznaczeń w standardowej odległości 71 mm) |
| Length | 500 mm |
| Material | ABS, aluminum |
| Vials | 2 |
| Spirit level accuracy | 1 mm/m = 0.057˚ |
| Application | prace instalacyjne, w szczególności przy montażu osprzętu elektrycznego, jak puszki, listwy, rozdzielnice, ogólne prace budowlane wymagające powtarzalnych i dokładnych pomiarów |
| Symbol | YT-30329 |

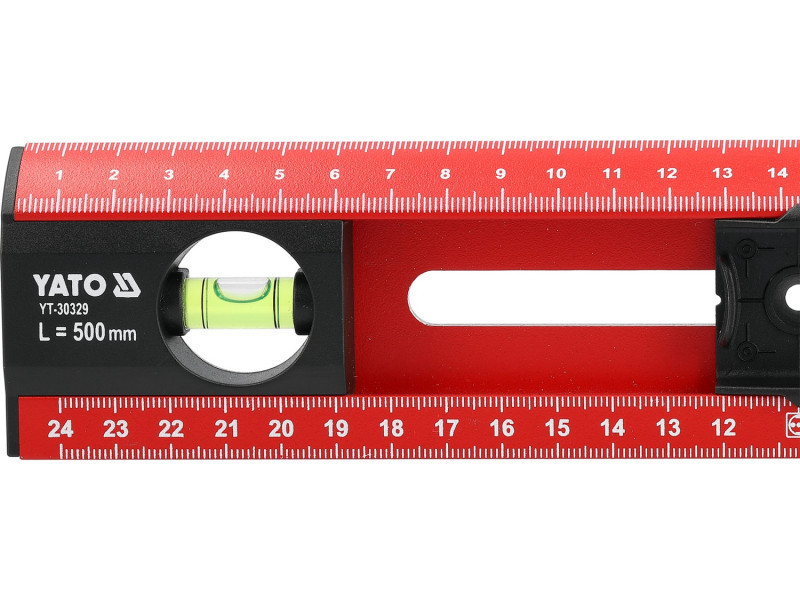

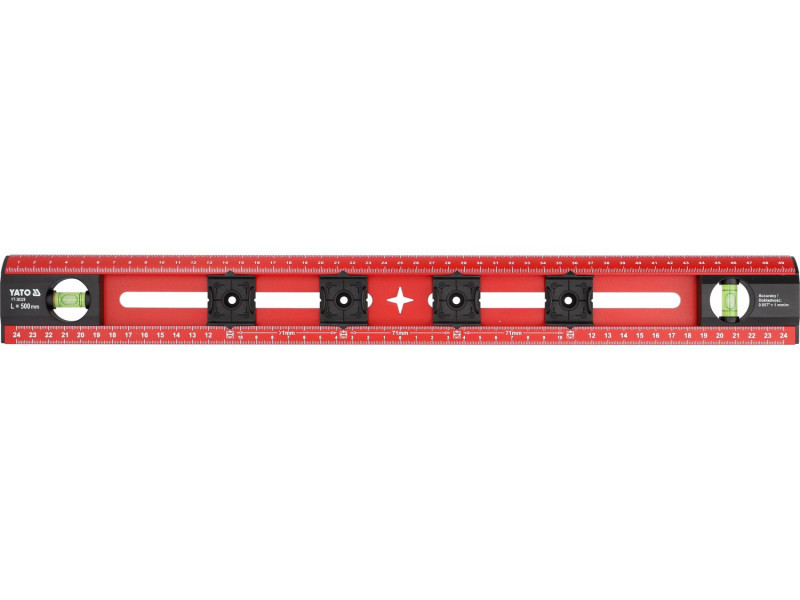

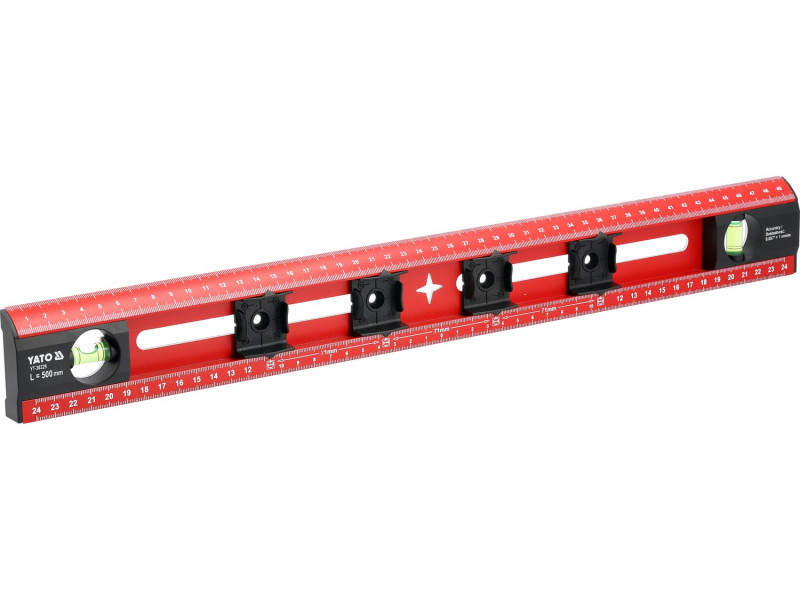

The 500 mm spirit level is designed for demanding installation tasks where precise leveling and vertical alignment are crucial right from the layout stage. The appropriate working length allows for stable support of the tool against the surface, resulting in reliable readings and a reduced risk of error when installing components in a straight line.
This model takes into account the specific needs of electricians – from installing flush-mounted boxes, to marking the axes of fixtures, to setting up distribution boards and cable trays. Clear markings, a durable profile, and a special installation scale help to shorten measurement time and increase the repeatability of settings without the need for additional measuring tools.
Features and specifications:
- measurement accuracy of 0.5 mm/m (0.027°) – ensures reliable readings
- durable aluminum profile with flexible markers that absorb shocks and protect measuring elements from damage during intensive use
- length of 500 mm enhances work ergonomics, while the rigid construction allows for stable application to the working plane
- precise measurement in any position – the spirit level maintains exceptional accuracy both in the standard position and when inverted, which is important for measurements in challenging installation conditions, such as overhead or in narrow spaces
- clearly printed scale in a 1 mm grid – facilitates quick reading of dimensions without the need for additional measuring tools

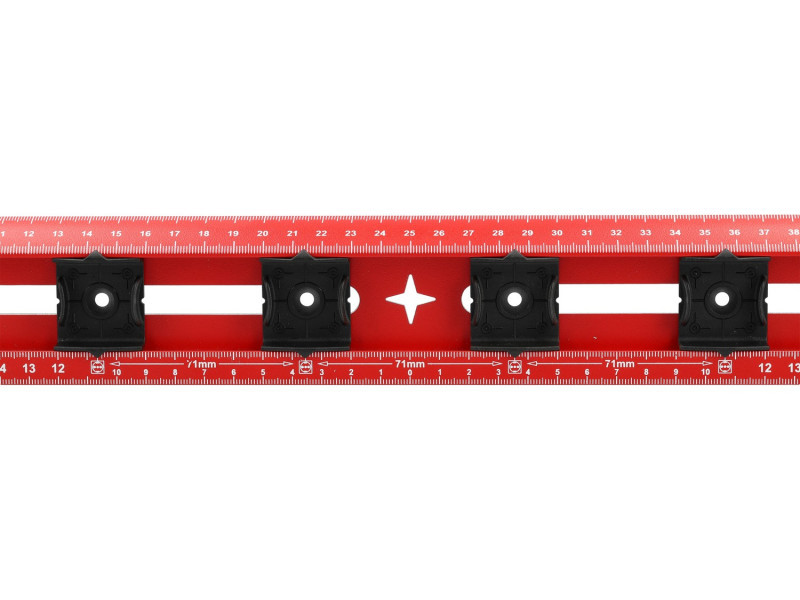

- special scale for electricians – allows for 4 markings at the standard distance of 71 mm, corresponding to typical spacing for electrical boxes
- anti-slip protective pads – plastic pads placed on the bottom of the profile prevent the tool from shifting during measurement and protect delicate surfaces from scratches
- two vials – horizontal and vertical – allow for simultaneous reading of both planes, increasing the versatility of the tool in daily installation work
Intended use and applications:
- installation work, particularly in the installation of electrical fixtures such as boxes, strips, and distribution boards
- general construction work requiring repeatable and accurate measurements
- for professionals as well as users performing their own finishing work
