| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRE |
| Material | aluminum |
| Pcs | 33 |
| Set includes | mandrel x3 (Ø0.4", Ø0.6", Ø0.8"), inch adapter x16 (3/8 "x7/16", 7/16 "x1/2", 1/2 "x9/16", 9/16 "x5/8", 39/64 "x11/16", 5/8 "x3/4", 11/16 "x13/16", 47/64 "x7/8", 13/16 "x15/16", 55/64 "x1", |
| Set includes cont’d | 15/16"x1-1/16", 1"x1-1/8", 1-1/8"x1-1/4", 1-1/4"x1-3/8", 1-1/16"x1-3/16", 1-3/16"x1-5/16"), metric adapter x14 (Ø10x12, Ø12x14, Ø14x16, Ø15x17, Ø16x18, Ø18x20, Ø20x22, Ø22x24, Ø25x27, |
| Set includes cont’d 2 | Ø28x30, Ø30x34, Ø32x36, Ø35x40, Ø38x42 mm) |
| Application | for mounting bearings and seals |
| Symbol | YT-25418 |

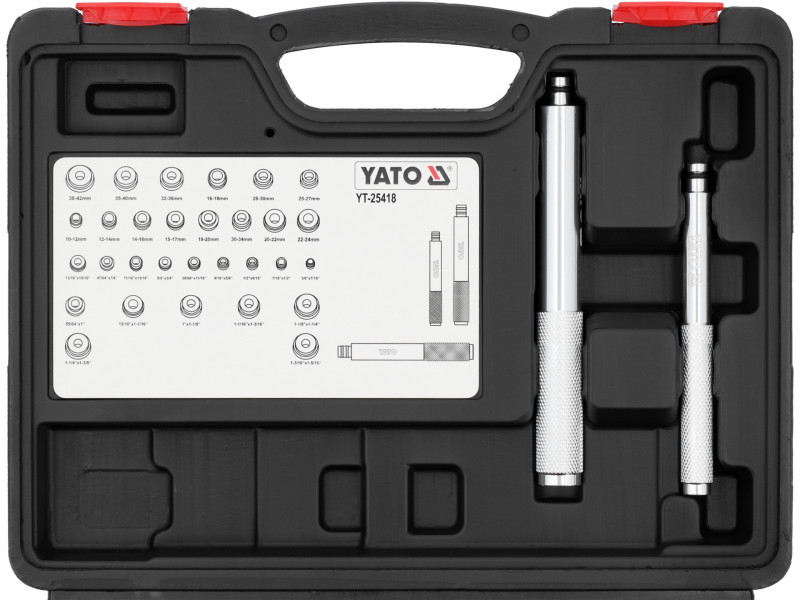

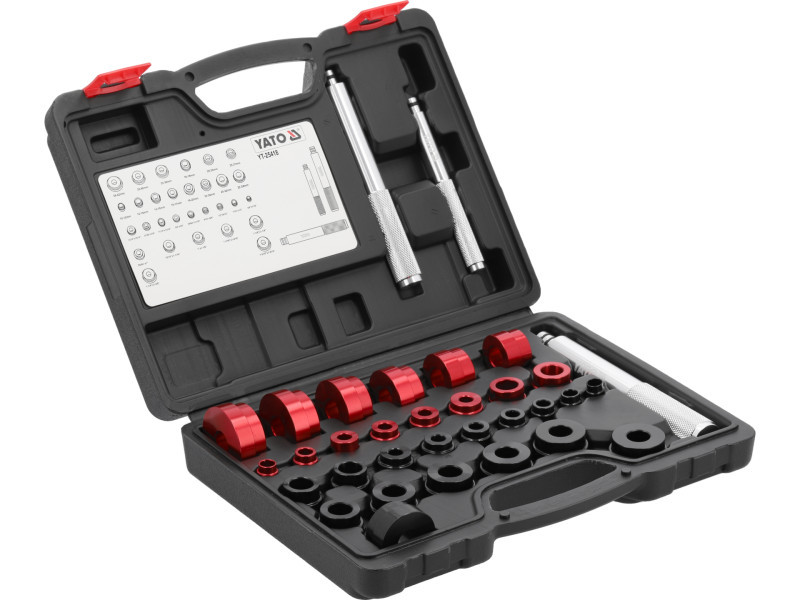

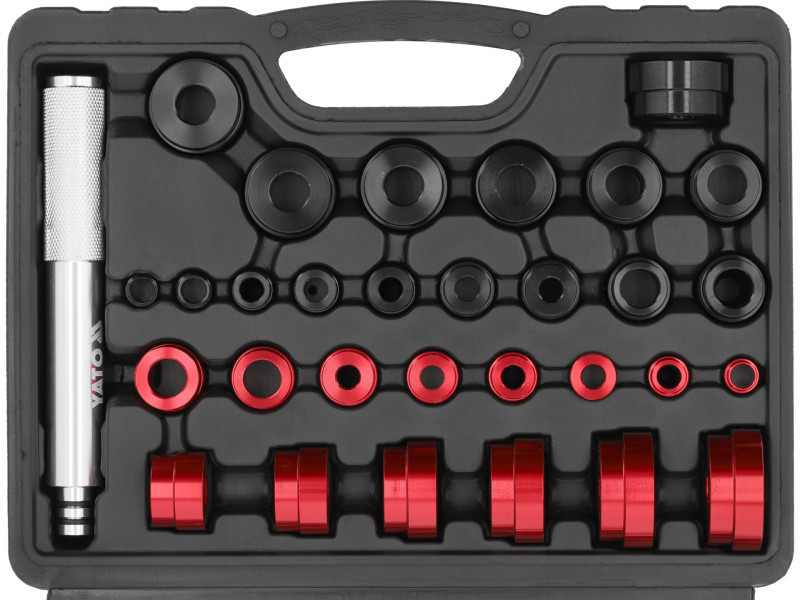

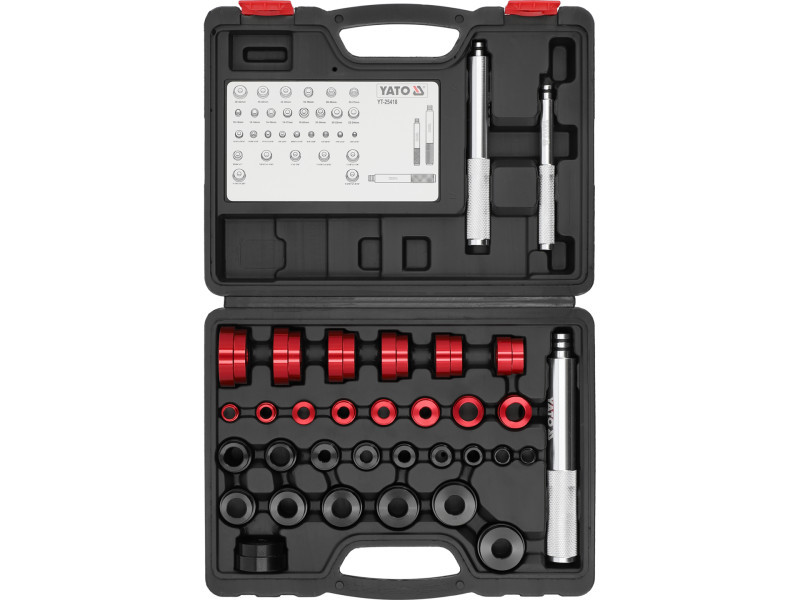

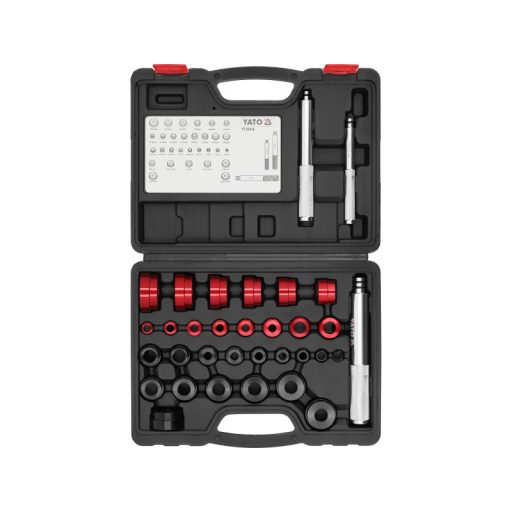

33-piece set designed for bearing and seal seating. Consists of inch and metric adapters.
- material: aluminium

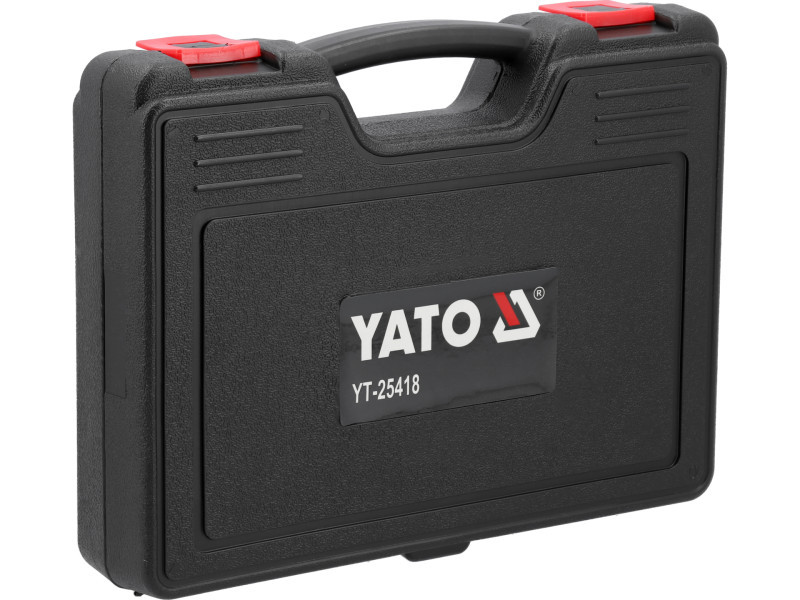

- clip-on case
- content:
- 3 pins with diameters: 0,4", 0,6", 0,8"
- inch adapters in sizes: 3/8" x 7/16", 7/16" x 1/2", 1/2" x 9/16", 9/16" x 5/8", 39/64" x 11/16", 5/8" x 3/4", 11/16" x 13/16", 47/64" x 7/8", 13/16" x 15/16", 55/64" x 1", 15/16" x 1-1/16", 1" x 1-1/8", 1-1/8" x 1-1/4", 1-1/4" x 1-3/8", 1-1/16" x 1-3/16", 1-3/16" x 1-5/16"
- metric adapters with diameters: 10 x 12 mm, 12 x 14 mm, 14 x 16 mm, 15 x 17 mm, 16 x 18 mm, 18 x 20 mm, 20 x 22 mm, 22 x 24 mm, 25 x 27 mm, 28 x 30 mm, 30 x 34 mm, 32 x 36 mm, 35 x 40 mm, 38 x 42 mm
Usage warnings:
Warning! Always use personal safety equipment at work.
