| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Functions | cutting wires, insulation stripper |
| Cross section F mm2 | 0.2-6 |
| Cross section F AWG | 24~10 |
| Cross section A mm2 | 0.5-6 |
| Cross section A AWG | 22~10 |
| Cross section B mm2 | 0.5-6 |
| Cross section B AWG | 22~10 |
| Cross section C mm2 | 0.5-6 |
| Cross section C AWG | 22~10 |
| Length | 205 mm |
| Body material | A3 steel |
| Surface finish | blackened, oxidized |
| Blade material | Cr12MoV |
| Handle material | PP, TPR |
| Pcs | 191 |
| Application | electric |
| Symbol | YT-23133 |

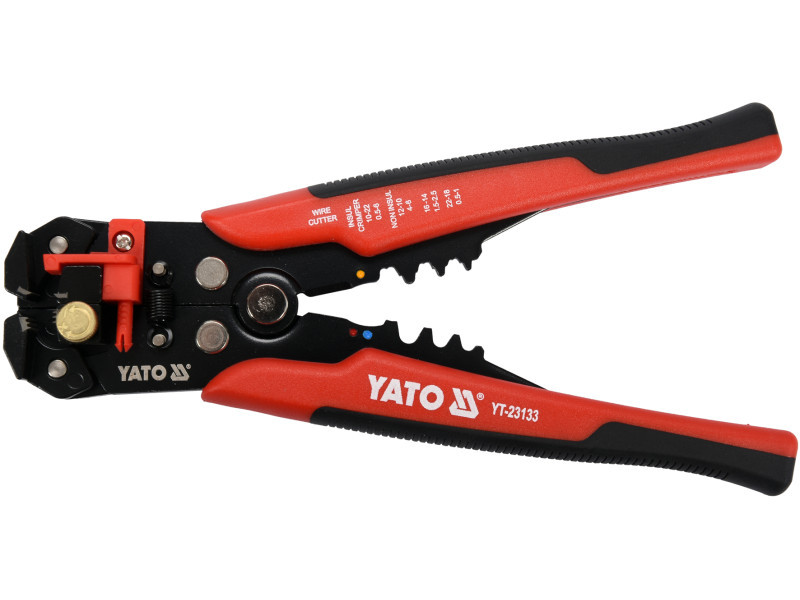

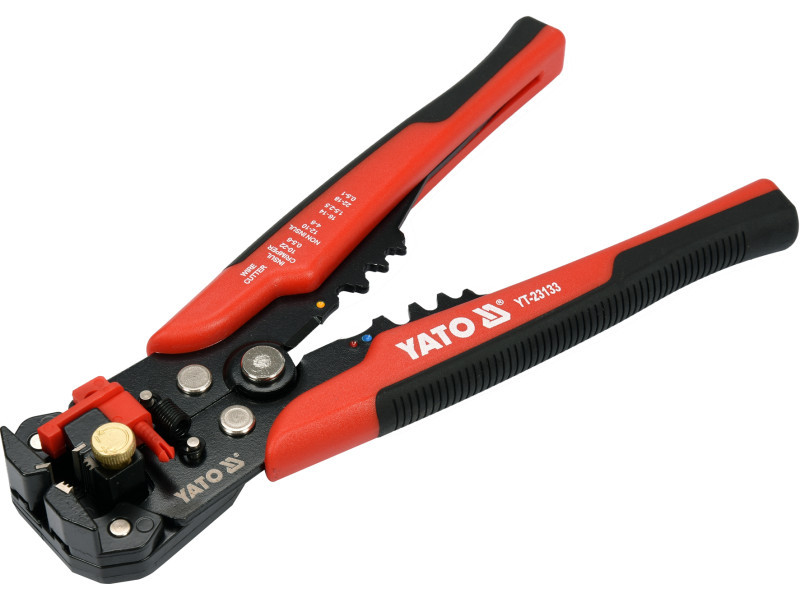

Set of insulated connectors with multifunctional pliers YT-23133. The body of the pliers is made of A3 steel, and the insulation stripping elements are made of durable hardened Cr12MoV alloy tool steel. The handles are protected by two-component plastic caps. The harder PP component grips firmly to the body, while the TPR outer part is pleasant to the touch and has non-slip properties. The pliers have been protected from corrosion by an oxidation method. The design of the pliers makes it possible to strip insulation from both the ends and the center of the wire. The depth stop works well when installing wires, such as in connectors or wago cubes.
- Mechanism for fast and automatic stripping of insulation from both flat and round conductors in the range of 0.2 mm2 to 6.0 mm2
- working jaw tips made of durable tool steel Cr12MoV.strong>Cr12MoV
- can cut wires
- can crimp crimped connectors
- can crimp insulated connectors

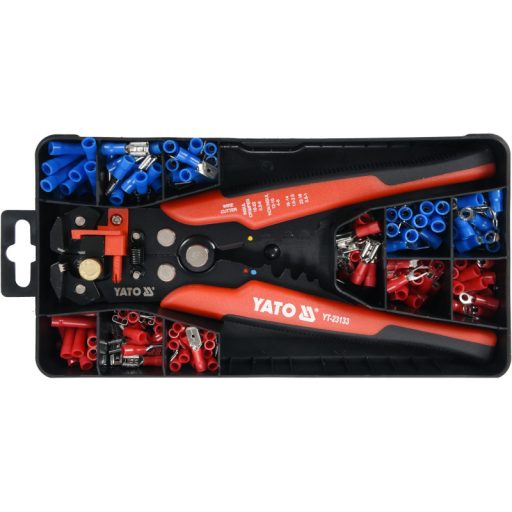

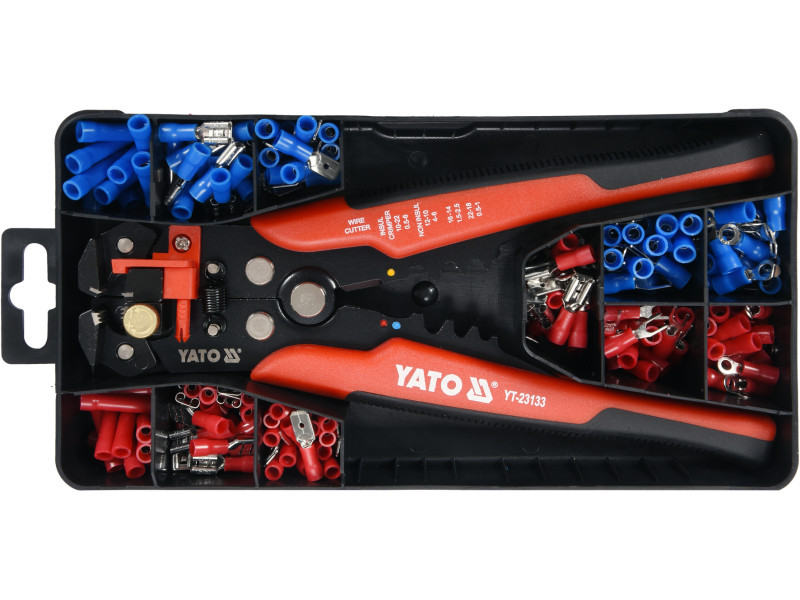

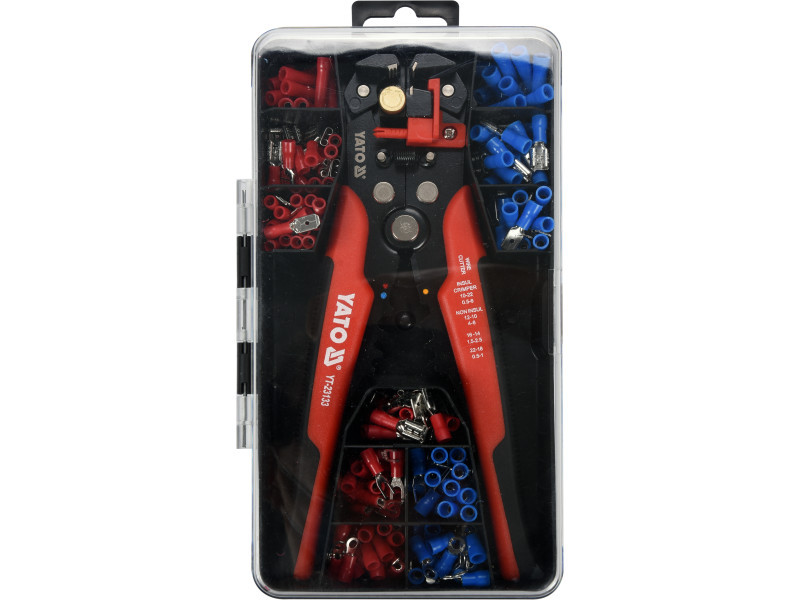

COMPANY OF KITS YT-23133:
- Multifunctional pliers for insulating and crimping connectors
- Red and blue insulated connectors eyelet type: 20 pieces each
- Red and blue insulated connectors fork type: 20 pieces each
- Red and blue insulated connectors female slip-on type: 20 pieces each
- red and blue insulated connectors male slip-on type: 20 pieces each
- red and blue insulated connectors: 10 pieces each
- red insulated slip-on connectors piggy-back type: 10 pieces
Usage warnings:
Warning! Always use personal safety equipment at work.
