| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Functions | cutting wires, insulation stripper |
| Cross section A mm2 | 0.2-6 |
| Cross section A AWG | 24~10 |
| Cross section B mm2 | 0.2-6 |
| Cross section B AWG | 24~10 |
| Length | 225 mm |
| Body material | stainless steel 41 |
| Surface finish | surfaced |
| Blade material | 420 stainless steel |
| Handle material | PP, TPR |
| Application | electric |
| Symbol | YT-22703 |

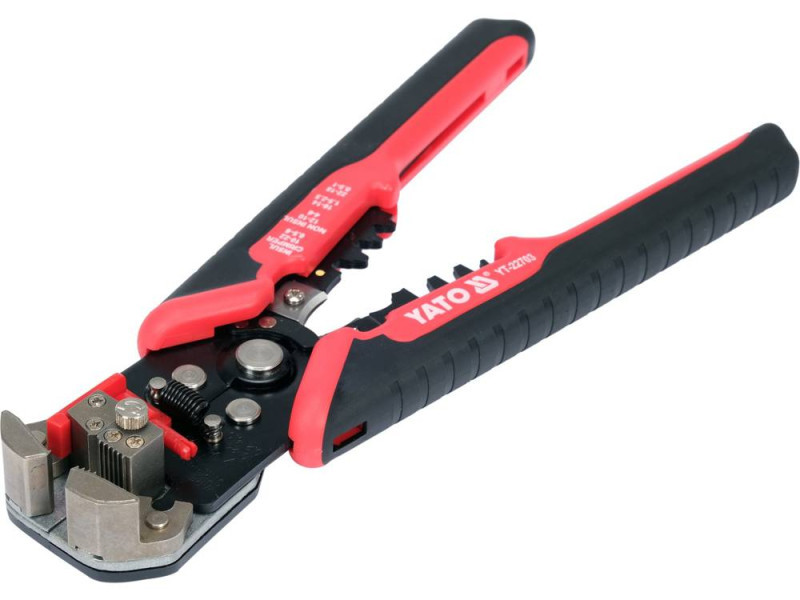

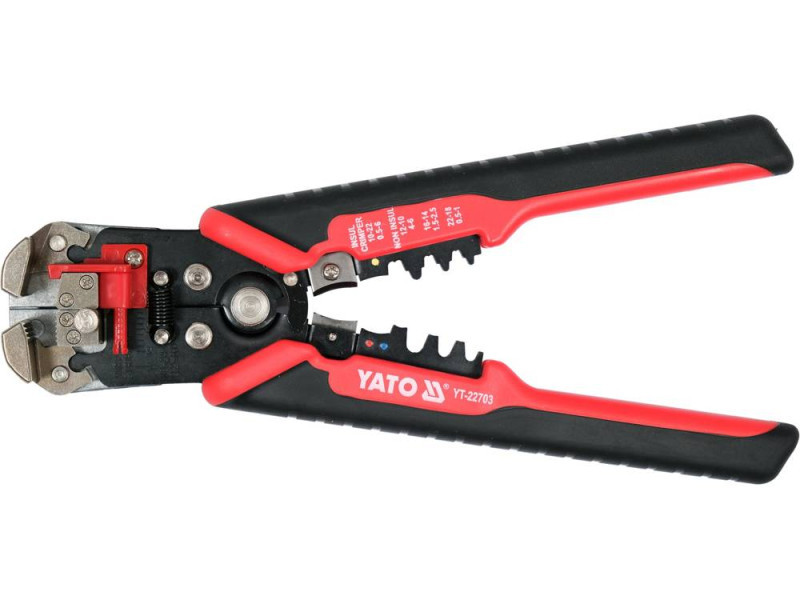

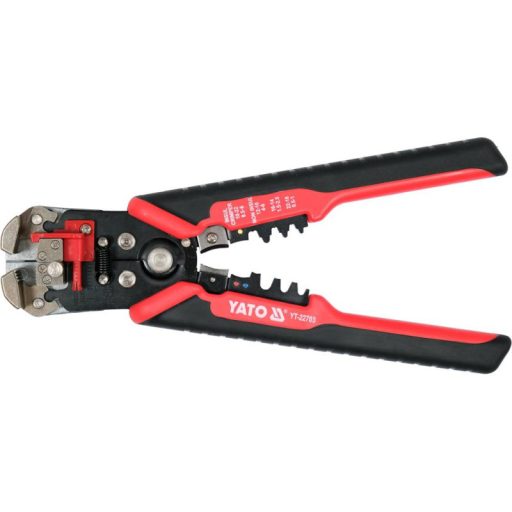

Multifunctional pliers for stripping insulation and crimping connectors. The head entirely made with powder metallurgy technology guarantees repeatability of work even after many years of use. Replaceable cutting blades made of high-quality stainless steel will easily cut through copper wire of up to 10 mm2. The blackened surface protects against corrosion. The length of up to 225 mm translates into less use of force during both cutting and stripping. Handles protected by two-component plastic caps. The harder PP component firmly adheres to the body, while the TPR exterior is pleasant to the touch and has anti-slip properties.
- Mechanism for fast and automatic wire stripping of both flat and round wires from 0.05 mm2 to 6.0 mm2
- cuts wires (spare replacement blades included)
- Cutting blades. /li>
- crimping insulated connectors from 0.2 mm2 - 6.0 mm2
- crimp non-insulated connectors in the range of 0.2 mm2 - 6.0 mm2
Usage warnings:
Use of hand tools may be dangerous! Always use personal protection equipment at work. Use only proper undamaged tools. Select the type and size of tool according to intended application. Do not overload tools. Keep tools away from children. Use tools with proper care.
