| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Functions | cutting wires, insulation stripper, crimping ignition cable ends |
| Cross section F mm2 | 0.2-6 |
| Cross section F AWG | 24~10 |
| Cross section B mm2 | 1.5-6 |
| Cross section B AWG | 22~10 |
| Cross section C mm2 | 0.5-6 |
| Cross section C AWG | 22~10 |
| Auto ignition terminals diameter | 7-8 mm |
| Length | 205 mm |
| Body material | carbon steel |
| Surface finish | blackened, oxidized |
| Hardness | 52-57 HRC |
| Handle material | PP, TPR |
| Application | electric |
| Symbol | YT-2270 |

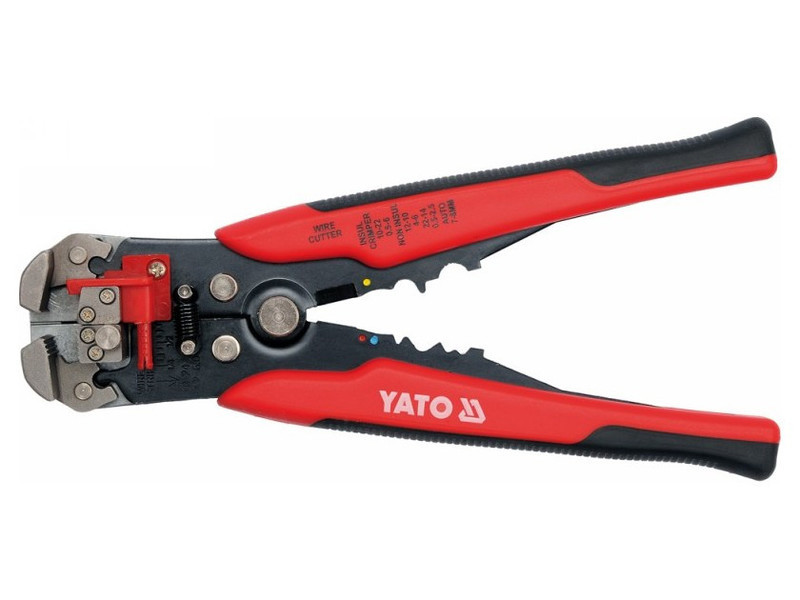

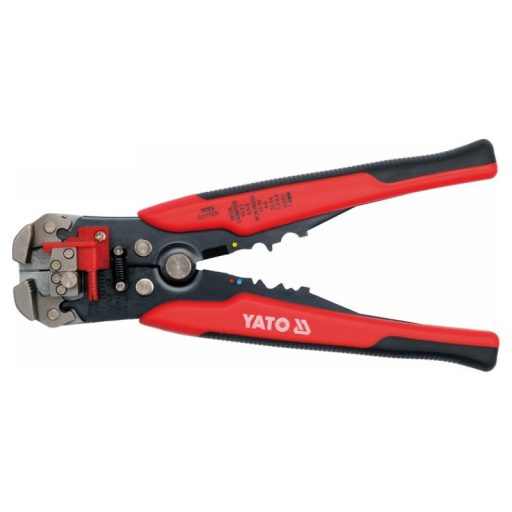

Multifunctional insulation pliers YT-2270 with a blackened surface thatóra protects against corrosion. Handles protected by two-component plastic caps.
- mechanism for fast and automatic stripping of insulation from bothówiredów flat as well as round wires in the range of 0.2 mm2 to 6.0 mm2
- working jaws made entirely of steel hardened to HRC 52-57
- possibility of cutting wires&&
- ability to crimp crimp connectors
- ability to crimp insulated connectors
.- possibility of crimping the endsós for car ignition wires

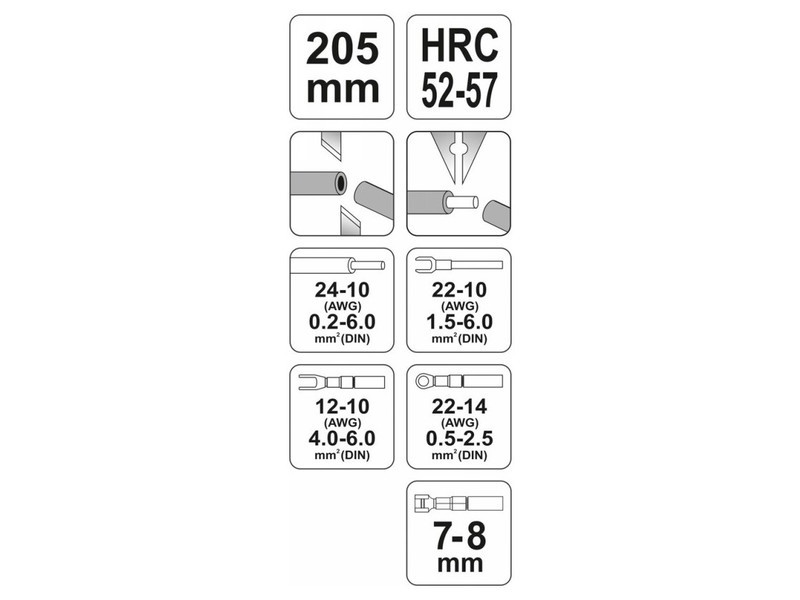

YT-2270 pliers application chart:
Usage warnings:
Warning! Always use personal safety equipment at work.
